HELLA

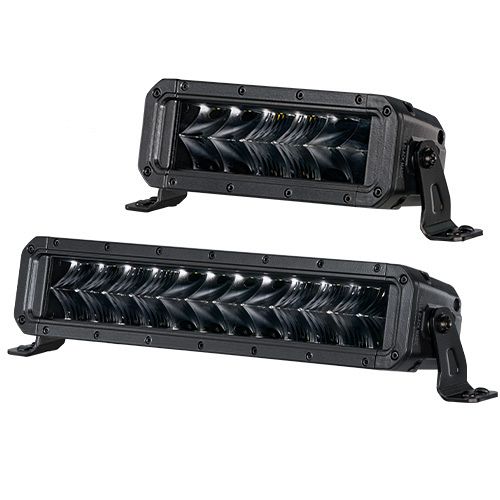

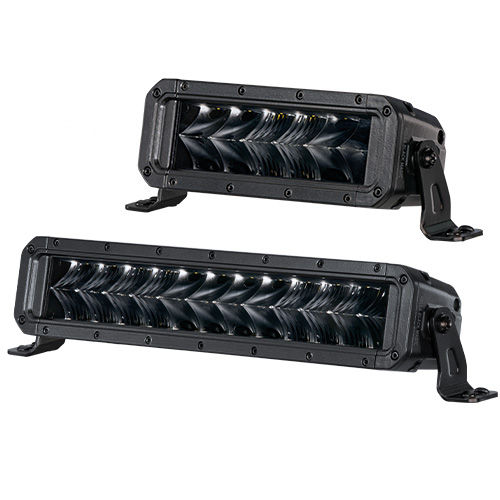

Black Magic TOUGH Mini Light Bars

The HELLA Black Magic TOUGH Mini Light Bar range is the ultimate compact lighting solution designed to tackle any challenge. With a sleek all-black design, right down to the smallest detail, these light bars offer both style and outstanding illumination.

What sets the TOUGH 13" and 7” Mini Light Bars apart is their ECE R149 certification. *When mounted in pairs, these lamps may be legally switched with the high beam circuit. This supersedes their previous R112 compliance.

The 13" model offers both extra range, and broader light fill closer to the vehicle, while the 7" model offers a tighly focussed long range spot beam.

Crafted for durability, these Black Magic Light Bars boast the highest level of dust and water resistance, making them perfect for the rugged conditions of New Zealand, no matter where your adventures take you.

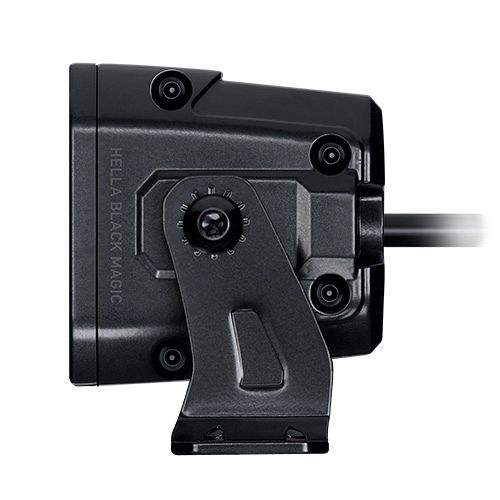

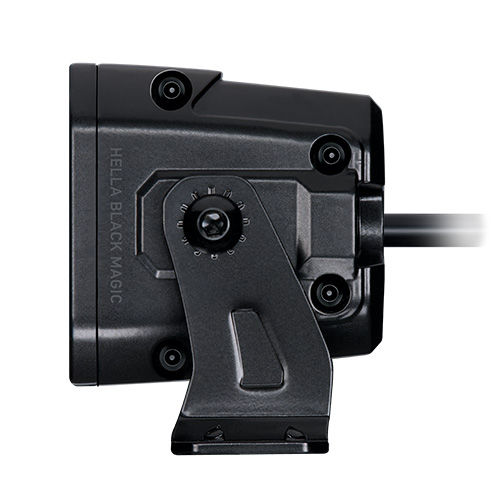

The TOUGH Mini Light Bar models are suitable for upright or pendant mounting. Backed by a 2 year warranty.

• Road Legal*
 Intense Light Output
•TOUGH Full Blackout Appearance
• Sleek Design
• Impact and Shock Resistant
• IP 68 / 69K Dust and Waterproof

Road Legal Black Magic Mini Light bar text over product on styled background

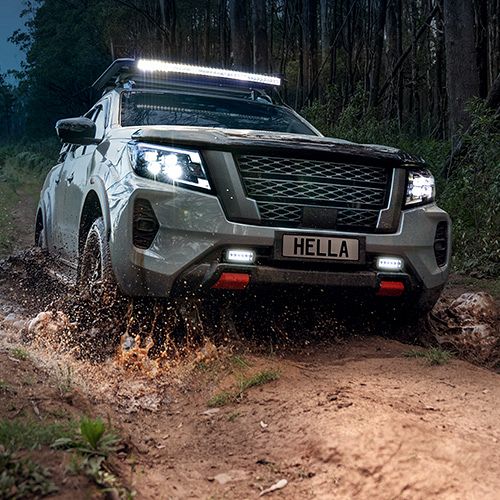

Black Magic text over Truck Image

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Can use either 12 or 24V

12/24V Dualvolt

Can use either 12 or 24V

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

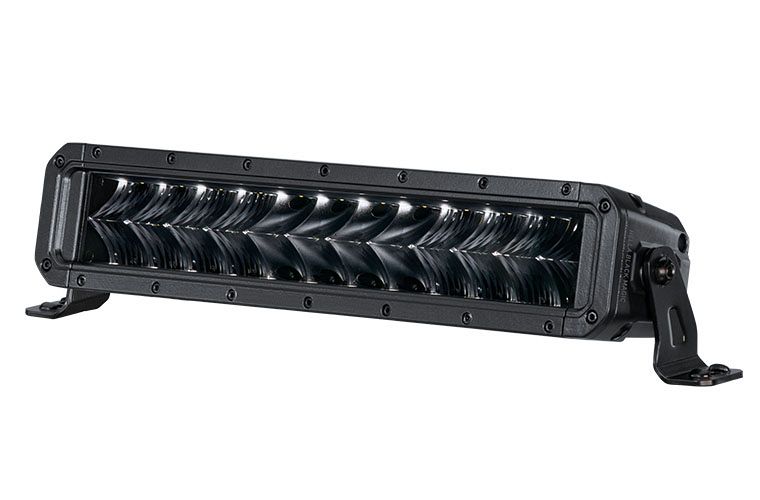

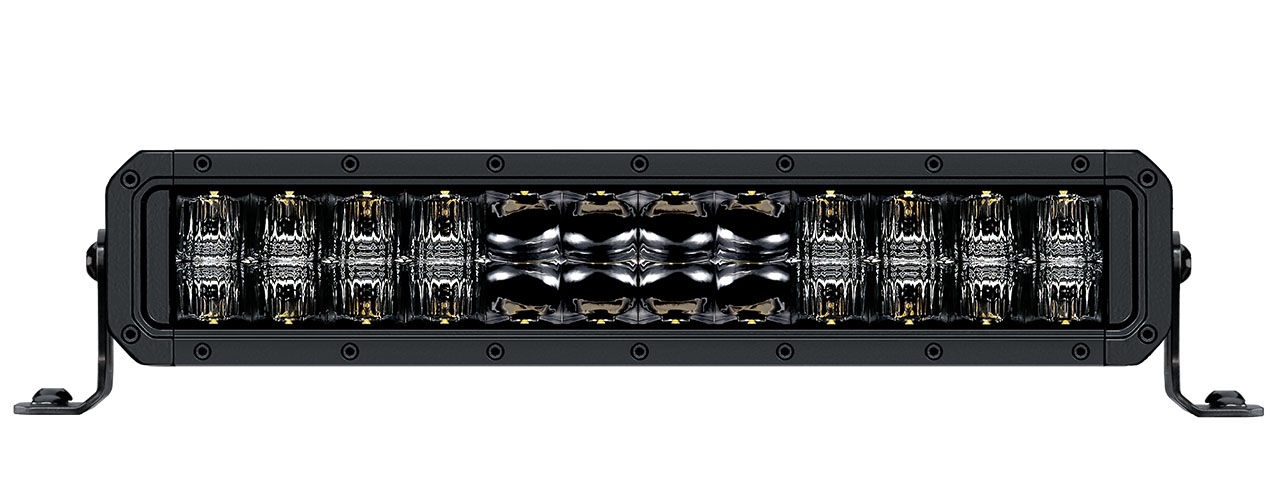

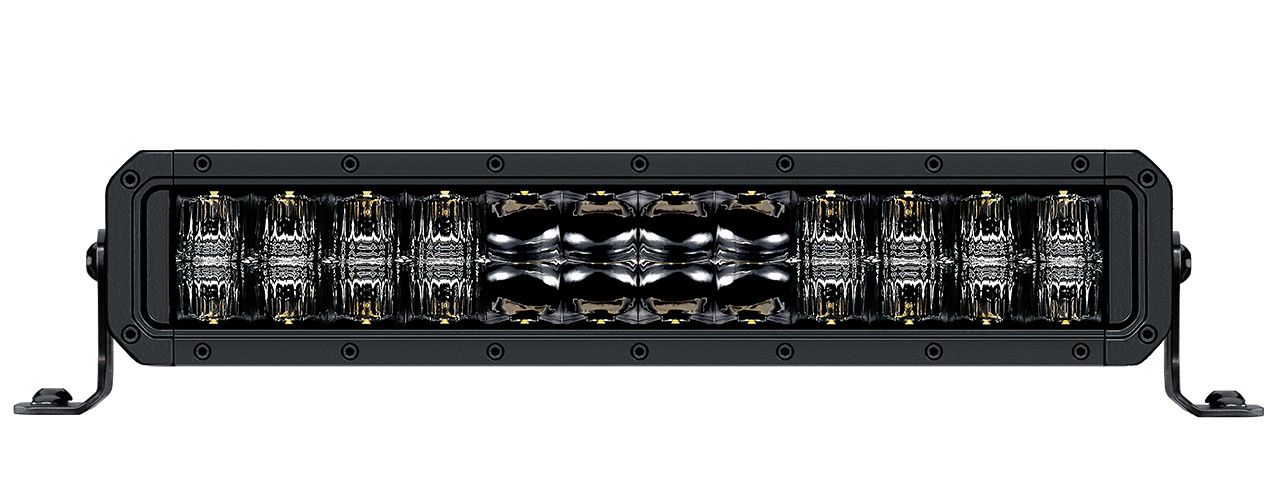

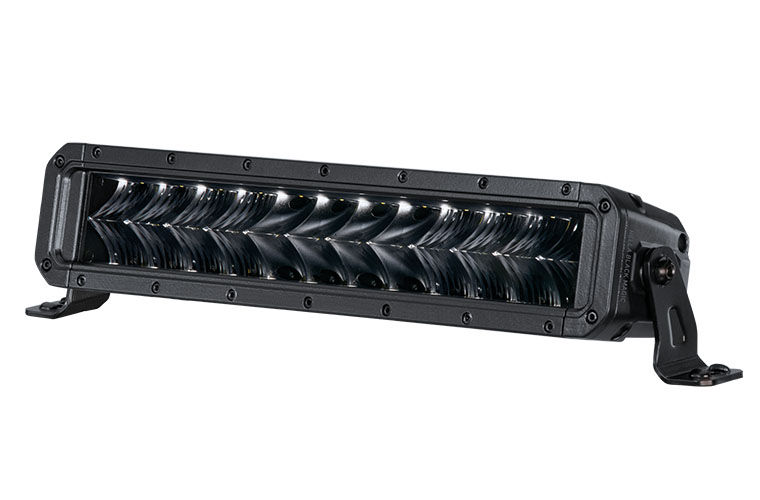

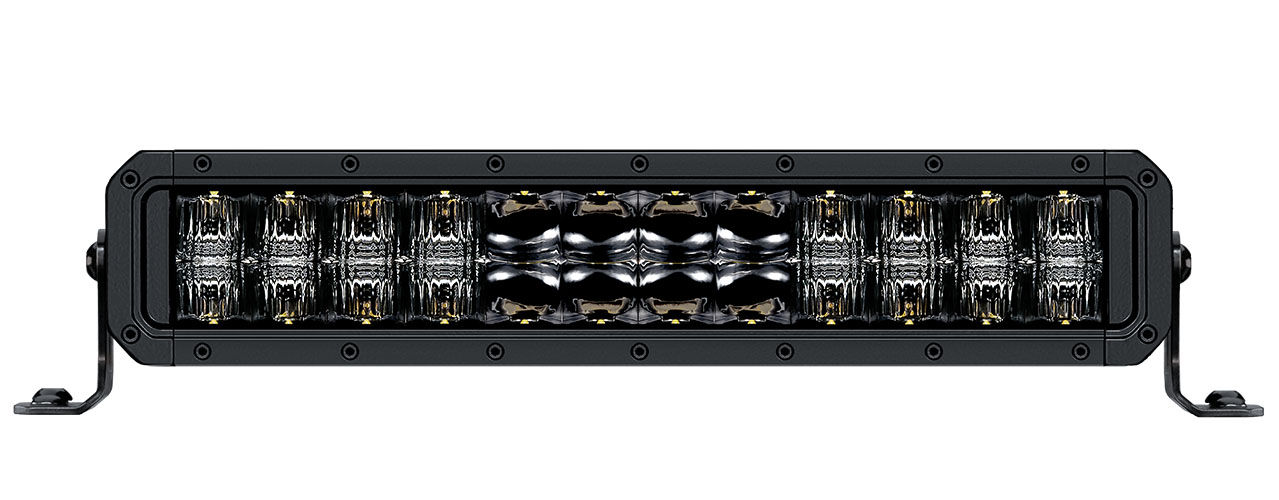

Black Magic TOUGH 13” Mini Double Row Light Bar

PART NO: 1FJ 358 196-461

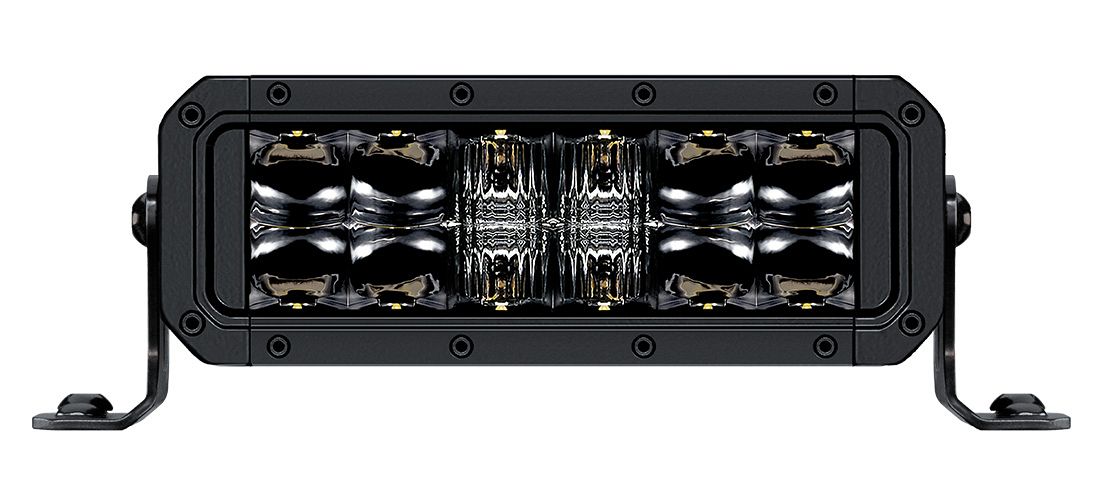

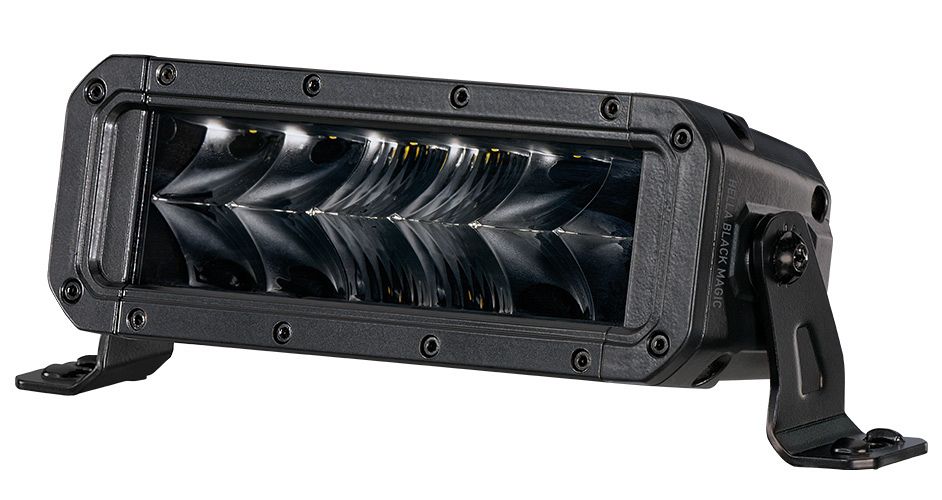

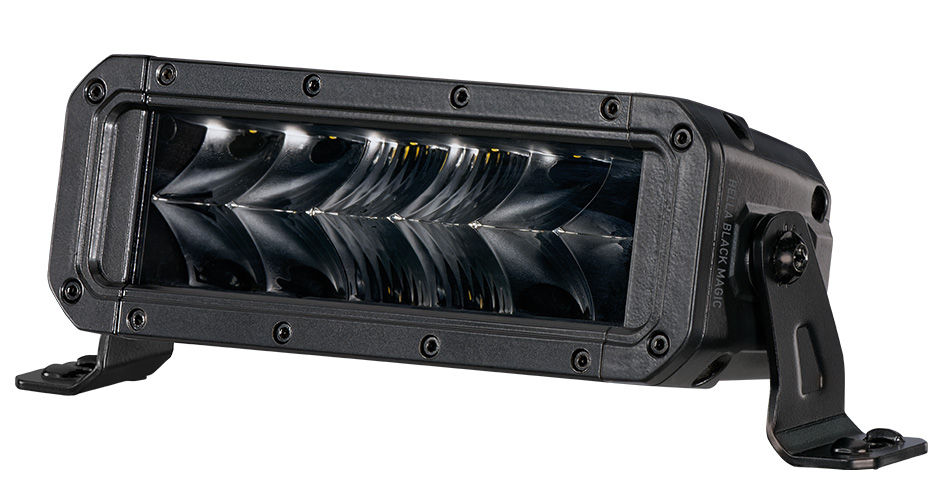

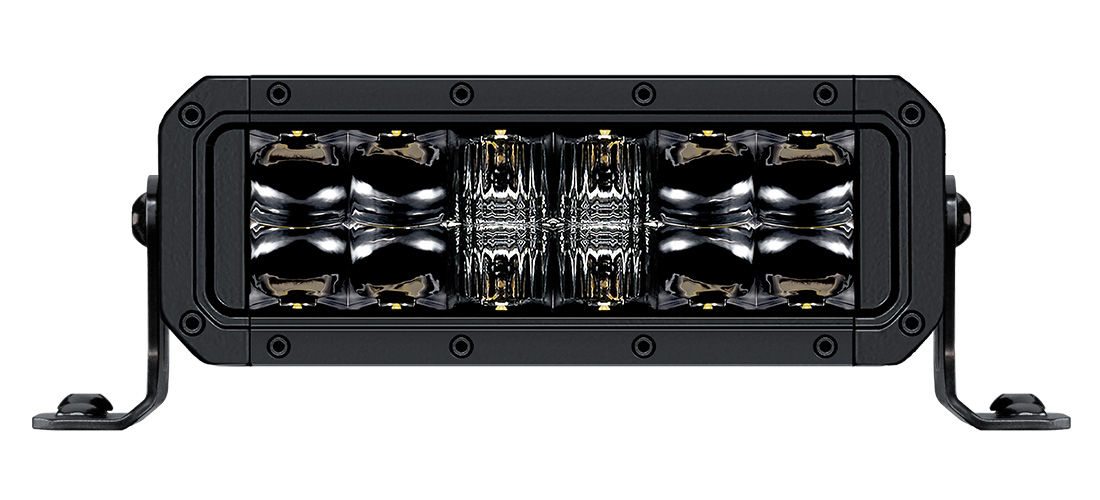

Black Magic TOUGH 7” Mini Double Row Light Bar

PART NO: 1FJ 358 196-451

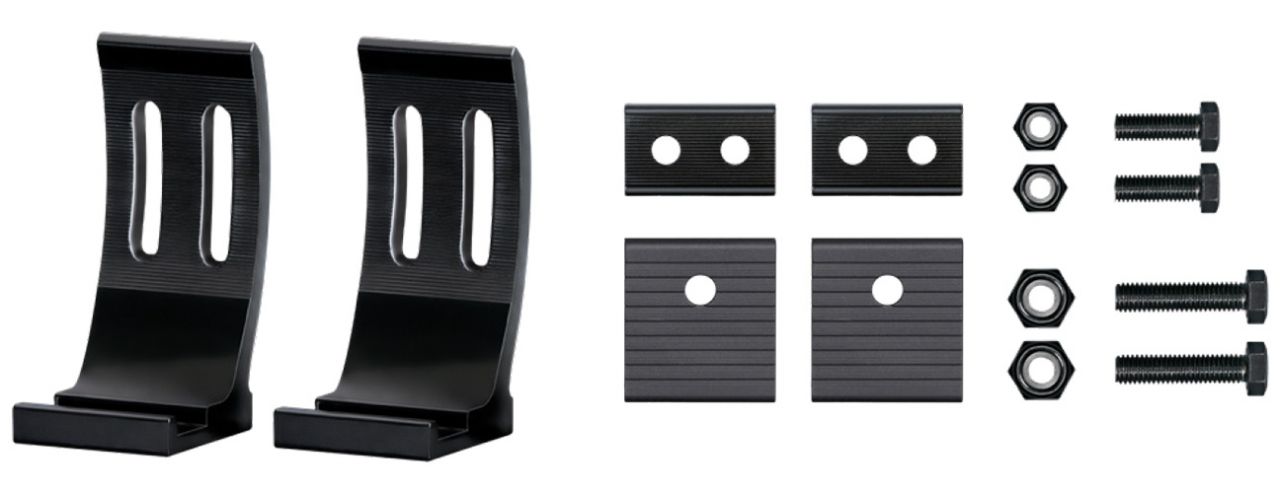

Mounting Brackets - Double Row. 2 pieces

PART NO: 8HG 358 176-381

Specifications

Mounting

Upright/pendant

Voltage

10-30V DC (suitable for 12 or 24 volt DC applications)

Max Power Consumption

13: 55W
7": 28W

Max Light Output

13: 3800 lumen
7": 2100 lumen

Beam Distance (Metres)

13": 560m @ 1 Lux (pair)
7": 510m @ 1 Lux (pair)

Beam Width (Metres)

13": 84m @ 1 Lux (pair)
7": 42m @ 1 Lux (pair)

Colour Temperature

5700K

Cable Length

2000mm cable with open ends

Protection

Reverse polarity protection.
IP68 (Protection against dust and water immersion)
IP69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

13": 2150g
7": 1700g

Housing

Aluminium, black stainless steel bracket

Compliance

CE, ECE R149, ECE R10

CE

Accessory Part Number

8HG 358 176-381 Mounting Brackets - Double Row. 2 pieces

Outline

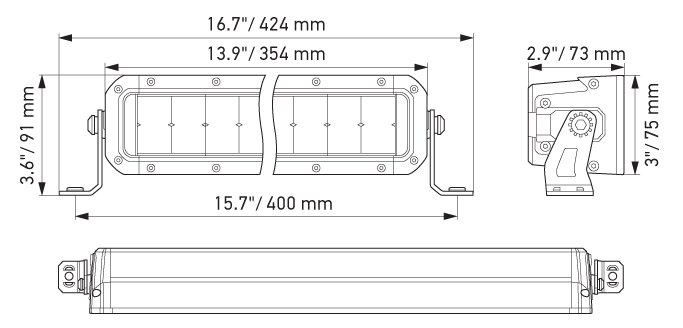

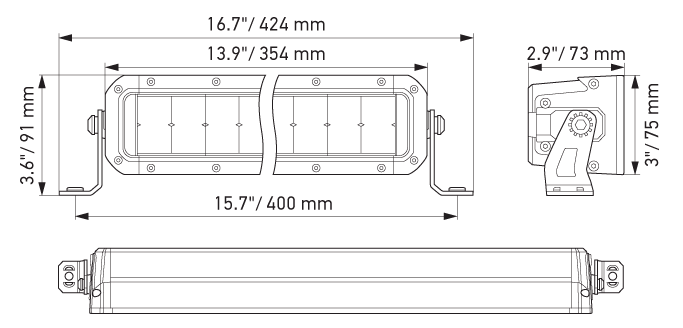

1FJ 358 196-461 Black Magic TOUGH 13in Mini Light Bar Diagram
1FJ 358 196-461 Black Magic TOUGH 13in Mini Light Bar Diagram

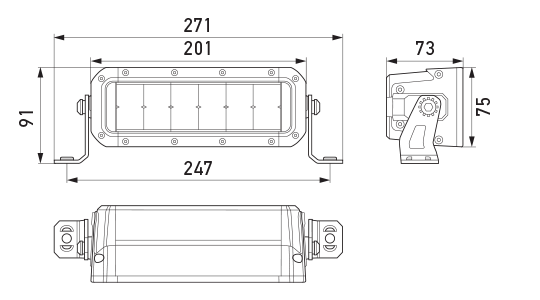

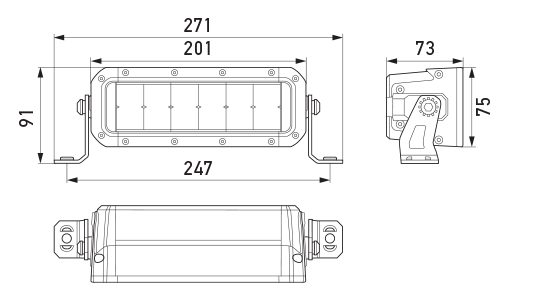

1FJ 358 196-451 Black Magic TOUGH 7in Mini Light Bar Diagram <br>All dimensions in mm
1FJ 358 196-451 Black Magic TOUGH 7in Mini Light Bar Diagram
All dimensions in mm

Light Output

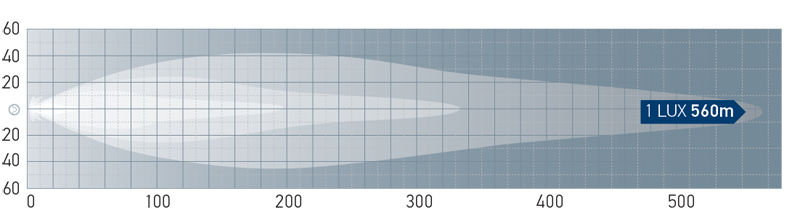

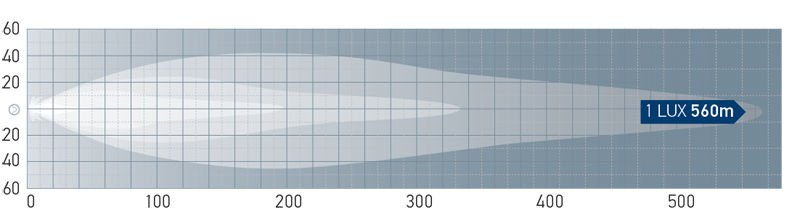

1FJ 358 196-461 13in TOUGH Double Row Mini Light bar Light Output
1FJ 358 196-461 13in TOUGH Double Row Mini Light bar Light Output

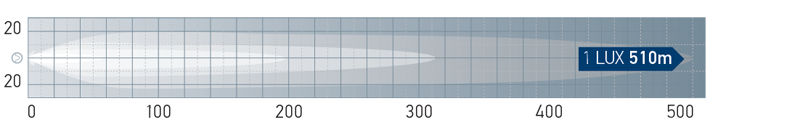

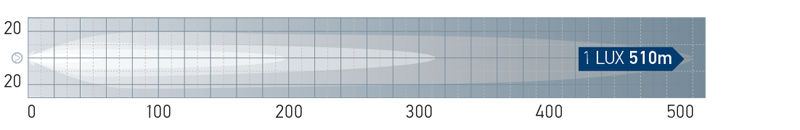

1FJ 358 196-451 7in TOUGH Double Row Mini Light bar Light Output <br> All Mini Double Row Light Bar lux maps show output for a pair
1FJ 358 196-451 7in TOUGH Double Row Mini Light bar Light Output
All Mini Double Row Light Bar lux maps show output for a pair

Documents

Document File Name File Size
  Hella Black Magic TOUGH 13inch Mini Light bar Product Release_Web.pdf 615.00 KB
