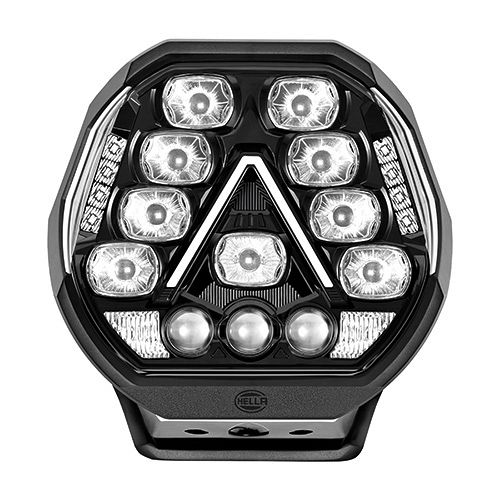

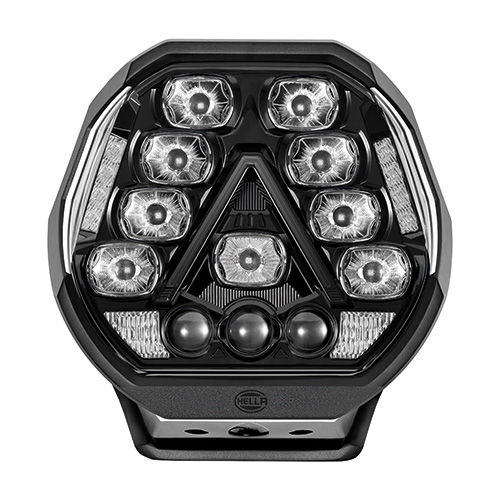

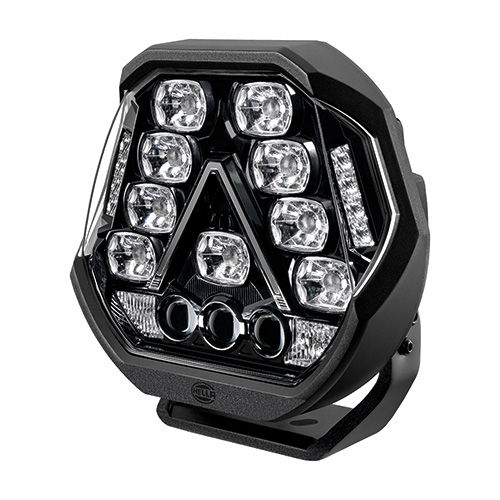

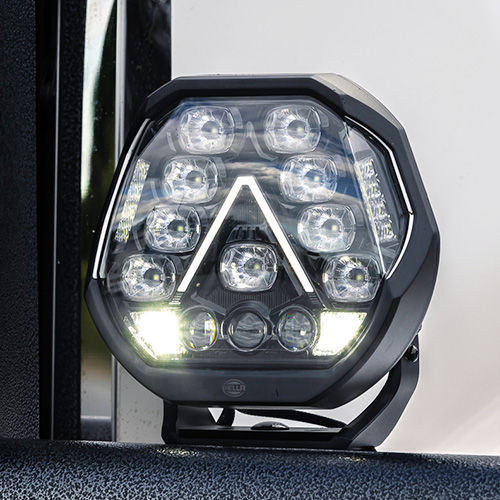

ANTARES 9 Inch Driving Light Kit

Stand out from the crowd with HELLA's radiant Antares 9” Driving Light Kit.

HELLA Antares were created in collaboration with the largest automotive brands, and incorporate decades of experience in Australia’s harshest driving conditions, creating a composite beam that delivers incredibly constant and impressive output. These driving lights are engineered to illuminate the darkest roads, ensuring your journey is safe and spectacular.

Co-designed in Australia for Australian and New Zealand roads, the Antares is sure to meet all your needs and more.

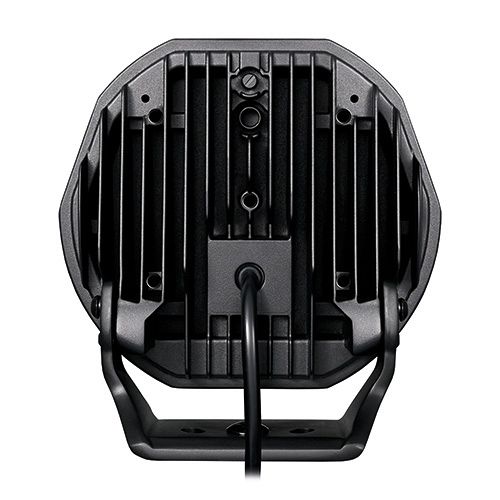

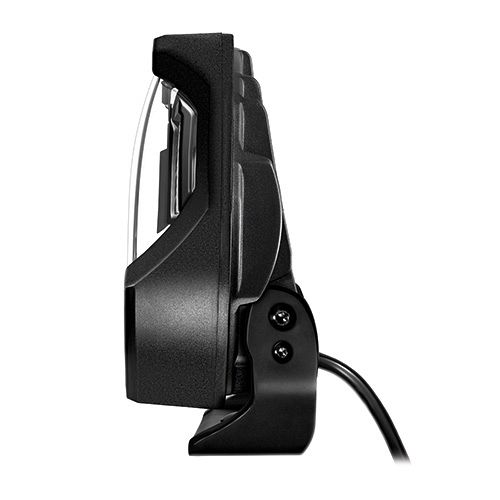

• Rugged Diecast Aluminium Housing & Bracket
• Selectable Modes: High Output / Low Output
  / Daytime Running Light / Position Light
• Automatic DRL cover detection switches off main beam
• High Output Beam exceeds 800m
• Impressive Low Output beam exceeds 650m
• Plug & Play Wiring Harness

Kit Includes:
(2x) Antares spotlight with mounting hardware

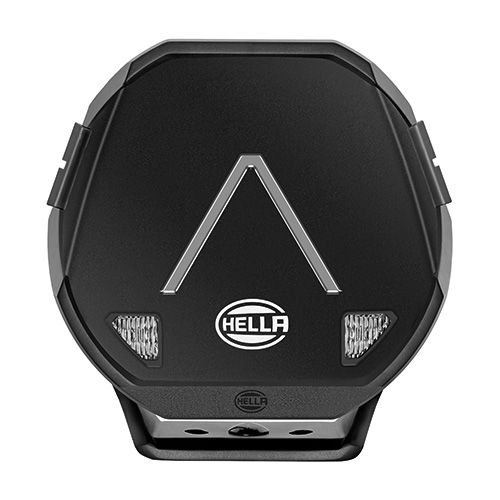

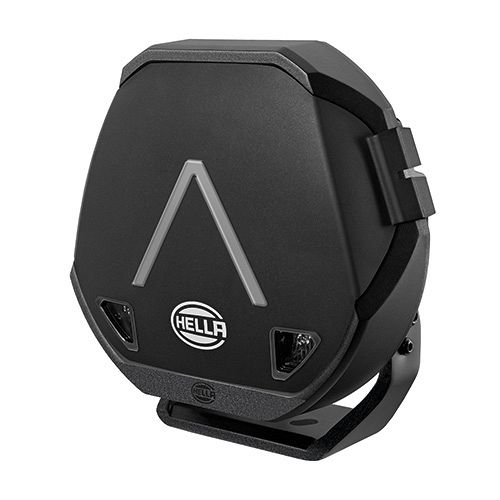

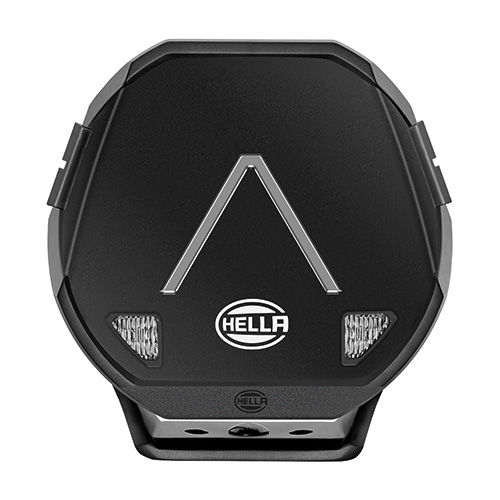

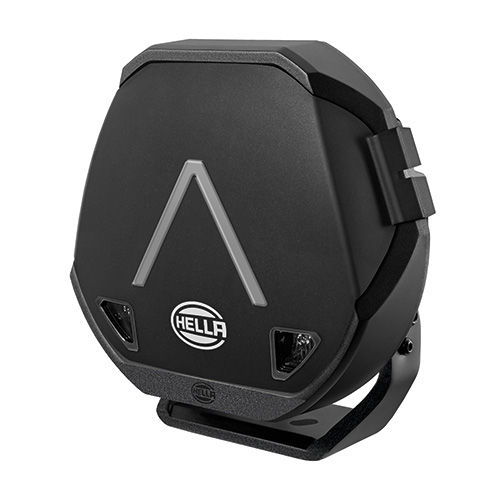

(2x) Antares spotlight caps
(2x) adaptor (H4 & HB3)
(1x) mounting instructions

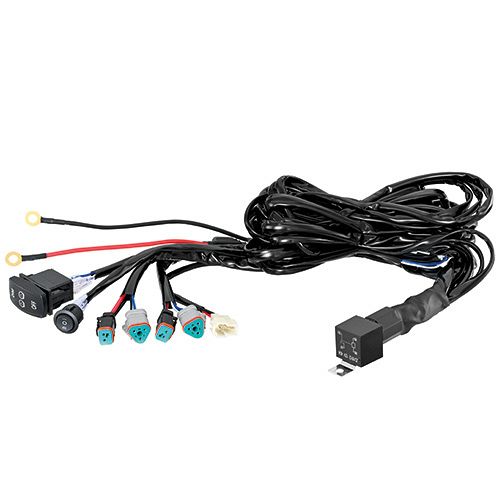

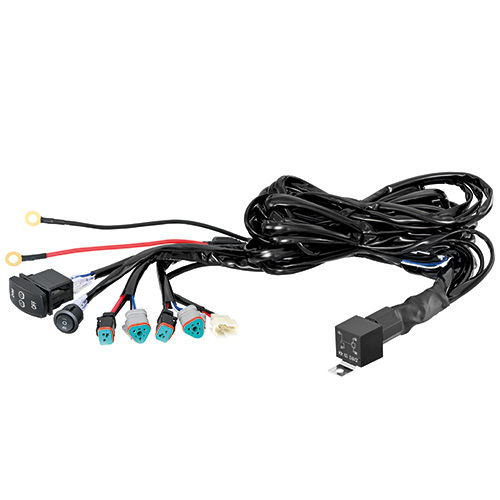

(1x) wiring harness

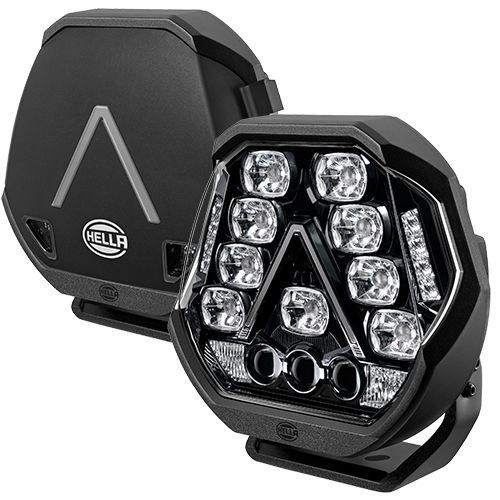

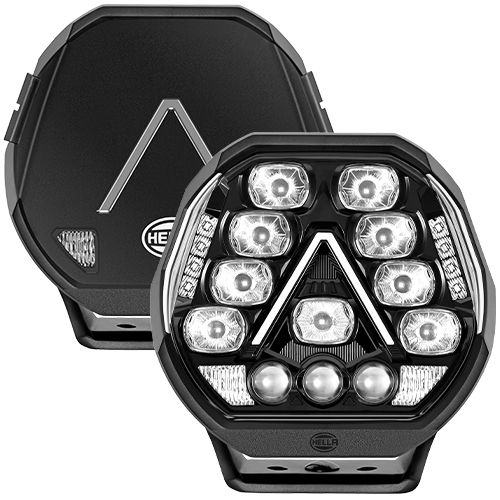

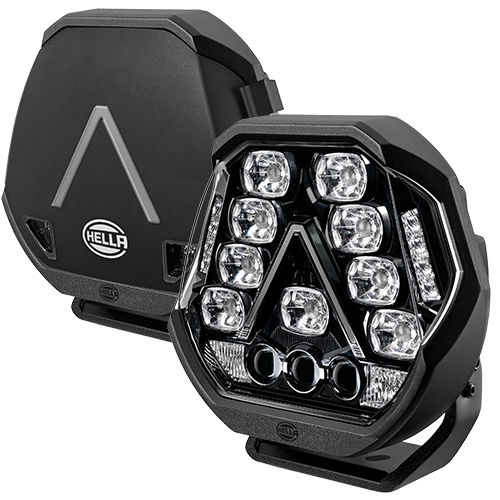

Antares Driving Light Kit

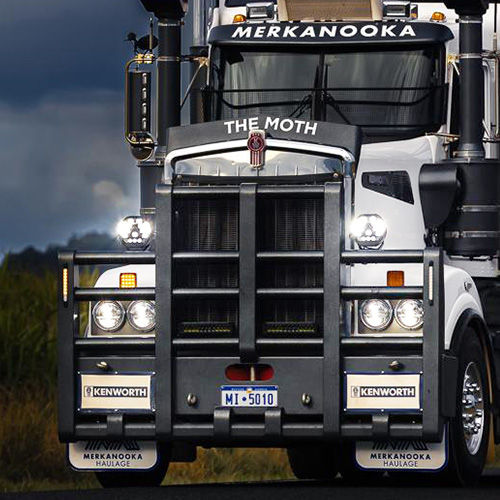

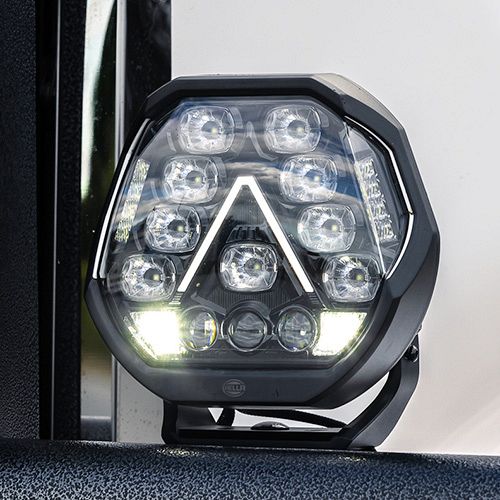

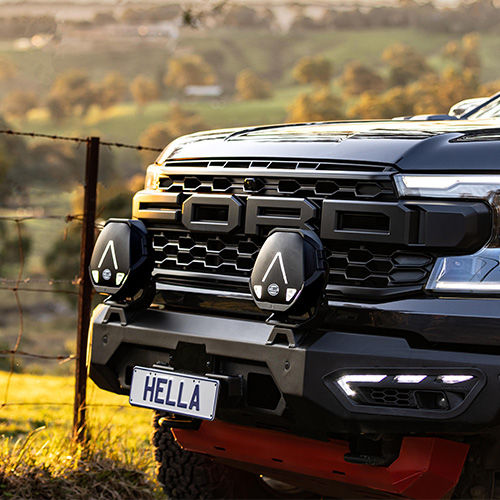

Antares lights on Truck with Female Truck Driver in forground

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Options

Antares HP200 9" Driving Light Kit (2x Lamps, 2x Covers, 1x Wiring harness, 2x Adapters)

PART NO: 1F0 358 228-871

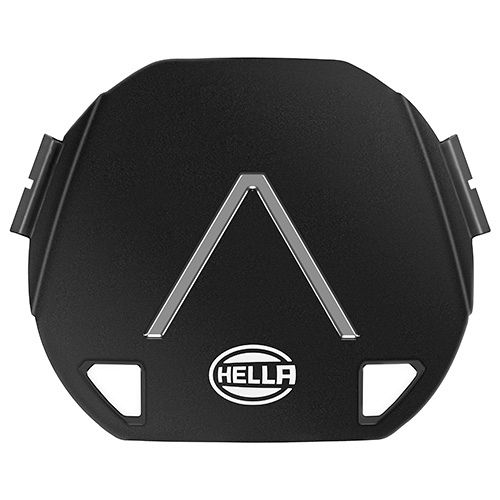

Antares HP200 9" Driving Light Cover

PART NO: 8XS 358 198-041

Specifications

Mounting

Upright

Voltage

10-30V DC (suitable for 12 or 24 volt DC applications)*
*Relay & switch for 24V operation to be supplied seperately

Max Power Consumption

High Output Mode: 215W per lamp
Low Output Mode: 120W per lamp

Max Light Output

High Output Mode: 8500 lumen per lamp

Beam Distance (Metres)

High Output Mode: 800m+ @ 1 Lux (pair)
Low Output Mode: 650m+ @ 1 Lux (pair)

Beam Width (Metres)

High Output Mode: 80m @ 1 Lux (pair)
Low Output Mode: 60m @ 1 Lux (pair)

Colour Temperature

5700K

Cable Length

Supplied with 500mm wiring harness

Protection

Reverse polarity protection.
IP67 (Protection against dust and temporary water immersion)
IP69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

Per Lamp: 2200g

Housing

Diecast Aluminium housing and bracket

Compliance

CE, ECE R10 (CISPR25 CLASS 3) R148 (R7), R149 (R112), R87. REF. 30.
ADR 49/00, 46/00 (low mode), 76/00

CE

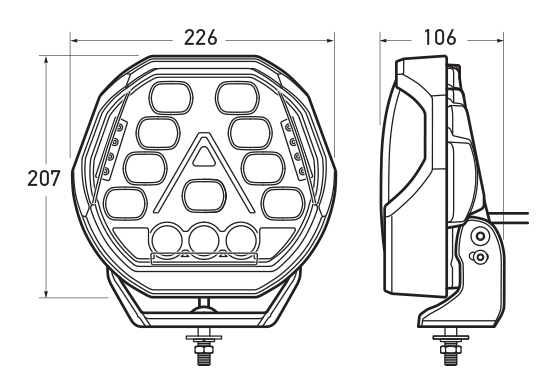

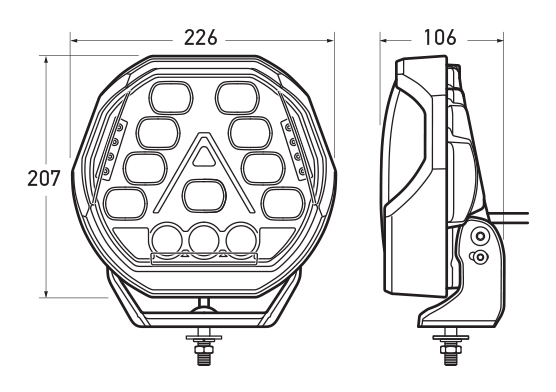

Outline

All dimensions in mm
All dimensions in mm

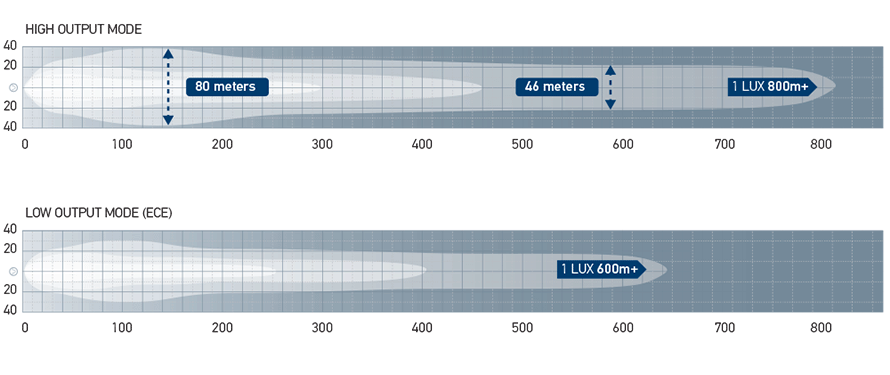

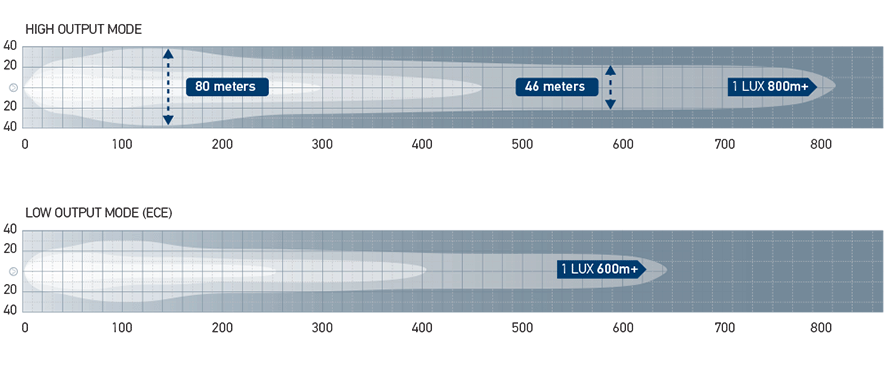

Light Output

Light Output shown for pair of lights
Light Output shown for pair of lights
