HELLA

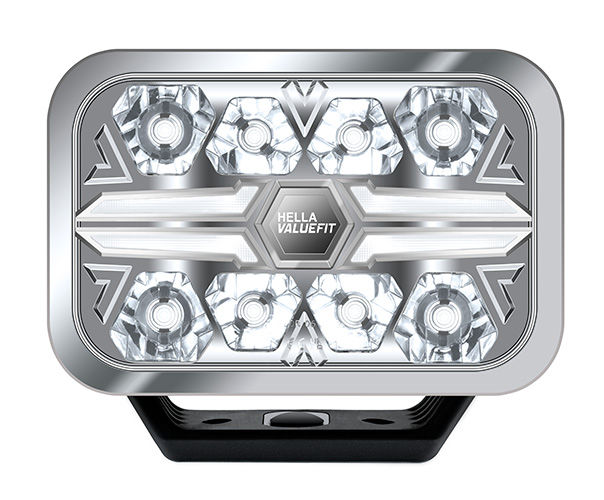

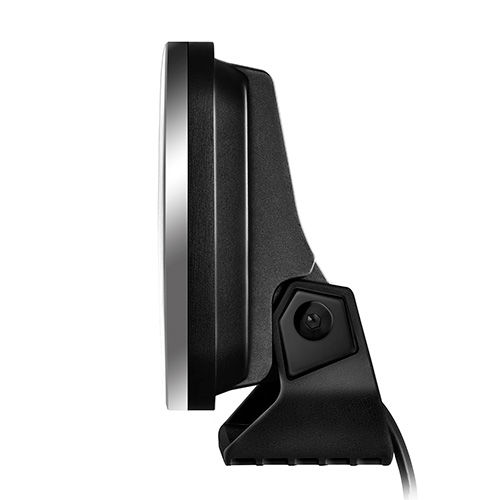

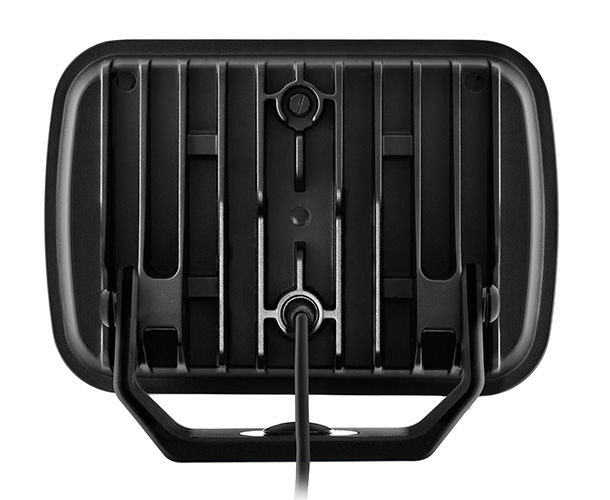

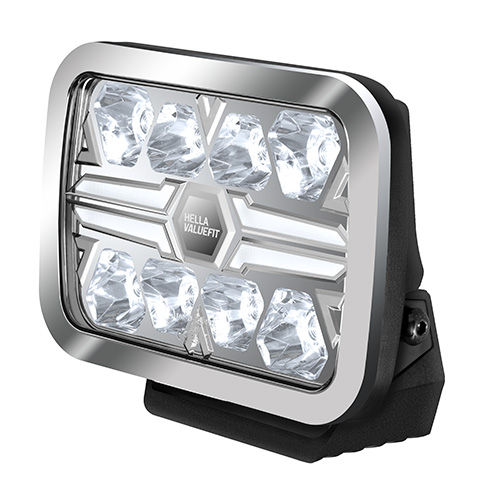

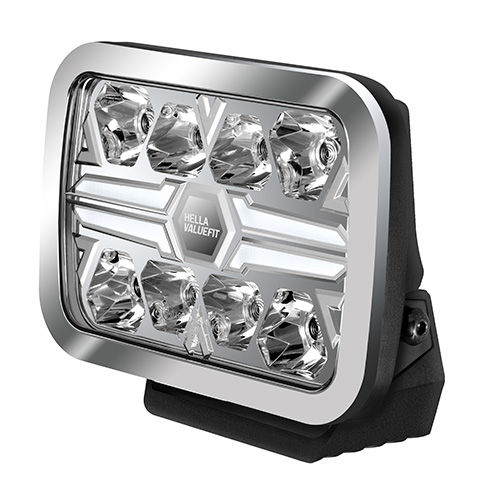

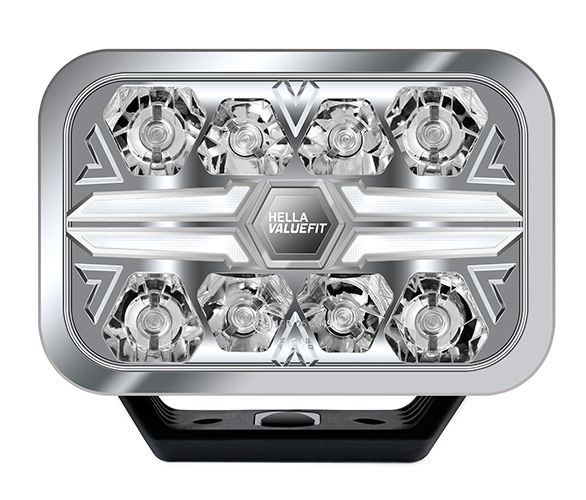

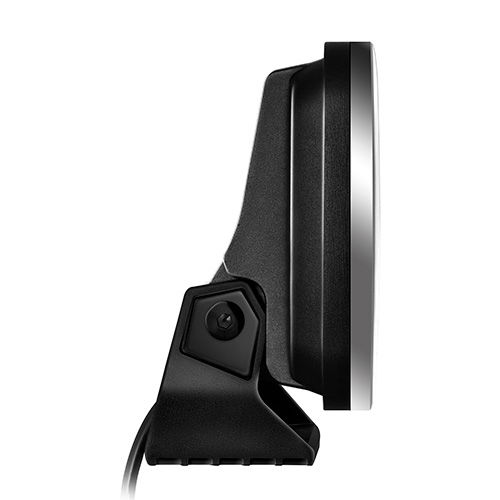

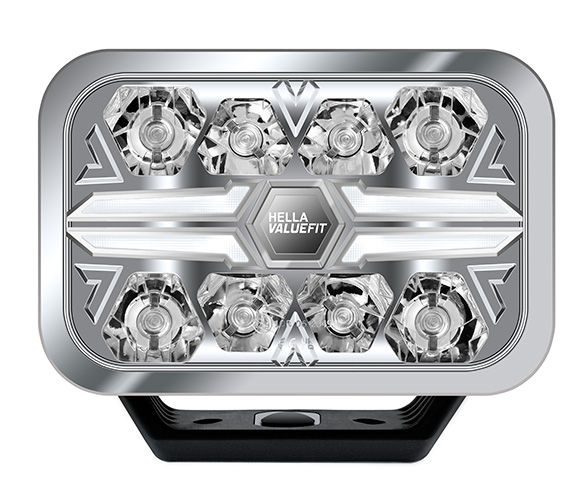

Blade 9 inch Rectangular Driving and Position Light

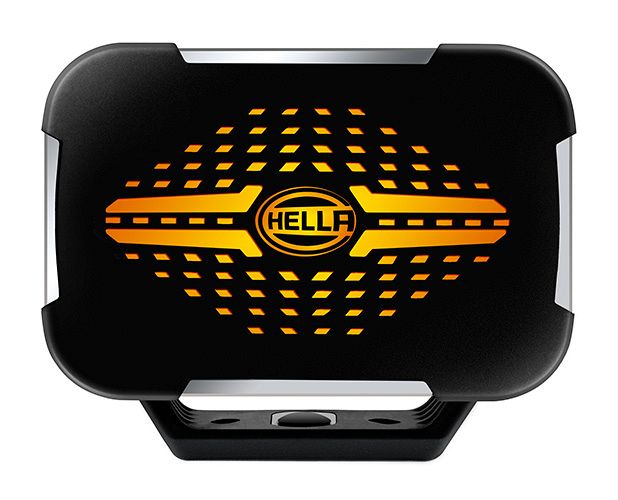

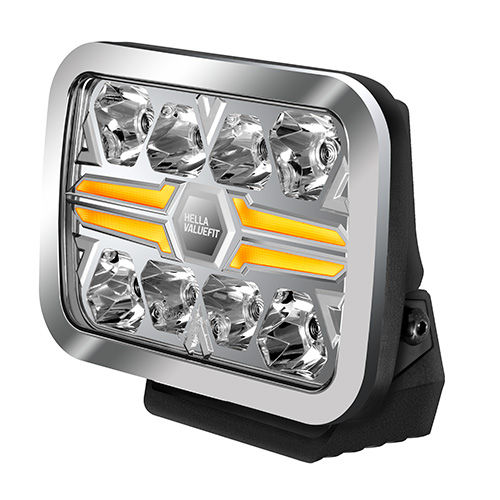

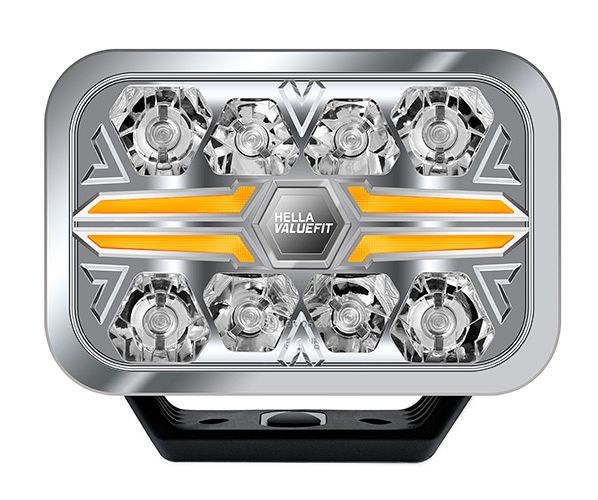

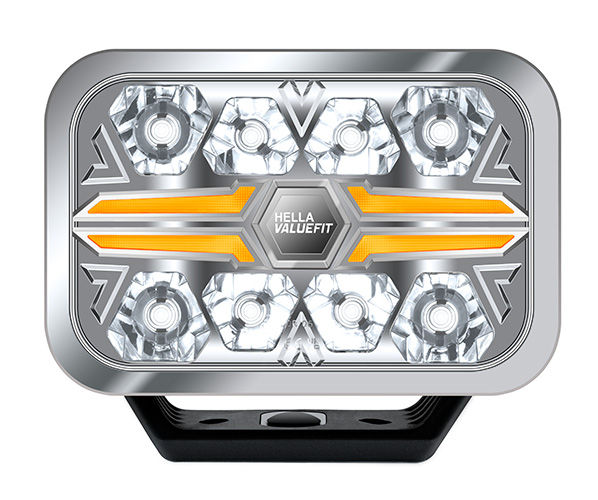

High performance HELLA VALUEFIT driving lights provide extra driver viewing distance, while the integrated signature white position light ensures you’re seen —and stylish— on or off-road. The Blade’s striking optional Amber position light mode is restricted to off-road use.*

Select from Black or Chrome rim options to enhance your personalised look.

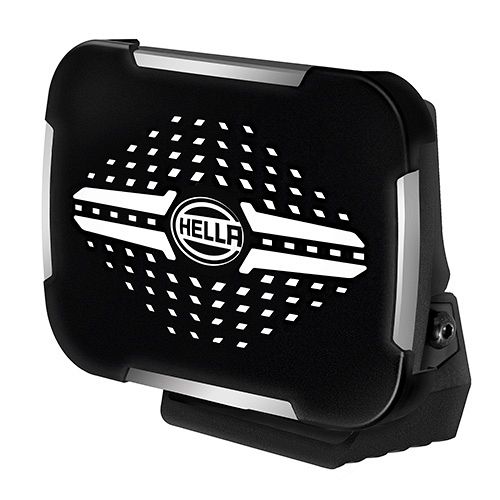

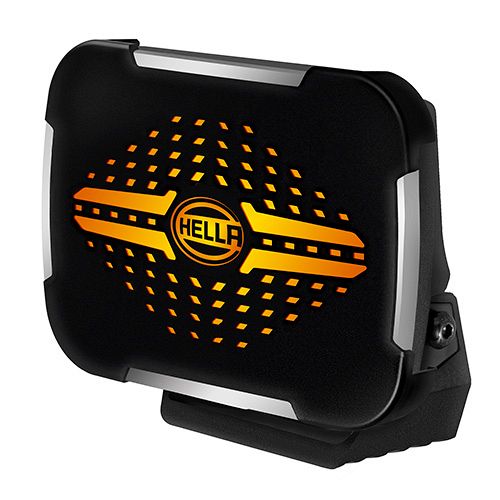

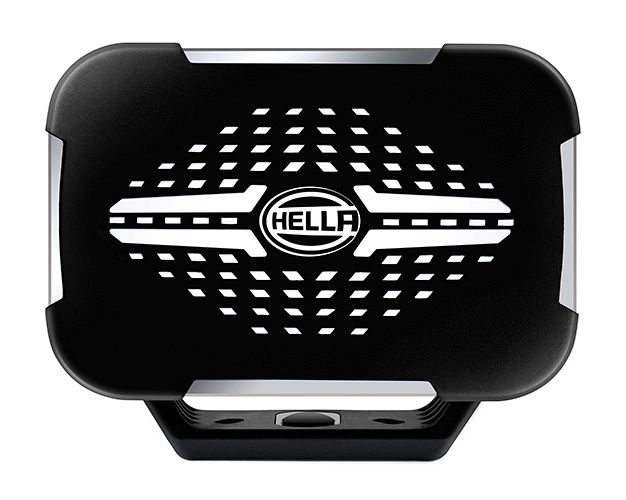

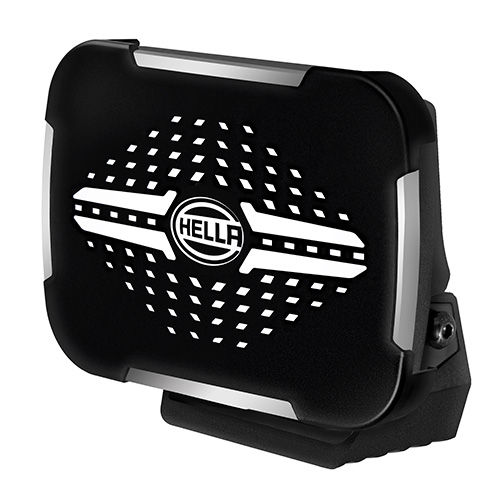

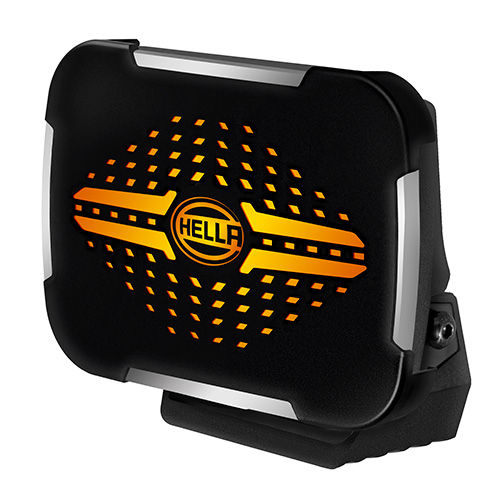

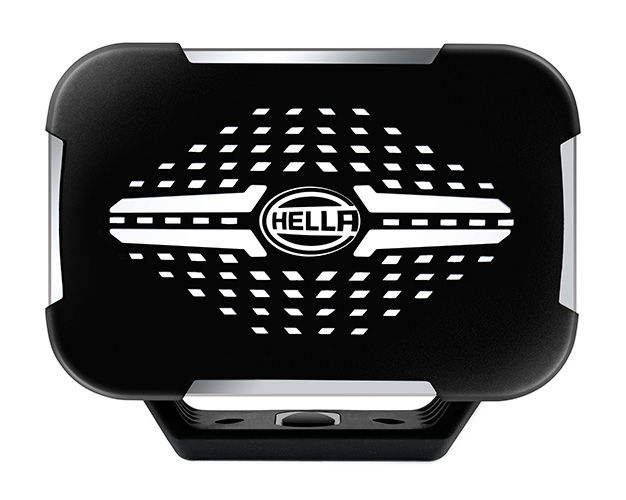

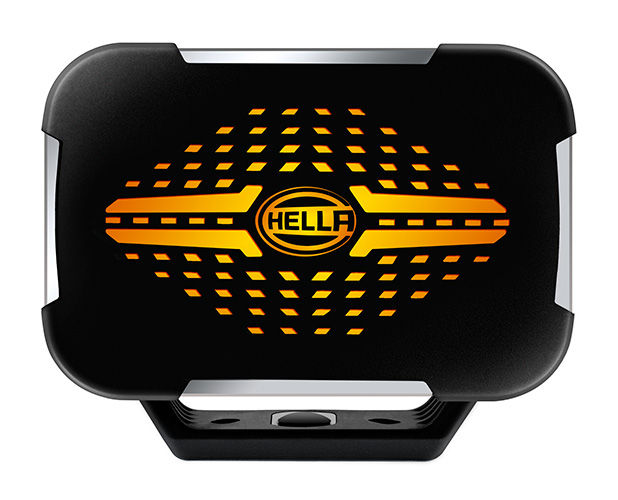

The attractive optional Blade light cover accessories protect your lights from stones, bugs, and road tar while not in use. The signature white or amber Blade position light remains visible through the covers, even at long distance.

On or off-road, make your vehicle as unique as you are.

• High performance Driving light
• Distinctive Position light design
• Stylish & Customisable

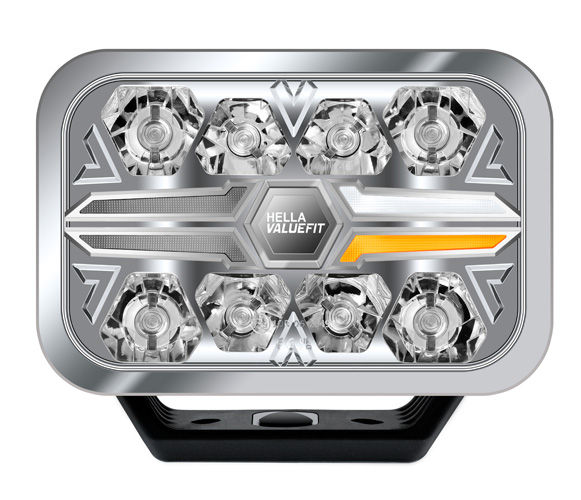

Note: All Models feature both the signature Blade White and Amber Position Light (connection optional)

*The AMBER position light does not have ECE approval: use is limited to off-road areas off public roads according to local regulations (see installation instructions).
† Optional cover accessory not included with lamps.

ValueFIT Blade Campaign Hero

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Can use either 12 or 24V

12/24V Dualvolt

Can use either 12 or 24V

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

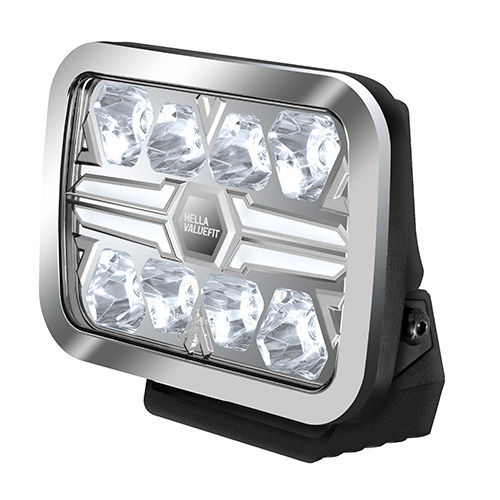

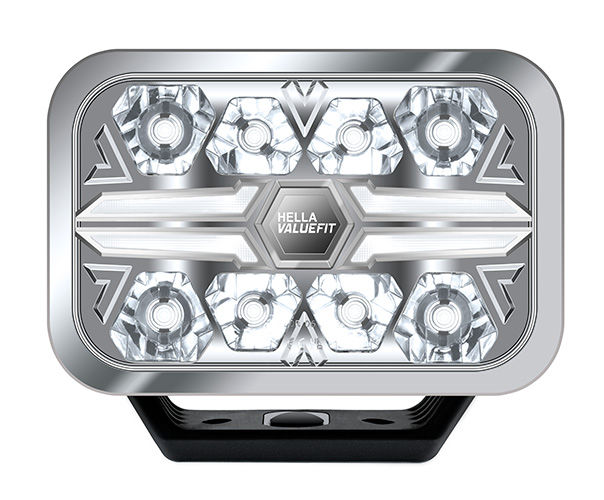

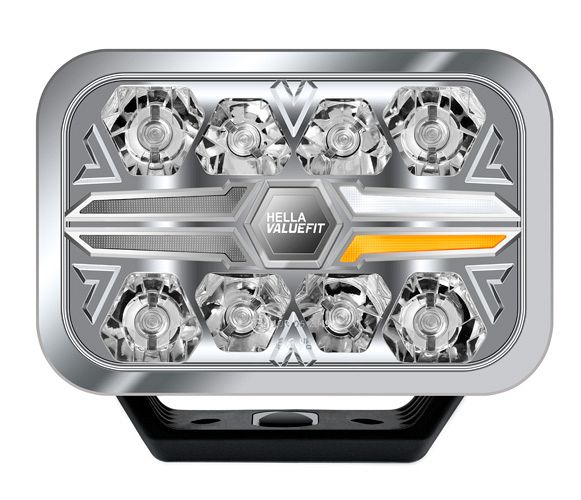

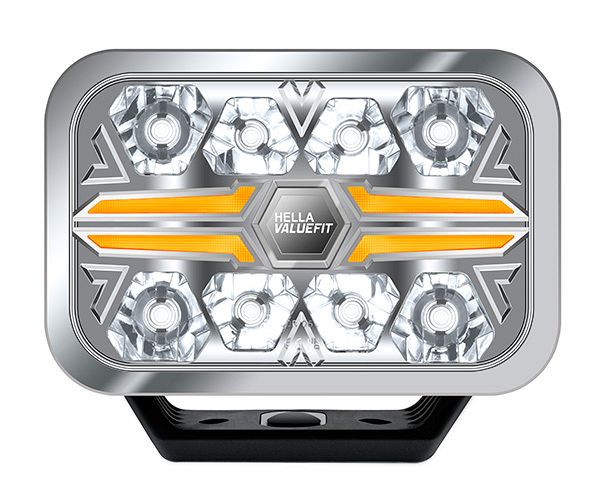

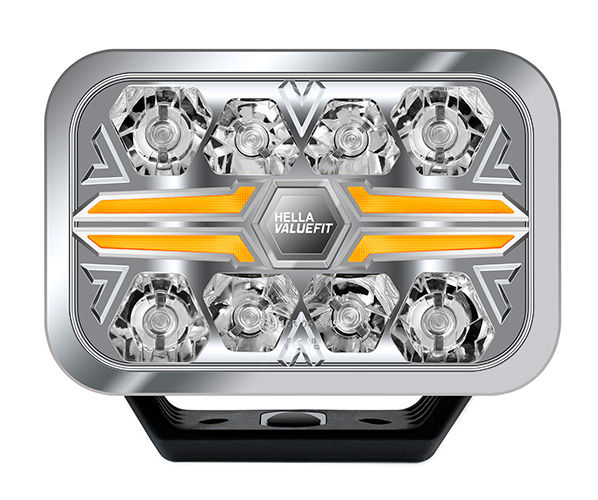

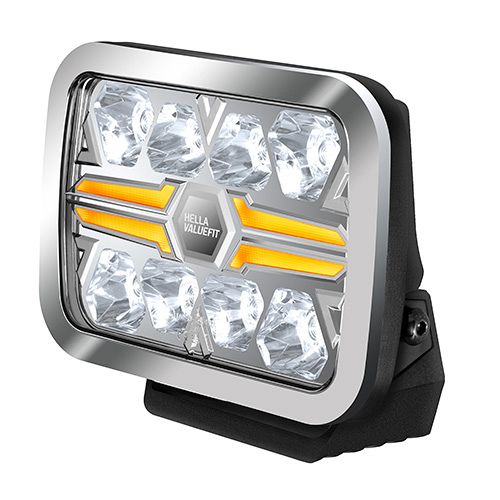

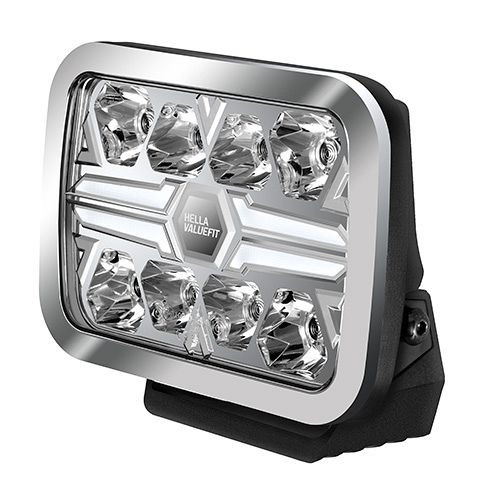

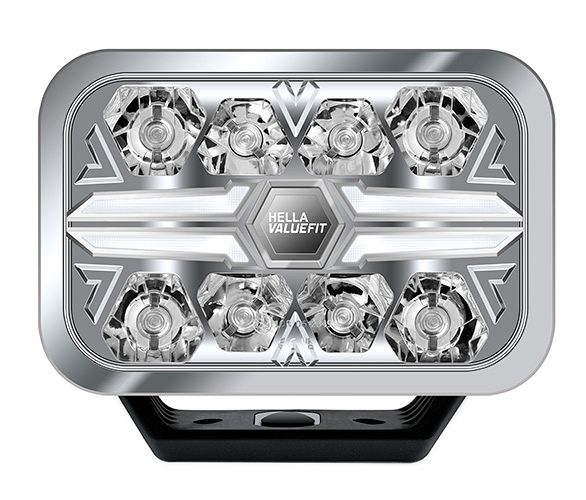

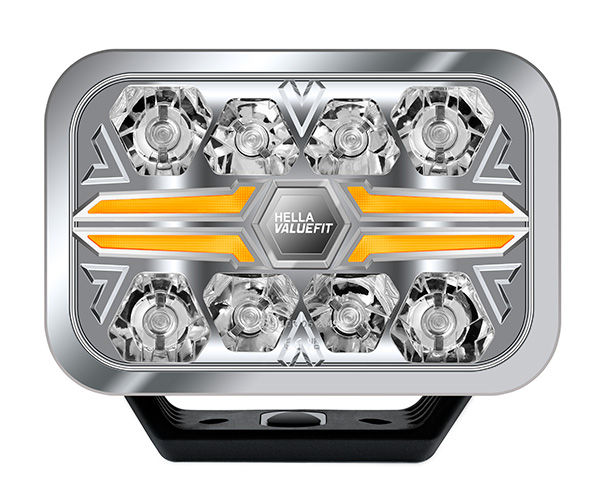

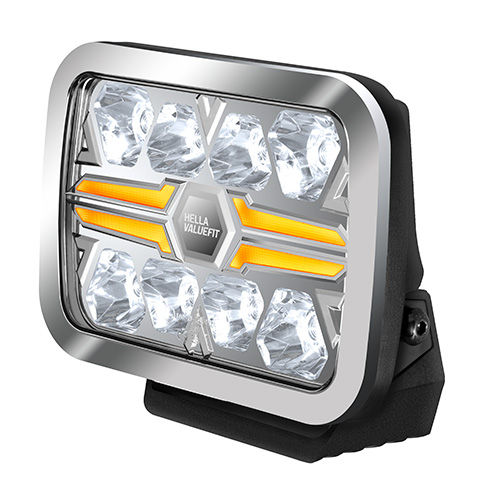

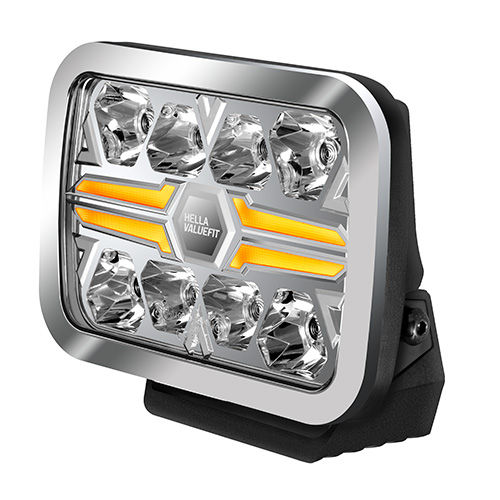

Blade 9 Inch Rectangular (Ref 25) Driving Light with Position Light - Chrome Rim

PART NO: 1FJ 357 199-081

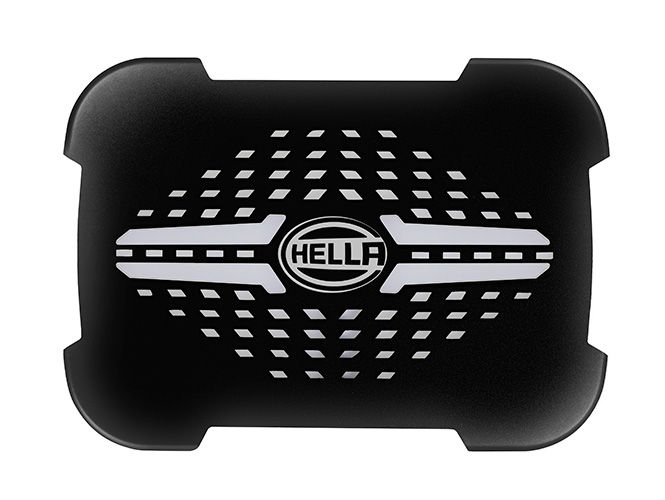

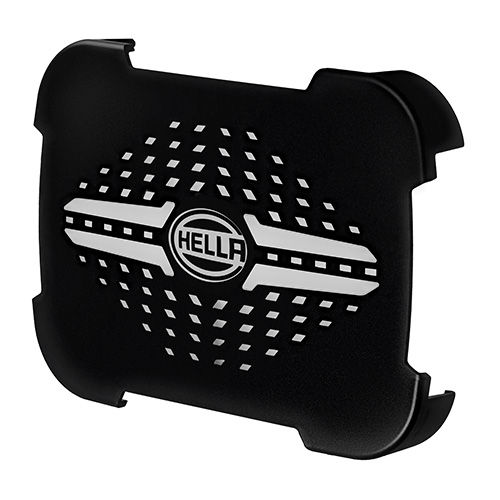

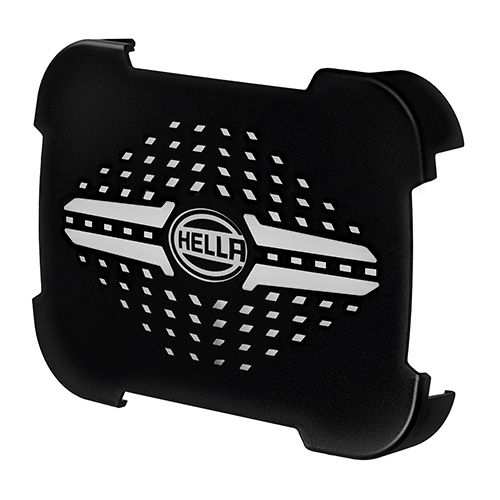

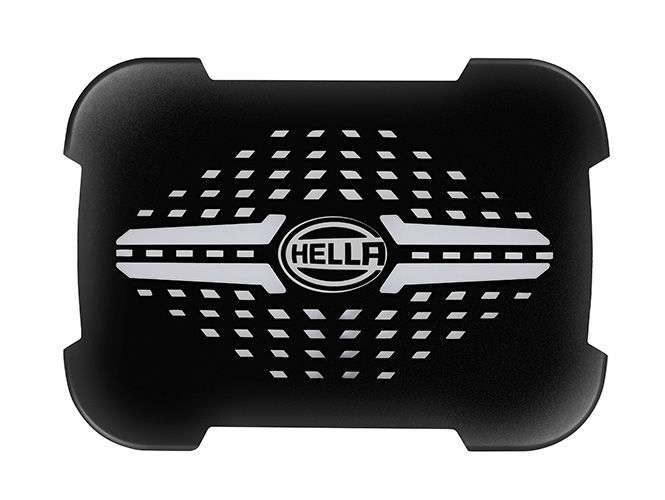

Blade 9 Inch Rectangular Driving Light Cover

PART NO: 8XS 358 198-021

Specifications

Mounting

Upright

Voltage

12-24V DC (suitable for 12 or 24 volt DC applications)

Max Light Output

1700 lumen (ref. 25)

Beam Distance
(Metres @1Lux)

450m

Beam Width
(Metres @1Lux)

36m

Max Power Consumption

36W

Colour Temperature

6000K

Cable Length

500mm cable with open ends

Protection

Reverse polarity protection.
IP 67 (Protection against dust and temporary water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

1550g

Housing

Housing: Aluminium.
Bezel: Plastic (ABS).
Lens: PC (Polycarbonate).
Bracket: Plastic / glass fibre PA66 + GF

Type Approval

ECE R10 (EMC), R148*, R149

Compliance

CE

CE

Accessory Part Number

8XS 358 198-021 Rectangular Cover - 9 Inch

Outline

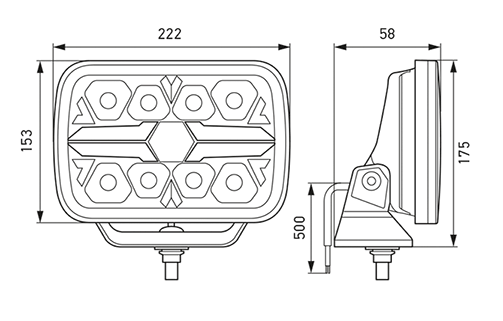

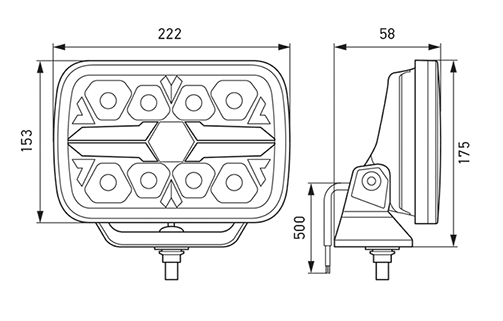

HELLA VALUEFIT Blade 9 inch Rectangular Dimensional Diagram
HELLA VALUEFIT Blade 9 inch Rectangular Dimensional Diagram

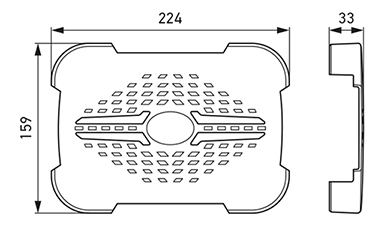

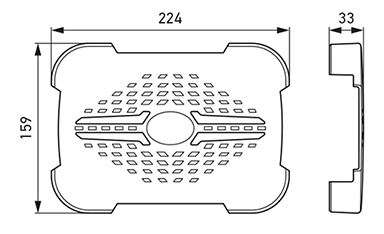

HELLA VALUEFIT Blade 9 inch Rectangular cover Accessory Dimensional Diagram </br>All dimensions in mm
HELLA VALUEFIT Blade 9 inch Rectangular cover Accessory Dimensional Diagram
All dimensions in mm

Light Output

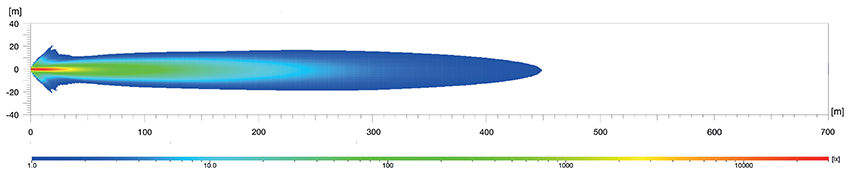

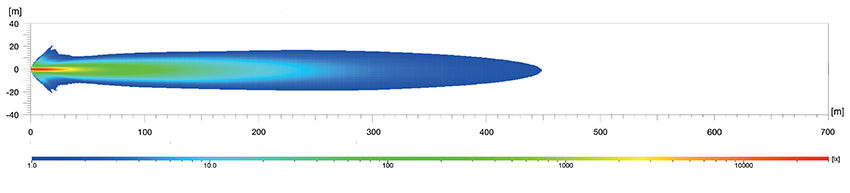

1FJ 357 199-081 HELLA VALUEFIT Blade 9inch Rectangular Reference 25 Lux Map
1FJ 357 199-081 HELLA VALUEFIT Blade 9inch Rectangular Reference 25 Lux Map

Documents

Document File Name File Size
  IS_HELLA_ValueFIT_Blade_9inch_460_818-51.pdf 5.15 MB
