HELLA

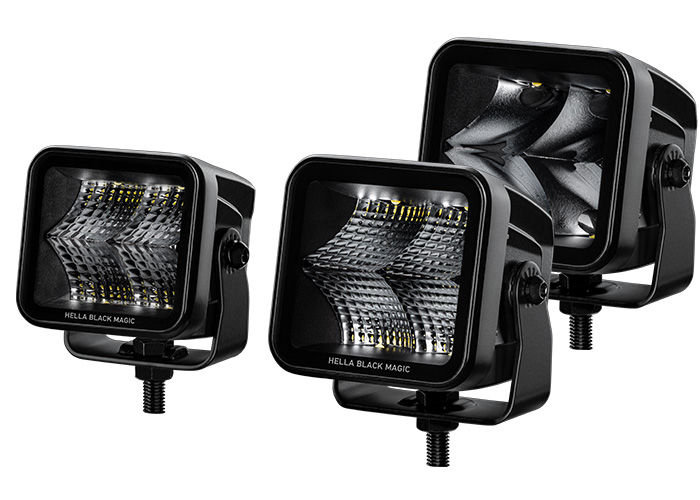

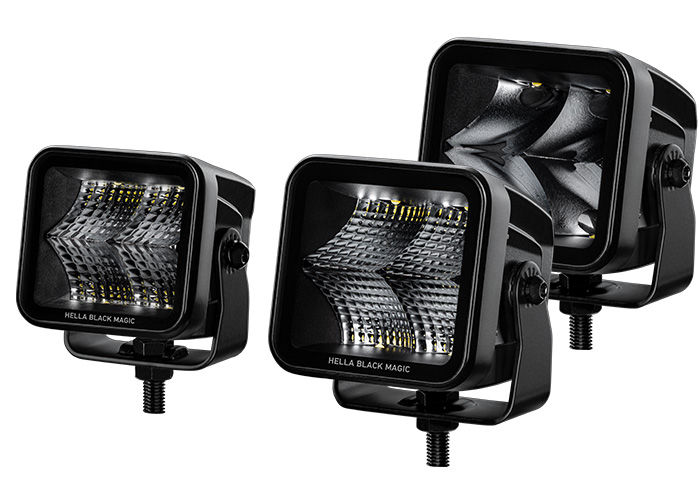

Black Magic Cubes

Available in two sizes 2.7˝ and 3.2”, the Black Magic Cubes have a distinguished dark appearance (including black brackets) and dirt shedding edgeless design making them stand out from the crowd. Installation is made easy with a 500mm cable for upright or pendant mounting. Backed by a 2 year warranty.

Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off-road use only, and must be switched independently of headlamps.

• Full Blackout Appearance
• Ideal for Off Road Driving
• Dust and Waterproof
• Floodlight Beam suitable for 4WDs

Black Magic text over Truck Image

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

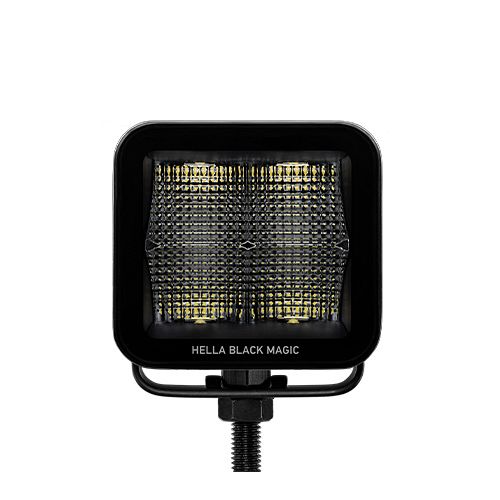

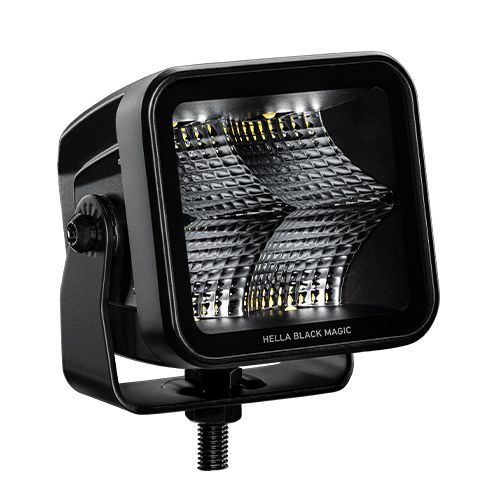

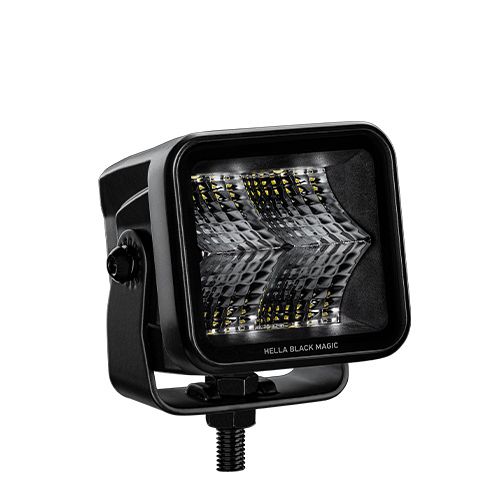

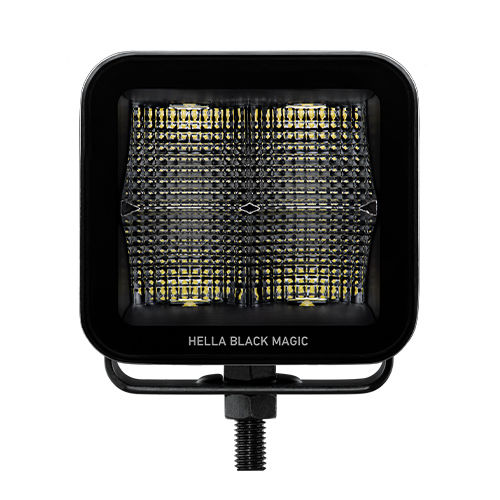

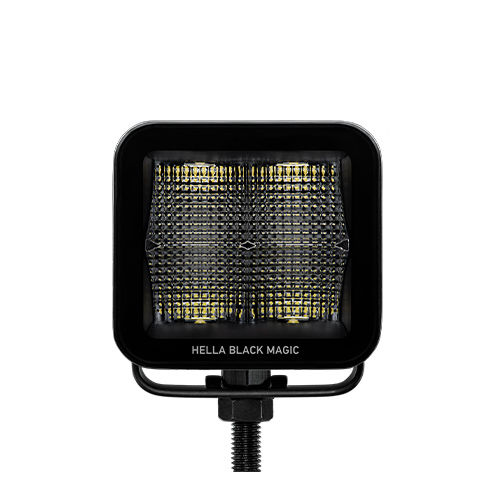

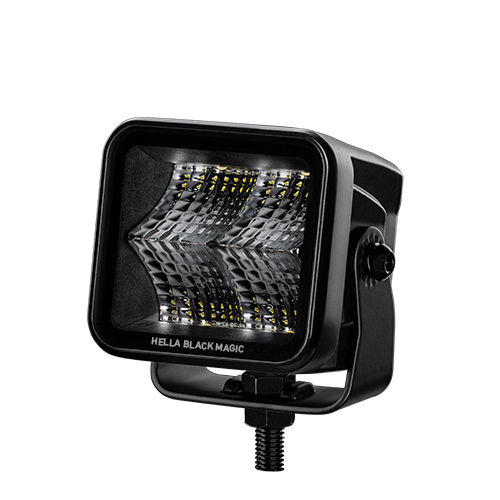

Black Magic LED Cube Headlamp 2.7” (Floodlight)

PART NO: 1FA 358 176-841

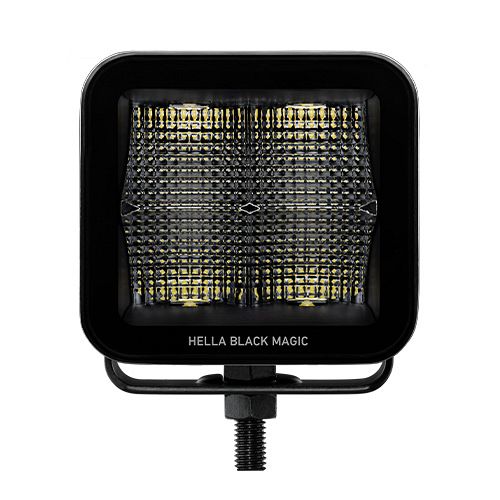

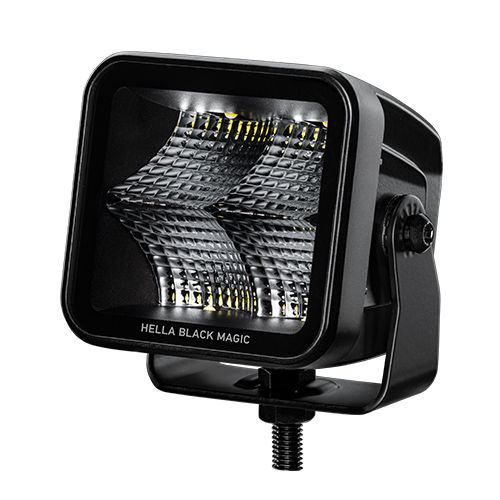

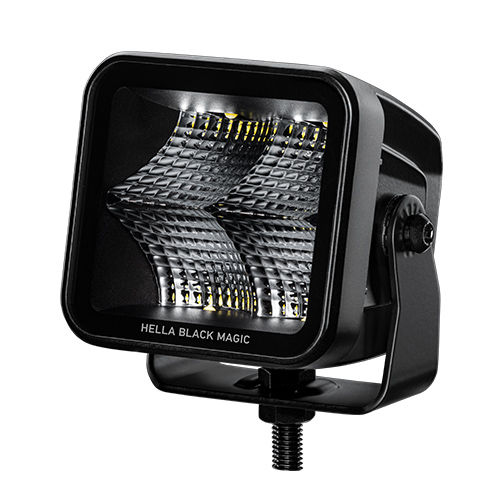

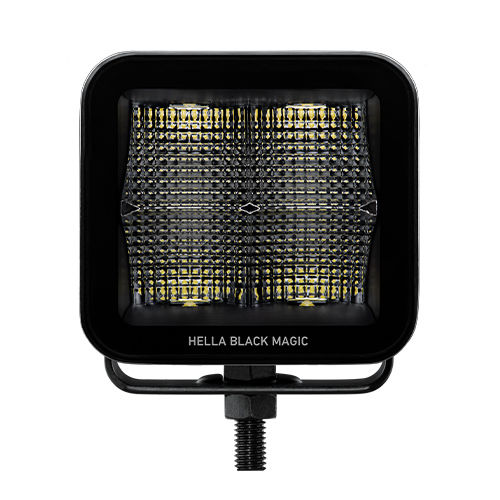

Black Magic LED Cube Headlamp 3.2” (Floodlight)

PART NO: 1FA 358 176-851

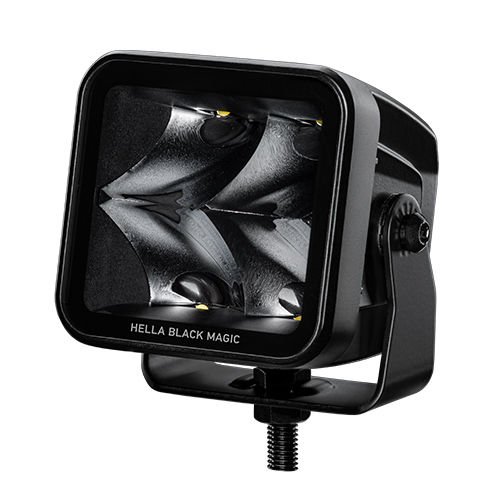

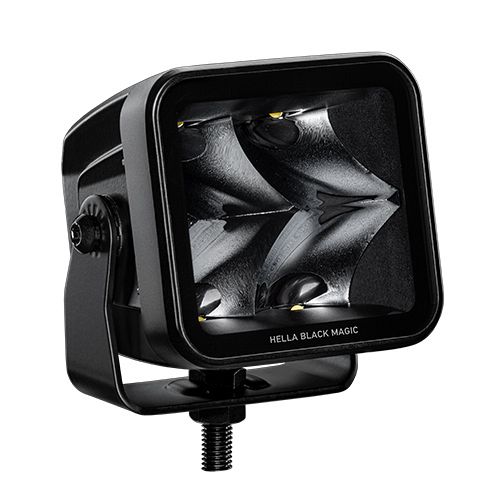

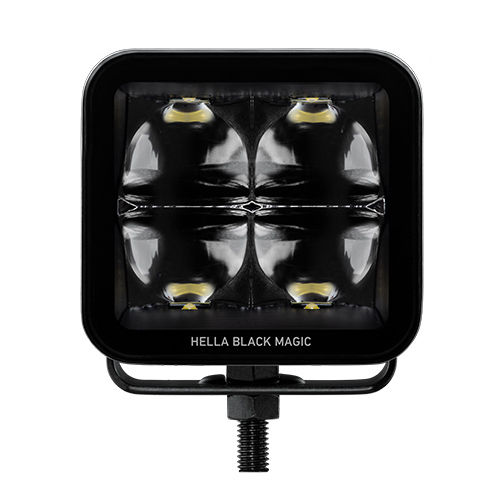

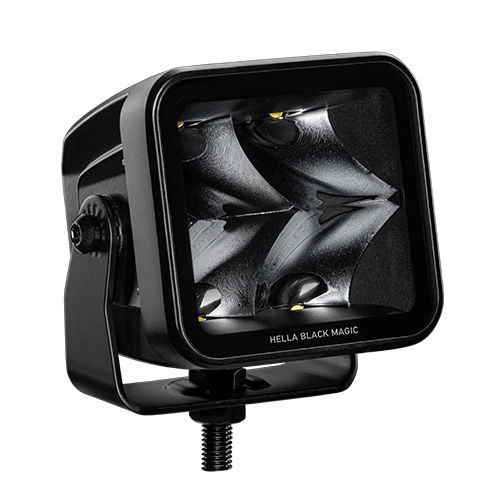

Black Magic LED Cube Headlamp 3.2” (Spotlight)

PART NO: 1FA 358 176-861

Specifications

Mounting

Upright/pendant

Voltage

Multi-voltage suitable for 12 or 24 volt systems

Max Power Consumption

2.7”: 20W
3.2”: 40W

Max Light Output

2.7”: 1400 lumen
3.2”: 3000 lumen

Colour Temperature

5700K

Cable Length

500mm cable with integrated DT Socket

Protection

Reverse polarity protection.
IP 68 (Protection against dust and water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

2.7”: 350g
3.2”: 358g

Housing

Aluminium, black stainless steel bracket

Compliance

CE, ECE R10

CE

Outline

LED Cube Headlamp 2.7”
LED Cube Headlamp 2.7”
LED Cube Headlamp 3.2”. All dimensions in mm
LED Cube Headlamp 3.2”. All dimensions in mm

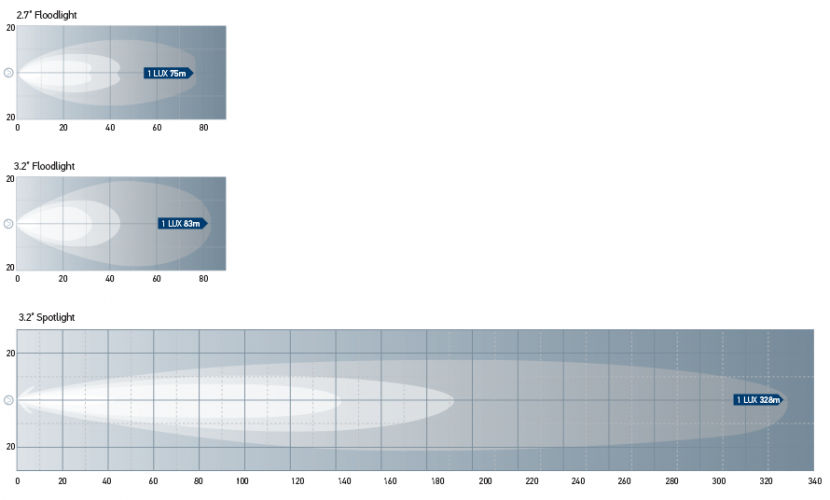

Light Output

The light distribution charts show the ranges of two lights.
The light distribution charts show the ranges of two lights.
