HELLA

Black Magic Mini Light Bars

With unmatched light output the Black Magic Mini Light Bars are ready to brighten up your next adventure. The full blackout appearance (including black brackets), slim design, and the highest dust/waterproof rating make this lamp stand out from the crowd.

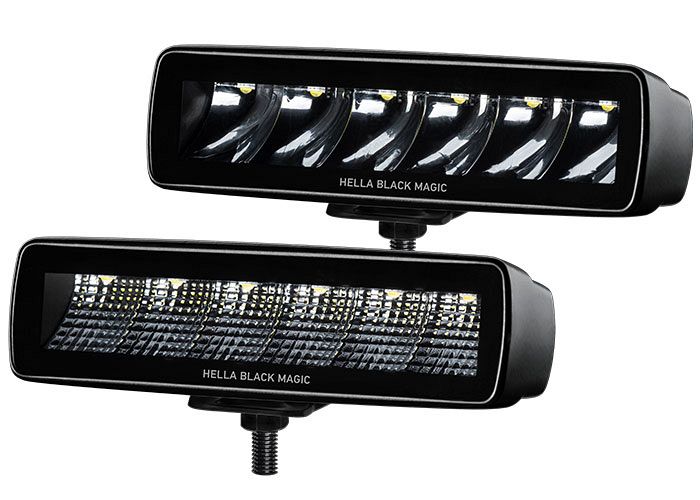

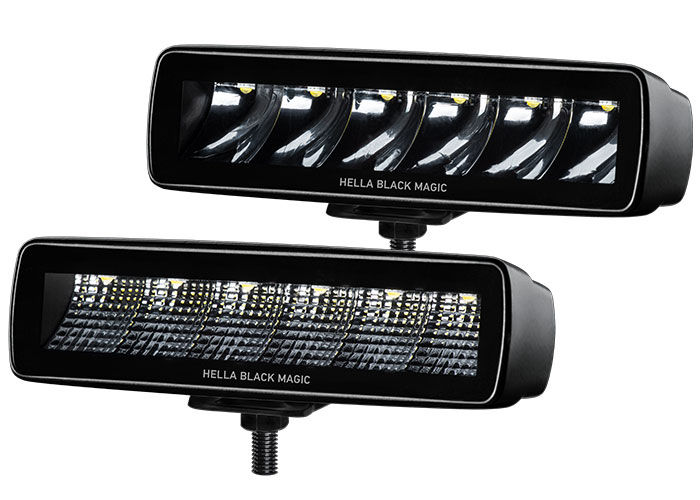

Available as a floodlight or spotlight, the Mini Light bar is suitable for upright or pendant mounting. Backed by a 2 year warranty.

Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off-road use only, and must be switched independently of headlamps.

• Full Blackout Appearance
• Ideal for Off Road Driving
• Sleek design
• Dust and Waterproof

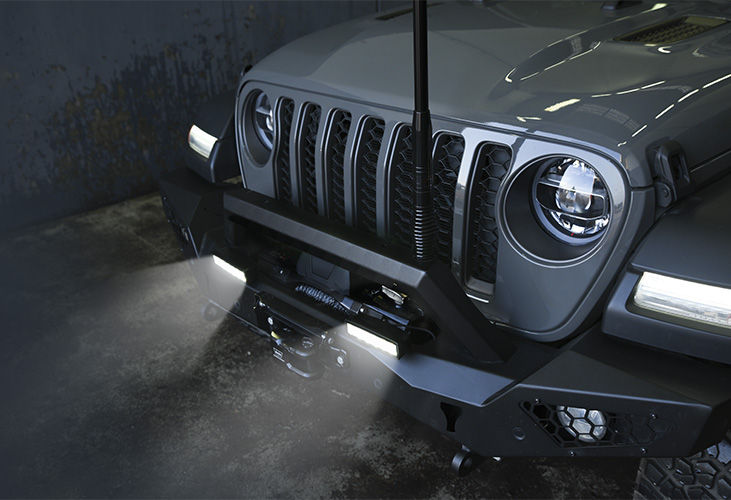

Black Magic text over Truck Image

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

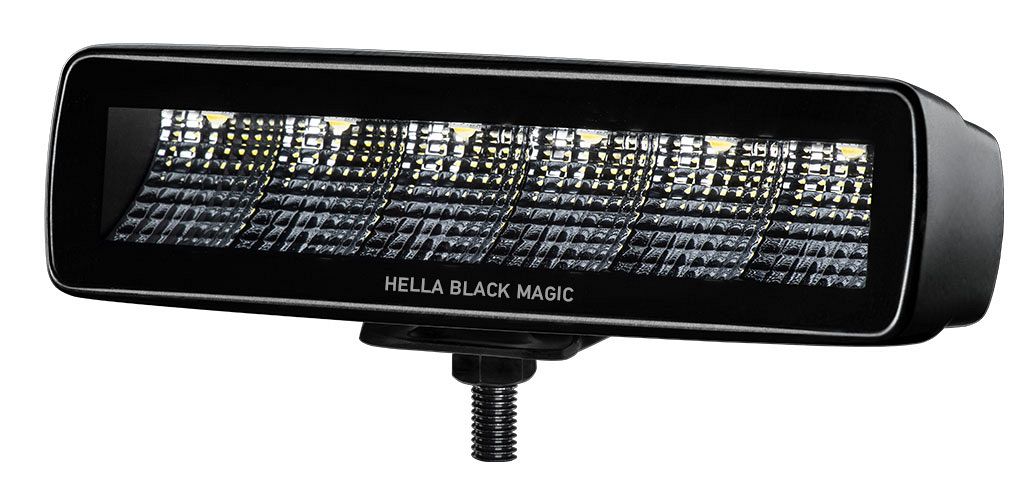

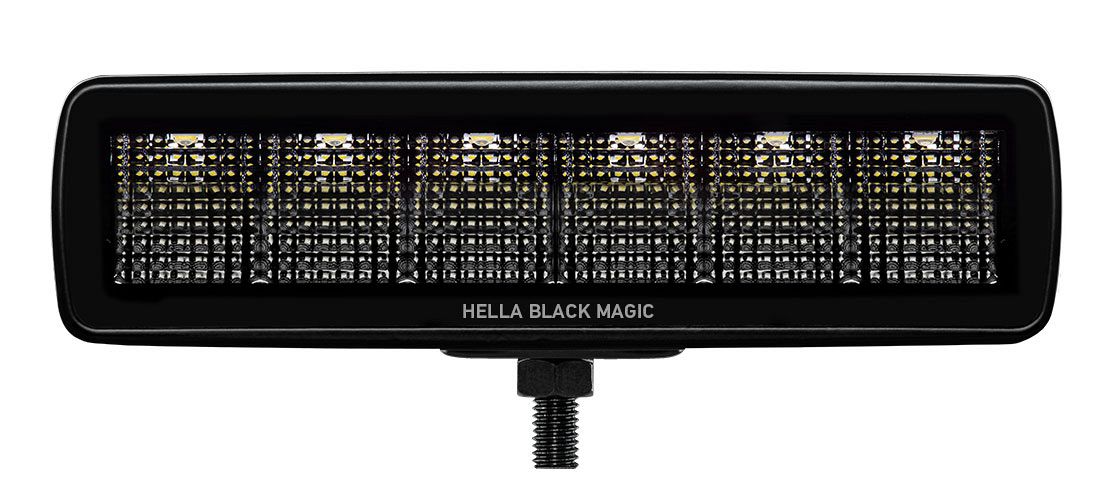

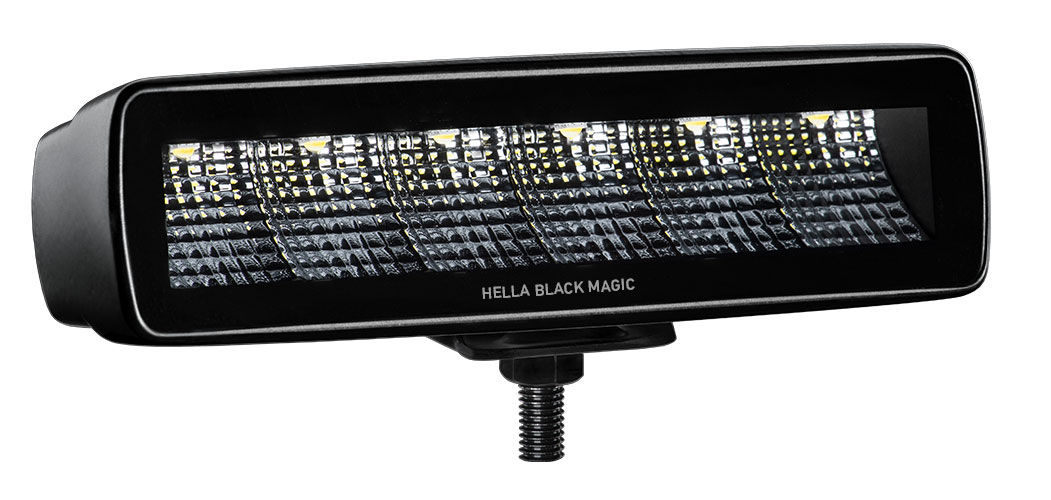

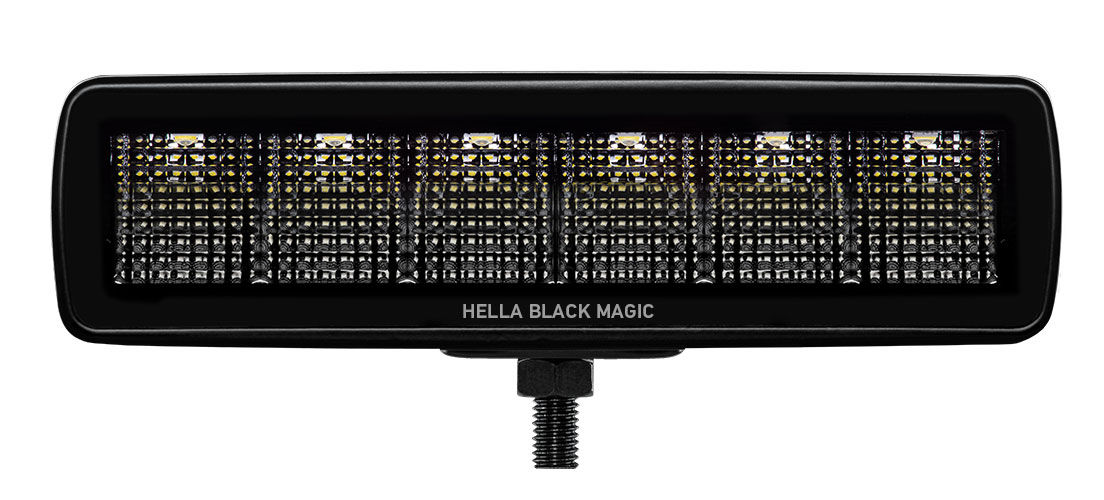

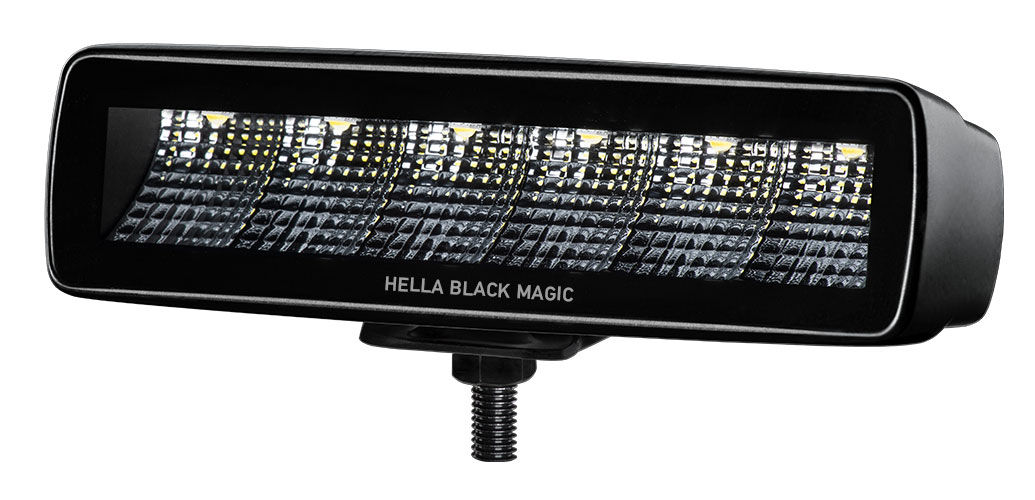

Black Magic Mini Light Bar 6.2” (Floodlight)

PART NO: 1FB 358 176-201

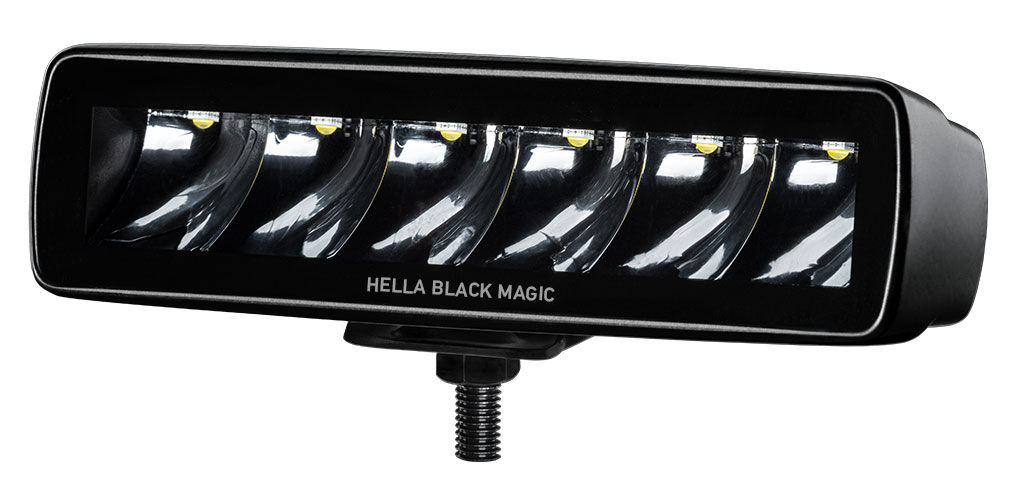

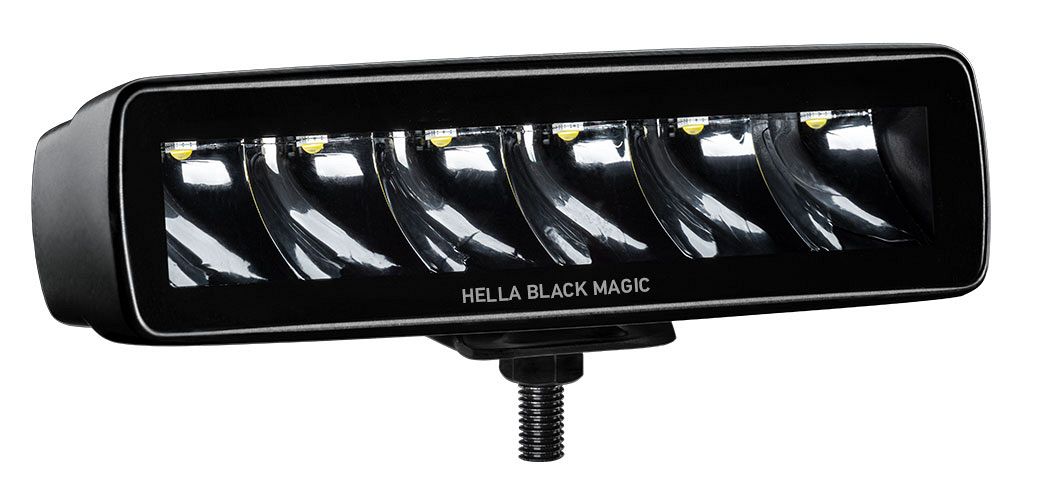

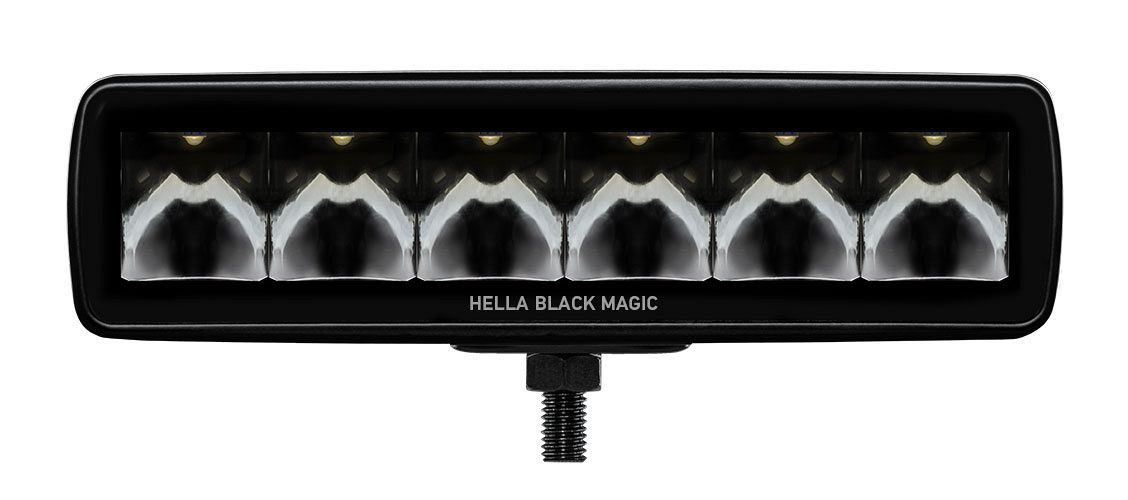

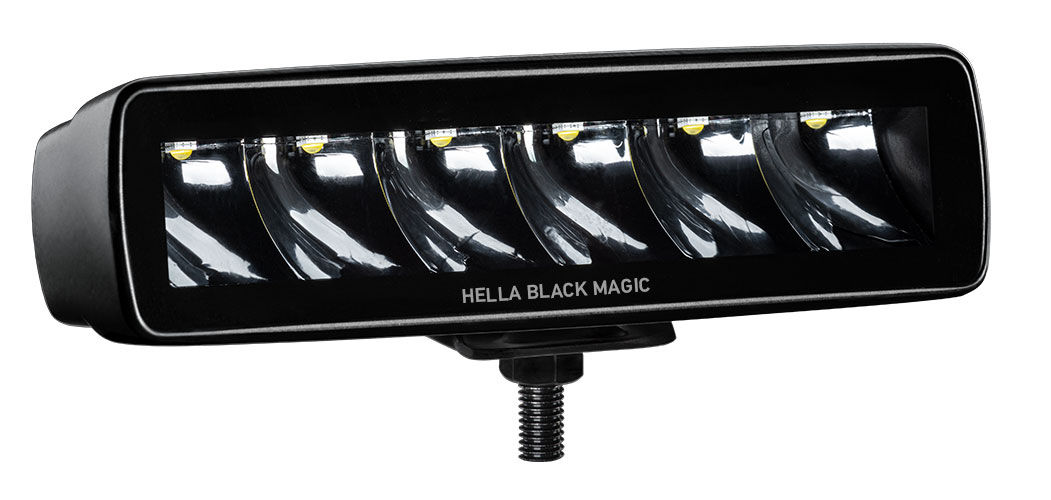

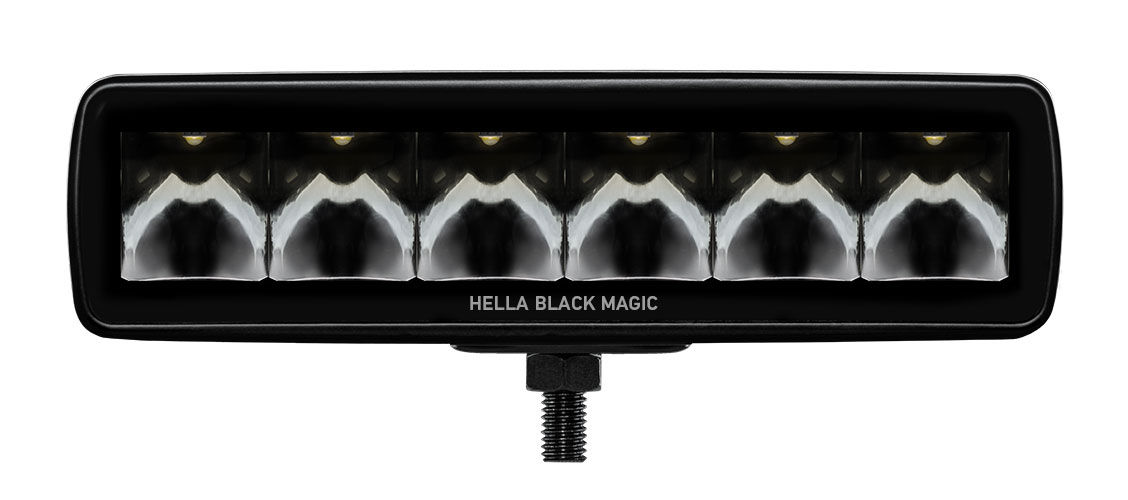

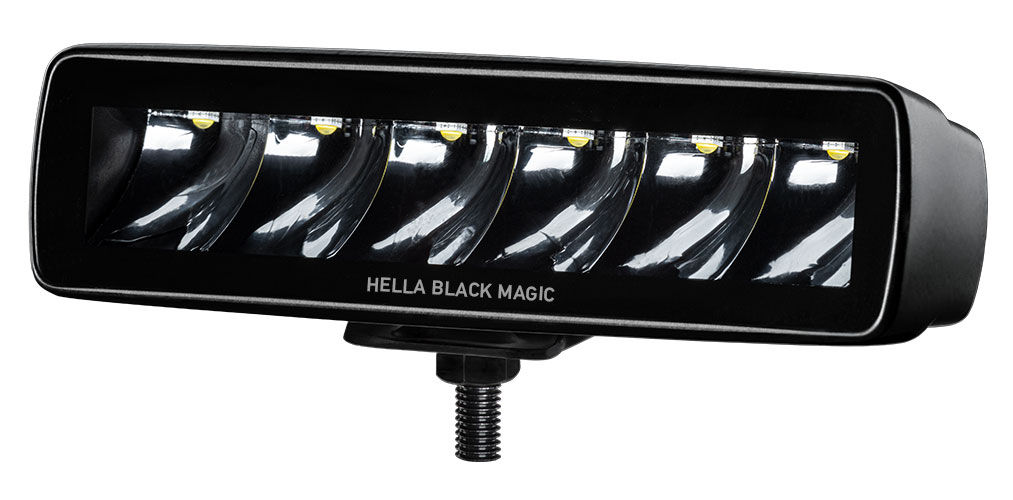

Black Magic Mini Light Bar 6.2” (Spotlight)

PART NO: 1FB 358 176-211

Specifications

Mounting

Upright/pendant

Voltage

Multi-voltage suitable for 12 or 24 volt systems

Max Power Consumption

30W

Max Light Output

1600 lumen

Colour Temperature

5700K

Cable Length

800mm cable with open ends

Protection

Reverse polarity protection.
IP 68 (Protection against dust and water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

470g

Housing

Aluminium, black stainless steel bracket

Compliance

CE, ECE R10

CE

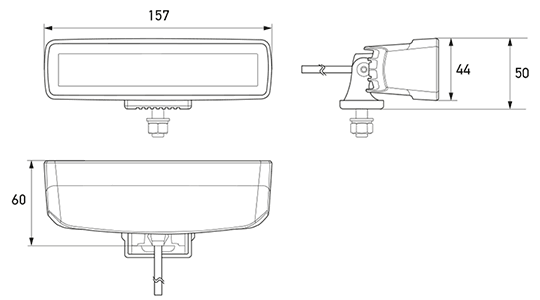

Outline

All dimensions in mm
All dimensions in mm

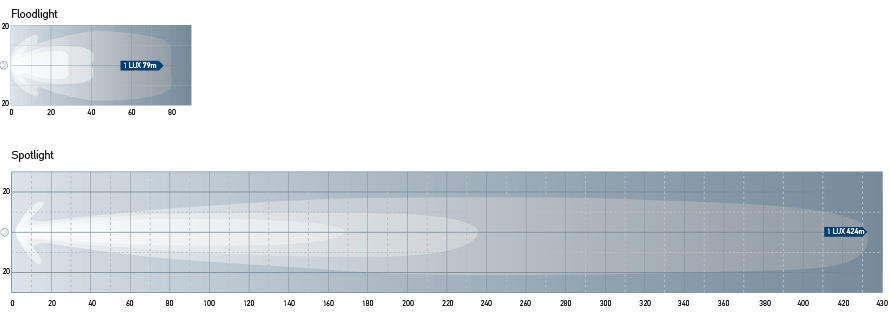

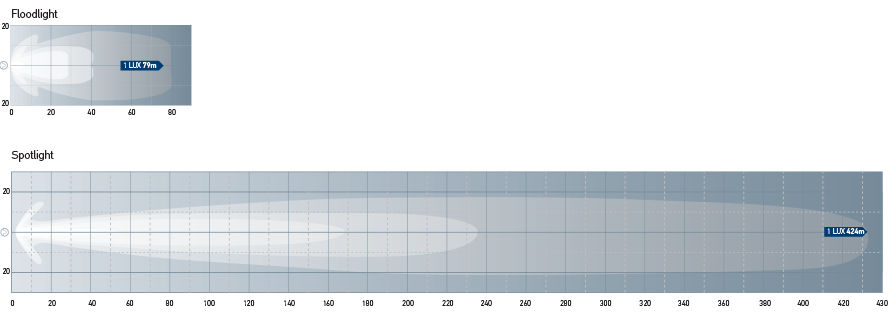

Light Output

The light distribution charts show the ranges of two lights.
The light distribution charts show the ranges of two lights.
