HELLA

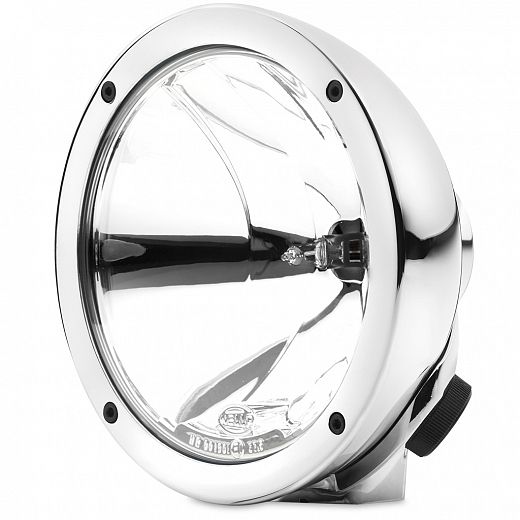

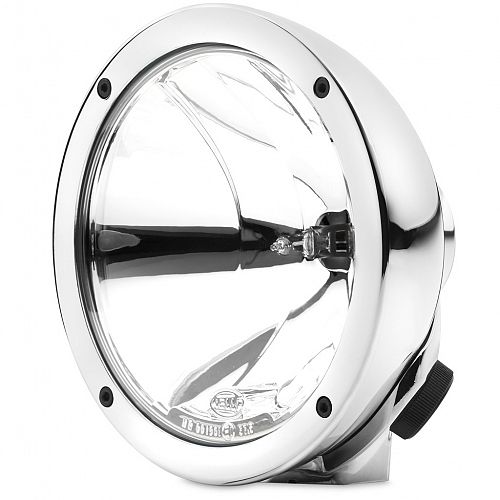

Rallye 4000 Compact Chrome Spread Beam Driving Lamp

170mm compact version of the Rallye 4000 driving lamp, features clear Free-Form (FF) reflector lens design and sturdy zinc die-cast weatherproof metal housing. Protective covers available seperately.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Rallye 4000 Compact Chrome Spread Beam Driving Lamp

Rallye 4000 Compact Chrome Spread Beam Driving Lamp

PART NO: 1F3 009 094-341
Legacy PN: 1378CHROME

Add to favourites

Specifications

Mounting

Upright

Power Consumption

55W

Bulbs to Suit
12V C1255
24V C2470

Spare Part
9.1378.01 Spread beam insert
8115 Protective Cover
8155 Clear Protective Cover
9.1365.06 Knurled Screw Set (2)
5224 12V Wiring Kit (includes Relay & Switch)

Compliance

E1 1901

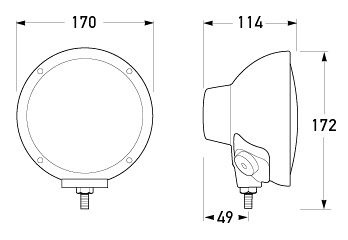

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

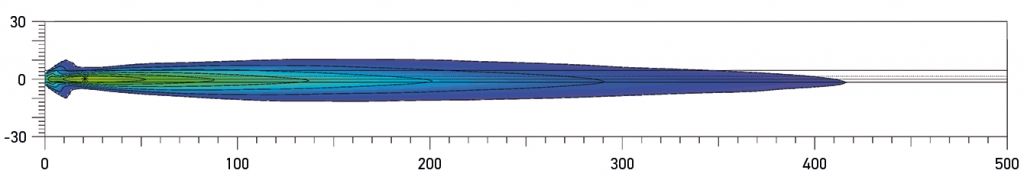

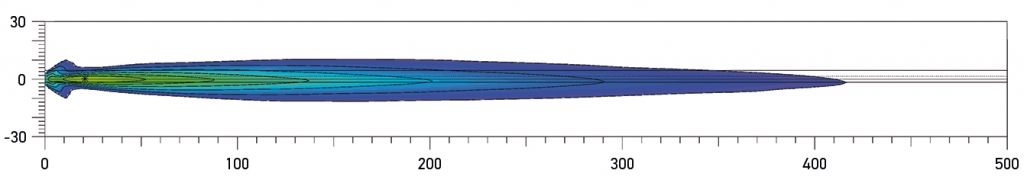

Beam distance. Recorded with single lamp. Distance in metres(100W Bulb)
Beam distance. Recorded with single lamp. Distance in metres(100W Bulb)
