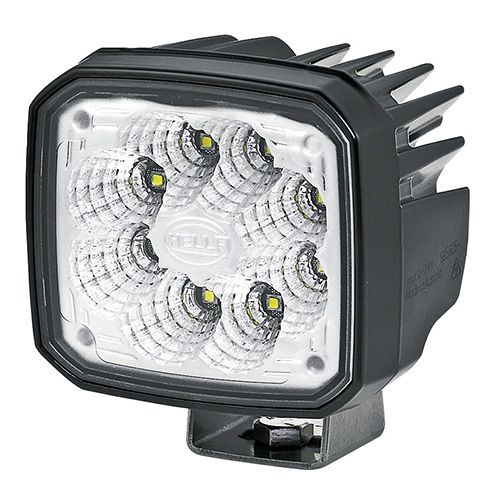

Ultra Beam Gen. II LED Compact High Performance Driving Light

Delivering 4000 lumen of crisp pencil beam light more than 400m down the road, the Ultra Beam Gen. II is a powerful driving light.* Despite its compact size being smaller than many competing driving lights, the Ultra Beam will outshine many larger models with its consistent light distribution. Long life durability is ensured, thanks to the excellent thermal design of the die-cast aluminium housing, advanced internal electronic protection for 12V and 24V vehicles, and a sturdy mounting bracket for confidence in the harshest conditions.

*Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off-road use only, and must be switched independently of headlamps.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

Ultra Beam Gen. II Compact Pencil Beam Off Road Driving Light

PART NO: 1GA 995 606-021

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 32 volts.

Power Consumption

56W

Max. Light Output

4000 lumen

Colour temperature

6500K

Cable Length

Integrated DT Socket

Protection

Reverse polarity protection. Transient spike circuit protection.
IP 6K8 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Temperature range

-40°C to +50°C

Housing

Aluminium Die cast

Compliance

 CE CISPR 25 Class 5. ECE R10  CE

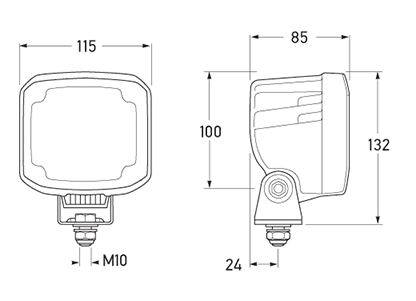

Outline

All dimensions in mm.
All dimensions in mm.

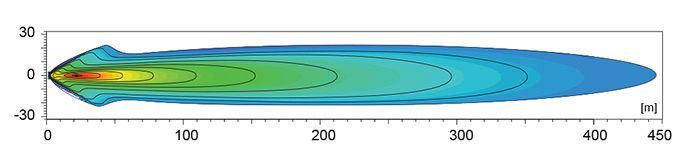

Light Output

Ultra Beam Gen. II distance recorded with dual lamps. Distance in metres.
Ultra Beam Gen. II distance recorded with dual lamps. Distance in metres.
