HELLA

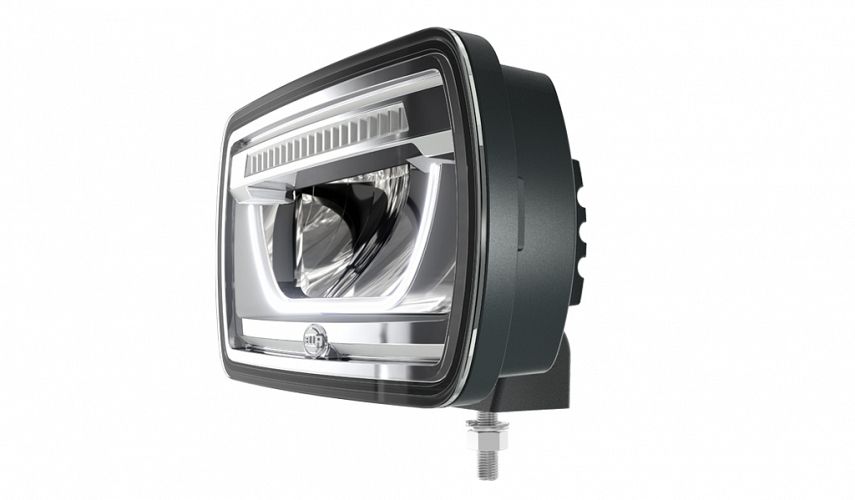

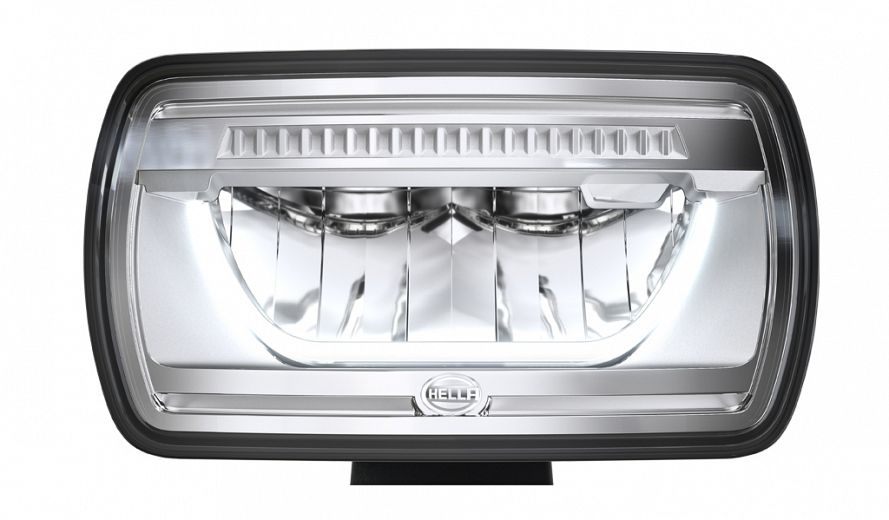

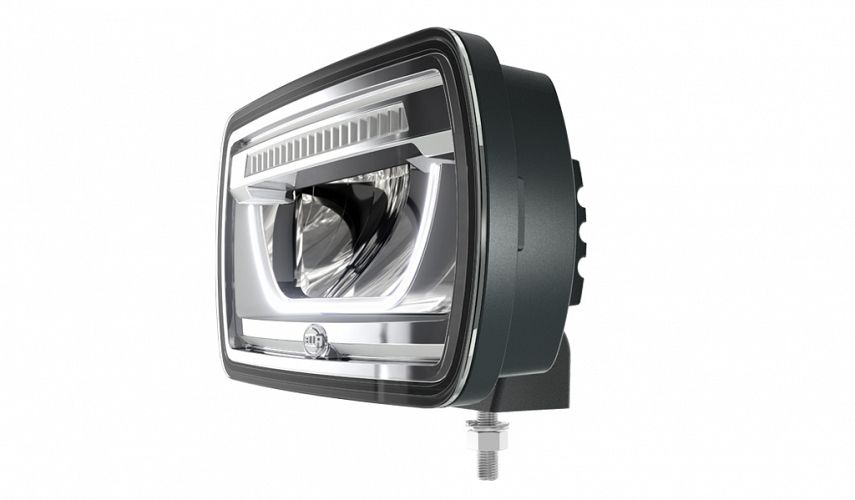

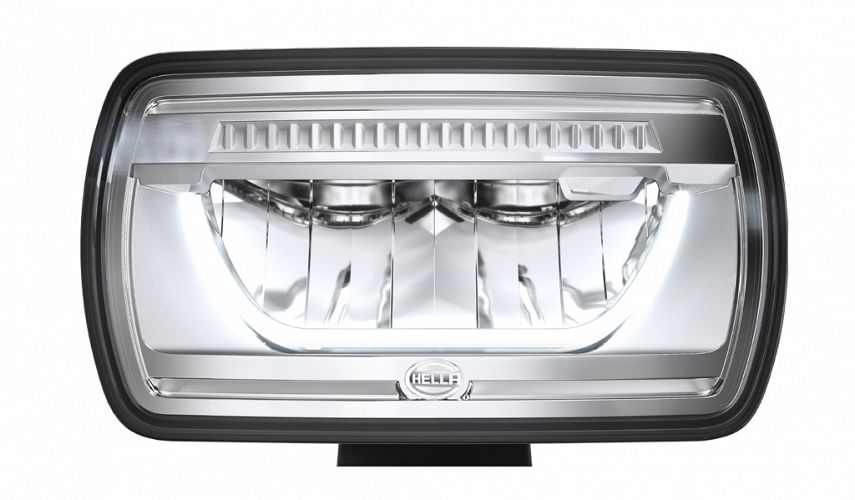

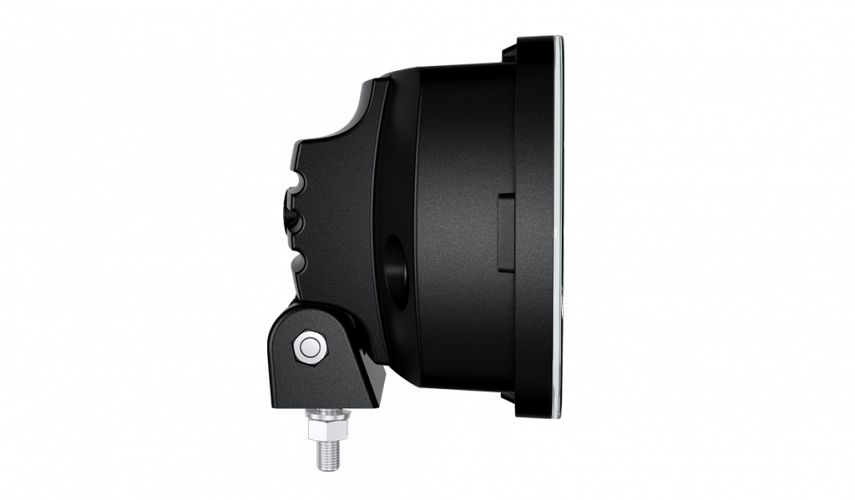

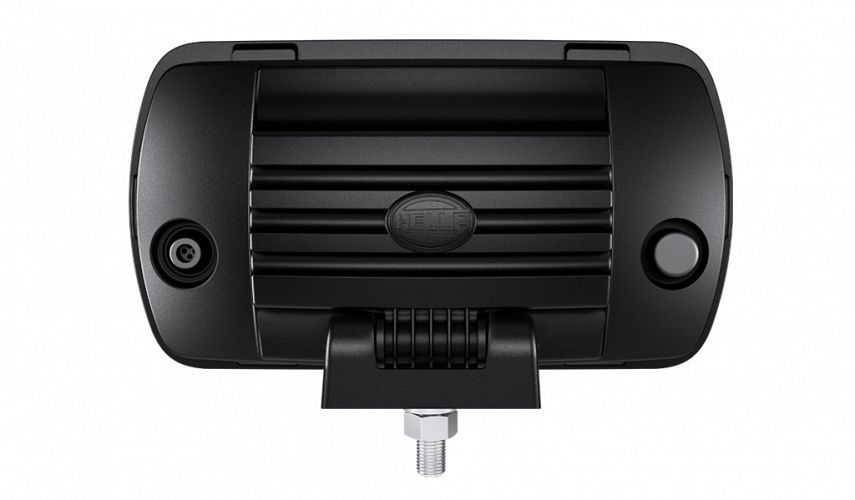

Jumbo LED High Beam Driving Lamp with Edge Position Light

The distinctive signature style of HELLA’s Jumbo LED driving light is made possible by HELLA’s innovative Edge Light technology.

Low power consumption and impressive performance from the latest LED technology illuminates over 440 metres for only 2 x 8W of power. A combination of LED robustness and durable engineering provides a long service life supported by the HELLA 5 year warranty.

­• LED High Beam
• Integrated LED Edge Position Light
• Road legal in New Zealand
• Over 440m of light
• Light weight, only 980g
• 5 Year Warranty

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Jumbo LED High Beam Driving Lamp with Edge Position Light Spread Beam

PART NO: 1FE 016 773-001

Specifications

Mounting

Upright

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 32 volts

Power Consumption

Driving lamp: 8W
Position lamp: Max 3W

Light Output

440m range

Weight

980g

Protection

IP 6K7 Protection against dust and temporary water immersion
IP X9K Protection against high-pressure cleaner, specific for road vehicles

Cable Length

800mm of 3 core cable

Compliance

ECE R149 high beam ECE R148 position light ECE R10               CE

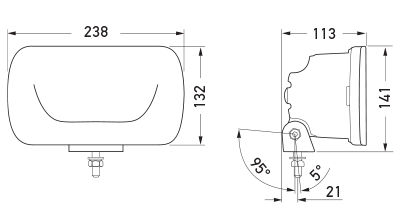

Outline

All dimensions in mm
All dimensions in mm

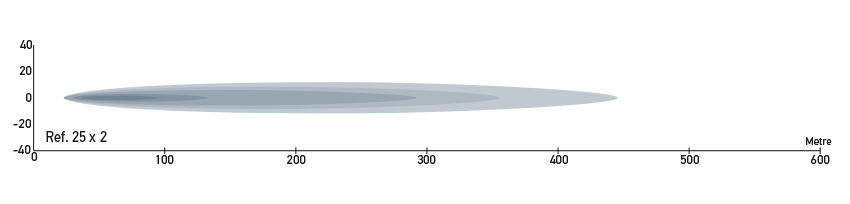

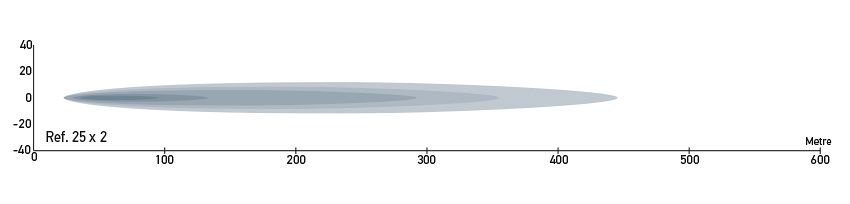

Light Output
