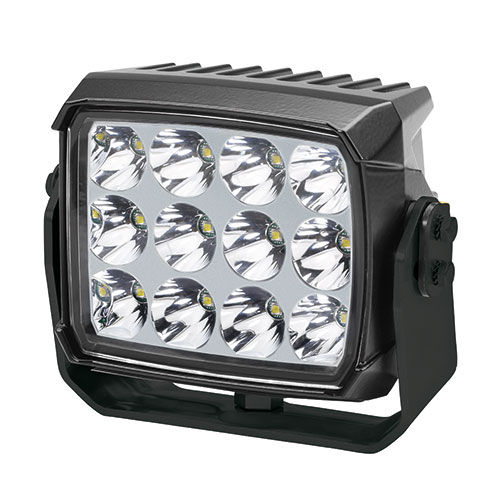

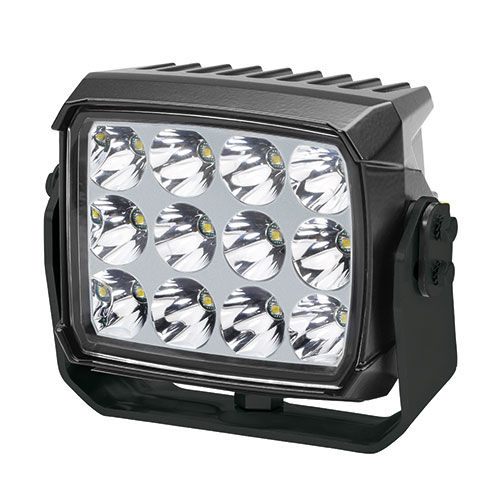

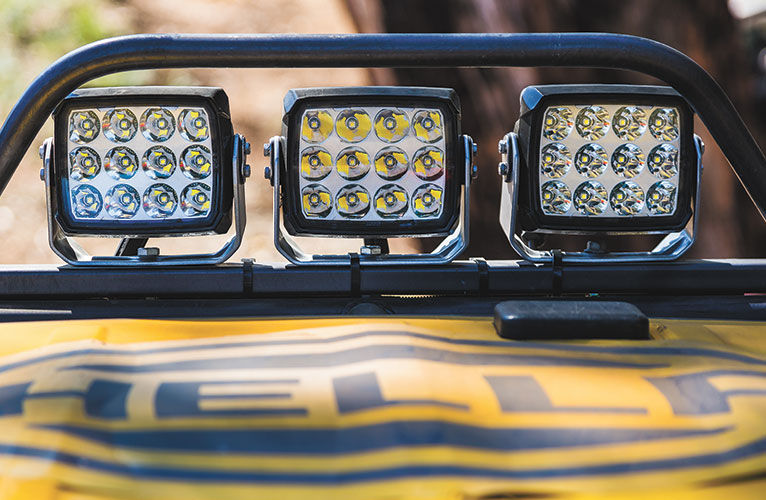

RokLUME 380 N LED Driving Lamp

The RokLUME 380 N Driving Light provides 7500 lumen, more than double the light of a comparable Xenon driving light. The 12 high-power LEDs create an extensive illumination at a colour temperature of 5000 Kelvin. The warmer colour temperature reduces glare from highly reflective road signs compared to 6500 Kelvin, predominately used by many LED driving lights.

With a mining pedigree, the RokLUME 380 N suits the toughest operating conditions due to the cover lens being made of impact-resistant and hard-coated polycarbonate, and the aluminium housing featuring a tough NanoSafe coating. The heavy-duty bracket and the innovative Nord-Lock screw system ensure the light remains in the correct position and does not vibrate even on corrugated roads. Reaching the highest rating in electromagnetic compatibility the RokLUME 380 N will not interfere with communication systems. The advanced thermal design ensures the light will not scale back light output.

NanoSafe Technology - LED Work Lamps

NanoSafe - Housing Technology
NanoSafe is a advanced non-stick and easy to clean surface coating. Three additional layers were implemented into the NanoSafe coating leading to much higher and longer resistance against corrosion.



• 7500 Lumen output
• Aluminium housing with NanoSafe coating
• Completely sealed against dust and water

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

RokLUME 380 N LED Driving Light - Pencil Beam 12V

PART NO: 1FA 996 197-151

RokLUME 380 N LED Driving Light - Pencil Beam 24V

PART NO: 1FA 996 197-181

Specifications

Mounting

Upright or pendant. Heavy Duty bracket resists vibration.

Voltage

12V or 24V

Power Consumption

85W

Max. Light Output

7500 lumen

Colour Temperature

5000K

Protection

Reverse polarity protection. Transient spike circuit protection.
IP 6K8 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Temperature range

-40°C to +50°C

Housing

Aluminium with NanoSafe Coating

Lens material

Polycarbonate

Cable Length

Supplied with 2m of sheathed twin core cable and DT plug

Compliance

E1 3161 CISPR 25 Class 5. ECE R10  CE

Accessory Part Number

8KB 958 757-501 2.0m sheathed cable with DT plug

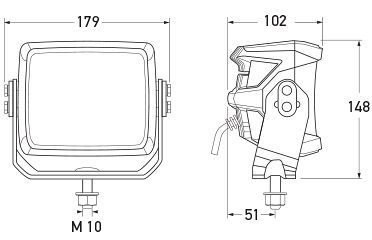

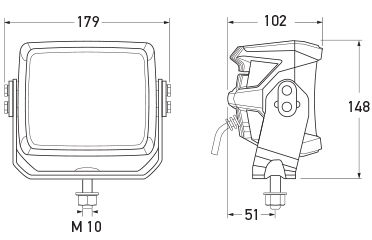

Outline

All dimensions in mm
All dimensions in mm

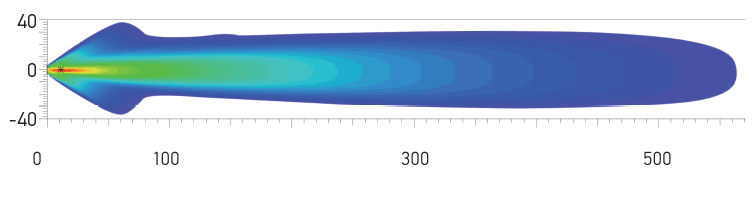

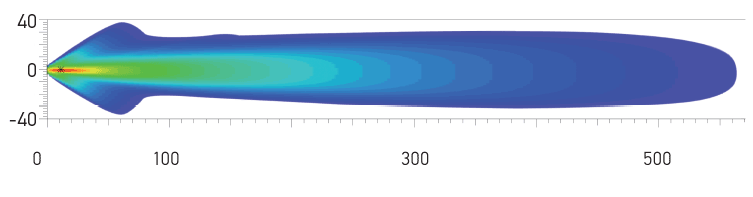

Light Output

RokLUME 380 N Beam distance recorded with dual lamps. Distance in metres.
RokLUME 380 N Beam distance recorded with dual lamps. Distance in metres.
