HELLA

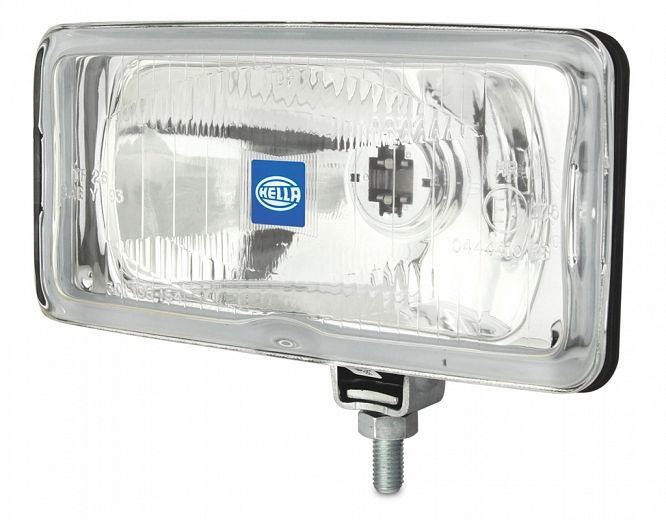

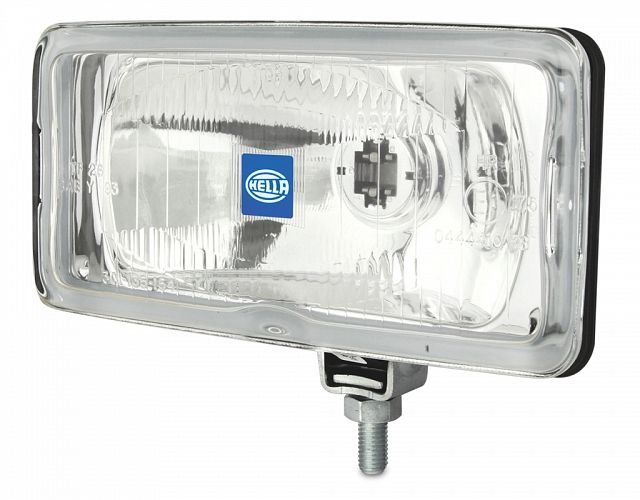

Comet 550 Spread Beam Driving Lamp

Comet 550 spread beam driving lamp with hardened glass lens and tough plastic body. Supplied with Protective Cover P/N 8122

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Comet 550 Spread Beam Driving Lamp

Comet 550 Spread Beam Driving Lamp

PART NO: 1FD 005 700-472
Legacy PN: 1309

Add to favourites

Specifications

Mounting

Upright or pendant.

Power Consumption

55W

Bulbs to Suit
12V YC1255
24V YC2470

Spare Part
9.1309.01 Driving lamp insert
9.1308.08 Mounting bracket assembly
8122 Protective cover
8138 Clear protective cover
5224 12V Wiring Kit (includes Relay & Switch)

Compliance

E1 44410

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

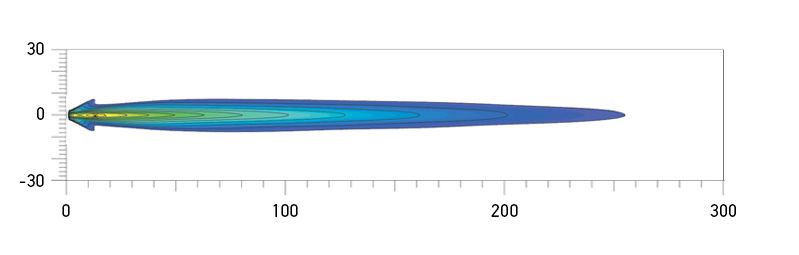

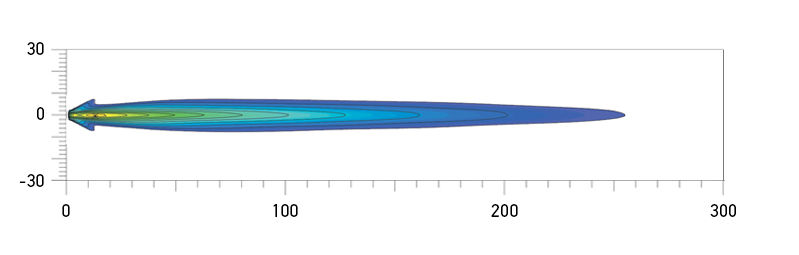

Comet 550 Spread Beam distance. Recorded with single lamp. Distance in metres.
Comet 550 Spread Beam distance. Recorded with single lamp. Distance in metres.
