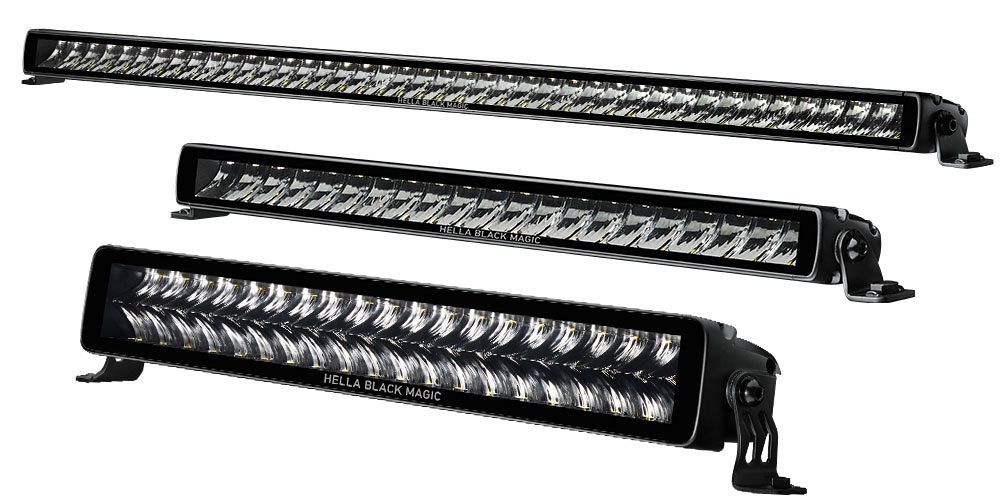

Black Magic Light Bars

Delivering a powerful light output of up to 12000 lumen, the Black Magic Light Bars are ideal for off-road situations. They have an attractive full blackout appearance (including black brackets), with a slim, edgeless design. Integrated thermal sensors not only prevent overheating or LED failure, but also increase light output when the ambient temperature is low, delivering optimum light under all conditions. The 2m long cable allows for easy installation on bumpers and roof racks. Backed by a 2 year warranty.

Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off-road use only, and must be switched independently of headlamps.

• Full Blackout Appearance
• Ideal for Off Road Driving
• Intense Light Output
• Dust and Waterproof
• Up to 595m Beam Range

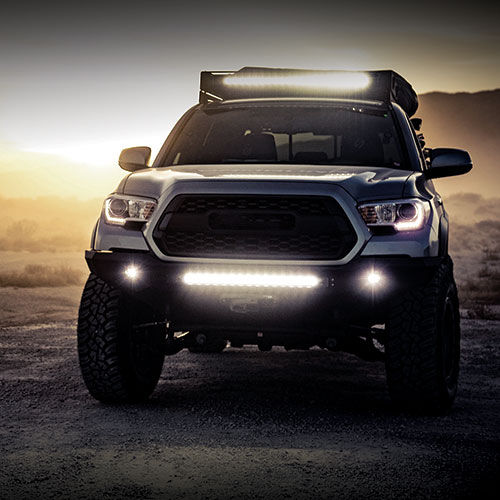

Black Magic text over Truck Image

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

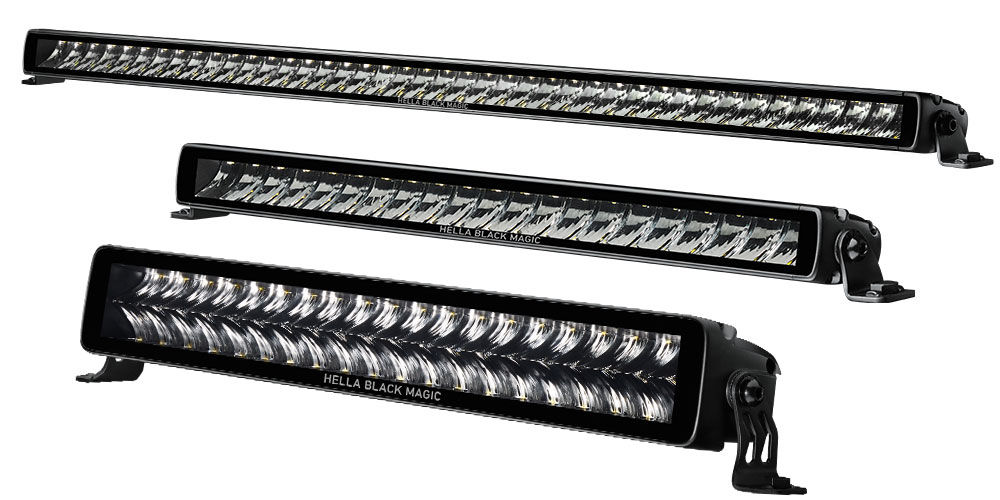

Options

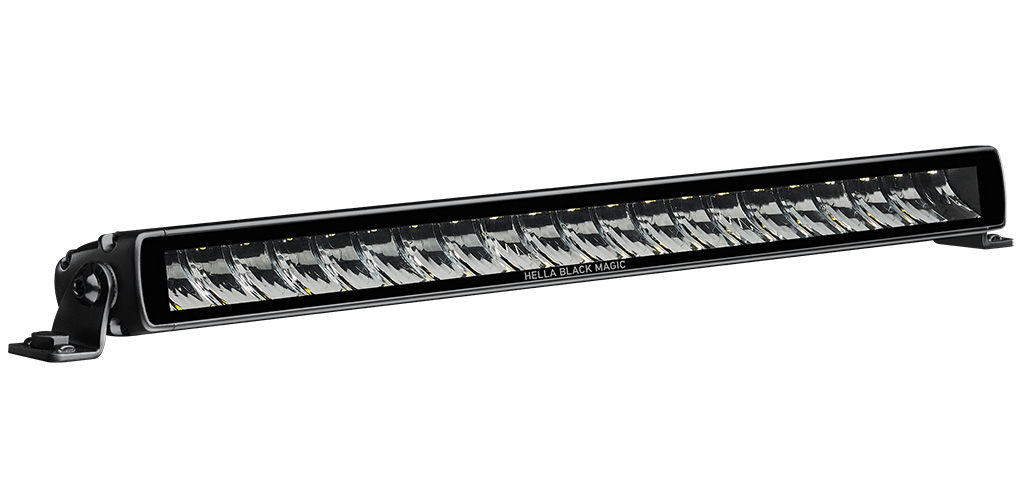

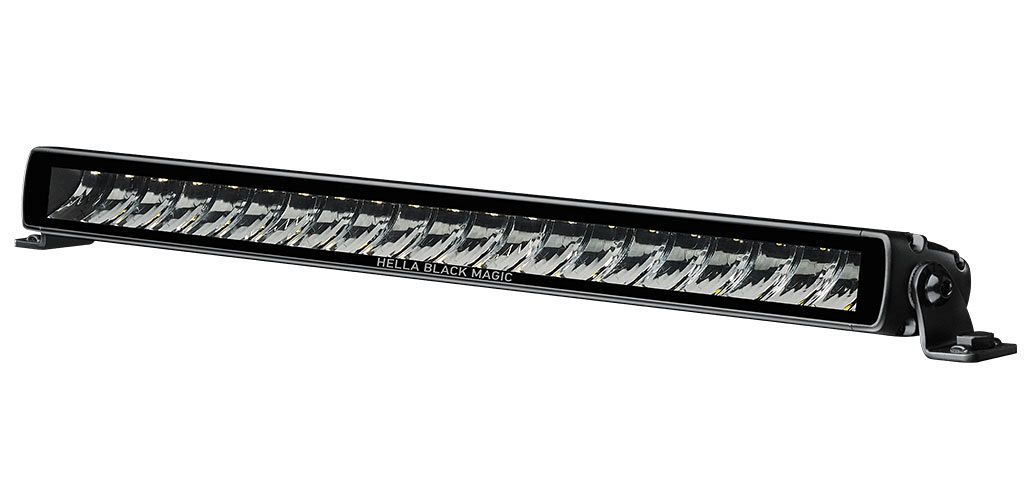

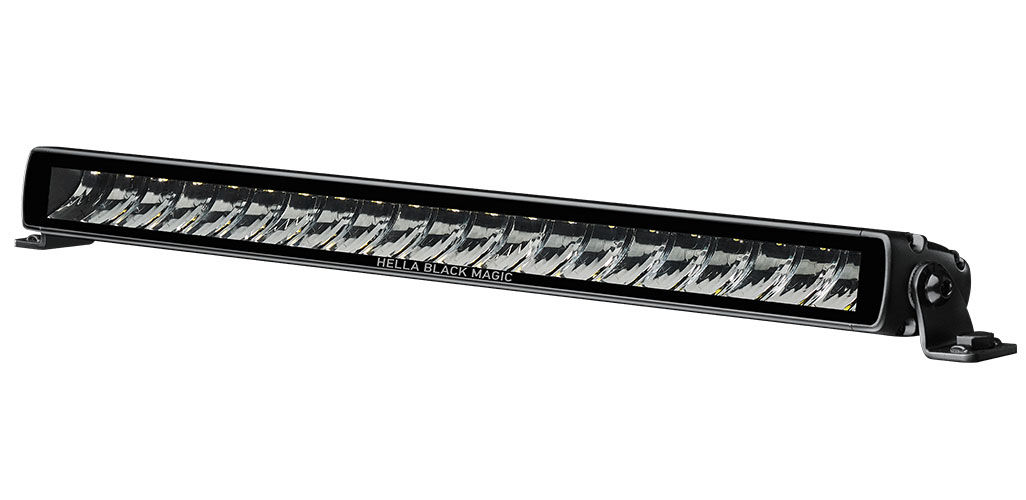

Black Magic LED Slim Light Bar 20”

PART NO: 1FJ 358 176-301

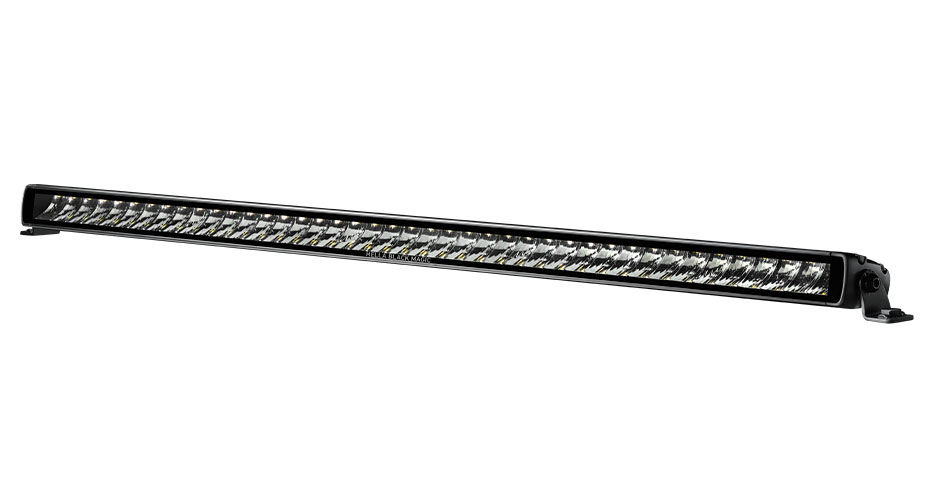

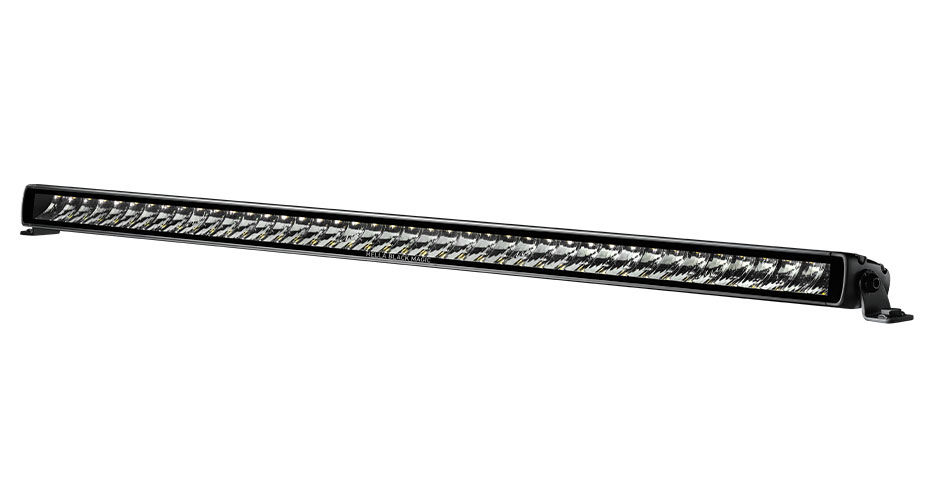

Black Magic LED Slim Light Bar 40”

PART NO: 1FJ 358 176-321

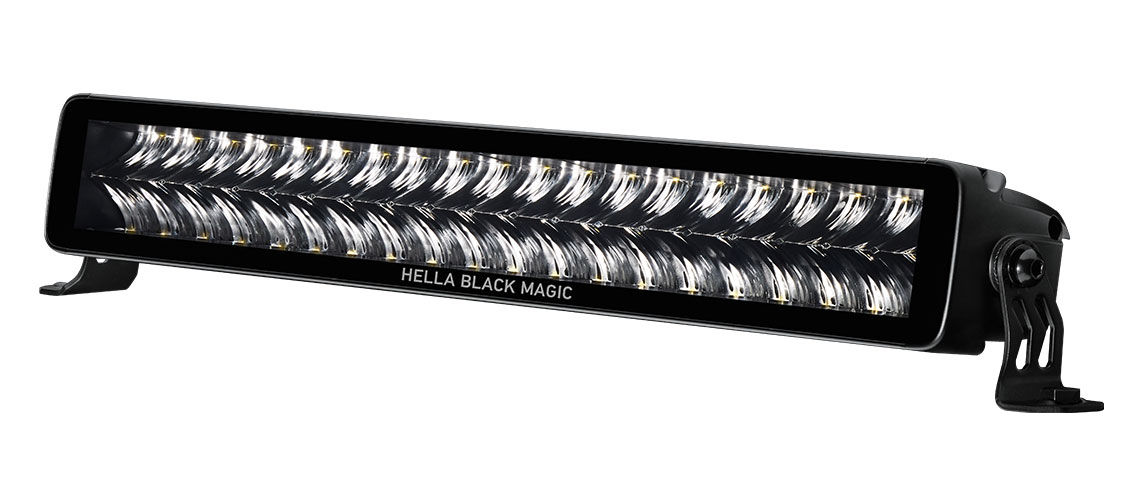

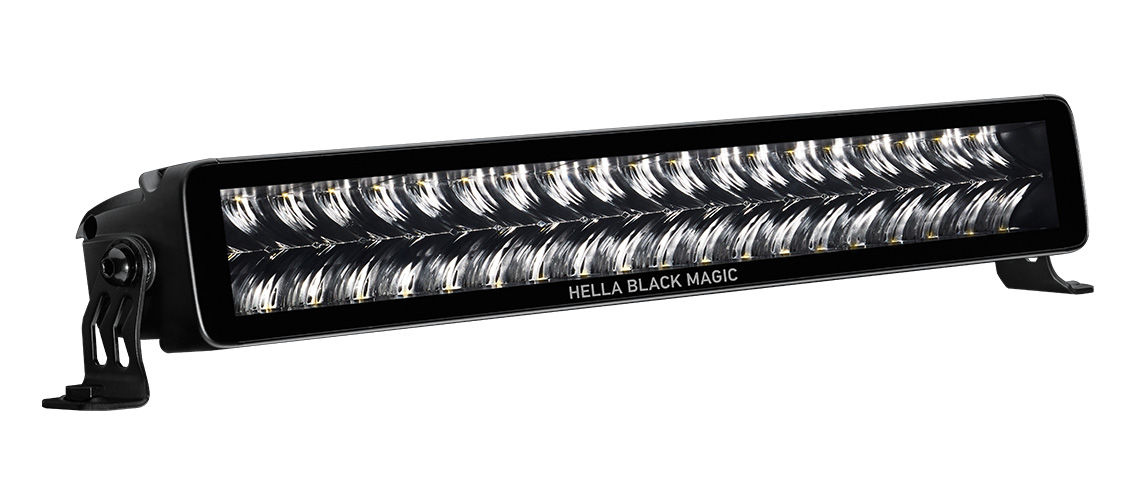

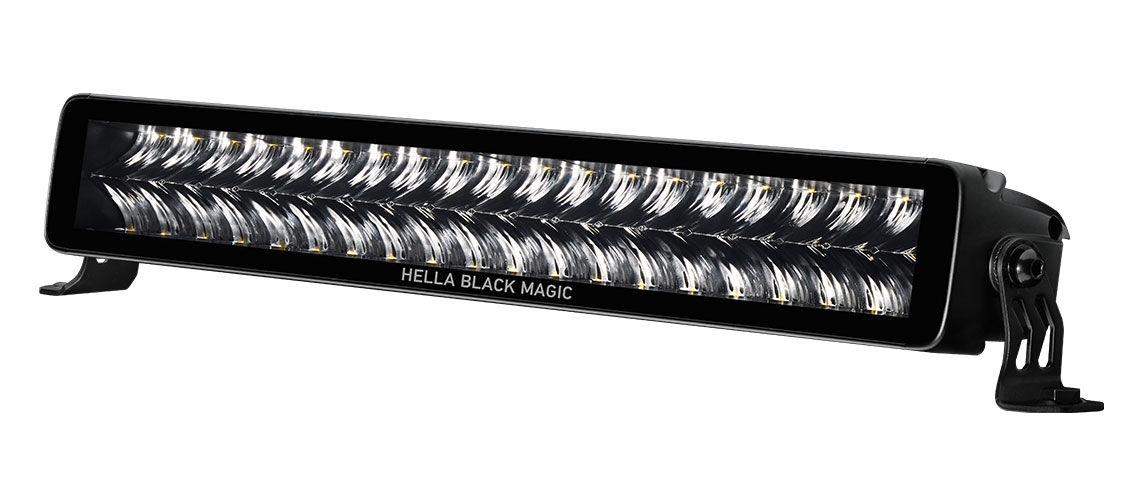

Black Magic LED Double Light Bar 21.5”

PART NO: 1FJ 358 176-401

40” Light Bar Mounting Bracket (Slim Lightbar Back Side Mounting Bracket & screws set)

PART NO: 8HG 358 176-341

Specifications

Mounting

Upright/pendant

Voltage

Multi-voltage suitable for 12 or 24 volt systems

Max Power Consumption

20”: 105W
40”: 210W
21.5”: 200W

Max Light Output

20”: 6000 lumen
40”: 12000 lumen
21.5”: 11000 lumen

Colour Temperature

5700K

Cable Length

2m cable with open ends

Protection

Reverse polarity protection.
IP 68 (Protection against dust and water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

20”: 1400g
40”: 2400g
21.5”: 2420g

Housing

Aluminium, black stainless steel bracket

Compliance

CE, ECE R10

CE

Accessory Part Number

P/N 8HG 358 176-341 40” Light Bar Mounting Bracket

Outline

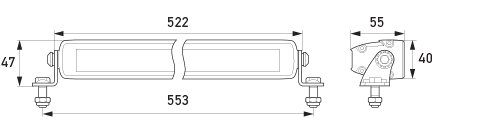

1FJ 358 176-301 LED Slim Light Bar 20”
1FJ 358 176-301 LED Slim Light Bar 20”

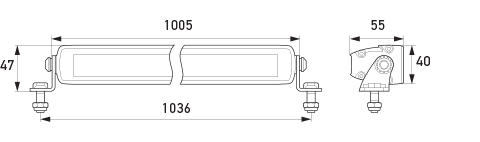

1FJ 358 176-321 LED Slim Light Bar 40”
1FJ 358 176-321 LED Slim Light Bar 40”

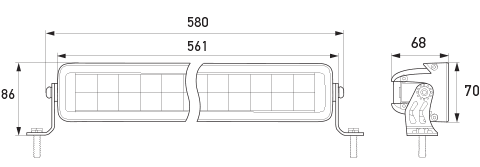

1FJ 358 176-401 LED Double Light Bar 21.5”<br>All dimensions in mm (Not to scale)
1FJ 358 176-401 LED Double Light Bar 21.5”
All dimensions in mm (Not to scale)

Light Output

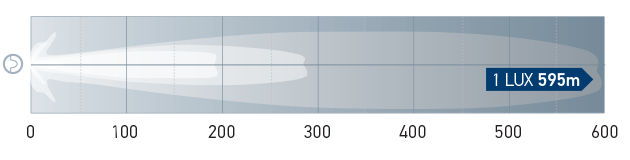

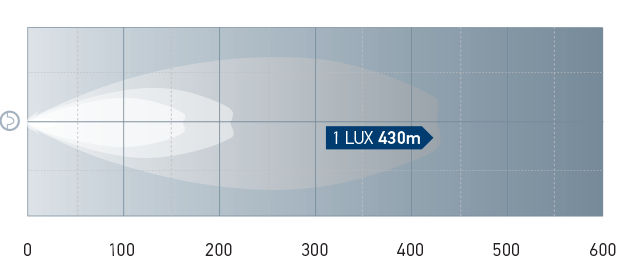

LED Slim Light Bar 20” Light Output
LED Slim Light Bar 20” Light Output

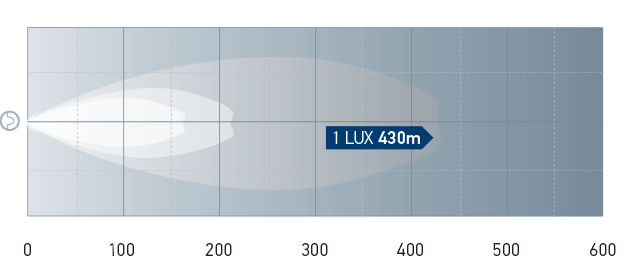

LED Slim Light Bar 40” Light output
LED Slim Light Bar 40” Light output

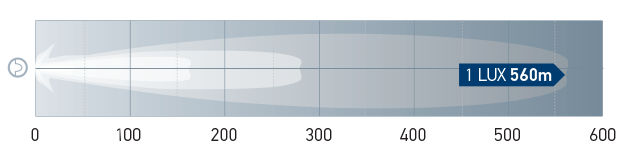

LED Double Light Bar 21.5” Light output. The light distribution charts show the ranges of two lights.
LED Double Light Bar 21.5” Light output. The light distribution charts show the ranges of two lights.
