HELLA

Rallye 4000 Pencil Beam Driving Lamp

The Rallye 4000 pencil beam features a sturdy zinc die-cast metal body and bracket for excellent strength and vibration resistance. The lamp bracket has a large contact surface making the lamp stable in rough conditions. Suitable for professional, commercial and off-road drivers. Complete with protective cover P/N 8125 and allen keys.

Note: Due the high performance of these driving lamps, they exceed the allowed maximum light intensity to be ECE compliant, and therefore are recommended for Motorsport or off-road use only.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

Options

Rallye 4000 Pencil Beam Driving Lamp

PART NO: 1F8 007 560-391
Legacy PN: 1365

Specifications

Mounting

Upright or pendant.

Power Consumption

55W

Bulbs to Suit

12V C1255
24V C2470

Spare Part

9.1365.01 Pencil Beam Insert
9.1365.02 Pencil beam insert - Clear Lens HB
8125 Protective Cover
8141 Clear Protective Cover
8126 Protective Grille
9.1365.06 Knurled Screw Set (2)
5224 12V Wiring Kit (includes Relay & Switch)

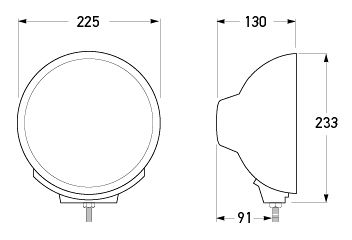

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

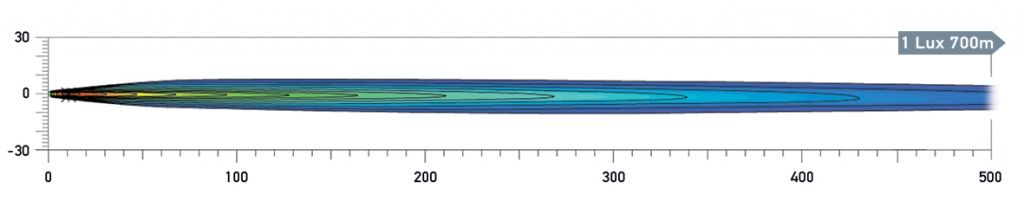

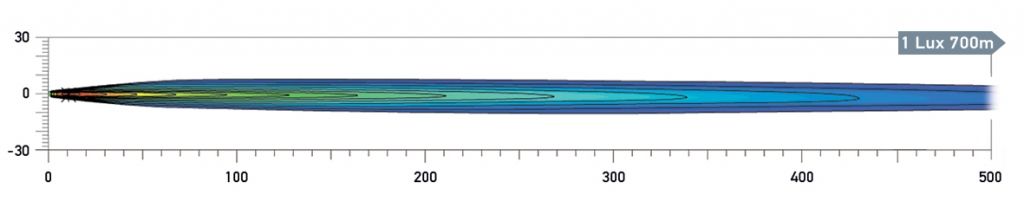

Rallye 4000 Pencil Beam distance. Recorded with single lamp. Distance in metres. (100W Bulb) - 1 LUX 700m.
Rallye 4000 Pencil Beam distance. Recorded with single lamp. Distance in metres. (100W Bulb) - 1 LUX 700m.
