HELLA

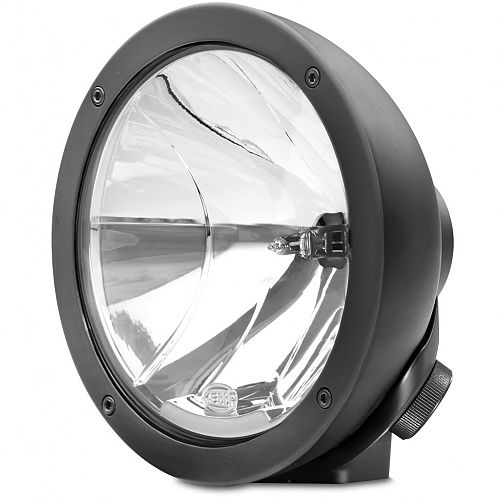

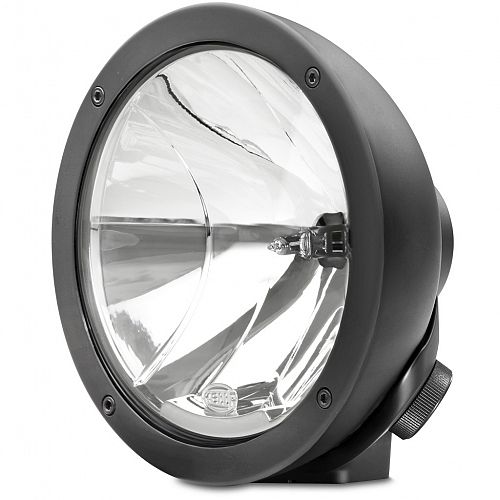

Rallye 4000 Compact Pencil Beam Driving Lamp

Rallye 4000 Compact pencil beam driving lamp features clear glass optics and sturdy zinc die-cast weatherproof metal housing. Protective covers available seperately.

Note: Due the high performance of these driving lamps, they exceed the allowed maximum light intensity to be ECE compliant, and therefore are recommended for Motorsport or off-road use only.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

Options

Rallye 4000 Compact Pencil Beam Driving Lamp

PART NO: 1F3 009 094-161
Legacy PN: 1380

Specifications

Mounting

Upright

Power Consumption

55W

Bulbs to Suit

12V C1255
24V C2470

Spare Part

9.1380.01 Pencil beam insert
8115 Protective Cover
8155 Clear Protective Cover
9.1365.06 Knurled Screw Set (2)
5224 12V Wiring Kit (includes Relay & Switch)

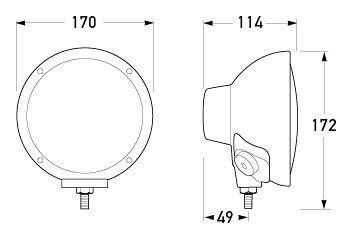

Outline

All dimensions in mm.
All dimensions in mm.

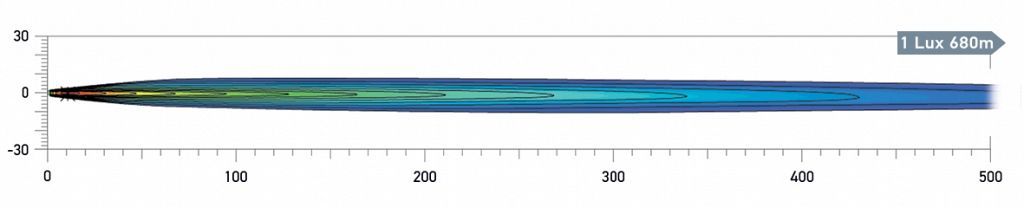

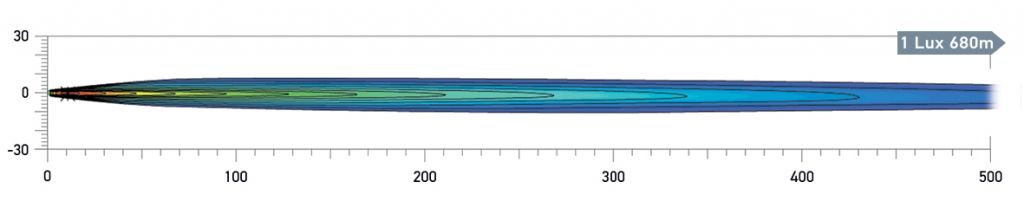

Light Output

Rallye 4000 Compact Pencil Beam distance. Recorded with single lamp. Distance in metres. (100W Bulb) - 1 LUX 680m
Rallye 4000 Compact Pencil Beam distance. Recorded with single lamp. Distance in metres. (100W Bulb) - 1 LUX 680m
