Black Magic TOUGH Light Bars

Introducing the new HELLA Black Magic TOUGH Light Bars – the ultimate lighting solution designed to tackle any challenge. With a sleek all-black design, right down to the smallest detail, these light bars offer both style and outstanding illumination.

It’s as straightforward as it gets: everything about these light bars is black, ensuring a striking appearance from every angle. But the allure doesn’t stop at aesthetics. Black Magic Tough lamps deliver powerful illumination ranging from 6000 to an impressive 13,500 actual effective lumens. Beam patterns are either ‘Spot’ or ‘Combi’. Spot offers the ultimate in long distance; Combi provides long, medium, and short distance, all in one.

Crafted for durability, these Black Magic Light Bars boast the highest level of dust and water resistance, making them perfect for the rugged conditions of New Zealand, no matter where your adventures take you.

These lamps are equipped with integrated thermal sensors to ensure optimal lighting performance in all conditions. With a 2m long cable, installation on bumpers and roof racks is a breeze. Plus, you can have peace of mind knowing that the HELLA Black Magic TOUGH Light Bars are backed by a solid 2 year warranty.

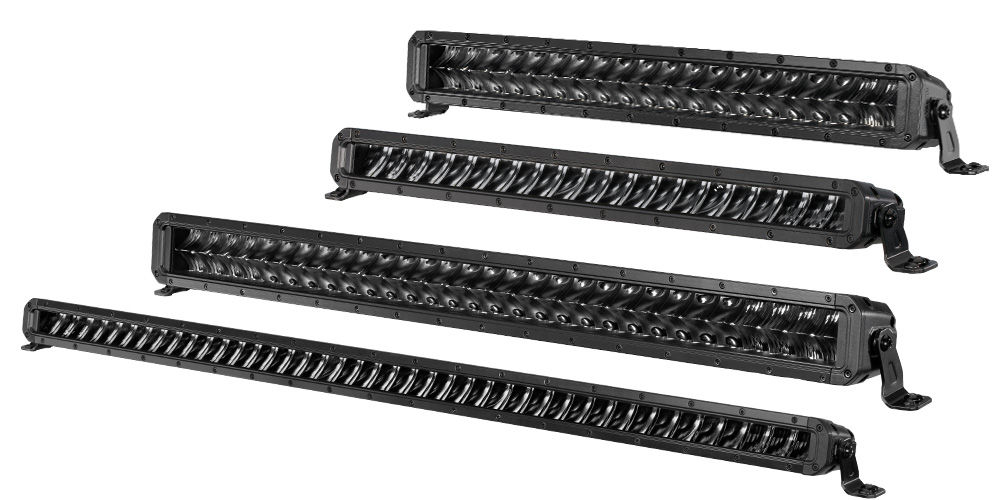

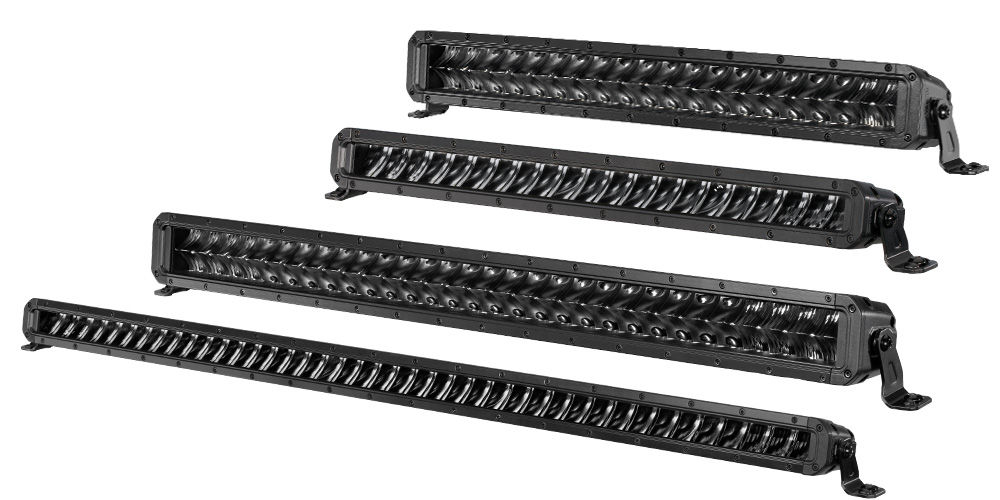

Choose from four different size and power variants to find the perfect fit for your needs. Illuminate your path with HELLA Black Magic TOUGH Light Bars and conquer the darkness like never before.

Note: These LED lamps have not been approved to ECE R112 regulations (E Mark) for light output, and therefore are recommended for Motorsport or off road use only, and must be switched independently of headlamps.

• TOUGH Full Blackout Appearance
• Ideal for Off Road Driving
• Intense Light Output
• Impact and Shock Resistant
• Dust and Waterproof

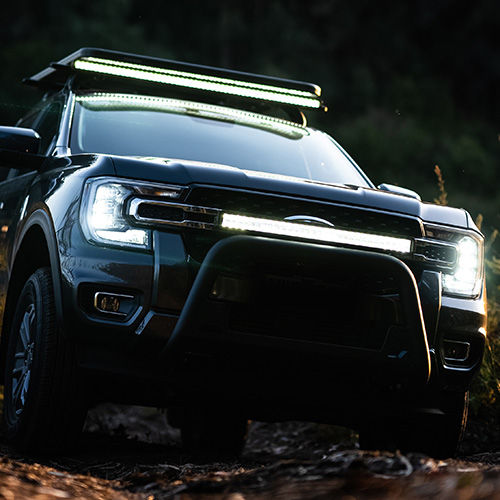

Black Magic text over Truck Image

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Can use either 12 or 24V

12/24V Dualvolt

Can use either 12 or 24V

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

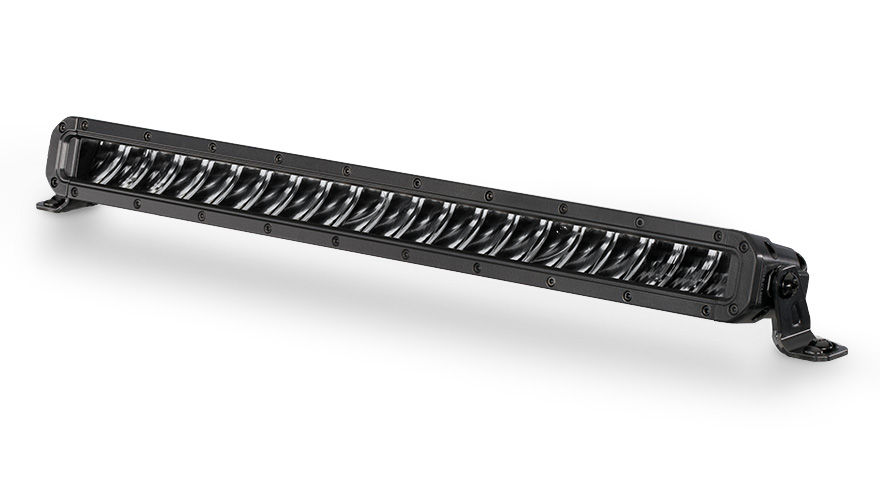

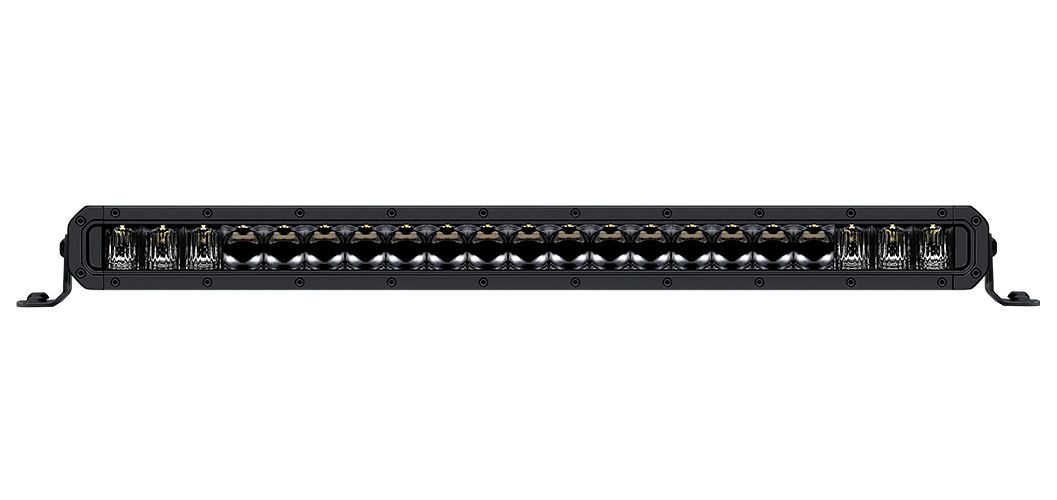

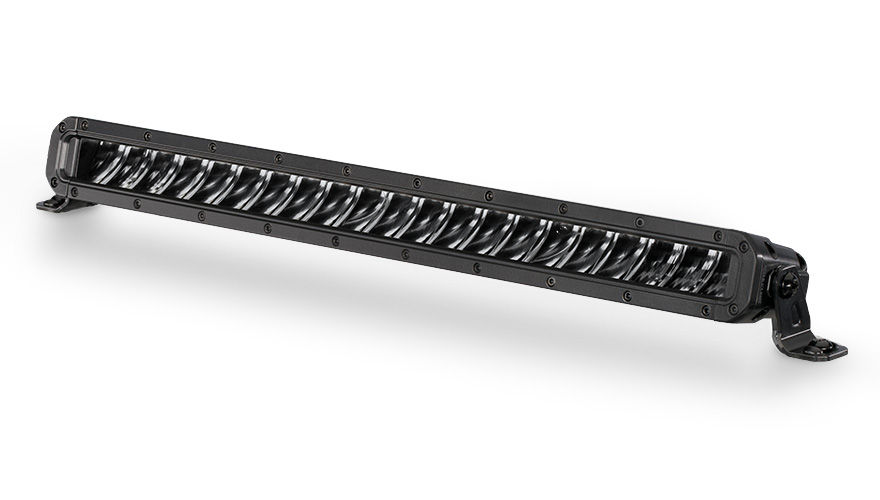

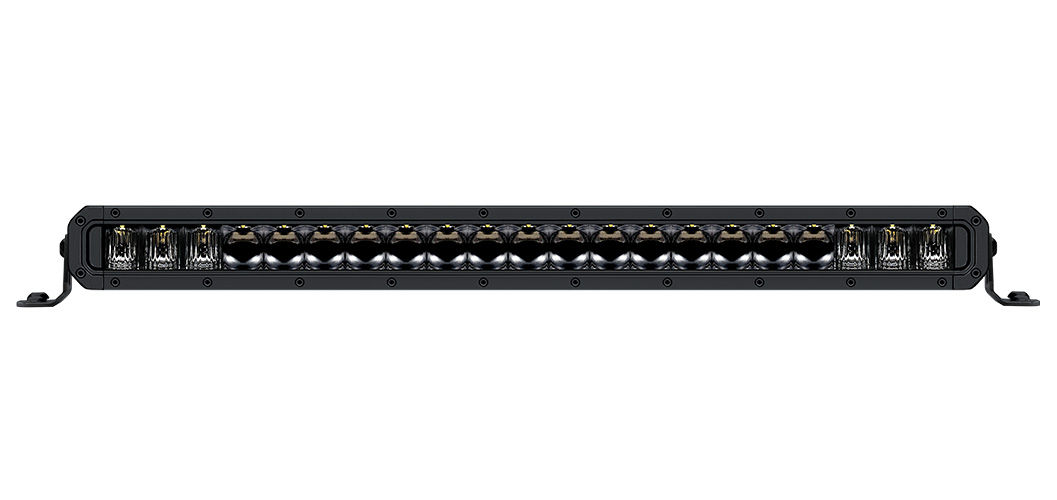

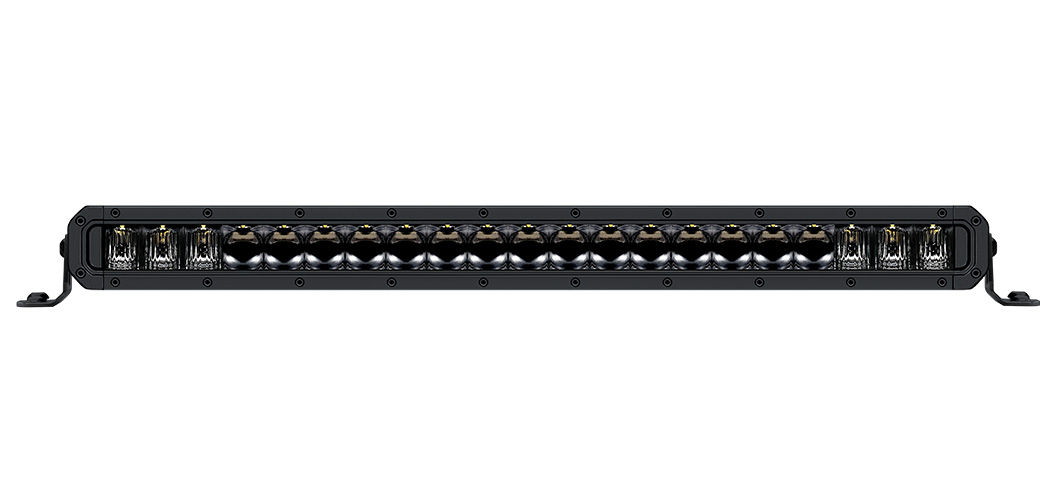

Black Magic TOUGH 20” Single Row Light Bar

PART NO: 1GJ 358 197-301

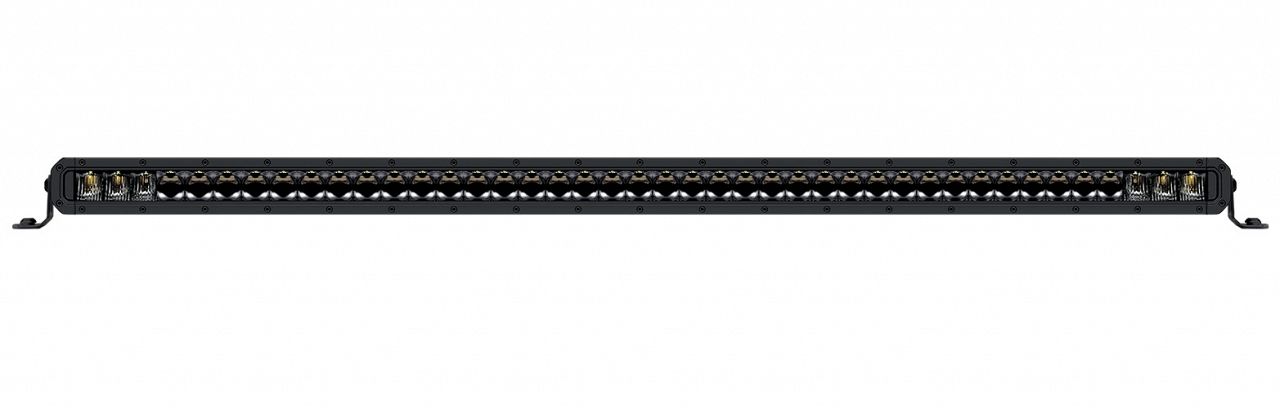

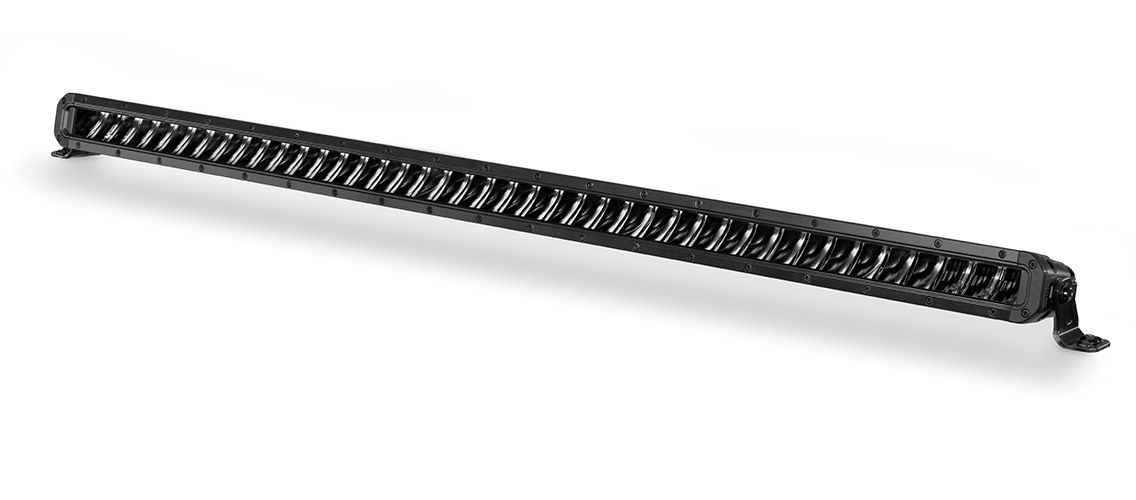

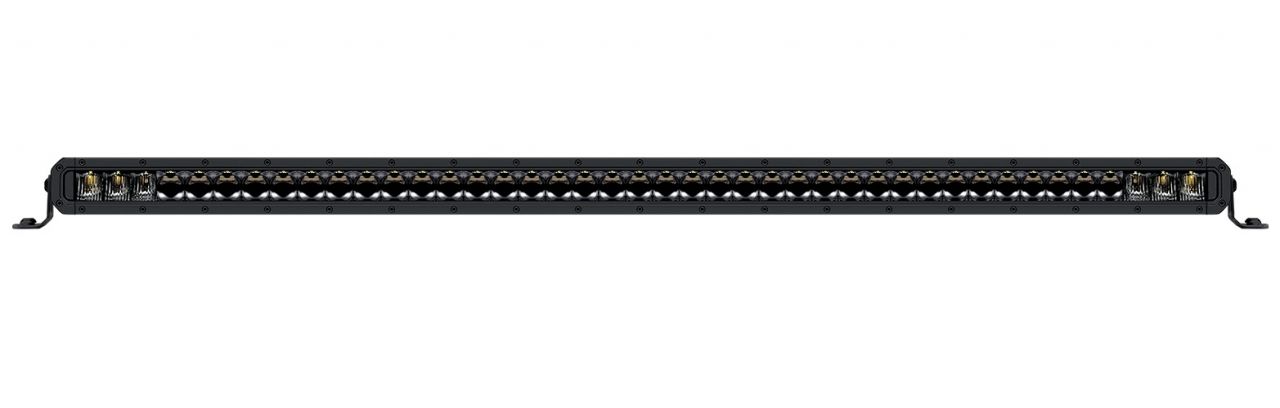

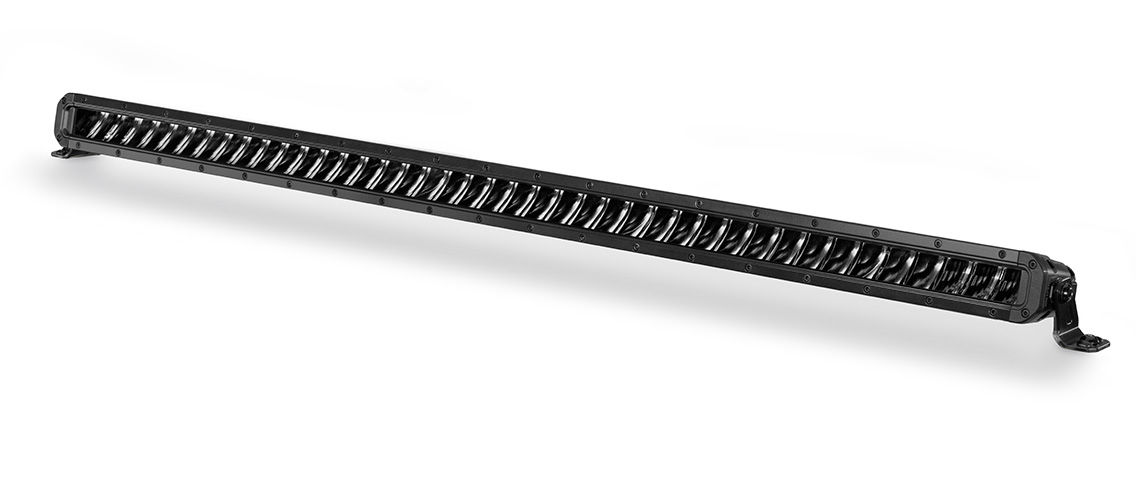

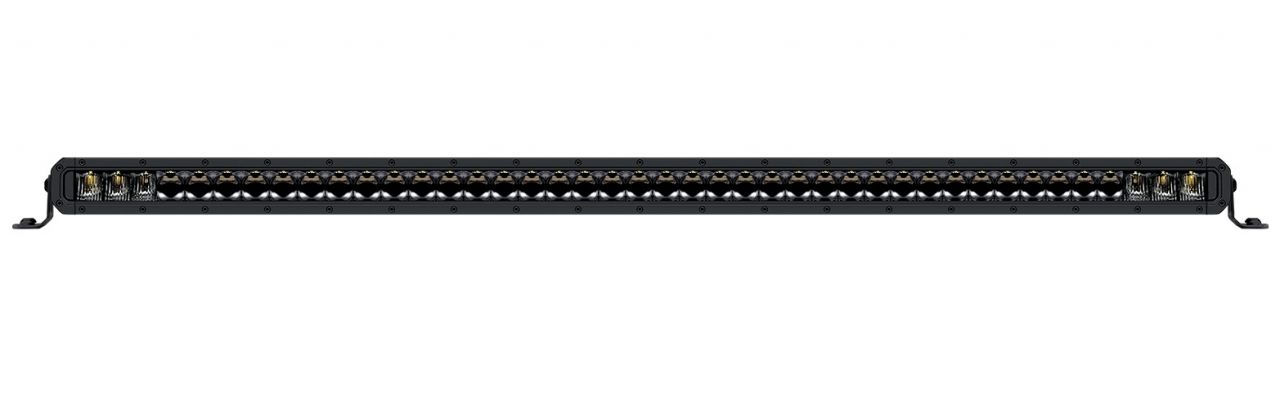

Black Magic TOUGH 40” Single Row Light Bar

PART NO: 1GJ 358 197-321

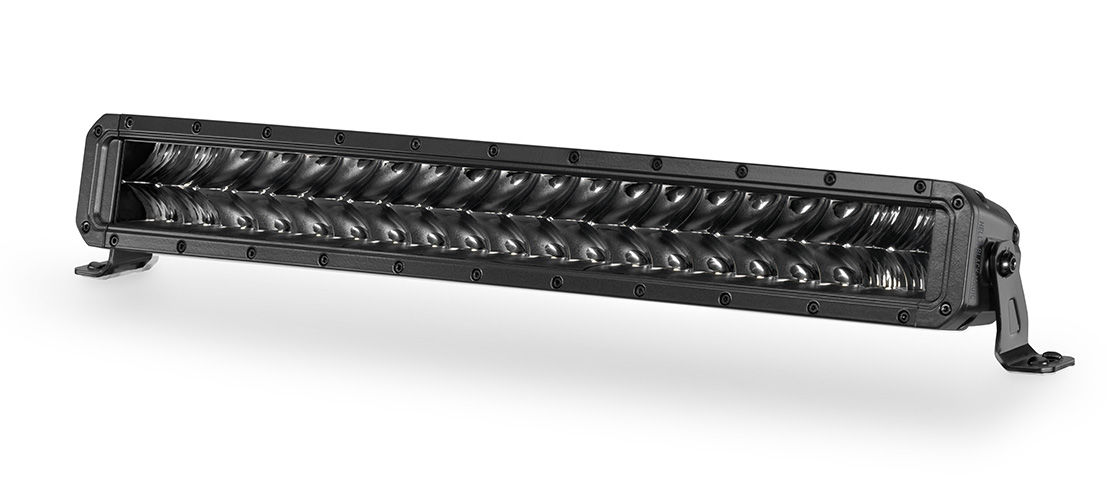

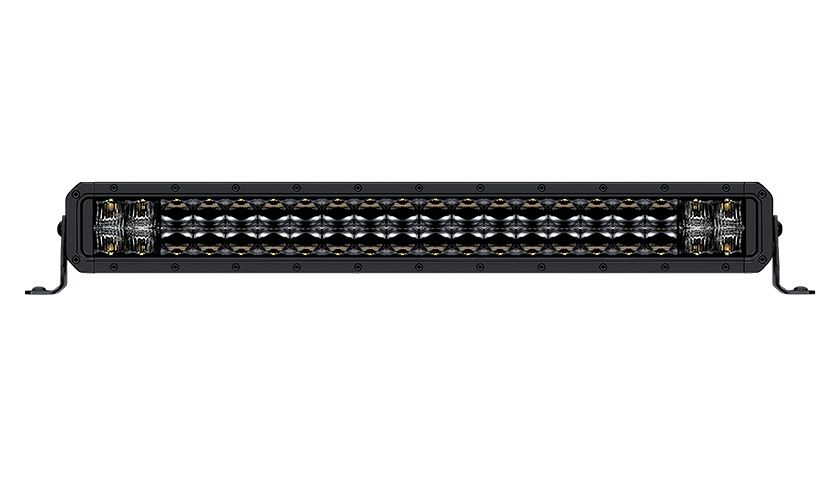

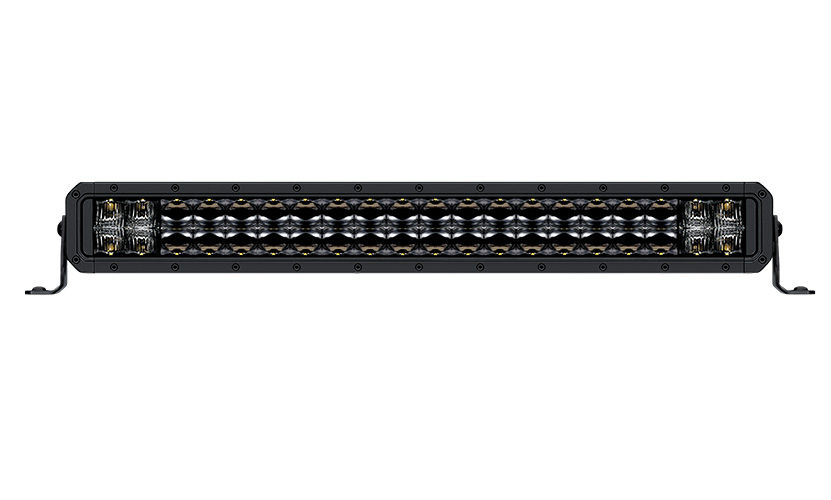

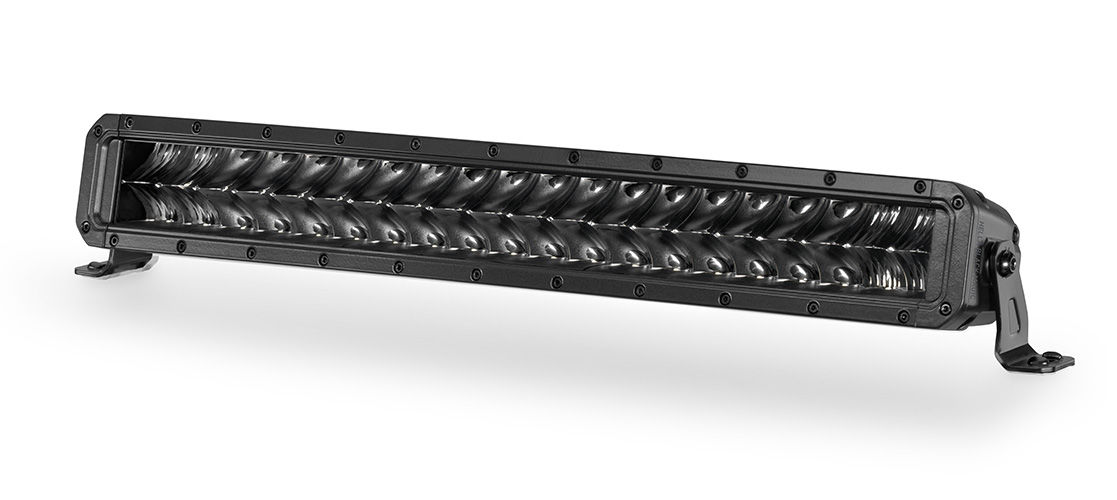

Black Magic TOUGH 21.5” Double Row Light Bar

PART NO: 1GJ 358 197-401

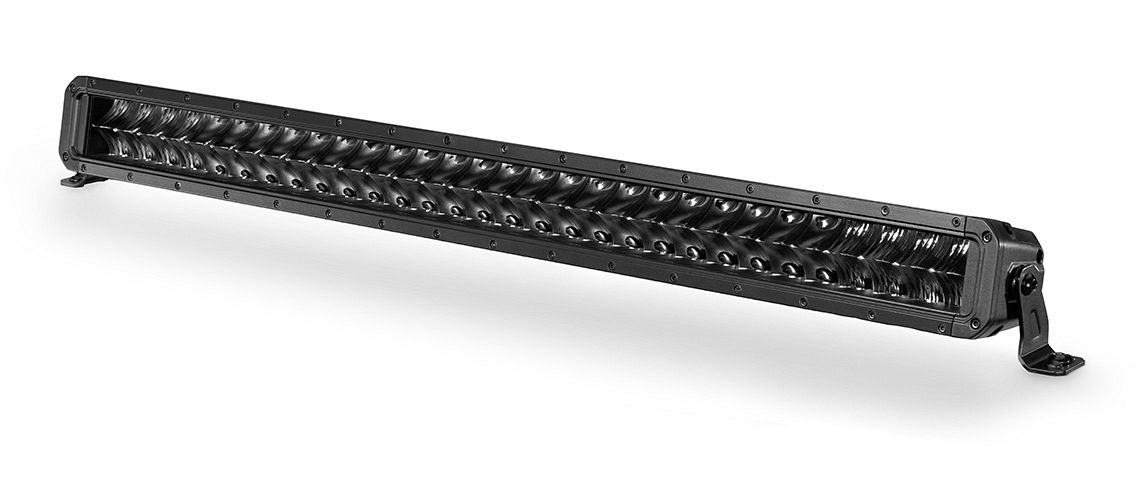

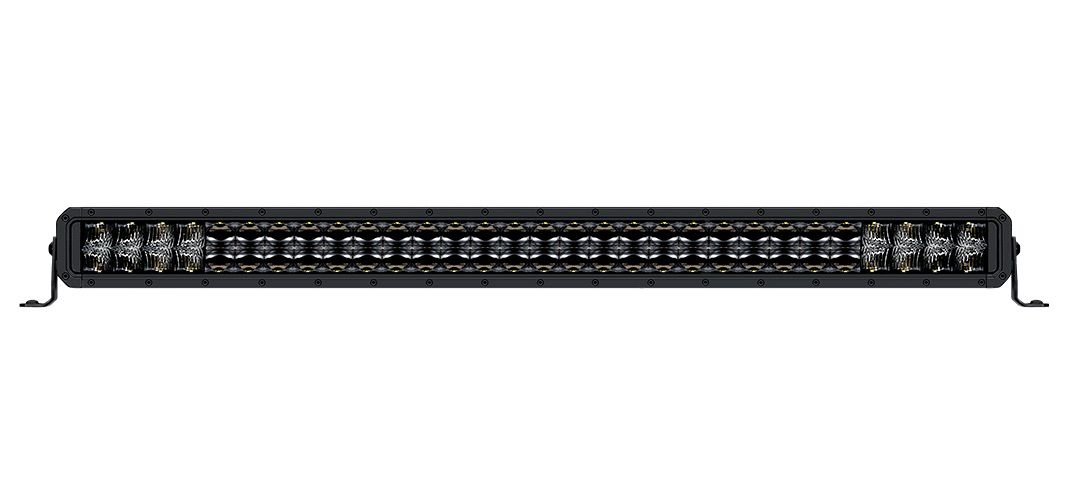

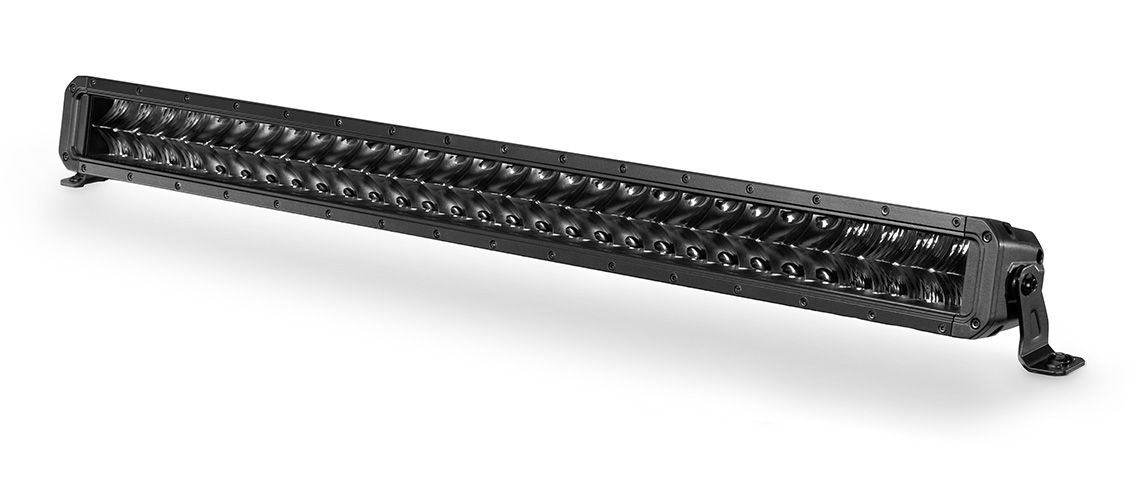

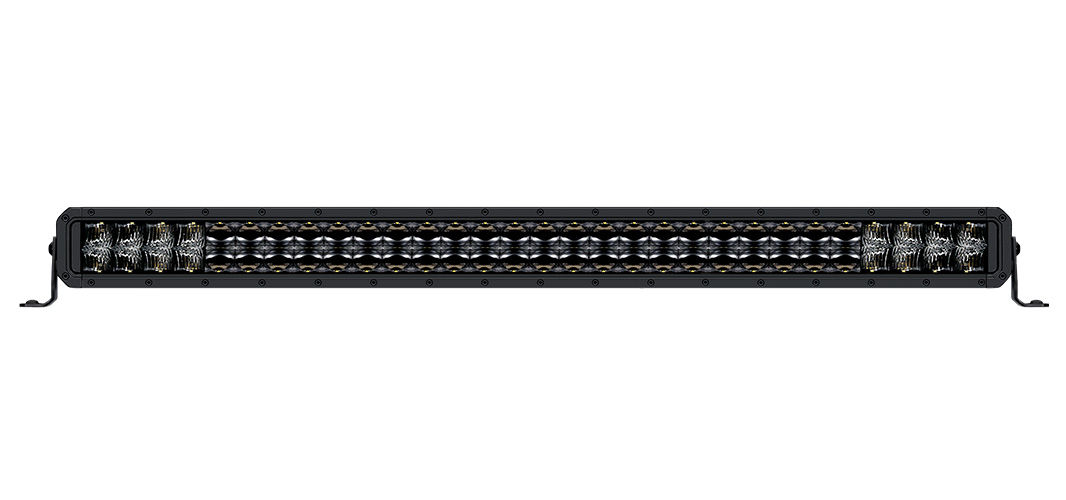

Black Magic TOUGH 30” Double Row Light Bar

PART NO: 1GJ 358 197-411

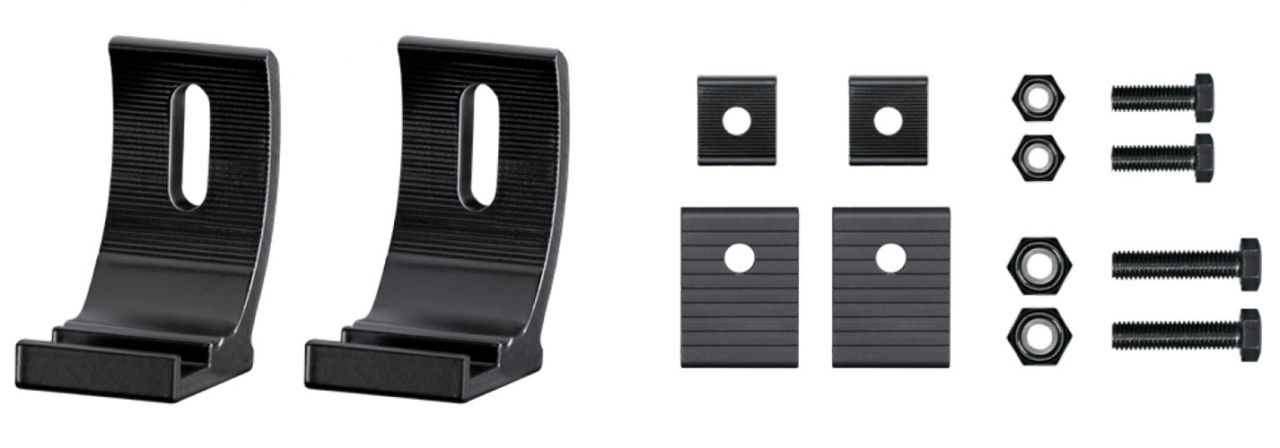

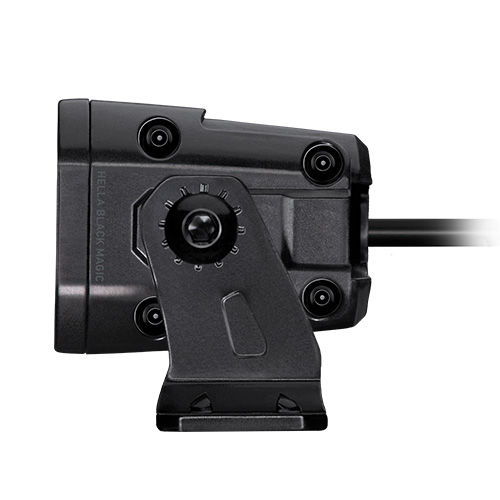

Mounting Brackets - Single Row. 2 pieces

PART NO: 8HG 358 176-371

Mounting Brackets - Double Row. 2 pieces

PART NO: 8HG 358 176-381

Specifications

Max Light Output

20” Single Row: 6000 lumen
40” Single Row: 12000 lumen
21.5” Double Row: 11000 lumen
30" Double Row: 13500 lumen

1 Lux (Metres)

20” Single Row: 600m
40” Single Row: 870m
21.5” Double Row: 735m
30" Double Row: 845m

Max Power Consumption

20” Single Row: 107W
40” Single Row: 239W
21.5” Double Row: 215W
30" Double Row: 310W

Weight

20” Single Row: 2450g
40” Single Row: 4000g
21.5” Double Row: 3200g
30: Double Row: 4500g

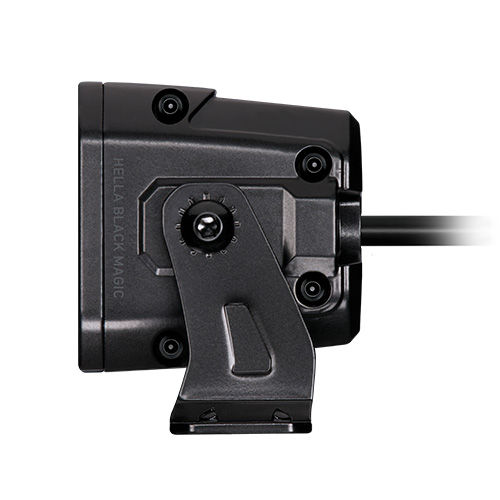

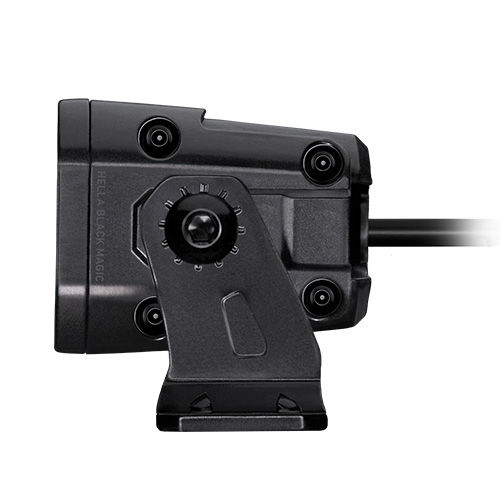

Mounting

Upright/pendant

Voltage

10-30V DC (suitable for 12 or 24 volt DC applications)

Colour Temperature

5700K

Cable Length

2m cable with open ends

Protection

Reverse polarity protection.
IP 68 (Protection against dust and water immersion)
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Housing

Aluminium, black stainless steel bracket

Compliance

CE, ECE R10

CE

Accessory Part Number

8HG 358 176-371 Mounting Brackets - Single Row. 2 pieces
8HG 358 176-381 Mounting Brackets - Double Row. 2 pieces

Outline

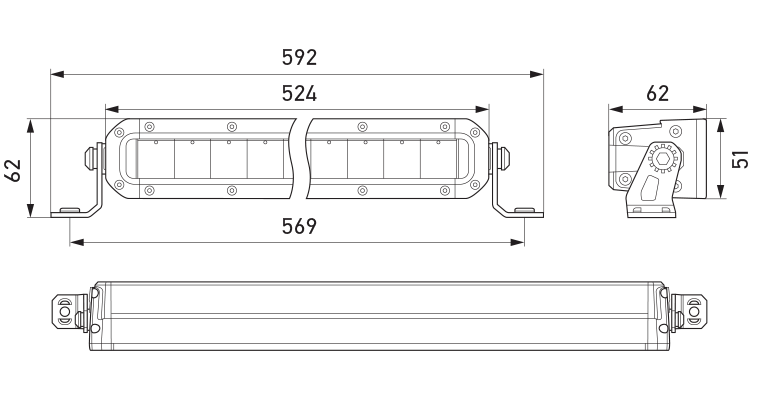

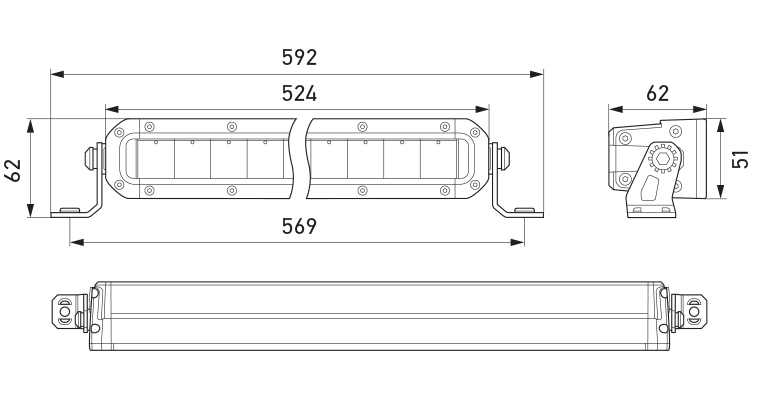

1GJ 358 197-301 Black Magic TOUGH 20in Single Row Light Bar. All dimensions in mm
1GJ 358 197-301 Black Magic TOUGH 20in Single Row Light Bar. All dimensions in mm

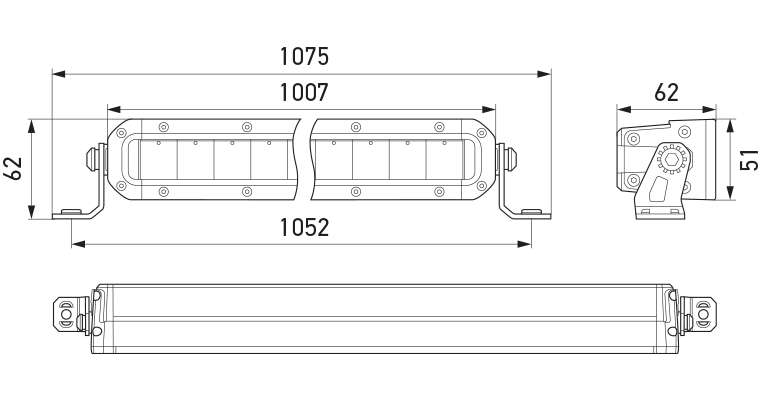

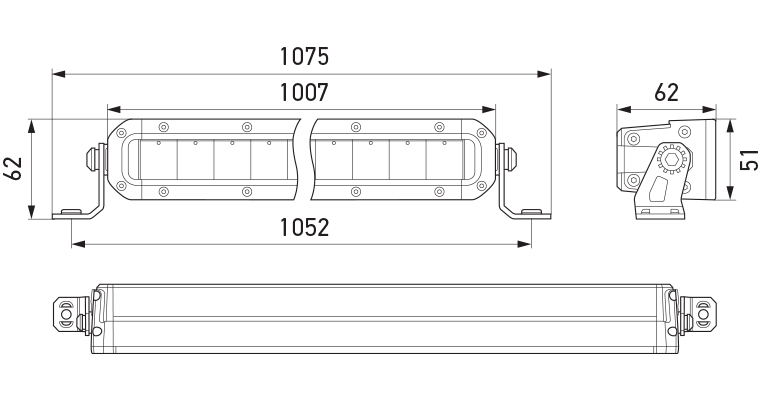

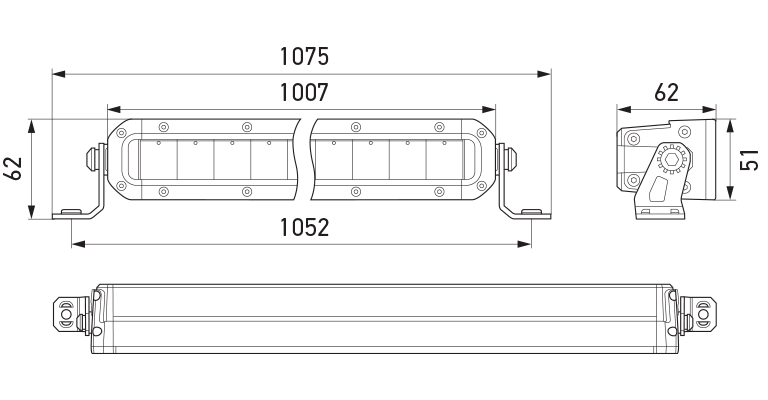

1GJ 358 197-321 Black Magic TOUGH 40in Single Row Light Bar. All dimensions in mm
1GJ 358 197-321 Black Magic TOUGH 40in Single Row Light Bar. All dimensions in mm

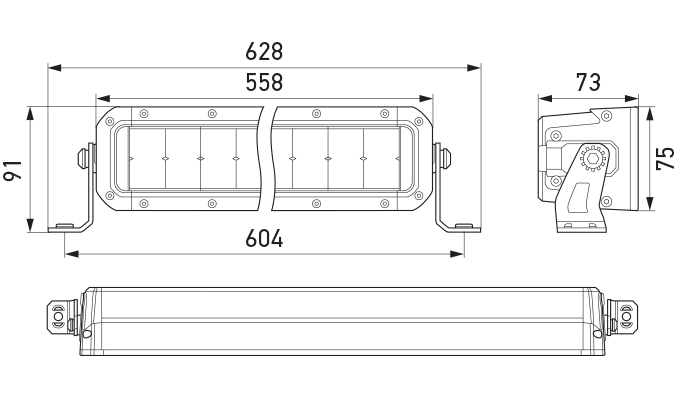

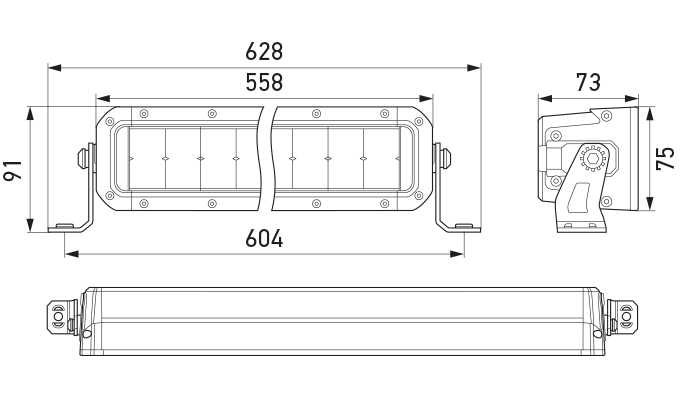

1GJ 358 197-401 Black Magic TOUGH 21.5in Double Row Light Bar. All dimensions in mm
1GJ 358 197-401 Black Magic TOUGH 21.5in Double Row Light Bar. All dimensions in mm

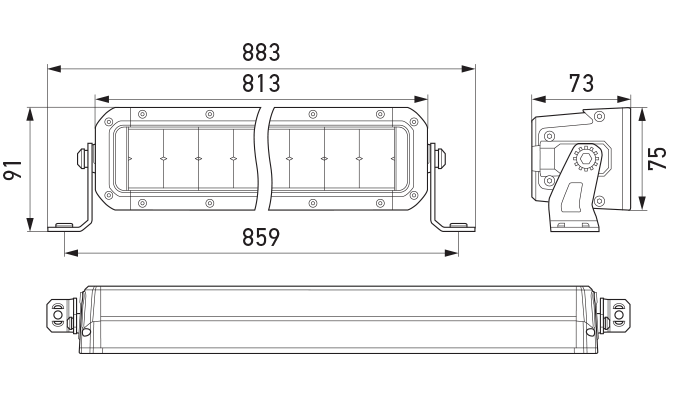

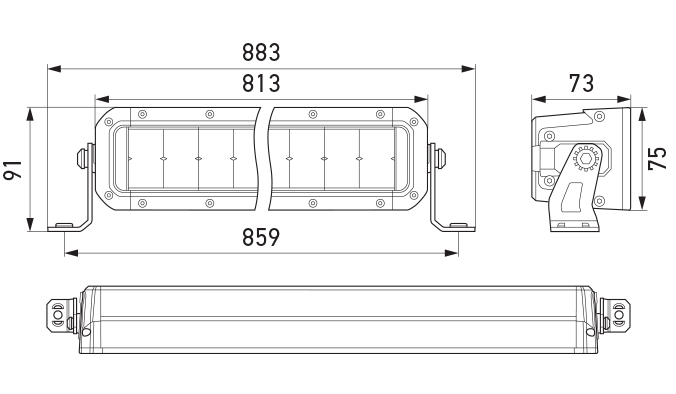

1GJ 358 197-411 Black Magic TOUGH 30in Double Row Light Bar. All dimensions in mm
1GJ 358 197-411 Black Magic TOUGH 30in Double Row Light Bar. All dimensions in mm

Light Output

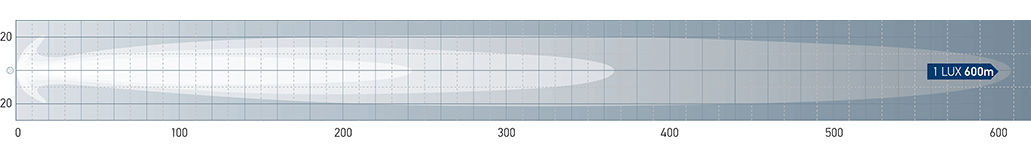

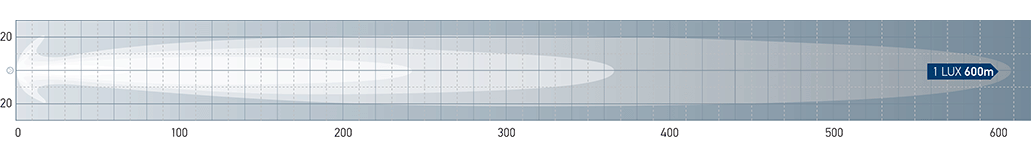

1GJ 358 197-301 Black Magic TOUGH 20in Single Row Light Bar - Spot Beam
1GJ 358 197-301 Black Magic TOUGH 20in Single Row Light Bar - Spot Beam

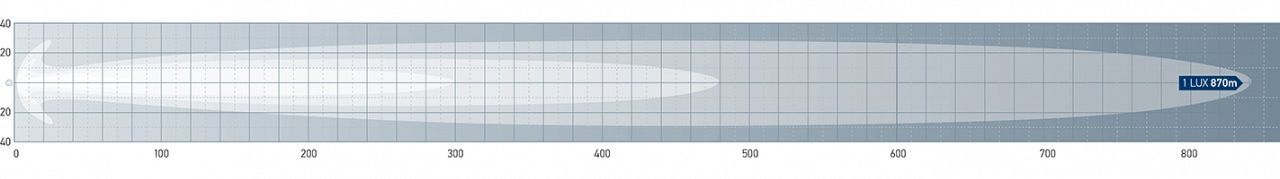

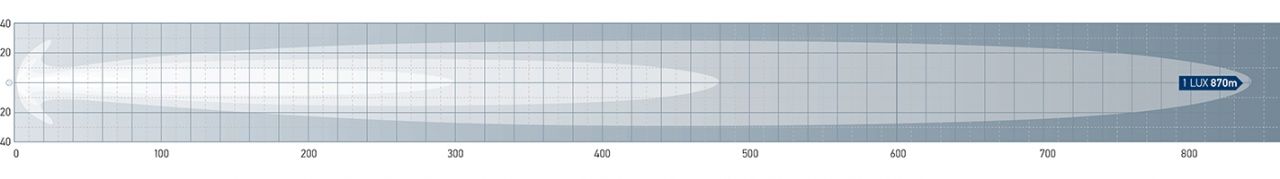

1GJ 358 197-321 Black Magic TOUGH 40in Single Row Light Bar Light - Spot Beam
1GJ 358 197-321 Black Magic TOUGH 40in Single Row Light Bar Light - Spot Beam

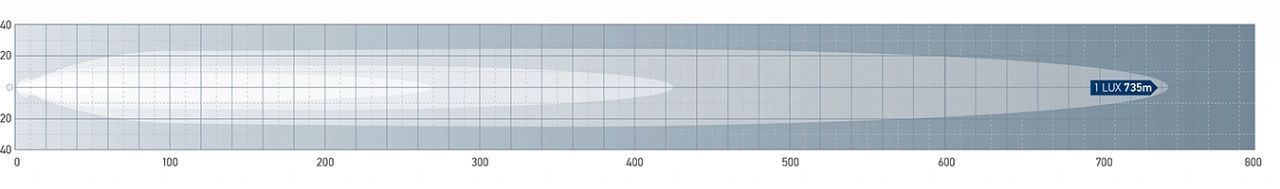

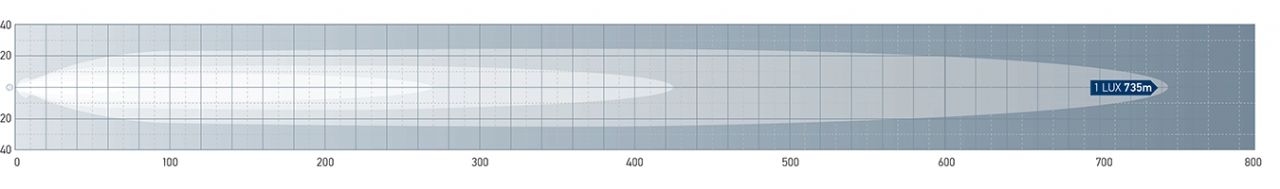

1GJ 358 197-401 Black Magic TOUGH 21.5in Double Row Light Bar - Combi Beam
1GJ 358 197-401 Black Magic TOUGH 21.5in Double Row Light Bar - Combi Beam

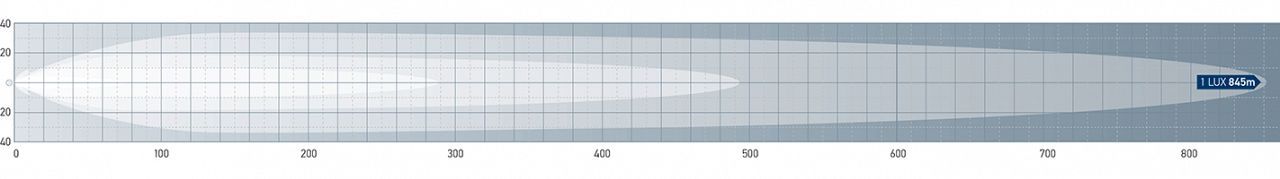

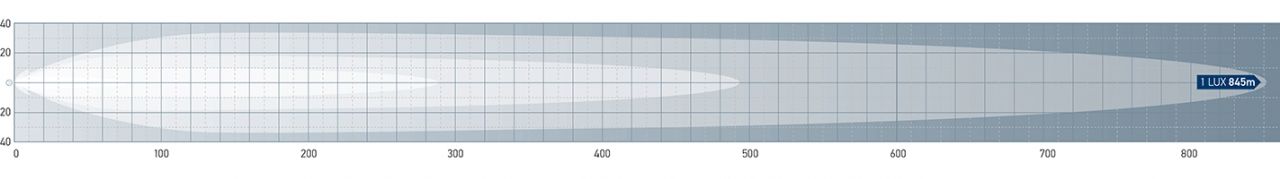

1GJ 358 197-411 Black Magic TOUGH 30in Double Row Light Bar - Combi Beam
1GJ 358 197-411 Black Magic TOUGH 30in Double Row Light Bar - Combi Beam

Documents

Document File Name File Size
  IS_358_196-4XX Black Magic Double Row Light Bar.pdf 3.89 MB
