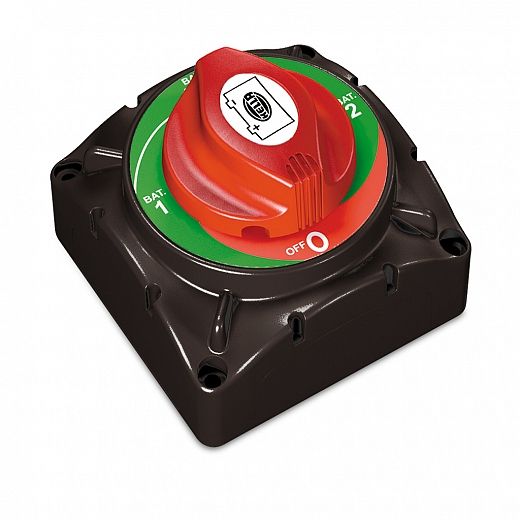

Battery Selector Switch Off-B1-Both-B2 1500A

Battery switch to select either from two power sources or combine together. Will also isolate from the power sources.

To find a HELLA reseller near you, click here.

All dimensions in mm.

All dimensions in mm.

Rollover/tap the icons below for further details:

Options

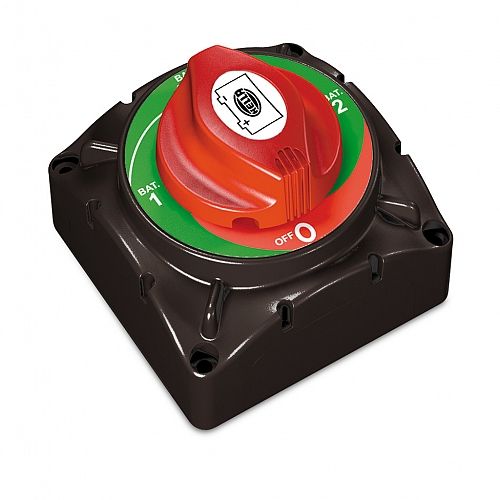

Battery Selector Switch Off-B1-Both-B2 1500A

Battery Selector Switch Off-B1-Both-B2 1500A

PART NO: 6EB 998 540-202
Legacy PN: 4721

Add to favourites

Specifications

Mounting

Recess or surface mount. 85mm diameter opening.

Maximum load

12/24V

1500A for up to 10 seconds.

Maximum continuous load

12/24V

350A

Termination

3x 10mm studs.

Protection

IP 56

(Protection against solid foreign objects up to 1mm and powerful water jets)

Note

Switch can be locked using 6mm diameter padlock with 75mm reach.

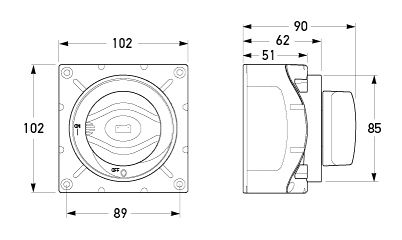

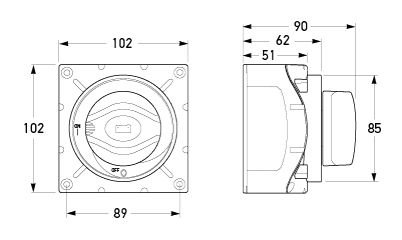

Outline

All dimensions in mm.

All dimensions in mm.
