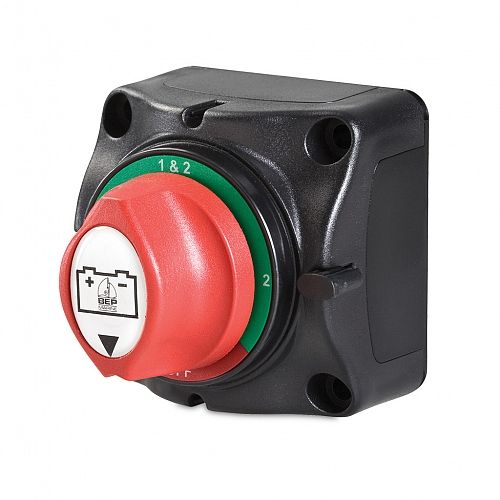

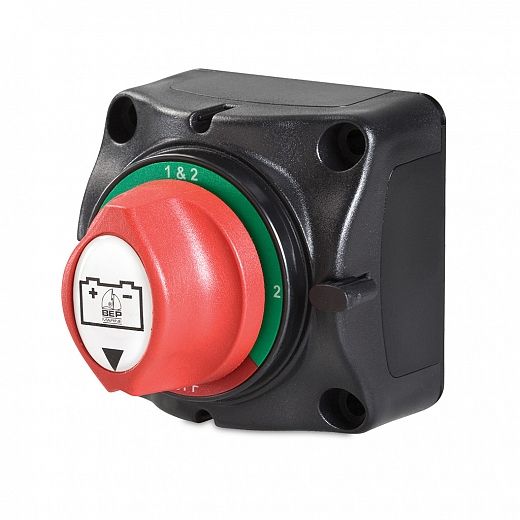

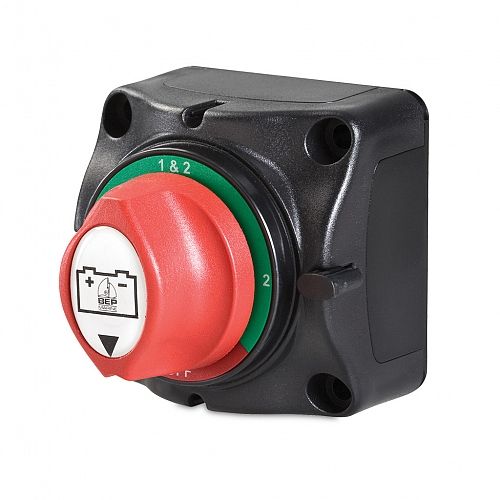

Battery Selector Switch Off-B1-Both-B2 1000A

Battery switch to select either from two power sources or combine together. Will also isolate from the power sources.

To find a HELLA reseller near you, click here.

All dimensions in mm.

All dimensions in mm.

Rollover/tap the icons below for further details:

Options

Battery Selector Switch Off-B1-Both-B2 1000A

Battery Selector Switch Off-B1-Both-B2 1000A

PART NO: 2SL 980 834-001
Legacy PN: 4723

Add to favourites

Specifications

Mounting

Recess or surface mount.

Maximum load

12/24V

1000A for up to 10 seconds.

Maximum continuous load

12/24V

200A

Termination

3x 5/16" studs

Protection

IP 56

(Protection against solid foreign objects up to 1mm and powerful water jets)

Outline

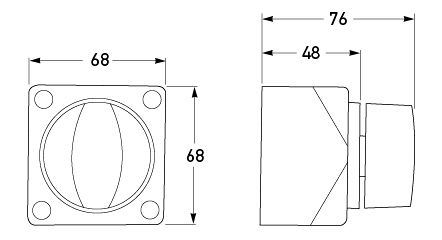

All dimensions in mm.

All dimensions in mm.

Documents

Document	File Name	File Size
	4723 Instruction Sheet.pdf	379.03 KB
