HELLA

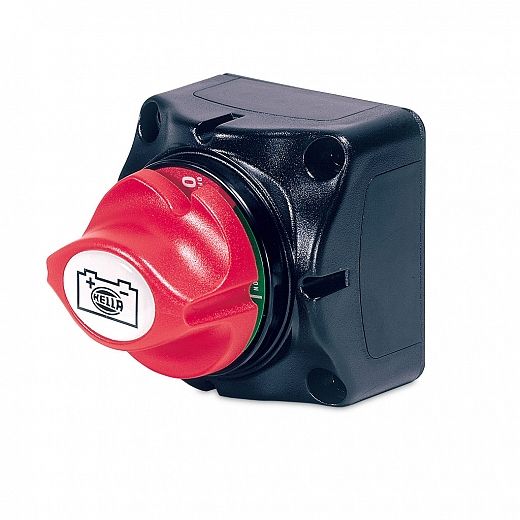

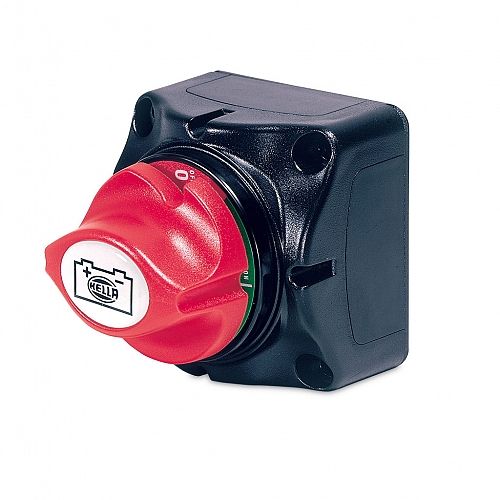

Battery Master Switch Off-On

Suitable for cars and medium sized trucks. Complete with removable key.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Battery Master Switch Off-On Rotary

Battery Master Switch Off-On Rotary

PART NO: 6EK 998 540-002
Legacy PN: 4640

Add to favourites

Specifications

Mounting

Recess or surface mount.

Maximum load
12V 1250A for up to 10 seconds
24V 625A for up to 10 seconds

Maximum continuous load
12V 275A
24V 137A

Termination

2x 10mm studs

Spare Part
4641 Spare key

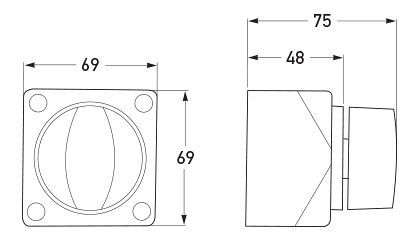

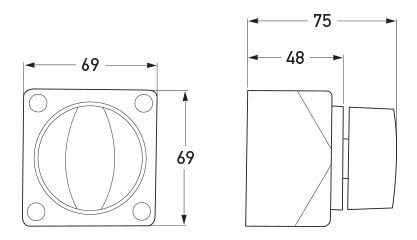

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  9SL 998 540-002 Battery Switch Instruction Sheet - 4640.pdf 188.83 KB
