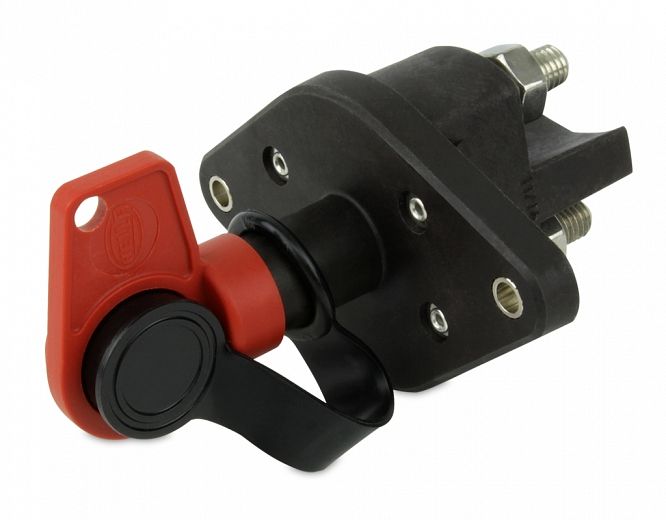

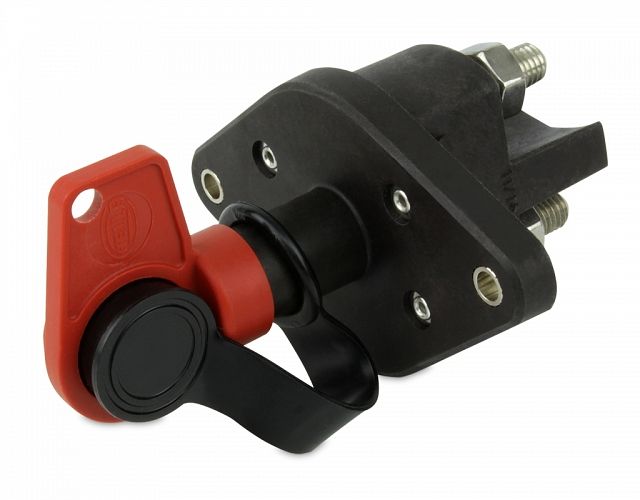

Battery Master Switch Off-On High Capacity

Suitable for trucks and other commercial machinery, with a high continuous rating of 500 amps. Provides effective protection against theft and fire in case of accidents. With sealing cap when not in use which doubles as a key holder.

To find a HELLA reseller near you, click here.

All dimensions in mm.

All dimensions in mm.

Rollover/tap the icons below for further details:

Options

Battery Master Switch Off-On High Capacity

Battery Master Switch Off-On High Capacity

PART NO: 6EK 002 843-121
Legacy PN: 4648

Add to favourites

Specifications

Mounting

22mm diameter opening

Maximum load

24V	2500A for 10 seconds

Maximum continuous load

12/24V

500A

Termination

2x 10mm studs

Protection

IP 65

(Protection against dust and water jets)

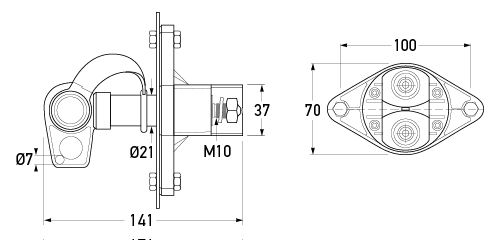

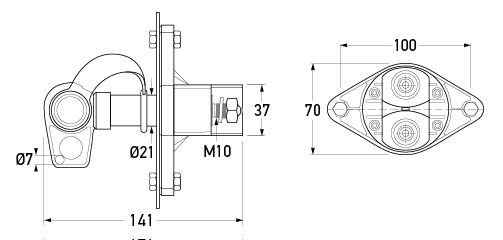

Outline

All dimensions in mm.

All dimensions in mm.
