Battery Master Switch Off-On Heavy Duty, Metal Key

For trucks, buses and earth moving equipment. Complete with removable key.

To find a HELLA reseller near you, click here.

All dimensions in mm

All dimensions in mm

Rollover/tap the icons below for further details:

Options

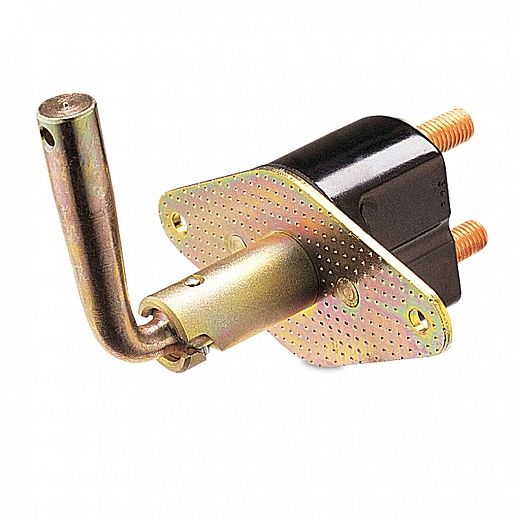

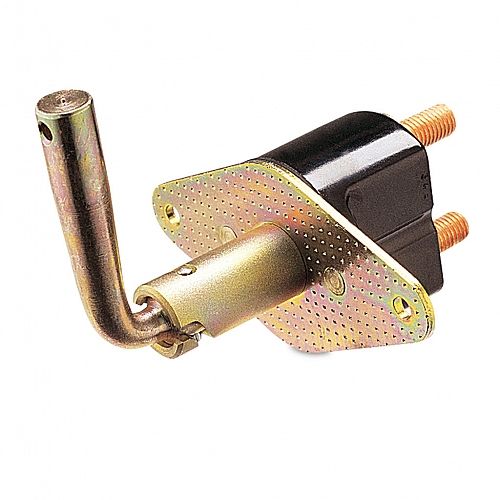

Battery Master Switch Off-On Heavy Duty, Metal Key

Battery Master Switch Off-On Heavy Duty, Metal Key

PART NO: 6EK 001 559-001
Legacy PN: 4653

Add to favourites

Specifications

Mounting

22mm diameter opening. Up to 6mmØ bolts

Maximum load

12/24V

2500A for 10 seconds / 600A for 2 minutes

Maximum continuous load

12/24V 100A continuous at a maximum ambient temperature of 60°C with 50mm² lead connected with ring-type terminals.

Termination

2x 10mm studs (Max Torque 10±1Nm)

Protection

IP X4

(Protection against water splashing)

Spare Part

4654

Spare key

Note

Switch not designed for Marine applications. Recommended to be mounted in dry area.

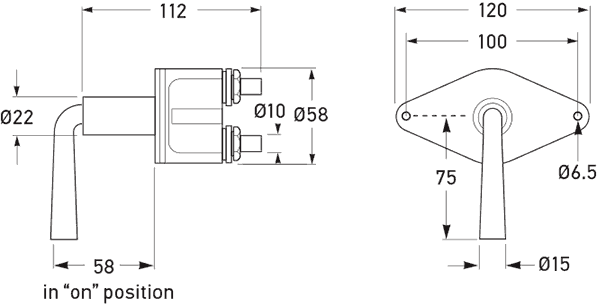

Outline

All dimensions in mm

All dimensions in mm
