HELLA

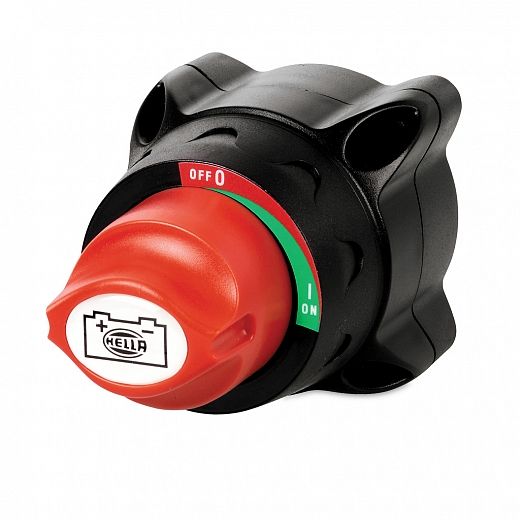

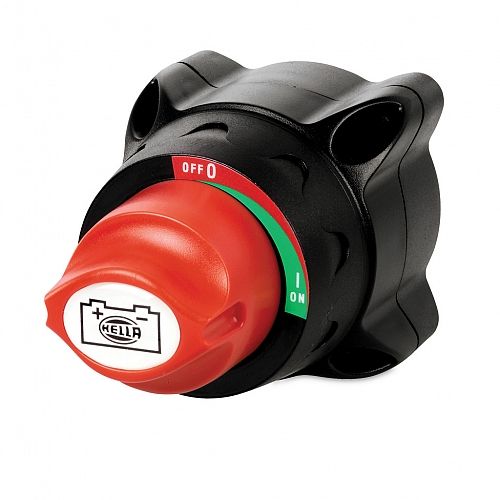

Battery Master Switch Off-On Threaded Collar

Battery master switch with threaded collar. Suitable for cars and medium sized trucks. Complete with removable key, labelled handle and removable back cover. For interrupting circuits (prevents theft and short circuit).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Battery Master Switch Off-On Threaded Collar

Battery Master Switch Off-On Threaded Collar

PART NO: 1GJ 980 833-001
Legacy PN: 4722

Add to favourites

Specifications

Mounting

Recess or surface mount, 25mm diameter opening.

Maximum load
12/24V 1250A for up to 10 seconds.

Maximum continuous load
12/24V 275A

Termination

2x 10mm studs

Protection
IP 56 (Protection against solid foreign objects up to 1mm and powerful water jets)

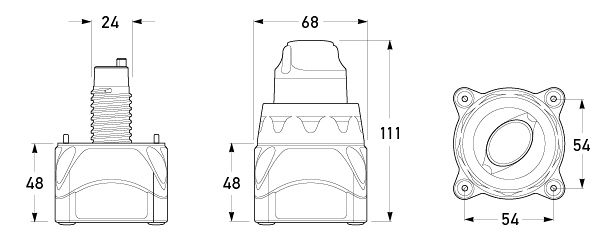

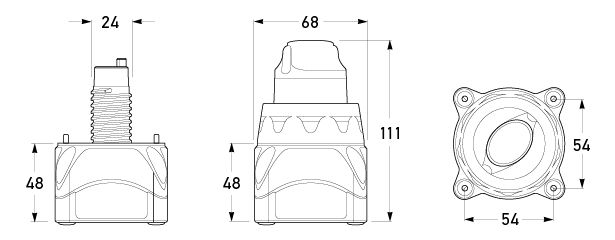

Outline

All dimensions in mm.
All dimensions in mm.
