HELLA

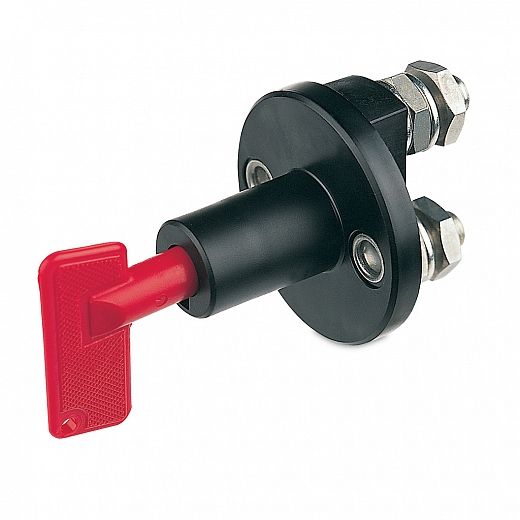

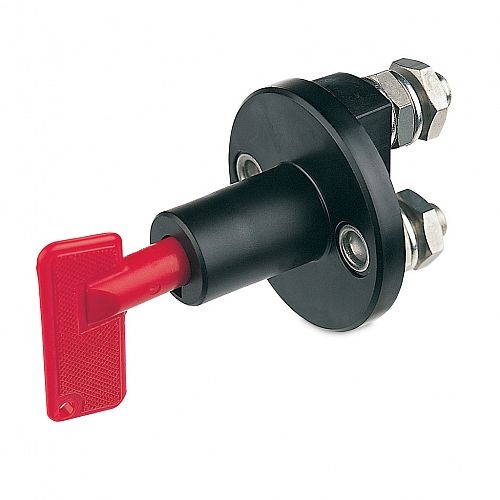

Battery Master Switch Off-On Removable Key

Suitable for cars and medium sized trucks. Complete with removable key. For interrupting circuits (prevents theft and short circuit).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Battery Master Switch Off-On with Removable Plastic Key

Battery Master Switch Off-On with Removable Plastic Key

PART NO: 6EK 002 843-052
Legacy PN: 4650

Add to favourites

Specifications

Mounting

24mm diameter opening

Maximum load
12V 1000A for up to 10 seconds.
24V 500A for up to 10 seconds.

Maximum continuous load
12/24V 150A at a maximum ambient temperature of 80°C with 35mm2 lead, connected with ring-type terminals.

Termination

2x 10mm studs

Spare Part
4652 Spare Key

Note

Switch not designed for Marine applications.

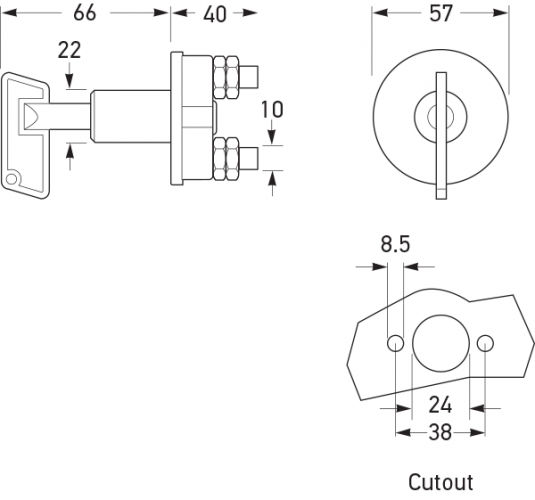

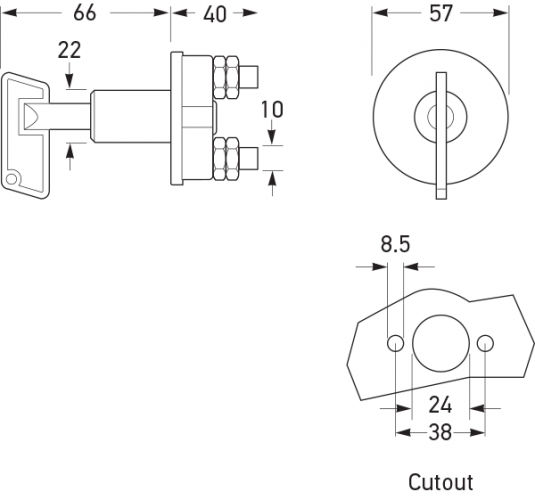

Outline

All dimensions in mm.
All dimensions in mm.
