Battery Master Switch Off-On Heavy Duty

For commercial use. Features sliding contact for self cleaning.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

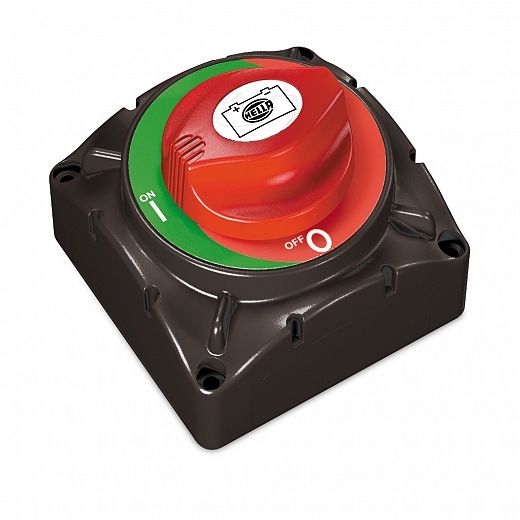

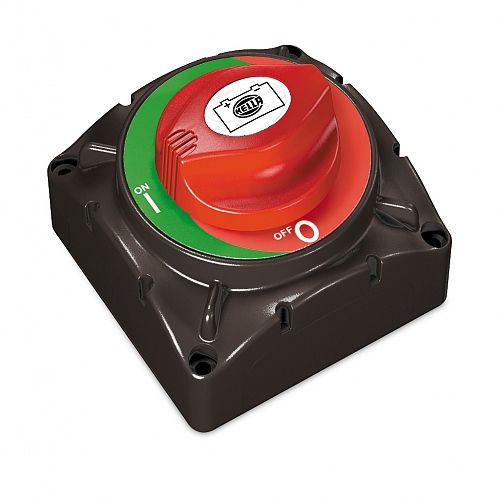

Battery Master Switch Off-On Heavy Duty

Battery Master Switch Off-On Heavy Duty

PART NO: 6EK 998 540-062
Legacy PN: 4720

Add to favourites

Specifications

Mounting

Recess or surface mount. 85mm diameter opening.

Maximum load
12/24V 2500A for up to 10 seconds.

Maximum continuous load
12/24V 600A

Termination

2 x 12mm studs

Protection
IP 56 (Protection against solid foreign objects up to 1mm and powerful water jets)

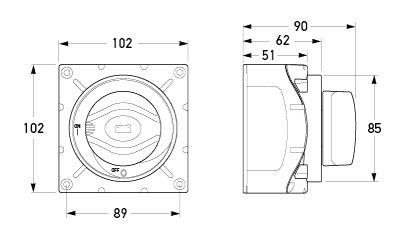

Outline

All dimensions in mm.
All dimensions in mm.
