HELLA

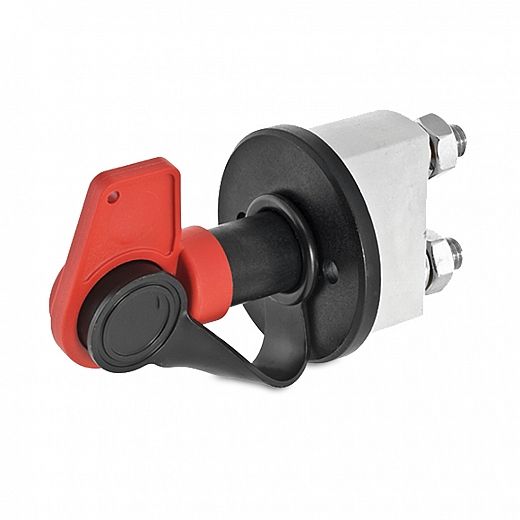

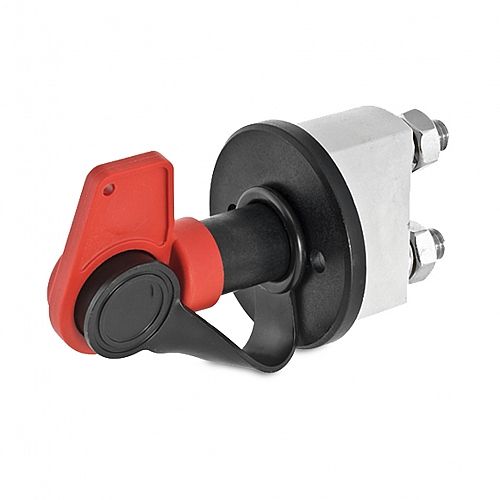

Battery Master Switch Off-On with Sealing Cap

Suitable for cars and medium sized trucks, with a continuous rating of 250 amps. Provides effective protection against theft and fire in case of accidents. With sealing cap when not in use which doubles as a key holder.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Battery Master Switch Off-On

PART NO: 6EK 002 843-141
Legacy PN: 4649

Specifications

Mounting

22mm diameter opening

Maximum load

24V 2000A for 5 seconds

Maximum continuous load

12/24V 250A

Termination

2x 10mm studs

Protection

IP 65 (Protection against dust and water jets)

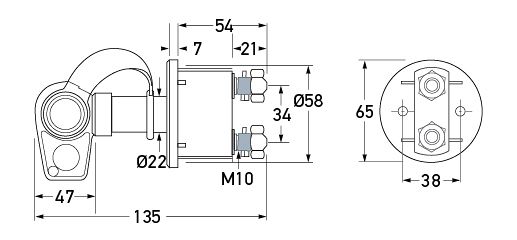

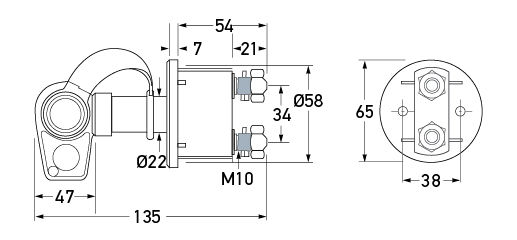

Outline

All dimensions in mm.
All dimensions in mm.
