HELLA

DuraLED® Side Marker Lamp with Clear Lens

DuraLED® side marker lamp featuring clear impact resistant polycarbonate lens and HELLA’s Ultra Wide Visibility Optics for significantly improved side visibility.
Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Made in New Zealand

Options

DuraLED® Side Marker Lamp with Clear Lens

PART NO: 2PS 959 700-201
Legacy PN: 2033

Specifications

Optics

Optic appears clear until illuminated

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

3W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
Fully sealed against dust, high-pressure washing and temporary water immersion.

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Part

9.2366.17 Screw boss kit

Lens Material

Polycarbonate.

Compliance

ADR 45/01,  ADR 74/00

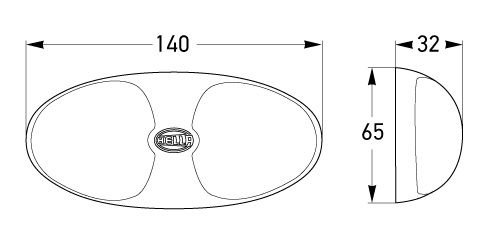

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2PS 959 700-2xx - 2033 Instruction Sheet.pdf 518.22 KB
