DuraLED® Flush Mount Front End Outline Lamp

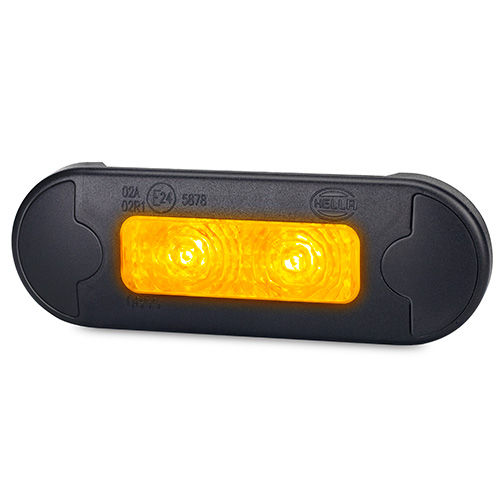

Amber flush mount front end outline LED lamp (FEOL) with optional stainless steel rim.
The popular DuraLED® Flush Mount End Outline lamps have been updated with a new integrated lens and rim design for improved aesthetics. Designed and manufactured in New Zealand these lamps are compliant with the Australian Design Rules (ADR). Interference-free EMC properties ensure no electronic interference with other electronic devices.
The lamps are a direct replacement for previous versions, so size and mounting holes remain the same. While legacy part numbers remain (eg: 2083), some updates have new 12-digit part numbers.
DuraLED® flush mount lamps are completely sealed, highly shock, impact, and vibration resistant making them suitable for the demanding trucking environment. The flush mount range is made in New Zealand and supported by a lifetime warranty for complete peace of mind.

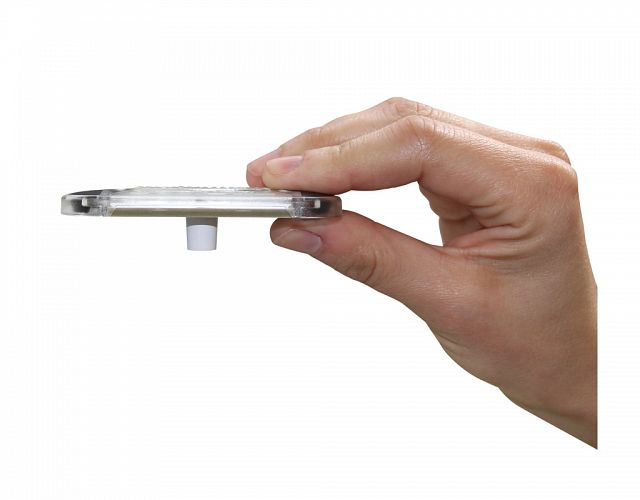

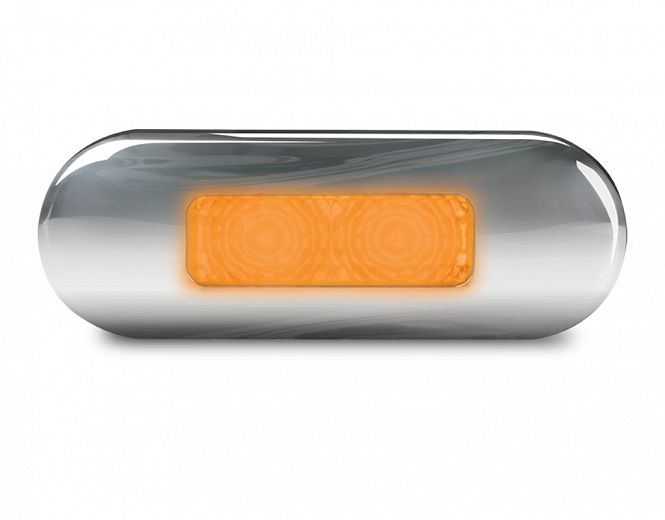

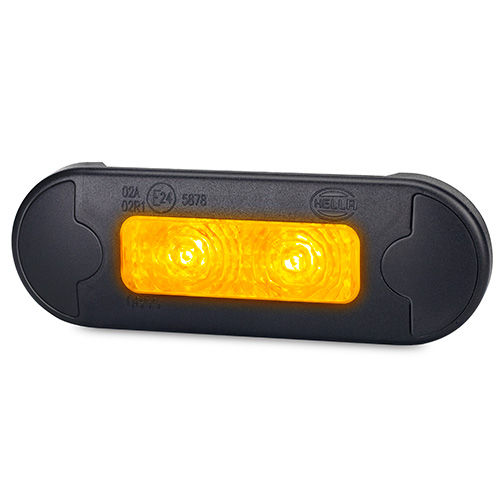

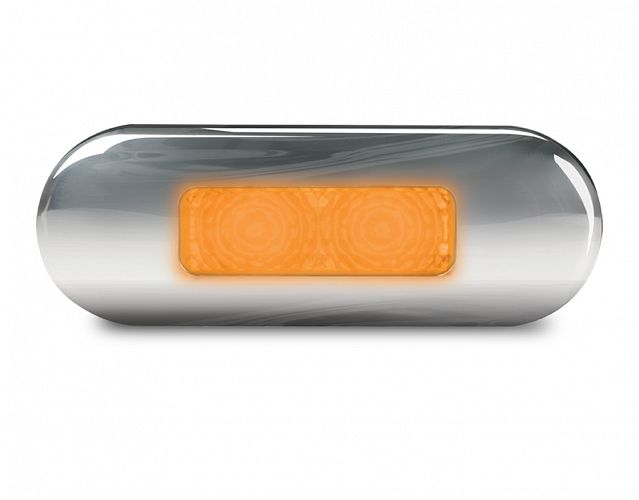

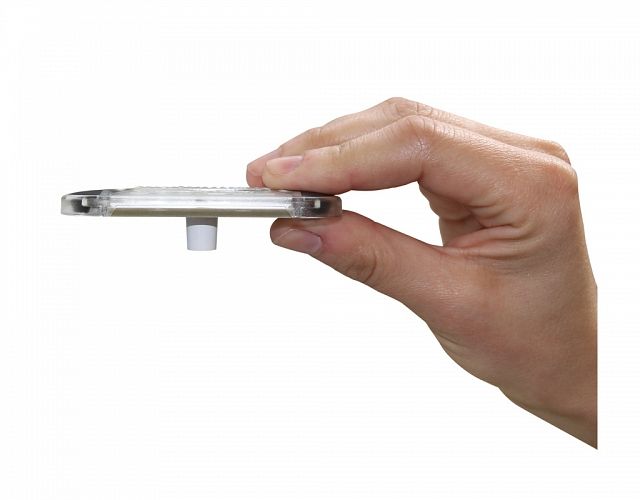

Trim options are either natural with the black body, or highly polished 316 stainless steel. Optic appears clear until illuminated.
RFCommSafe™ - To view and download more information please click here
To find a HELLA reseller near you, click here.
DuraLED® Lifetime Warranty All HELLA DuraLED® products carry a Lifetime Warranty. Note: Lifetime means the economic life of the vehicle these products were first installed on. |
||
Rollover/tap the icons below for further details:
Fit and Forget
Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.
LED Technology
RFCommSafe™
RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.
ADR (Australian Design Rules) Compliance
Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.
Multivolt™
Multivolt™ for optimum performance in 12 and 24 volt systems.
High Impact Acrylic Lens Material
This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.
UV Resistant
HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.
Made in New Zealand
Options
Specifications
Optics |
Optic appears clear until illuminated |
|||||
Mounting |
Flush mount. |
|||||
Voltage |
Multivolt™ for optimum brightness in 12 and 24 volt systems. |
|||||
Power Consumption |
<0.5W |
|||||
Protection |
|
|||||
Cable Length |
Pre-wired with 0.5m of sheathed multi-core cable. |
|||||
Spare Parts |
|
|||||
Lens Material |
High-impact Acrylic |
|||||
Compliance |

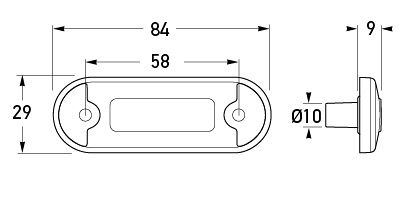

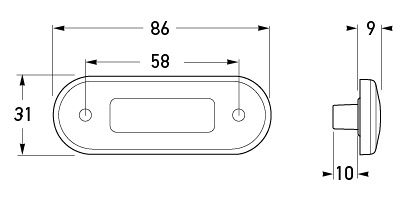

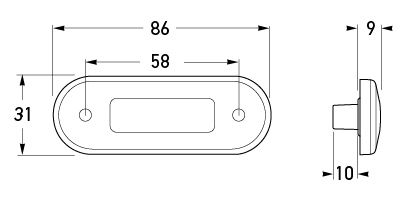

Outline
Documents
Document | File Name | File Size |
---|---|---|
IS-980 855-xxx 959 855-xxx DuraLED Flush Mount Front End Outline POS Lamp (958 315-17_09-23).pdf | 1.07 MB |
