DuraLED® Flush Mount Side Marker Lamps

The new red/amber side marker lamps complement HELLA’s popular DuraLED^® Flush Mount Marker range. Featuring a low profile of only 15mm and an ultra durable high-impact acrylic lens for impact, UV, chemical and stress resistance. Optic appears clear until illuminated. With optional stainless steel rim.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

		DuraLED^® Lifetime Warranty All HELLA DuraLED^® products carry a Lifetime Warranty. Note: Lifetime means the economic life of the vehicle these products were first installed on.

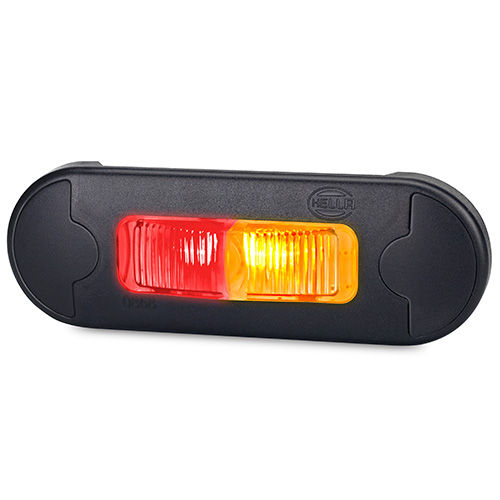

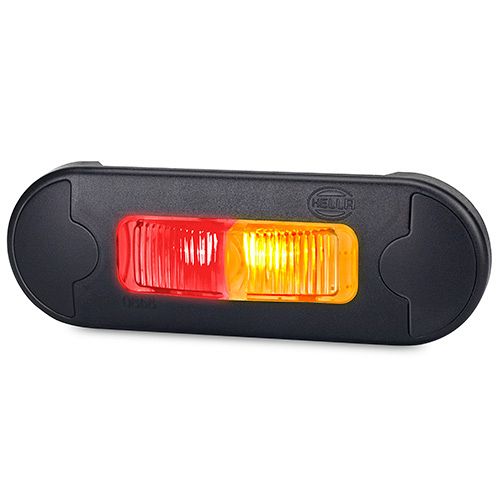

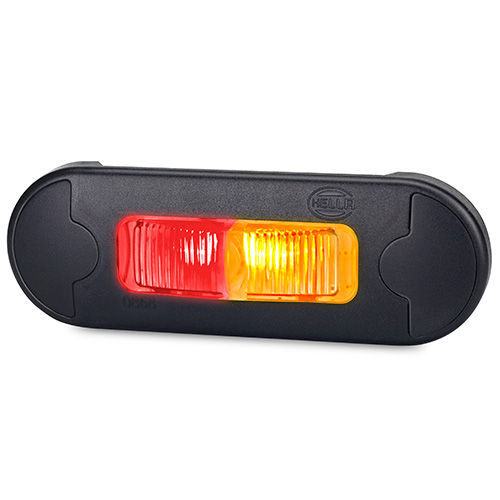

2PS 980 868-041 2PS 980 868-057 DuraLED Flush Mount Side Marker Lamp Red/Amber Black Body

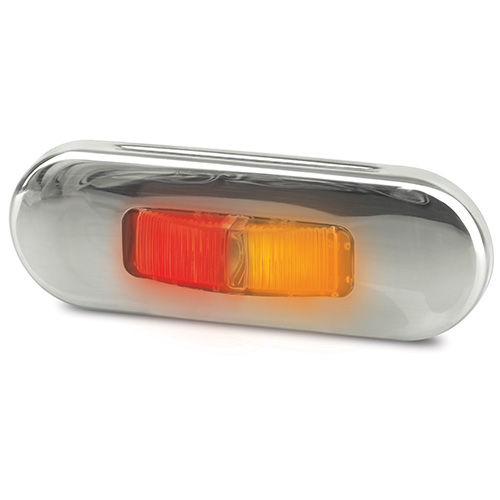

2PS 980 868-061 2PS 980 868-077 DuraLED Flush Mount Side Marker Lamp Red/Amber Polished Stainless Steel

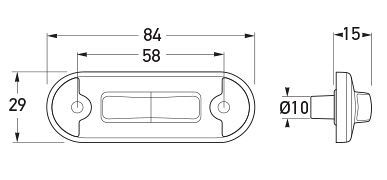

2PS 980 868-041 2PS 980 868-057 Black Body.
All dimensions in mm.

2PS 980 868-041 2PS 980 868-057 Black Body. <br>All dimensions in mm.

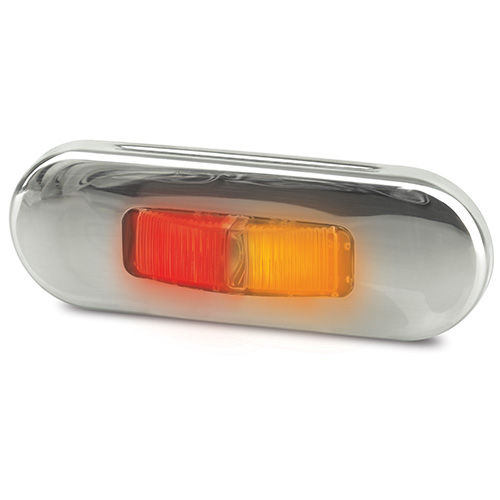

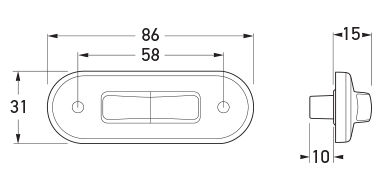

2PS 980 868-061 2PS 980 868-077 - Stainless steel rim version.
All dimensions in mm.

2PS 980 868-061 2PS 980 868-077 - Stainless steel rim version. <br>All dimensions in mm.

Rollover/tap the icons below for further details:

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Flush Mount Side Marker Lamp

DuraLED^® Flush Mount Side Marker Lamp

PART NO: 2PS 980 868-041
Legacy PN: 2083

Add to favourites

DuraLED<sup>®</sup> Flush Mount Side Marker Lamp - Bulk pack 16

DuraLED^® Flush Mount Side Marker Lamp - Bulk pack 16

PART NO: 2PS 980 868-057
Legacy PN: 2083BULK

Add to favourites

DuraLED<sup>®</sup> Flush Mount Slim Side Marker Lamp - Stainless Rim

DuraLED^® Flush Mount Slim Side Marker Lamp - Stainless Rim

PART NO: 2PS 980 868-061
Legacy PN: 2083S

Add to favourites

DuraLED<sup>®</sup> Flush Mount Slim Side Marker Lamp - Stainless Rim - Bulk pack 16

DuraLED^® Flush Mount Slim Side Marker Lamp - Stainless Rim - Bulk pack 16

PART NO: 2PS 980 868-077
Legacy PN: 2083SBULK

Add to favourites

Specifications

Optics

Optic appears clear until illuminated

Mounting

Flush mount.
Suitable for horizontal mounting.

Voltage

Multivolt^™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

0.5W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.
Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Part

9HD 980 858-007	Black screw caps (Pack of 4)
9AB 959 685-002	Stainless steel rim
9GD 980 867-007	Seal round 1x2 flush mount
9GD 980 867-507	Seal rectangular 1x2 flush mount
9GD 958 028-001	Seal curved 1x2 flush mount
8HG 958 029-001	Angle mount bracket
