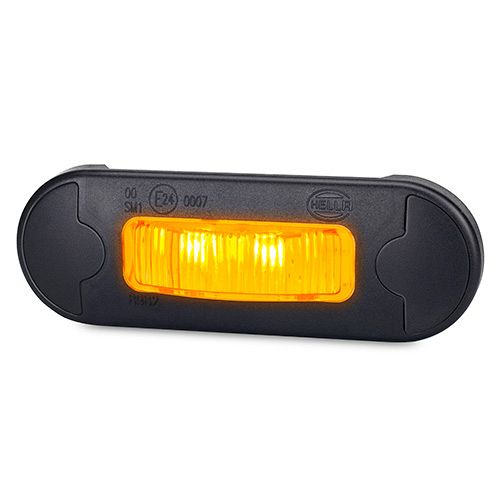

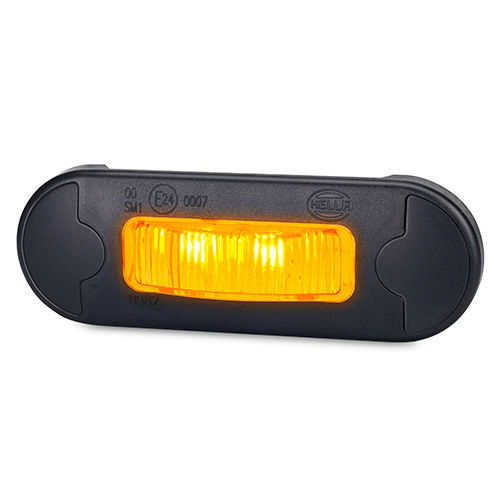

DuraLED® Flush Mount Side Marker (Cat. SM1) Lamp - ECE

The popular DuraLED® Flush Mount Side Marker (Cat. SM1) Lamps have been updated with a new integrated lens and rim design for improved aesthetics. Designed and manufactured in New Zealand, these lamps are ECE compliant, and interference-free EMC properties ensure no electronic interference with other electronic devices.
The lamps are a direct replacement for previous versions, so size and mounting holes remain the same.

DuraLED® flush mount lamps are completely sealed, highly shock, impact, and vibration resistant making them suitable for the demanding trucking environment.

Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED® Flush Mount Side Marker (Cat. SM1) Lamp - 500mm Cable - ECE

PART NO: 2PS 980 868-501

DuraLED® Flush Mount Side Marker (Cat. SM1) Lamp - 500mm Cable - Pack of 24 - ECE

PART NO: 2PS 980 868-507

DuraLED® Flush Mount Side Marker (Cat. SM1) Lamp - 2.5m Cable - ECE

PART NO: 2PS 980 868-511

DuraLED® Flush Mount Side Marker (Cat. SM1) Lamp - 2.5mm Cable - Pack of 16 - ECE

PART NO: 2PS 980 868-517

Specifications

Optics

Optic appears clear until illuminated

Mounting

Surface flush mount.
Suitable for horizontal mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

0.5W

Protection

Reverse polarity protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.
Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Part

9AR 998 019-001 Polished stainless steel rim - ECE engraved
9GD 958 028-001 Curved Gasket
9GD 980 867-507 Rectangular Flat Gasket
9HD 980 858-008 Black screw caps (Pack of 4)
9HD 980 858-018 White screw caps (Pack of 4)

Lens Material

High-impact acrylic

Compliance

E24 5878 E24  0007

Outline

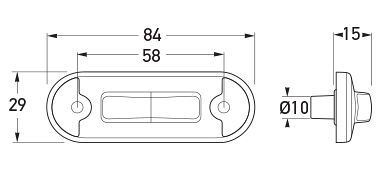

All dimensions in mm
All dimensions in mm

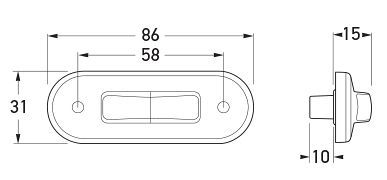

With optional Stainless steel rim. All dimensions in mm
With optional Stainless steel rim. All dimensions in mm

Documents

Document File Name File Size
  460-965-06 Instruction Sheet.pdf 552.13 KB
