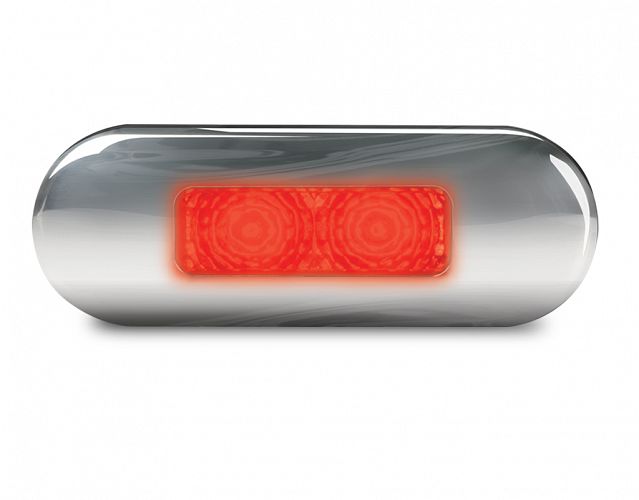

DuraLED® Flush Mount Rear Position/End Outline Lamp

Red flush mount rear position or rear end outline LED lamp (REOL) with optional stainless steel rim.

The popular DuraLED® Flush Mount Rear Position/End Outline lamps have been updated with a new integrated lens and rim design for improved aesthetics. Designed and manufactured in New Zealand these lamps are compliant with the Australian Design Rules (ADR). Interference-free EMC properties ensure no electronic interference with other electronic devices.
The lamps are a direct replacement for previous versions, so size and mounting holes remain the same. While legacy part numbers remain (eg: 2083), some updates have new 12-digit part numbers.

DuraLED® flush mount lamps are completely sealed, highly shock, impact, and vibration resistant making them suitable for the demanding trucking environment. The flush mount range is made in New Zealand and supported by a lifetime warranty for complete peace of mind.

Trim options are either natural with the black body, or highly polished 316 stainless steel. Optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® Flush Mount Rear Position/End Outline Lamp

PART NO: 2XA 980 855-301
Legacy PN: 2310

DuraLED® Flush Mount Rear Position/End Outline Lamp - Bulk pack 16

PART NO: 2XA 980 855-327
Legacy PN: 2310BULK

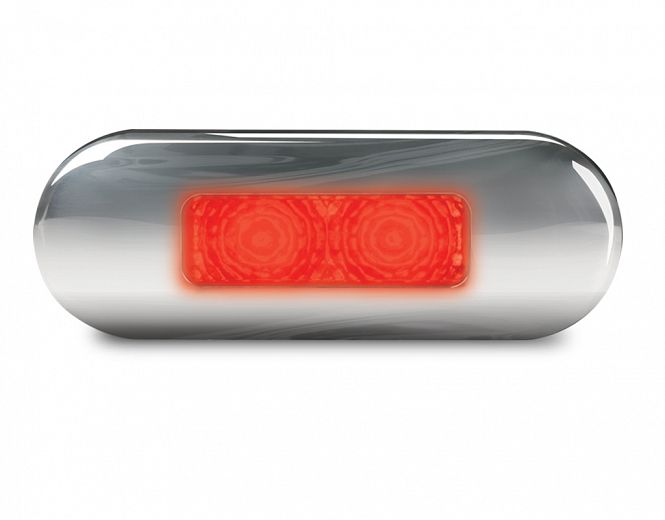

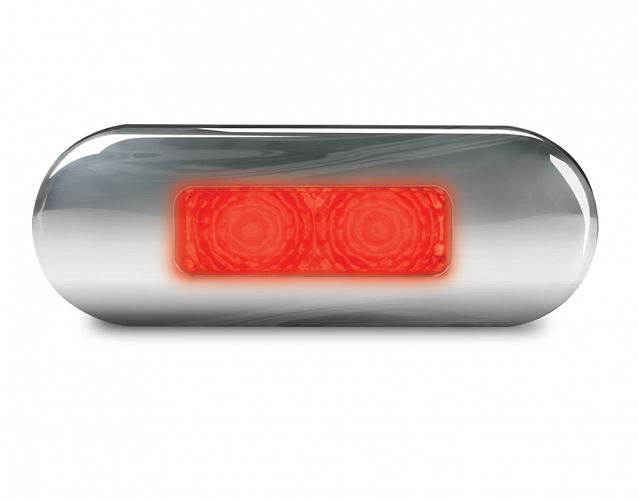

DuraLED® Flush Mount Rear Position/End Outline Lamp - Stainless Rim

PART NO: 2PF 980 855-311
Legacy PN: 2310S

DuraLED® Flush Mount Rear Position/End Outline Lamp - Stainless Rim - Bulk pack 16

PART NO: 2XA 980 855-337
Legacy PN: 2310SBULK

Specifications

Optics

Optic appears clear until illuminated

Mounting

Flush mount.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

<0.5W

Protection

Reverse polarity protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.
Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

9HD 980 858-007 Black screw caps (Pack of 4)
9AB 959 685-002  Stainless steel rim - Polished

Lens Material

High-impact Acrylic

Compliance

ADR 49/00

Outline

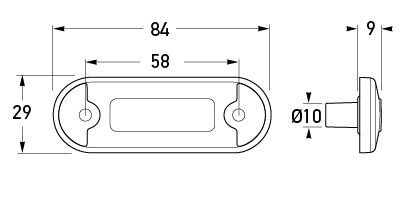

2XA 980 855-301 2XA 980 855-327 (2310) - All dimensions in mm.
2XA 980 855-301 2XA 980 855-327 (2310) - All dimensions in mm.
2XA 980 855-311 2XA 980 855-337 (2310S) - Stainless steel rim version. All dimensions in mm.
2XA 980 855-311 2XA 980 855-337 (2310S) - Stainless steel rim version. All dimensions in mm.
