HELLA

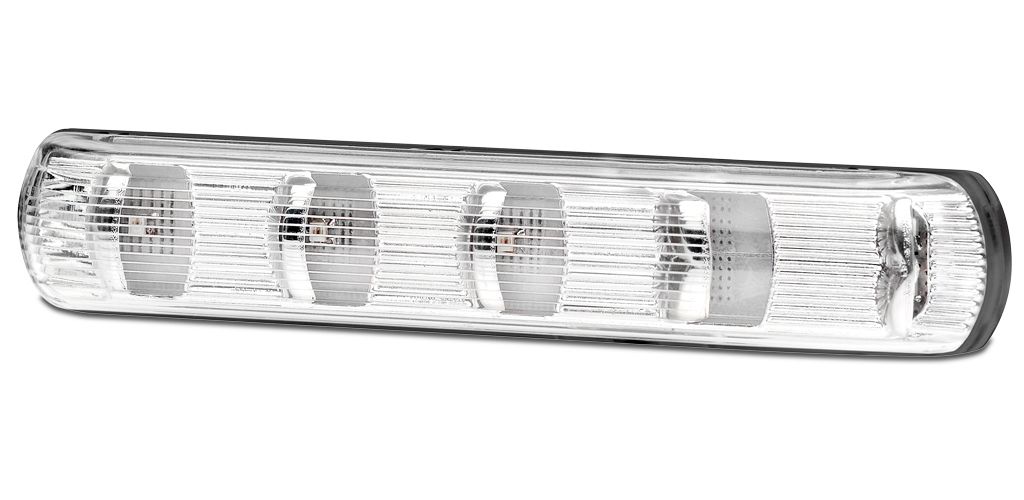

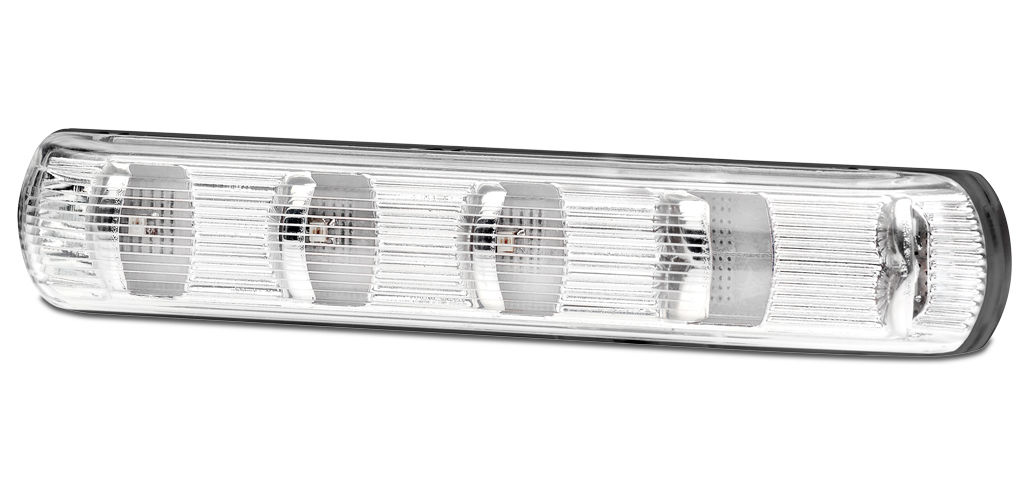

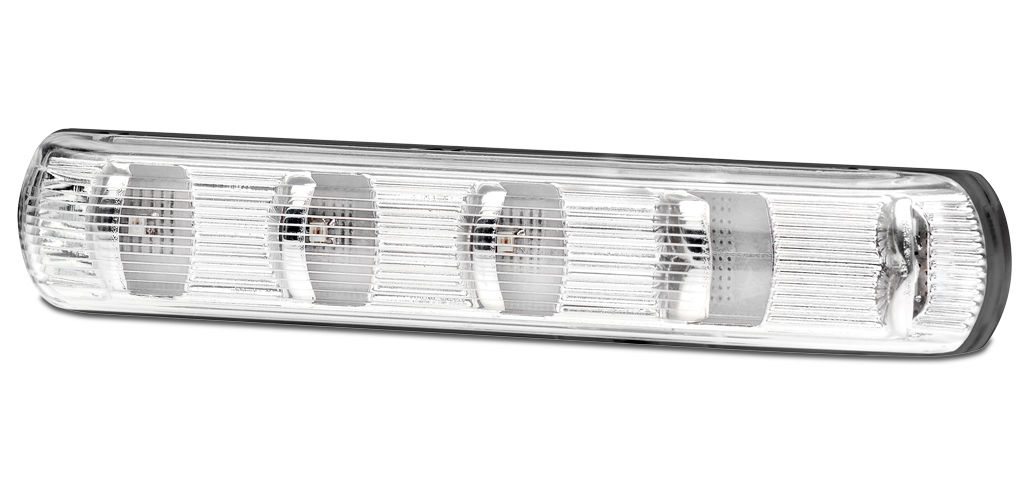

LED Auxiliary Side Indicator Cat. 6

Approved for heavy vehicles and buses/coaches, the Cat. 6 Supplementary Side Direction Indicator lamp is a bright addition to the HELLA range.

The attractive appearance is created with a clear lens and chrome reflectors. With a low power consumption of only 4 watts, and sealed against dust and water, it will provide many years of trouble free usage. The lamp features an adhesive strip and is attached by pressing on to the vehicle. Optic appears clear untill illuminated.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

LED Auxiliary Side Indicator Cat. 6 - 24 Volt

PART NO: 2BM 011 788-041

Specifications

Mounting

Horizontal surface mount via adhesive strip.

Power Consumption

4W

Protection

Reverse polarity
IP 6K9 (Protection against dust and high-pressure/steam jet cleaning)

Spare Parts

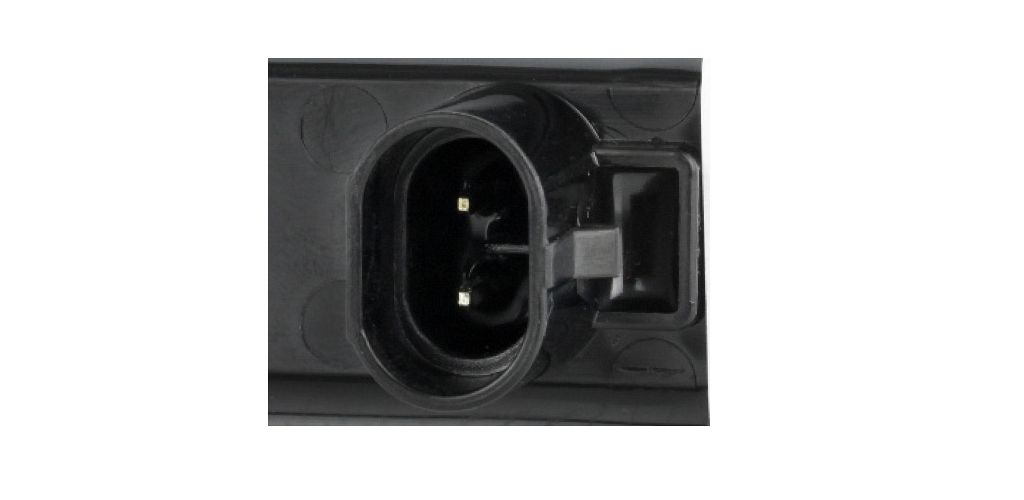

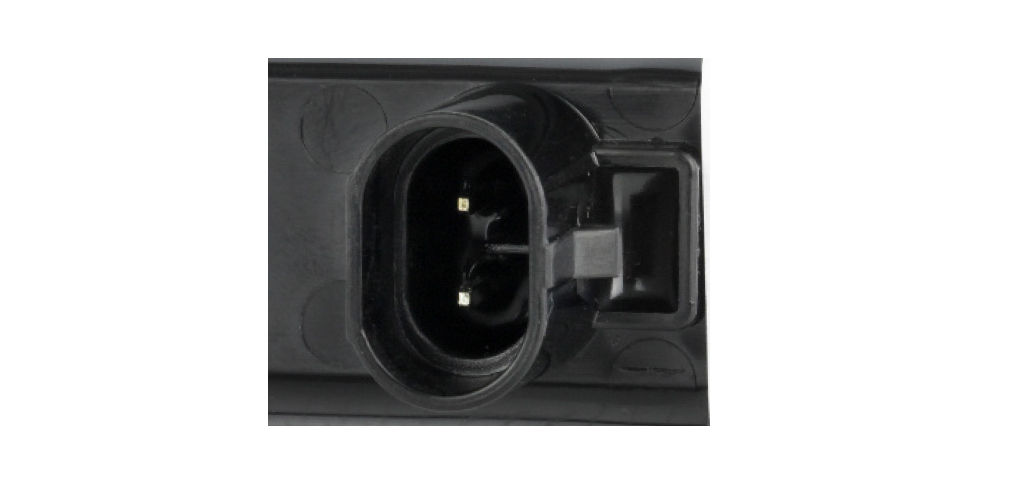

4982-P 2 Pin super seal plug

Compliance

E11 7506  ECE R6/01 Cat.6 CE

Note

The lamp features an adhesive strip and is attached by pressing on to the vehicle.

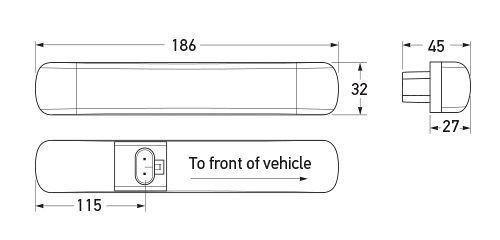

Outline

All dimensions in mm.
All dimensions in mm.
