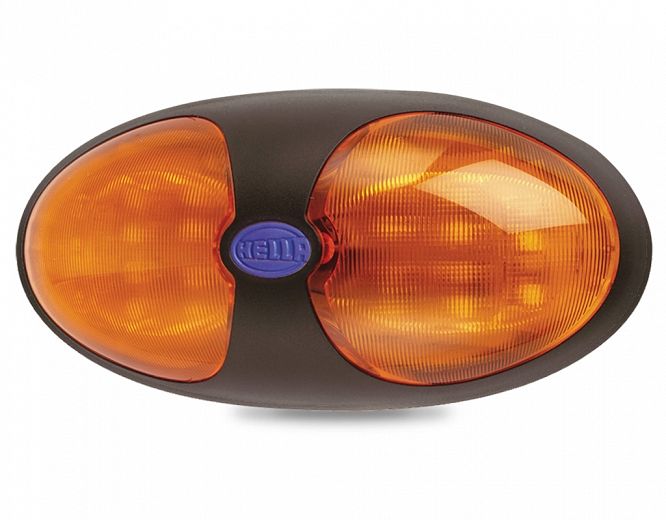

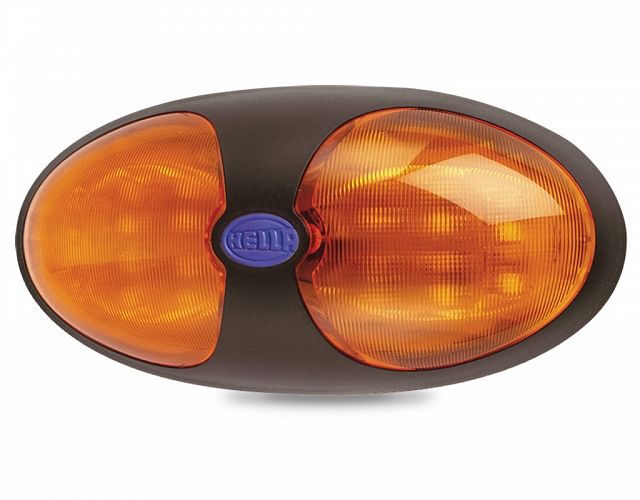

DuraLED® Supplementary Side Direction Indicator Lamp (Cat. 5)

DuraLED^® supplementary side direction indicator featuring amber impact resistant polycarbonate lens and HELLA’s Ultra Wide Visibility Optics for significantly improved side visibility.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

		DuraLED^® Lifetime Warranty All HELLA DuraLED^® products carry a Lifetime Warranty. Note: Lifetime means the economic life of the vehicle these products were first installed on.

P/N 2031 (Supplementary Side Direction Indicator Lamp - Cat. 5)

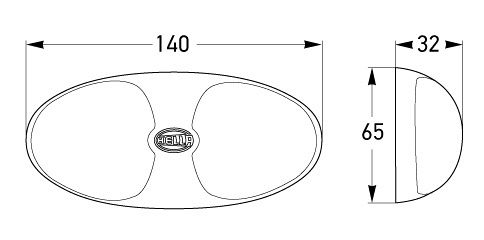

All dimensions in mm.

Rollover/tap the icons below for further details:

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Made in New Zealand

Options

DuraLED<sup>®</sup> Supplementary Side Direction Indicator Lamp (Cat. 5)

DuraLED^® Supplementary Side Direction Indicator Lamp (Cat. 5)

PART NO: 2BM 959 700-011
Legacy PN: 2031

Add to favourites

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
Fully sealed against dust, high-pressure washing and temporary water immersion.

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Projected
Luminous Area

51cm²

Spare Part

9.2366.17

Screw boss kit

Lens Material

Polycarbonate.

Compliance

ADR 6/00: Cat 5

ADR Categories of Direction Indicators

ADR compliant indicators are categorised according to their intended function.

Category.1	Direction indicators for the front of the vehicle.
Category.2	Direction indicators for the rear of the vehicle.
Category.5	Supplementary side direction indicators for use on a vehicle also equipped with categories 1 and 2 direction indicators.
Category.6	Supplementary side direction indicators for use on a heavy vehicle also equipped with categories 1 and 2 direction indicators.
