HELLA

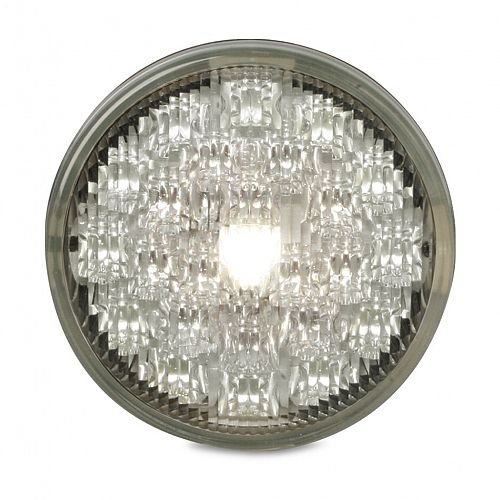

83mm Round LED Front Direction Indicator/Front Position/Daytime Running Lamp - ECE

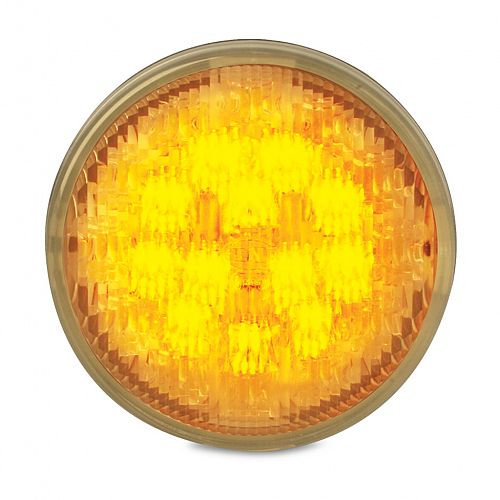

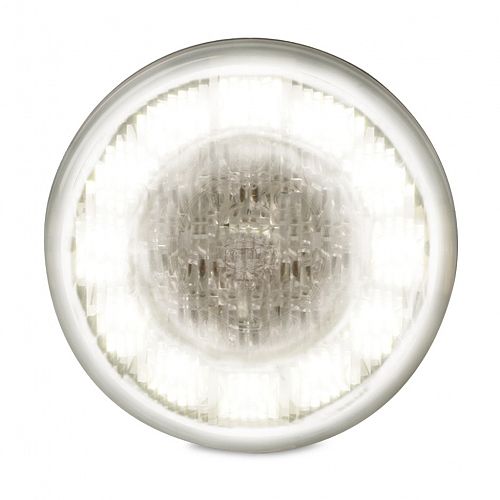

ECE certified LED front direction indicator/ front position/daytime running lamp with clear lens. Specifically designed for commercial transport applications. Equipped with high efficacy white LED for low power consumption and acrylic lens for superior UV and impact resistance.

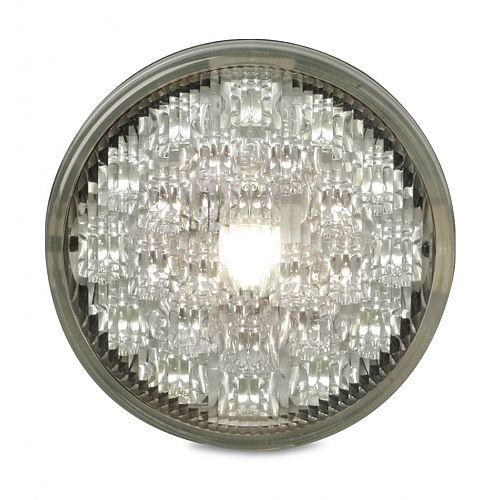

Direction indicator optic appears clear until illuminated. Each of the lamp versions has different in-built operation logic that are defined to suppress the DRL during the indicator flasher cycle and suit most vehicle installations with or without an additional DRL feed.

To view product designed for the New Zealand market, please click here



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Front Direction Indicator/Front Position/Daytime Running Lamp - 12 Volt

PART NO: 2BE 980 691-001

83mm Round LED Front Direction Indicator/Front Position/Daytime Running Lamp - Dimmed Output - 12 Volt

PART NO: 2BE 980 691-101

83mm Round LED Front Direction Indicator/Front Position/Daytime Running Lamp - 24 Volt

PART NO: 2BE 980 690-001

83mm Round LED Front Direction Indicator/Front Position/Daytime Running Lamp - Dimmed Output - 24 Volt

PART NO: 2BE 980 690-101

83mm Round LED Front Direction Indicator/Front Position/Daytime Running Lamp - Dimmed Output - 24 Volt

PART NO: 2BE 980 690-201

Specifications

Mounting

Single bolt 1/4" Stainless UNC thread. Nut and washer supplied.

Power Consumption

  12V 24V
Front indicator: 3W 4W
Daytime running lamp: 4W 4W
Front position: 1W 1W

Protection

Reverse polarity, spike and over voltage protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

E24 5854 E4 10R 04-2907

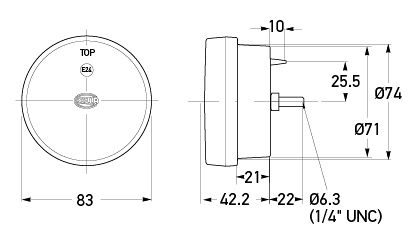

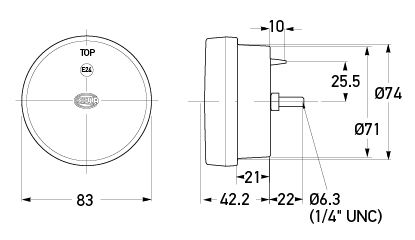

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

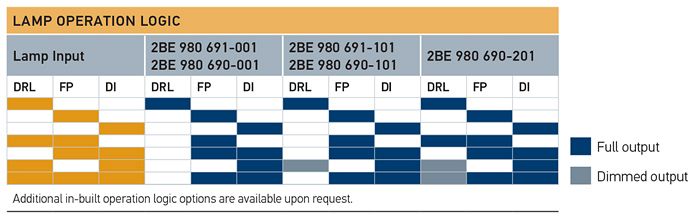

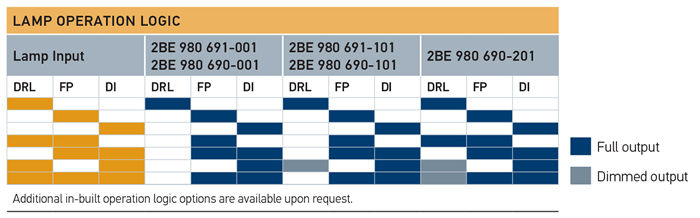

Lamp Operation Logic
Lamp Operation Logic
