HELLA

DuraLED® Rear Turn Signal Lamp - SAE

Durable rear lamps for trucks, buses, caravans and trailers, featuring polycarbonate lens, low power consumption and Multivolt circuitry ensuring full light output from 9 to 33 volts. The lamps are fully sealed against dust and moisture.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

SAE

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

DuraLED® Rear Turn Signal Lamp

PART NO: 2BA 959 070-301

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

<8W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Polycarbonate.

Approval Markings

SAE I6 99 DOT

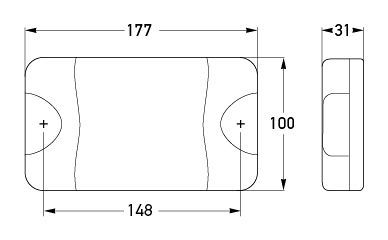

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2BA 959 070-30x_2BA 959 070-321_Instruc_DuraLED-Amber Rear Indicator.pdf 421.20 KB
