HELLA

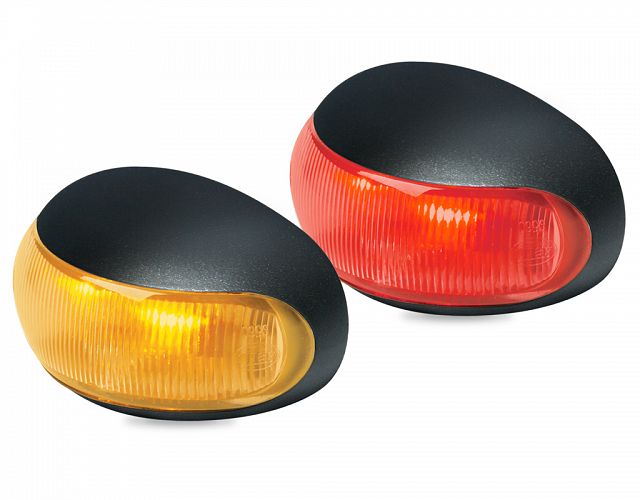

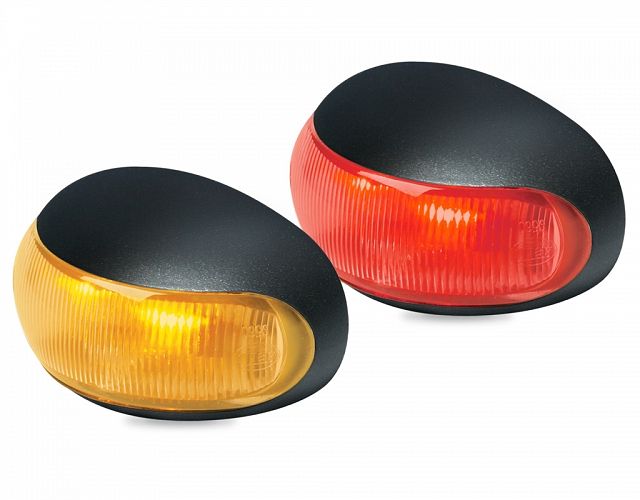

DuraLED® Side Marker, Clearance and Identification Lamp - SAE

Surface mount side marker, clearance and identification lamp with clear, high impact acrylic lens. Pack of 16 lamps.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

SAE

Product is compliant to all relevant SAE Standards to allow use on New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

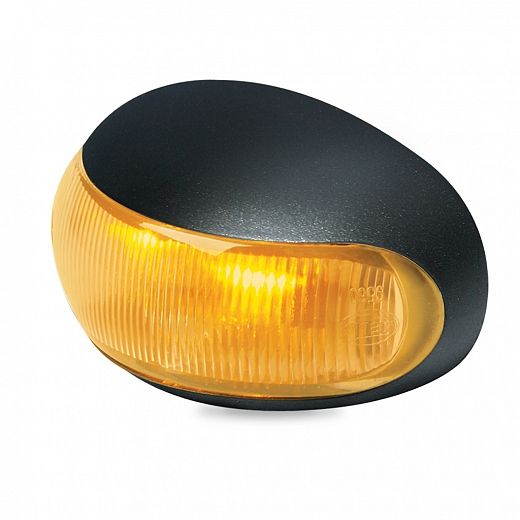

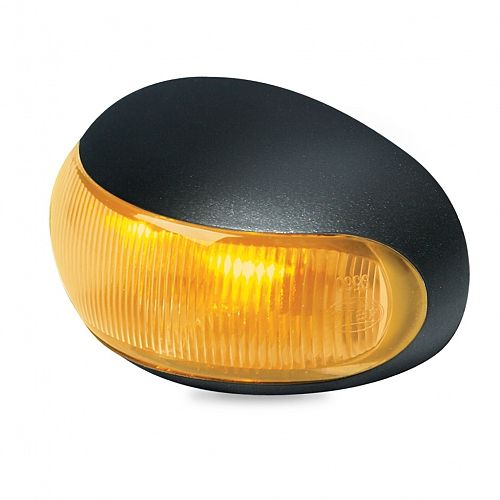

DuraLED<sup>®</sup> Side Marker, Clearance and Identification Lamp - Amber - SAE

DuraLED® Side Marker, Clearance and Identification Lamp - Amber - SAE

PART NO: 2PS 959 660-207

Add to favourites

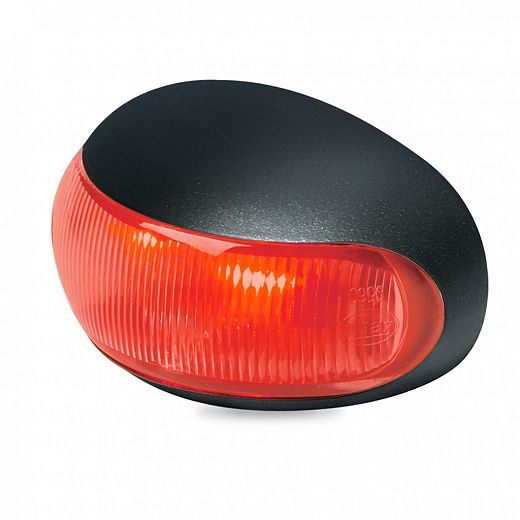

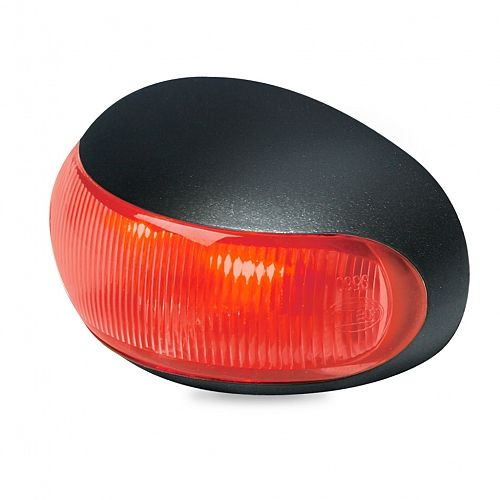

DuraLED<sup>®</sup> Side Marker, Clearance and Identification Lamp - Red - SAE

DuraLED® Side Marker, Clearance and Identification Lamp - Red - SAE

PART NO: 2PS 959 660-407

Add to favourites

Specifications

Mounting

Suitable for horizontal mounting only.

Voltage

Multivolt™ for optimum brightness at input voltage from 8 to 28 volts.

Power Consumption

<1W

Protection
Reverse polarity protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 500mm of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

SAE P2 P3 99 DOT

Spare Parts
9BG 959 565-007 Black shroud
9BG 959 565-017 White shroud
9BG 959 565-037 Red shroud
9BG 959 565-047 Yellow shroud
9BG 959 565-057 Green shroud
9BG 959 565-067 Blue shroud
9BG 959 565-077 Amber shroud
9BG 959 565-407 Chrome plated shroud

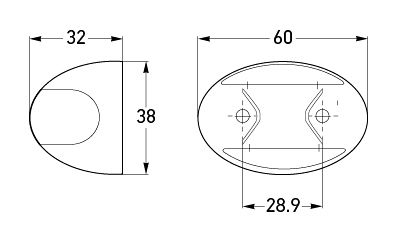

Outline

All dimensions in mm.
All dimensions in mm.
