HELLA

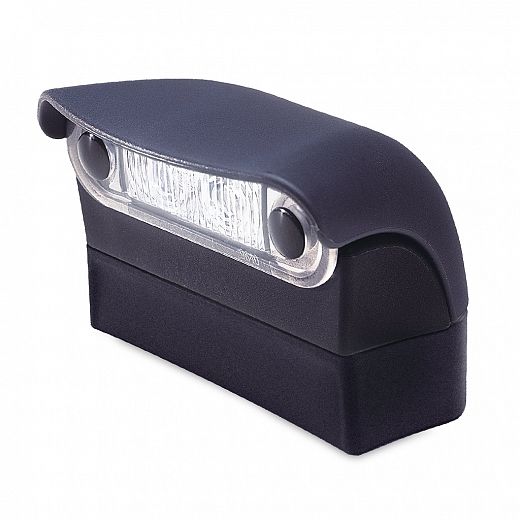

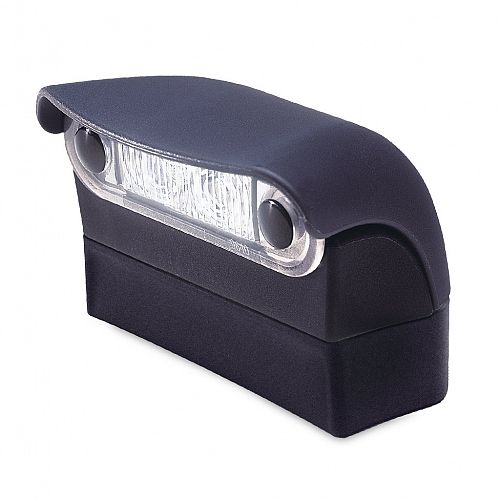

LED Number Plate Lamp - ECE

White LED number plate lamp.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Number Plate Lamp - 2.5m Cable - ECE

PART NO: 2KA 959 640-601

LED Number Plate Lamp - 2.5m Cable - Pack of 8 - ECE

PART NO: 2KA 959 640-607

LED Number Plate Lamp - 500mm Cable - ECE

PART NO: 2KA 959 640-611

LED Number Plate Lamp - 500mm Cable - Pack of 8 - ECE

PART NO: 2KA 959 640-617

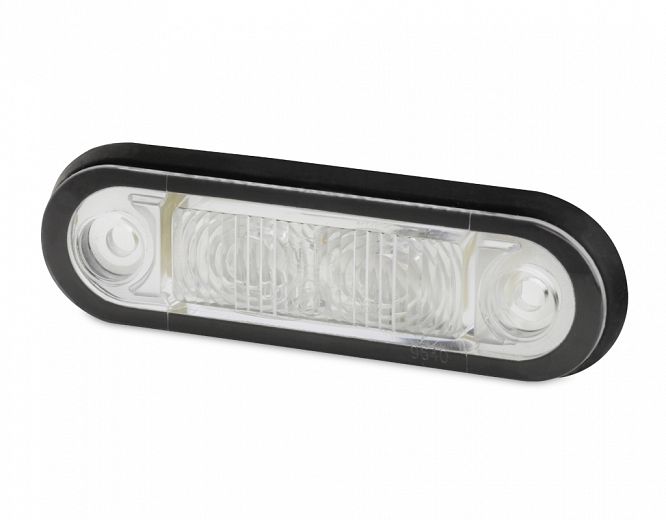

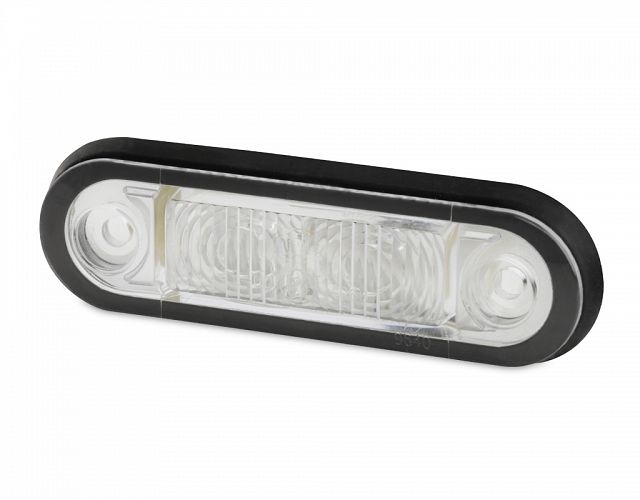

LED Number Plate Light Module - Pack of 3 - ECE

PART NO: 2KA 959 640-102

Specifications

Mounting

Two lamps required for ECE compliance when mounted on either side of number plate.
Three lamps required for ECE compliance when mounted above the number plate.

Voltage

Multivolt™ for optimum brightness at input voltage from 10 to 33 volts.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

2KA 959 640-60x/-10x Pre-wired with 2.5m of sheathed multi-core cable.
2KA 959 640-61x Pre-wired with 500mm of sheathed multi-core cable.

Lens Material

PMMA

Spare Part

9HG 959 647-001 Mounting kit

Approval Markings

E4 4068 E4 10R 04-2906

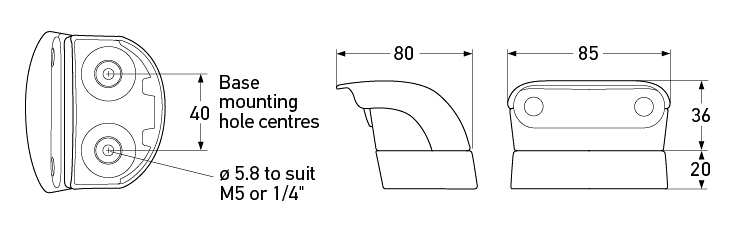

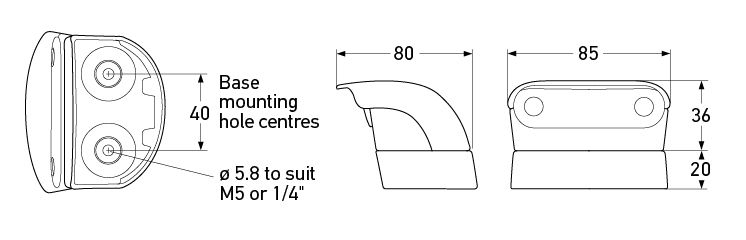

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2KA 959 640-10_Instruction_Number_Plate_Lamp.pdf 542.40 KB
  2KA 959 640-6xx_Instruct_LED_Number_Plate_Lamp.pdf 705.60 KB
