HELLA

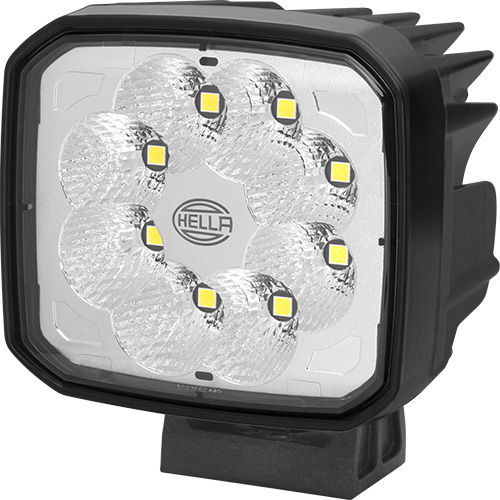

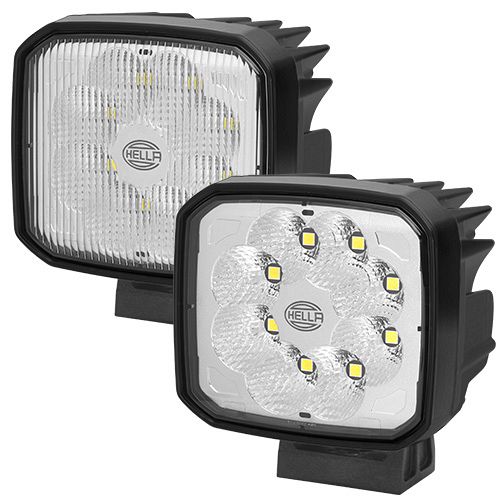

Ultra Beam S-Series Work Lamps

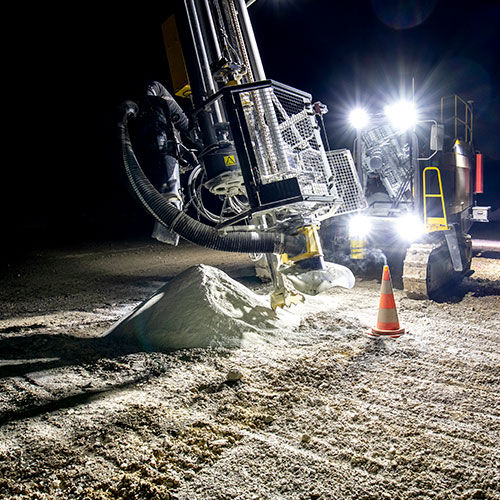

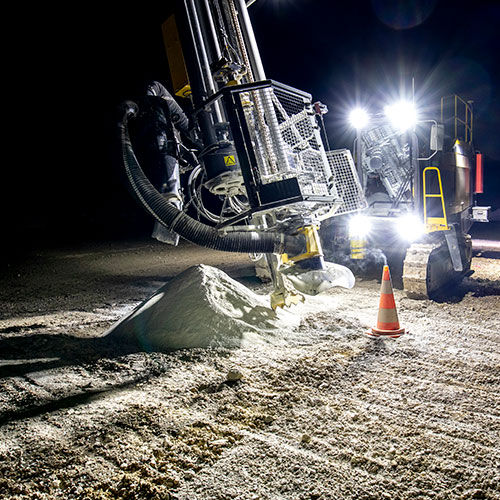

These powerful Work Lamps deliver 4400 lumens of bright, uniformly spread light for increased safety in multiple working environments, with models tailored for close up and longer range.

Innovative electronics provide overvoltage protection, while supporting 9-32V DC input for fluctuating loads, and compatibility with both 12 and 24 volt vehicles. Integrated thermal management prolongs operating life, and a soft start function reduces vehicle electrical system load on multi-lamp start up.

Ultra Beam S-Series Work lamps are CISPR 25 compliant for minimal electromagnetic interference, ensuring compatibility with communications and electrical systems across a range of industrial or emergency applications.

Backed by HELLA’s 5 Year Manufacturer’s Warranty, the robust die-cast aluminium housings and corrosion resistant plastic brackets deliver both durability and IP6K8 / IP69K protection, for long life and minimal maintenance in harsh environments

• 4400 lumen output
• Highly uniform light spread
• Soft start function
• Quiet electronics
• Robust for long life span


To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

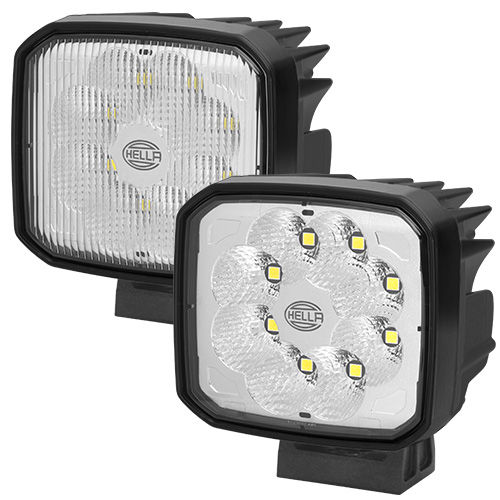

Options

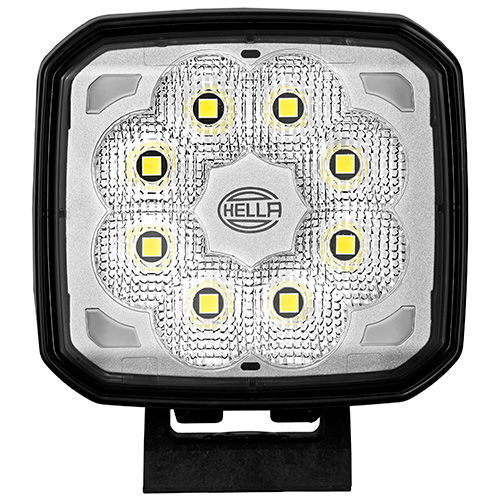

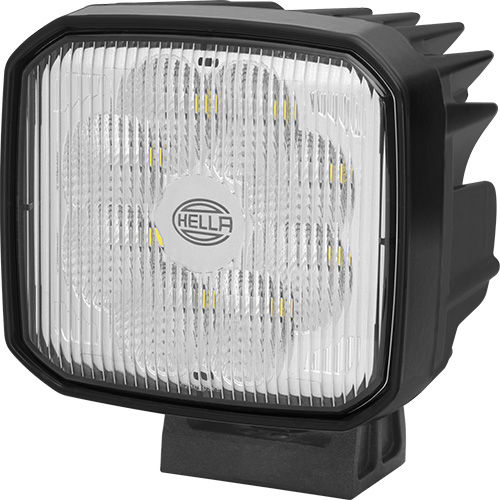

Ultra Beam S-Series Work Lamp - Close Range

PART NO: 1GA 995 706-001

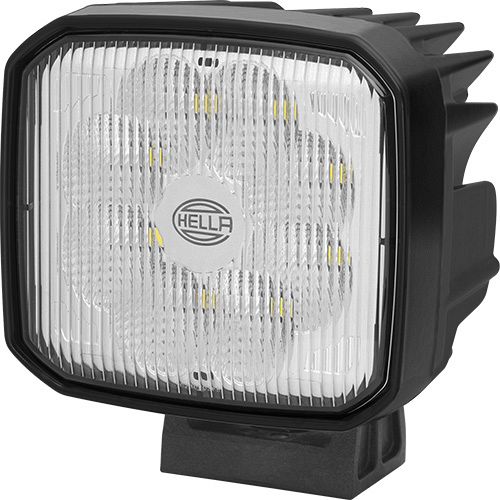

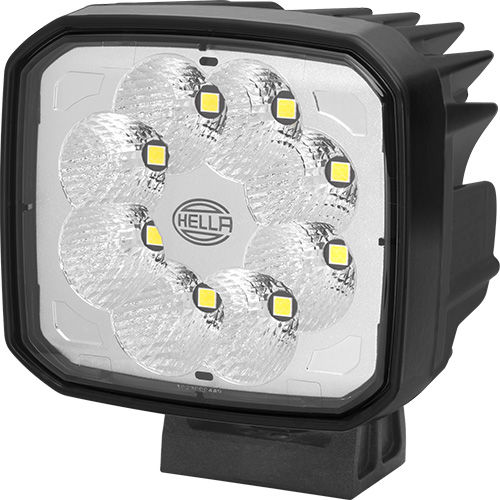

Ultra Beam S-Series Work Lamp - Long Range

PART NO: 1GA 995 706-011

Specifications

Mounting

Upright or pendent

Voltage

Multi-voltage (9–32V DC)

Power Consumption

39W (3.25A @ 12V DC/ 1.6A @ 24V DC)

Max. Light Output

4400 lumen

Temperature

Operating range -40° to +85°C

Materials

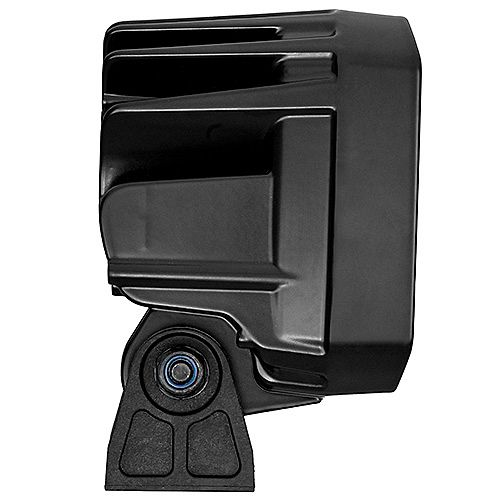

Housing: Die-cast aluminium
Mounting bracket: Glass fibre reinforced polymer
Lens: Impact and UV resistant plastic

Protection

Reverse polarity protection.
IP6K8 (Protection against dust and water immersion)
IP69K (Protection against dust and high-pressure/steam jet cleaning)

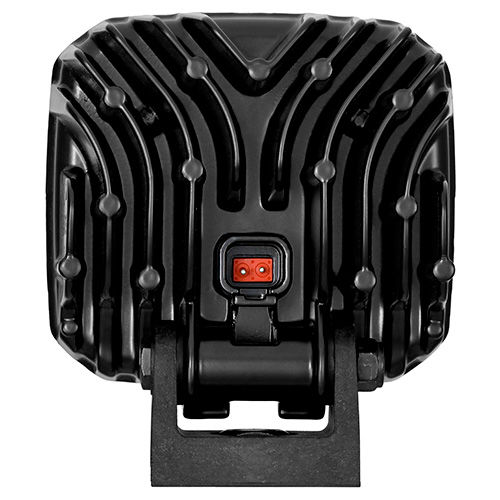

Connector

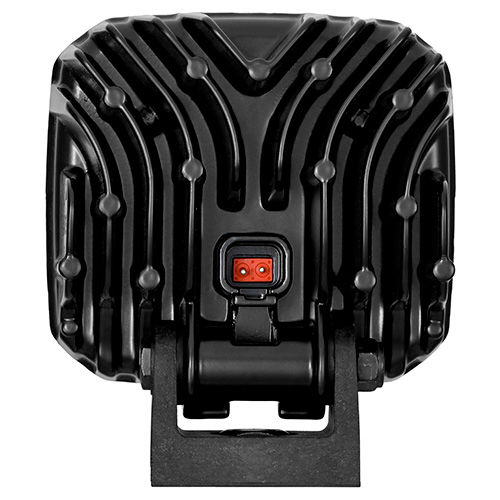

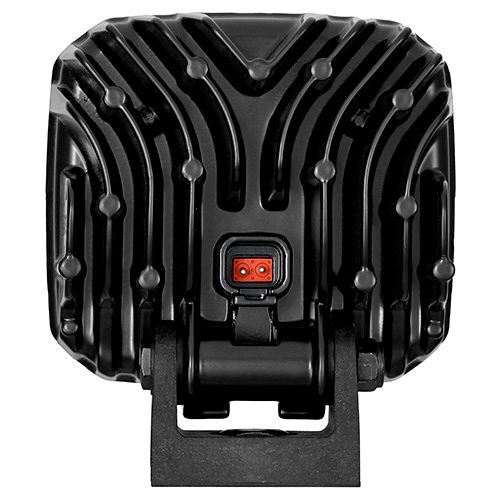

Supplied with DEUTSCH DT 2-pin connector and 2m cable as accessory

Compliance

ECE R10, CISPR 25 Class 5  CE

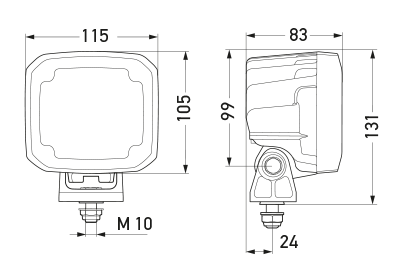

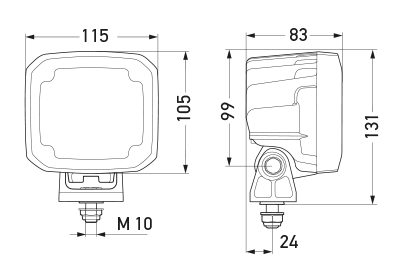

Outline

All dimensions in mm
All dimensions in mm

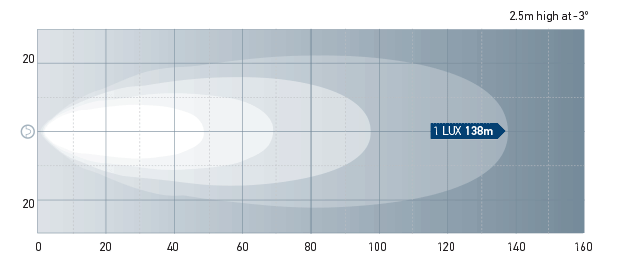

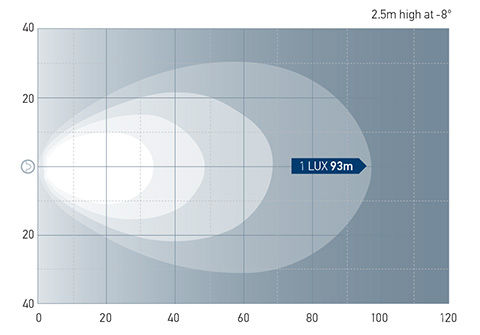

Light Output

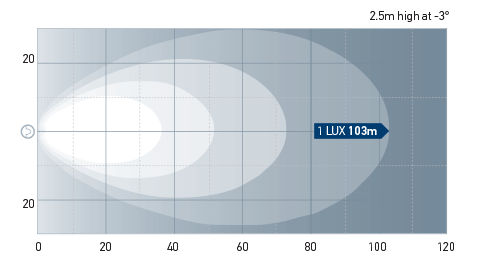

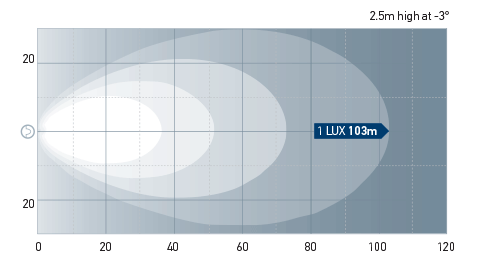

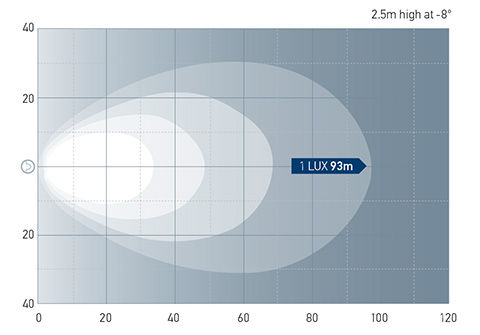

GA 995 706-001 Ultra Beam S-Series Work Lamp Short Range
GA 995 706-001 Ultra Beam S-Series Work Lamp Short Range

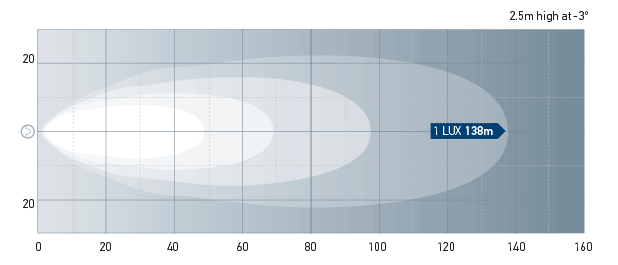

1GA 995 706-011 Ultra Beam S-Series Work Lamp Long Range
1GA 995 706-011 Ultra Beam S-Series Work Lamp Long Range

Documents

Document File Name File Size
  IS_Ultra_Beam_S-Series_Work_Lamp_(460_879-57_06-23).pdf 2.99 MB
