HELLA

Power Beam 1500 LED Work Lamp - Heavy Duty

The light from the 6 high-power LEDs is distributed homogeneously across the workspace by a specially developed multi-faceted reflector. Thanks to its powerful light output, the Power Beam 1500 can replace standard halogen work lights (e.g. H3/55 watt) – and does so with a power consumption of just 22 watts. It makes this work light ideal for use on battery-operated vehicles or on vehicles where the alternator is already under a heavy load. The light can be operated with both 12V and 24V. This premium work lamp comes with a powder coated aluminium body and tough nylon lens, and is rated at 1300 lumen.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Sturdy housing design for use under heavy duty conditions.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Benefits include strength and corrosion resistance.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

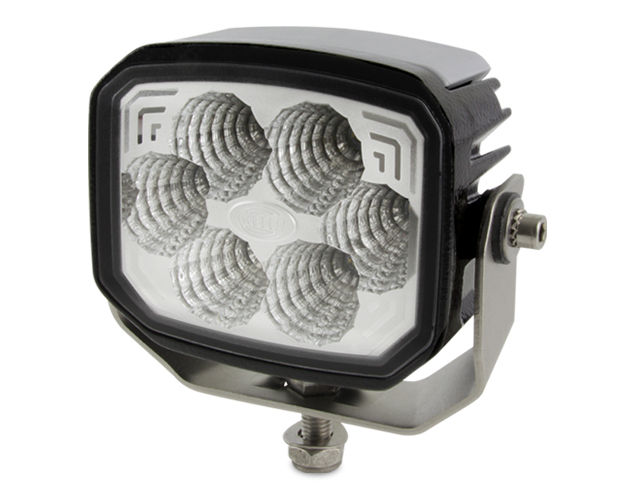

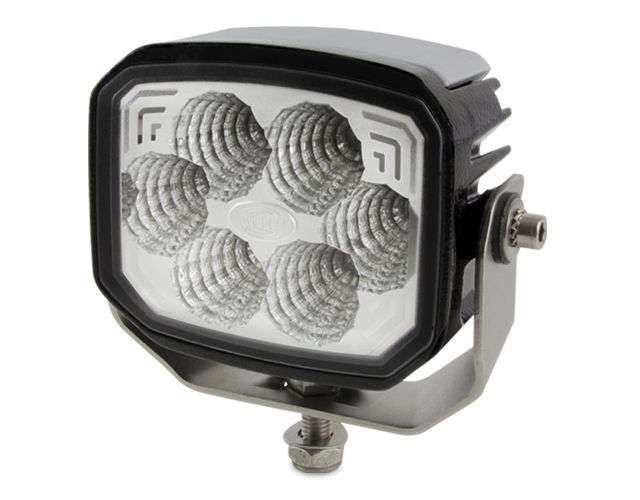

Power Beam 1500 LED Work Lamp - Heavy Duty - Close Range

PART NO: 1GA 996 288-231
Legacy PN: 1557HD

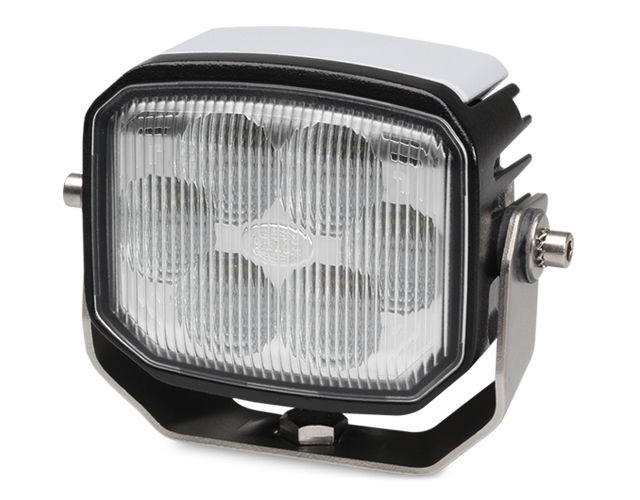

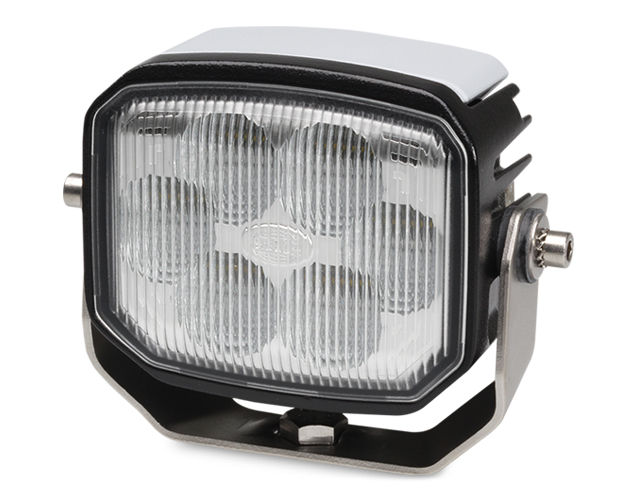

Power Beam 1500 LED Work Lamp - Heavy Duty - Long Range

PART NO: 1GA 996 288-241
Legacy PN: 1557HDLR

Specifications

Mounting

Upright or pendant.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

22W

Max. Light Output

1300 lumen

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2m of sheathed twin core cable and DT plug.

Spare Part

9.1557.05 Plug and lead 0.75mm2
9.1549.05 Plug and lead 1.25mm2

Compliance

E1 ECE R10

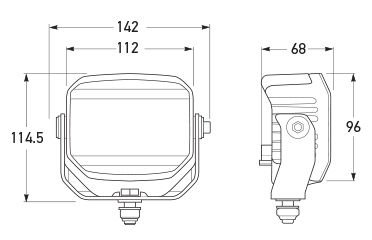

Outline

All dimensions shown in mm.
All dimensions shown in mm.

Light Output

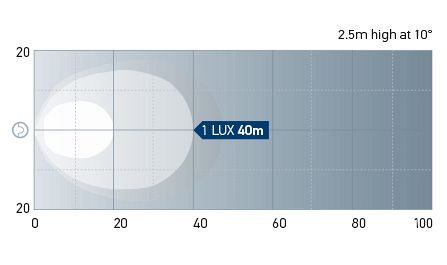

Beam pattern: Power Beam 1500LED - Close Range
Beam pattern: Power Beam 1500LED - Close Range

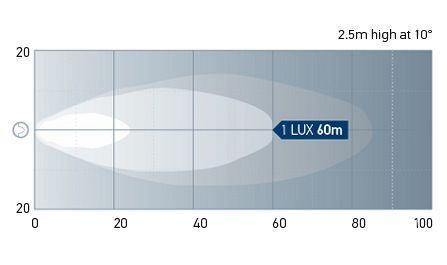

Beam pattern: Power Beam 1500LED - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: Power Beam 1500LED - Long Range. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
