HELLA

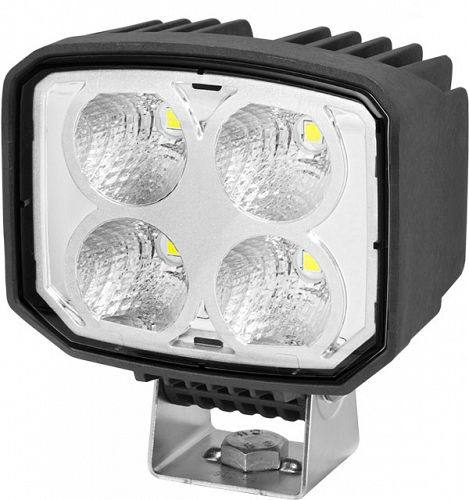

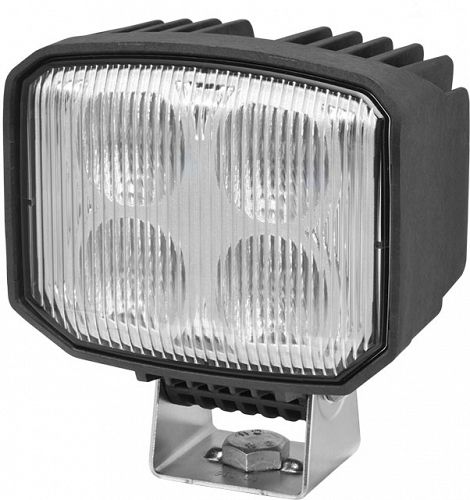

Power Beam S-Series LED Work Lamp

The Power Beam S‑Series has been upgraded, with more light output of 1850 lumen while consuming less power, and a new corrosion resistant body. Featuring high-powered LEDs providing consistent illumination with 12 or 24V systems. The innovative thermally conductive synthetic material housing also features cooling fins which ensure the required heat dissipation from the high‑power LEDs. Along with weight reduction, the material offers the further advantage of being totally corrosion-resistant.
Designed with Fit and Forget durability in mind, the Power Beam S‑Series is covered by a 5 year warranty.

  • Increased Light output
  • Corrosion resistant housing
  • Low power consumption
  • Light weight

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

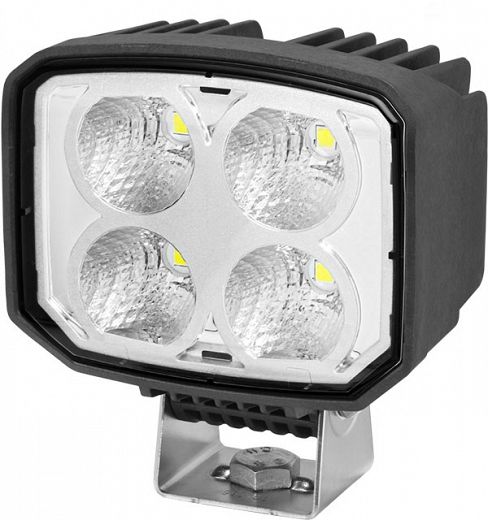

Power Beam S‑Series Spread LED Work Lamp

PART NO: 1GA 996 588-201

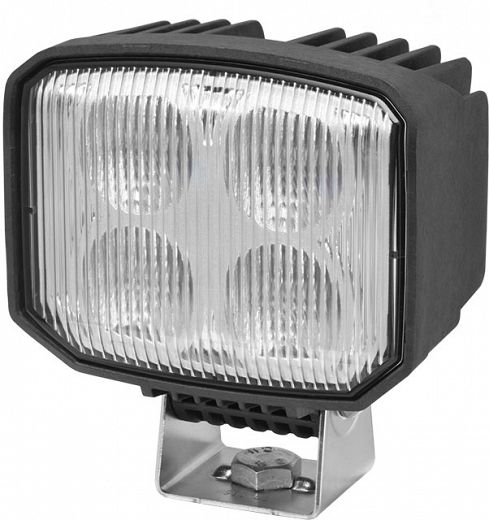

Power Beam S‑Series Long Range LED Work Lamp

PART NO: 1GA 996 588-211

Specifications

Mounting

Upright or pendent

Voltage

Multivolt™ for optimum brightness at input voltages in 12 and 24 volt systems

Power Consumption

19W

Light Output

1850 lumen

Protection

Reverse polarity protection
IP 6K7 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Weight

400g

Cable Length

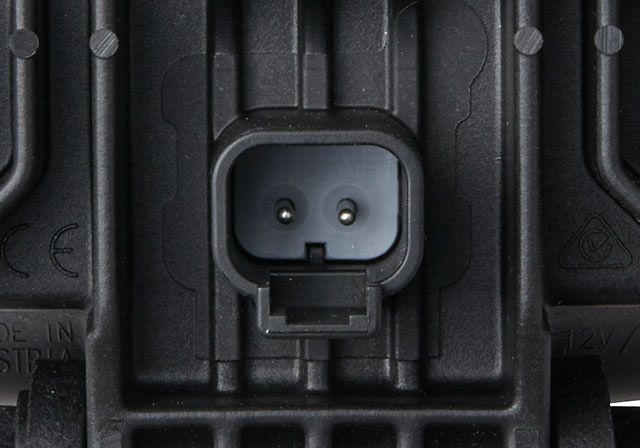

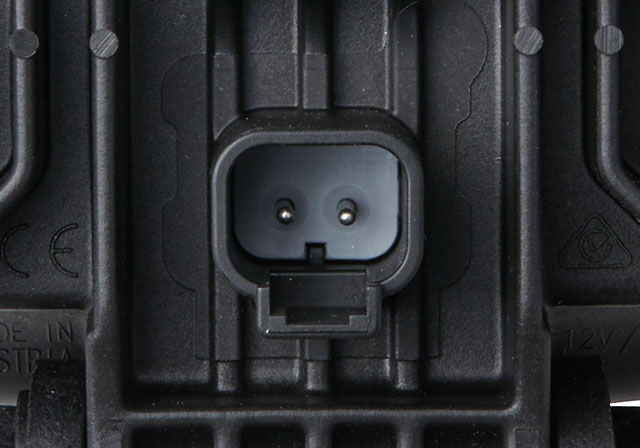

Supplied with 2.0m sheathed cable with DT plug

Accessories

8KB 958 757-501  2.0m sheathed cable with DT plug

Compliance

E12 ECE-R10    CE

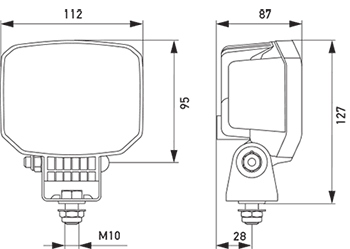

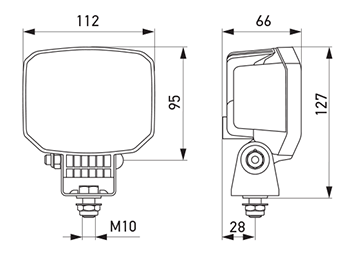

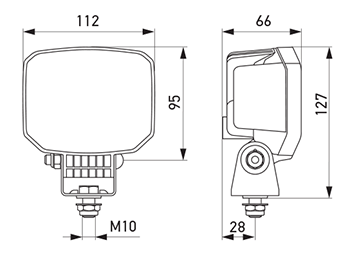

Outline

All dimensions in mm
All dimensions in mm

Light Output

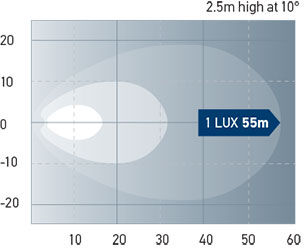

Spread LED Work Lamp
Spread LED Work Lamp

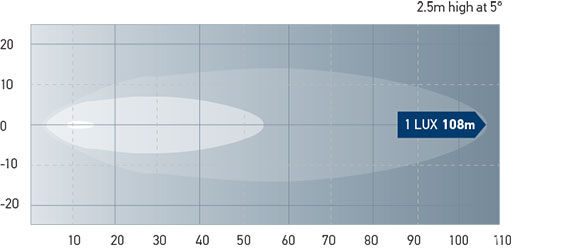

Long Range LED Work Lamp
Long Range LED Work Lamp
