HELLA

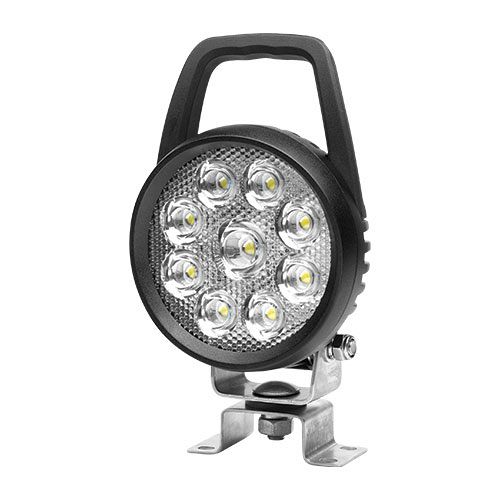

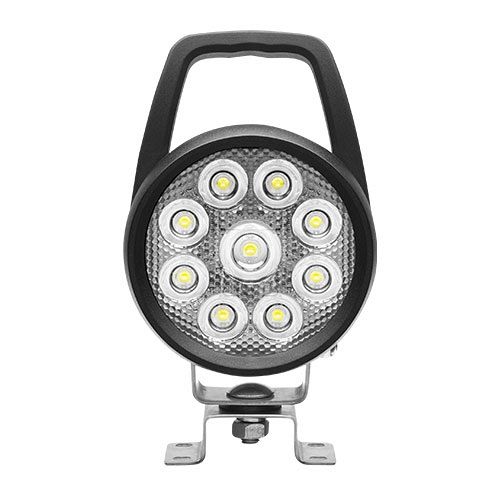

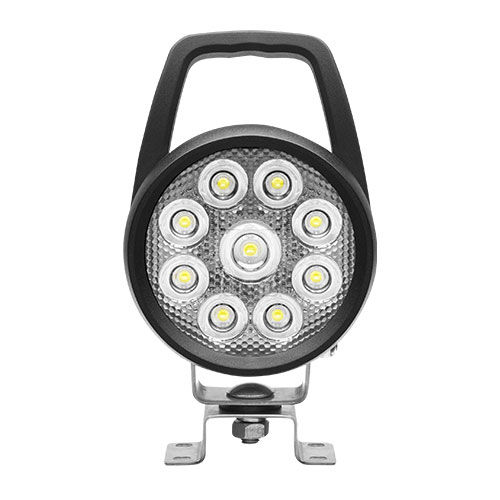

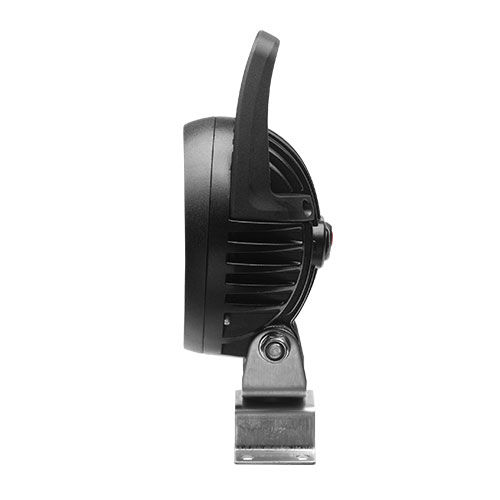

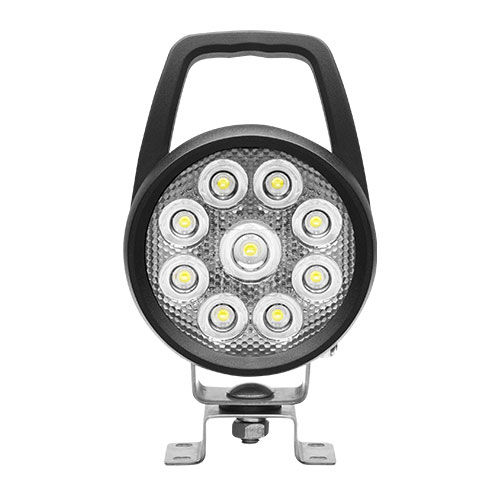

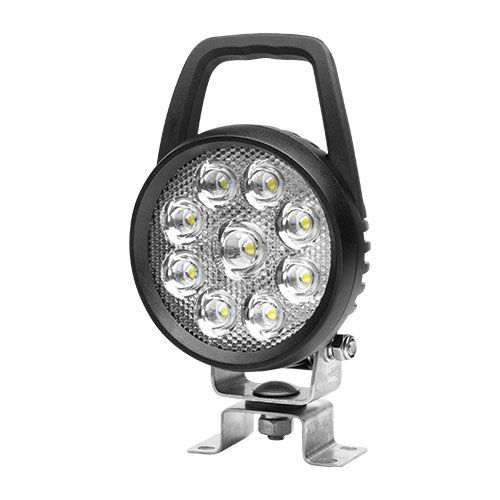

R120S LED Work Lamp

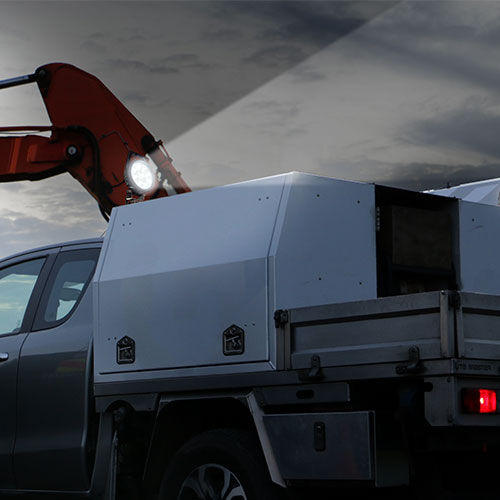

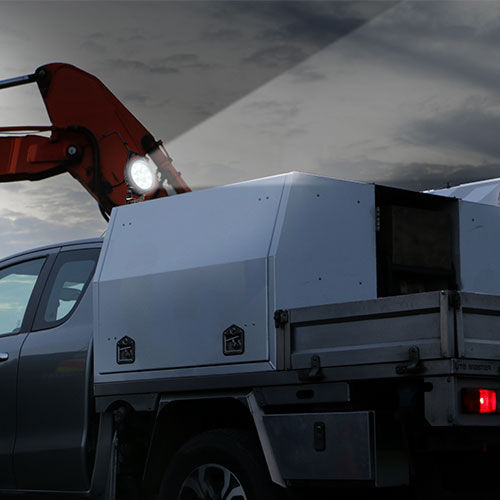

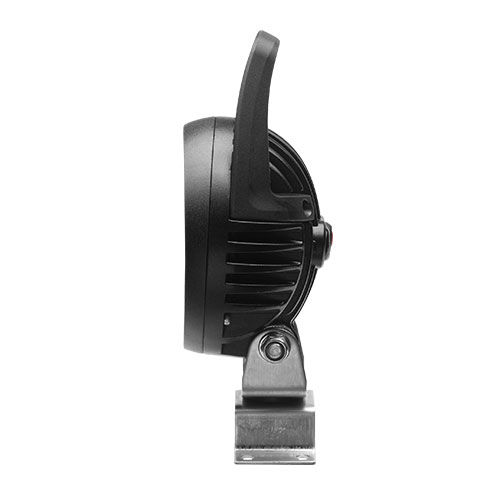

Designed with a moulded handle and swivel mounting bracket, enabling the R120S work lamp to be rotated in almost any direction. The on/off switch is conveniently located at the rear of the lamp for easy operation. With a practical handle, the lamp can be adjusted to an optimal position and provides excellent illumination for operations around the vehicle.

  • Swivel mount for 360° rotation
  • 1500 lumen light output
  • Efficient 23W power consumption

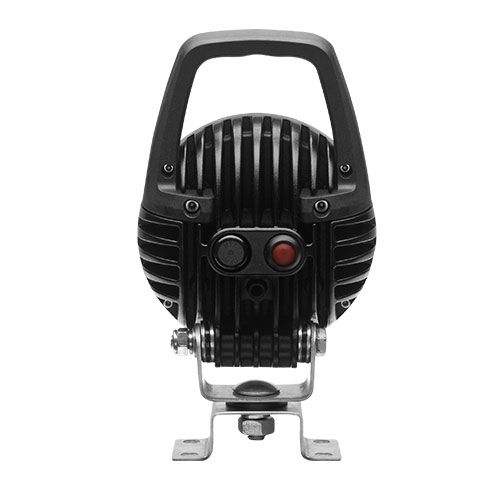

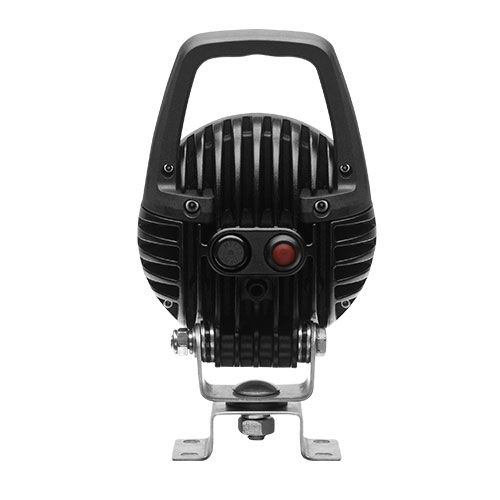

  • Convenient rear mounted On/Off switch

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

R120S LED Close Range Work Lamp

PART NO: 1G2 996 220-001

Specifications

Mounting

Swivel base mounting

Voltage

Multivolt™ 10 to 30V DC

Power Consumption

23W

Max. Light Output

1500 lumen

Colour Temperature

6500K

Protection

Reverse polarity protection, overheating protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Housing

Aluminium

Temperature range

-40°C to +50°C

Cable Length

300mm sheathed cable

Compliance

ECE R10 CE

Outline

All dimensions in mm
All dimensions in mm

Light Output

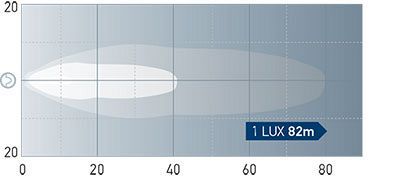

1G2 996 220-001 Close Range Work Lamp - Lux Map
1G2 996 220-001 Close Range Work Lamp - Lux Map
