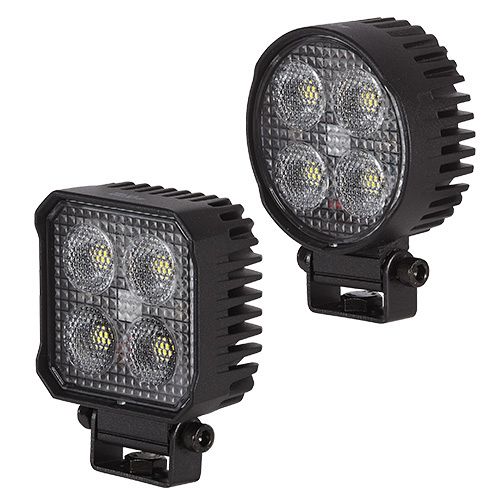

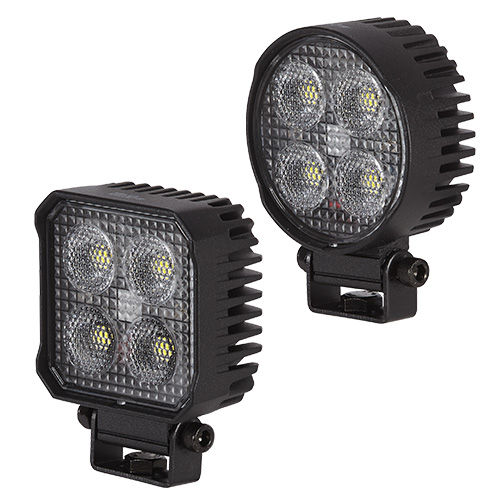

TS1700 / TR1700 Compact Work Lamps

The VALUEFIT Work Lamp Series is designed to deliver exceptional performance while maintaining a sleek and compact form factor.

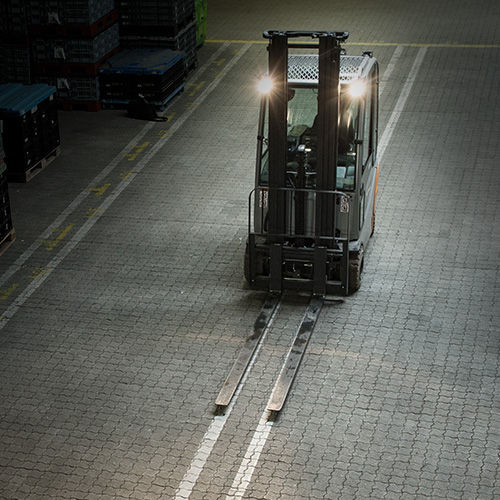

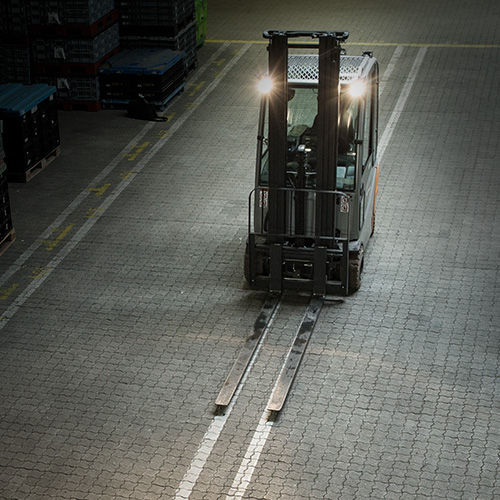

These lamps are engineered to provide powerful, close-range lighting, making them ideal for a range of applications, including trucks, trailers, utes and machinery.

The TS1700 / TR1700 models boast light output of 1700 lumens.
This level of performance, combined with their easy-to-install compact design, ensures they are the perfect solution for tight spaces where reliable, high-intensity lighting is essential.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Can use either 12 or 24V

12/24V Dualvolt

Can use either 12 or 24V

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

2 Year Warranty

Options

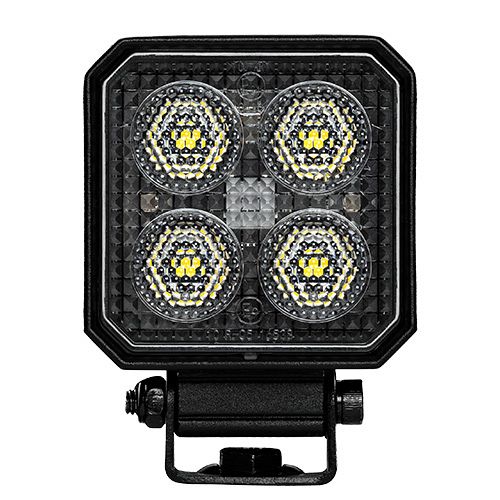

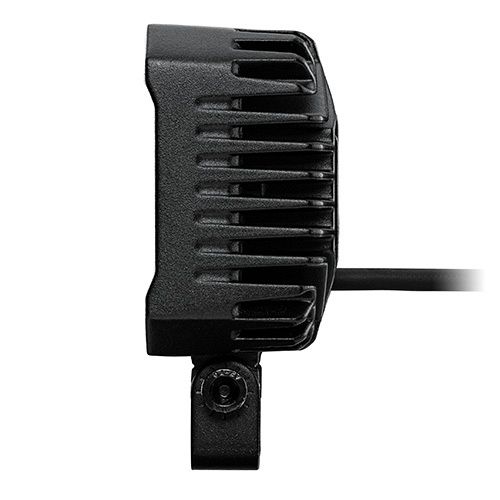

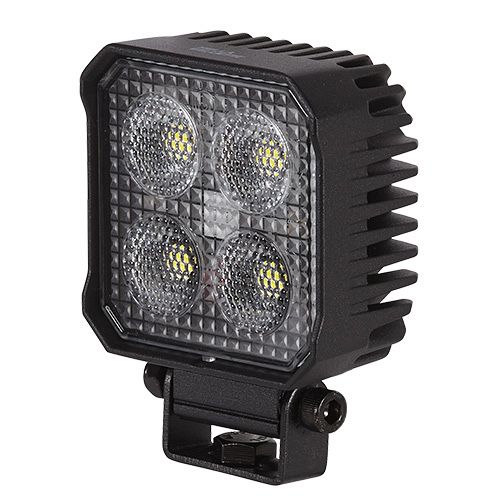

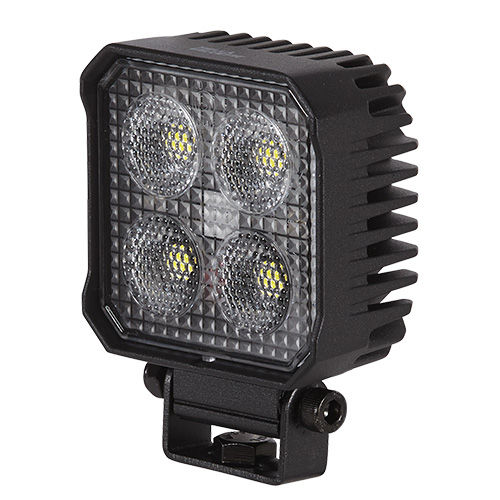

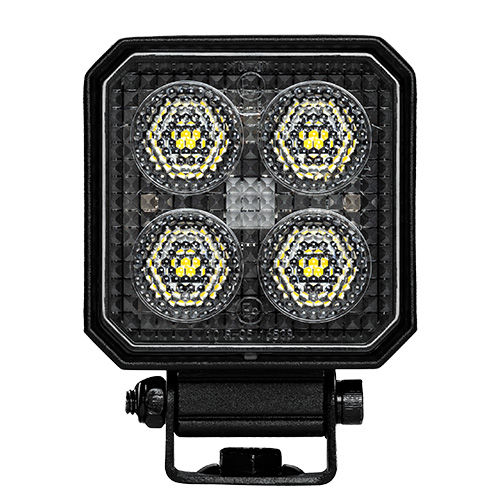

VALUEFIT TS1700 Work Lamp - Square (Close Range)

PART NO: 1GA 357 110-002

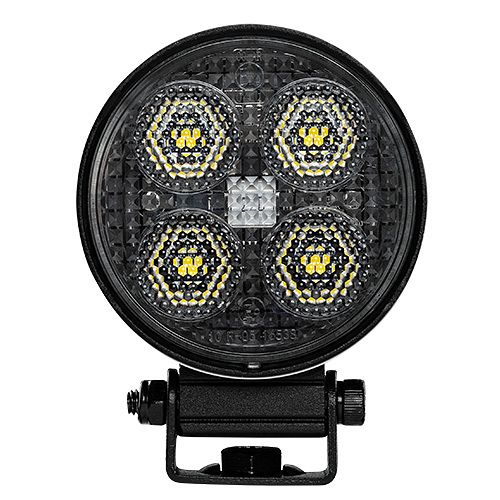

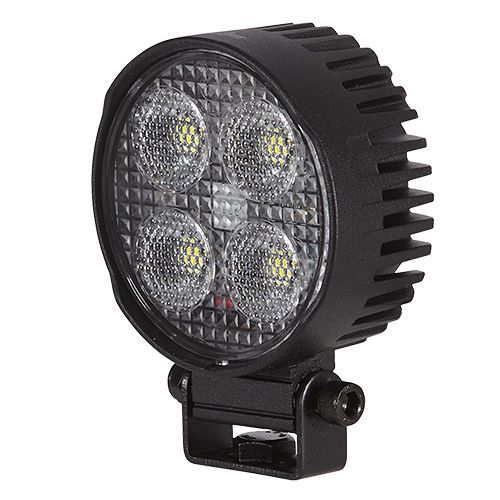

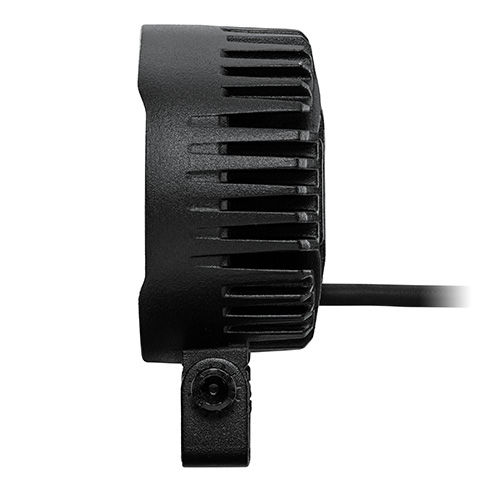

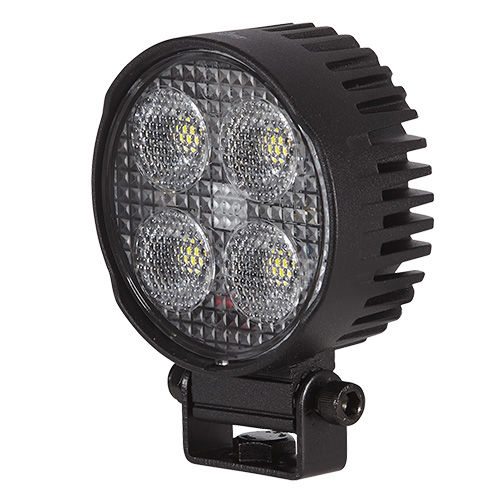

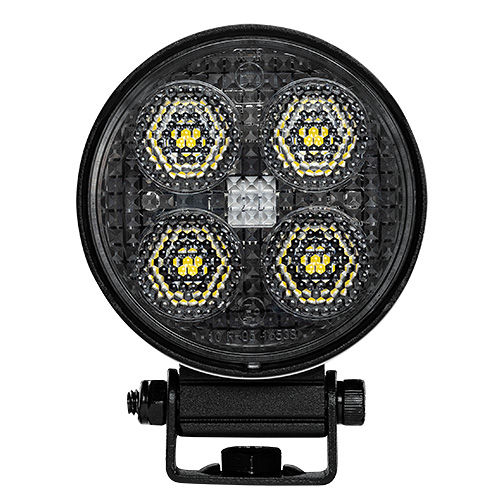

VALUEFIT TR1700 Work Lamp - Round (Close Range)

PART NO: 1G0 357 111-002

Specifications

Mounting

Upright or pendant.

Voltage

12-24V

Power Consumption

24W

Max. Light Output

1700 lumen

Colour Temperature

5700 Kelvin

Housing Material

Aluminium

Protection

Reverse polarity and transient spike protection
IP6K7 (Protection against dust and temporary water immersion)
IP6K9K (Protection against dust and high-pressure/steamjet cleaning)

Weight

300g

Cable

800mm

Compliance

ECE R10 CE

Outline

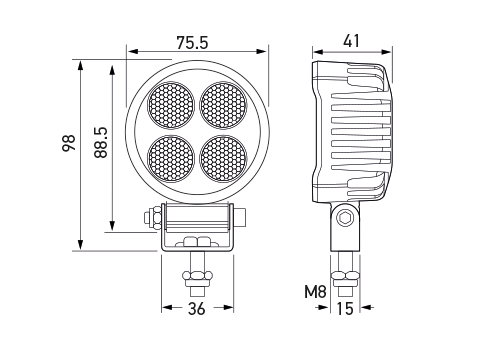

1G0 357 111-002 TS1700 Round Diagram
1G0 357 111-002 TS1700 Round Diagram

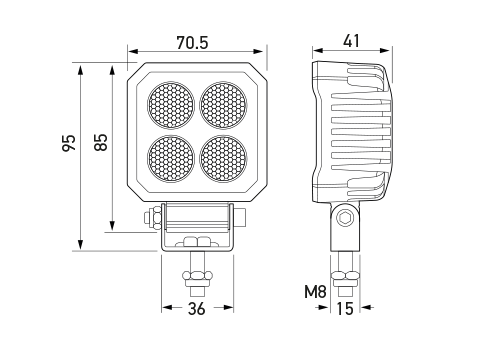

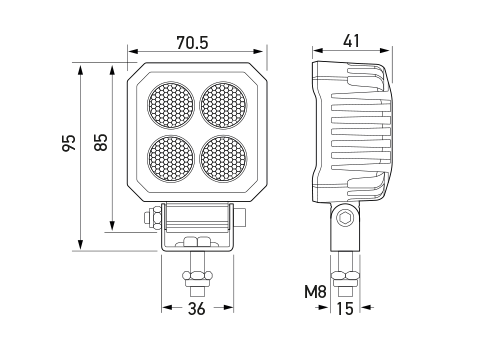

1GA 357 110-002 TS1700 SQUARE Diagram <br>All dimensions in mm
1GA 357 110-002 TS1700 SQUARE Diagram
All dimensions in mm

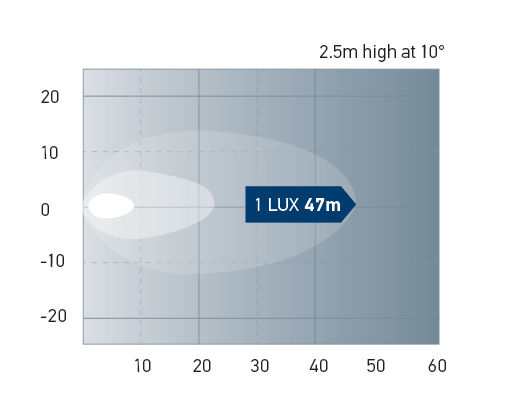

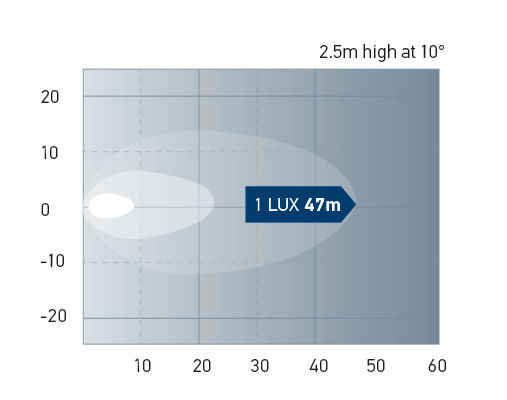

Light Output
