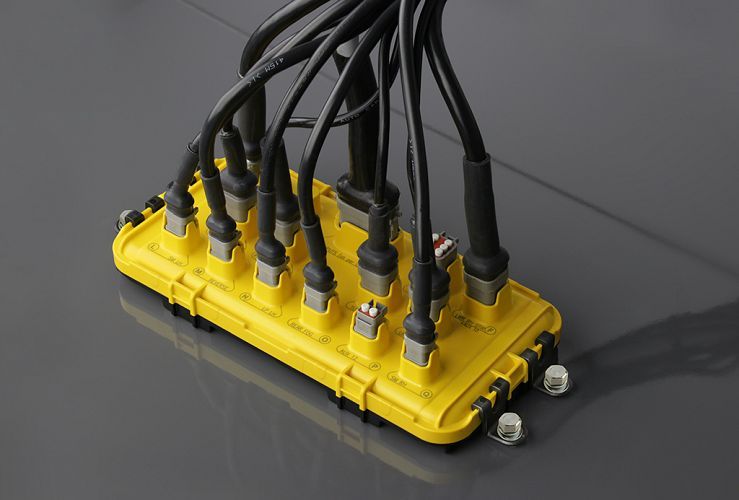

LED Lamp Distribution Box

• Quick Connectivity
• Easy Trouble Shooting
• Suitable for Trucks, Heavy Trailers
  & Special Purpose Vehicles

The LED Lamp Distribution Box is designed with integrated Deutsch DT connector sockets that provide easy and reliable lamp connection. Internal electronics isolate individual circuits to reduce lamp outage, to ensure a long life and reliable lamp operation. Should a fault occur, this also means fast repair times and less down time for the vehicle. A completely sealed housing and durable materials provide protection against water, dust and high pressure/steam jet cleaning.

Reduced Installation and Service Costs
Because the unit is designed for quick and simple connectivity, costs are reduced and the installation can be done in a short time frame.

Conventional junction boxes can be complicated and prone to faults when opened and serviced. When a fault occurs multiple lamps and circuits can be affected, resulting in a vehicle not being safe to operate. With the new HELLA LED Distribution Box, should a fault occur on a particular circuit, it will be isolated - meaning faster fault finding and repair, therefore the vehicle can be back up and operational in a much faster time frame.

The costs of servicing the innovative LED Distribution Box can be minimal when you consider how costs can quickly mount. A call out after hours can cause labour costs which quickly accumulate. Possibly the largest cost of all is the vehicle not being operational and the roll-on effect this can have for driver hours and delivery deadlines.
