Cable Junction Box - Blade Joiners - 14 Connection Groups

Compact cable junction box with the option of 4 or 12 inlet/outlets, and outer cable size from Ø10mm to Ø17mm. Complete with connecting cartridge allowing 14 separate groups of connections (6 x 8-way and 8 x 4-way) all using 6.3mm flat blade connectors. The heavy duty nylon housing will withstand common lubricants found underneath truck and trailers, and is safe to clean with high pressure washing equipment.

To find a HELLA reseller near you, click here.

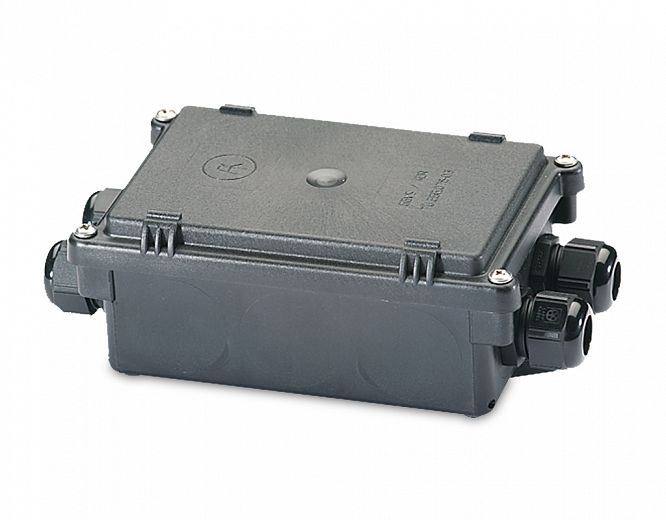

P/N 2770 (4 Outlets - 14 Connection Groups)

P/N 2770 (4 Outlets - 14 Connection Groups)

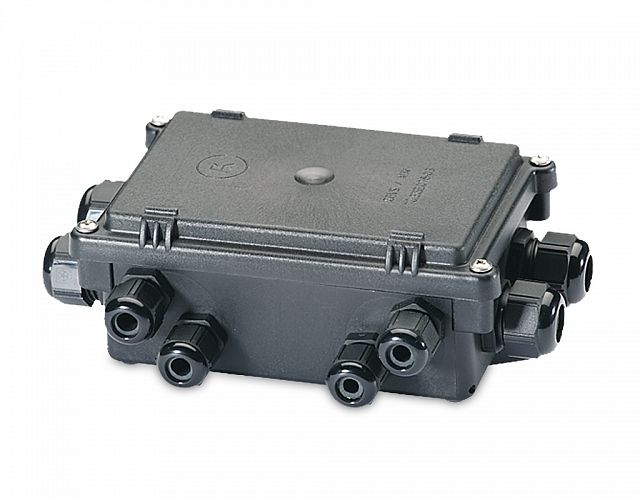

P/N 2771 (12 Outlets - 14 Connection Groups)

P/N 2771 (12 Outlets - 14 Connection Groups)

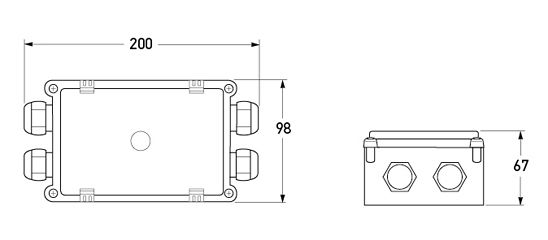

P/N 2770 (4 Outlets - 14 Connection Groups) - All dimensions in mm.

P/N 2770 (4 Outlets - 14 Connection Groups) - All dimensions in mm.

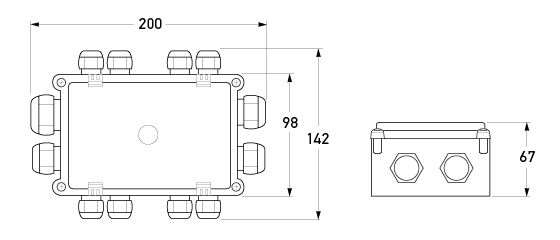

P/N 2771 (12 Outlets - 14 Connection Groups) - All dimensions in mm.

P/N 2771 (12 Outlets - 14 Connection Groups) - All dimensions in mm.

Rollover/tap the icons below for further details:

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

Options

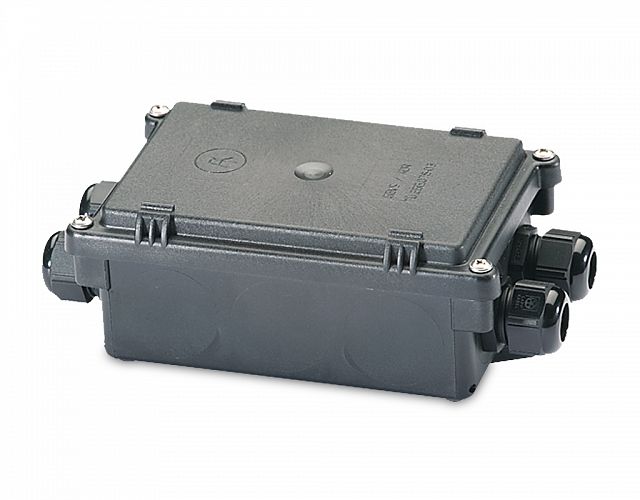

Cable Junction Box - 4 Outlets - 14 Connection Groups

Cable Junction Box - 4 Outlets - 14 Connection Groups

PART NO: 8KV 177 785-012
Legacy PN: 2770

Add to favourites

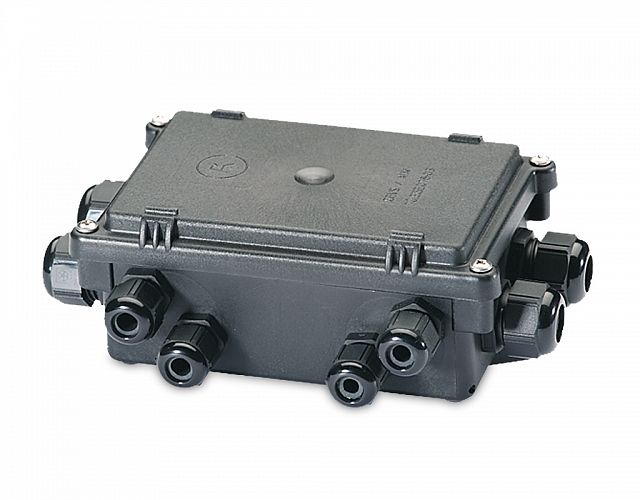

Cable Junction Box - 12 Outlets - 14 Connection Groups

Cable Junction Box - 12 Outlets - 14 Connection Groups

PART NO: 8KV 177 785-002
Legacy PN: 2771

Add to favourites

Specifications

Fittings

2770	4 x Ø13mm
2771	1 × Ø17mm + 3 × Ø13mm + 8 × Ø10mm

Protection

IP 69K

(Protection against dust and high pressure/steam jet cleaning)

Plug Cartridge

14 separate connection groups.

Outline

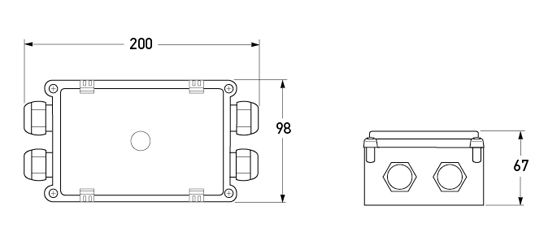

P/N 2770 (4 Outlets - 14 Connection Groups) - All dimensions in mm.

P/N 2770 (4 Outlets - 14 Connection Groups) - All dimensions in mm.

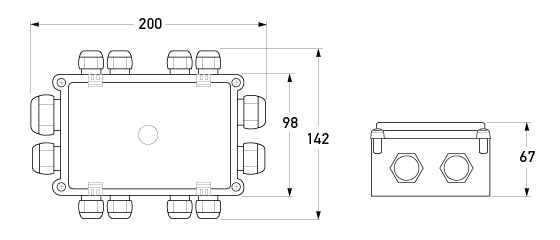

P/N 2771 (12 Outlets - 14 Connection Groups) - All dimensions in mm.

P/N 2771 (12 Outlets - 14 Connection Groups) - All dimensions in mm.
