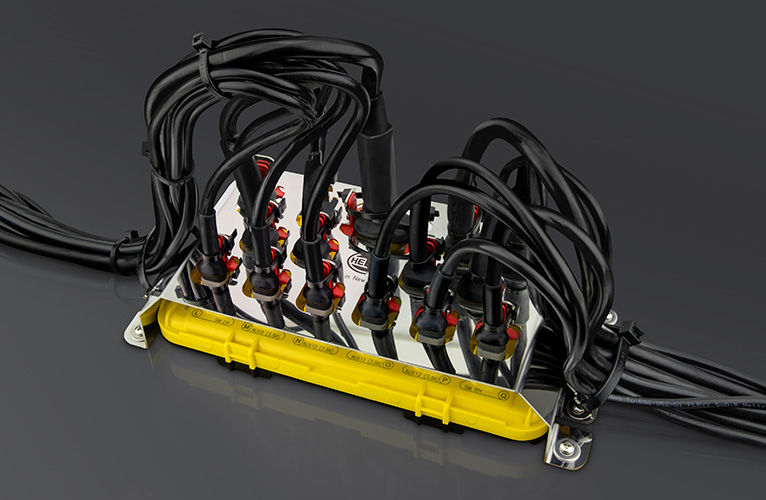

LED Lamp Distribution Box High Current Version

• Quick connectivity
• Easy trouble shooting
• Four high current outputs
• Suitable for trucks, heavy trailers
& special purpose vehicles

HELLA’s revolutionary LED Lamp Distribution Box has been upgraded to include four high current outputs to allow connection of higher power reversing lamps, work lamps and other equipment. The distribution box is designed with integrated DT connector sockets to provide a quick connect, easy trouble shooting solution for fitting LED lamps to heavy trailers and custom vehicles.

Internal electronics isolate individual circuits and reduce lamp outage to ensure a long life and reliable lamp operation. A completely sealed housing and durable materials provide protection against water, dust and high pressure/steam jet cleaning.

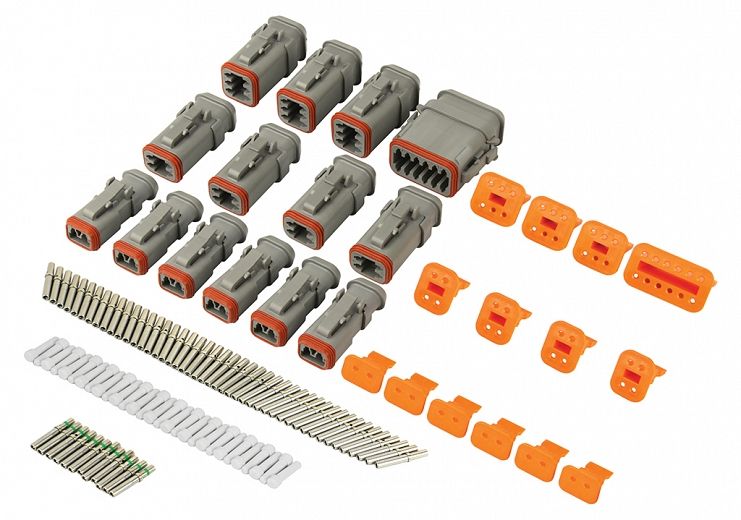

		Simple Installation and Quick Connectivity Utilising industry standard DT Connector Plugs, lamps can be quickly and easily connected to the LED Lamp Distribution Box. Versatile mounting clips can be placed in multiple positions to offer various mounting points.

		Completely Sealed – Non-serviceable The IP6K9K rated housing prevents any moisture, dust or other contaminants from affecting internal electronics. Because there are no serviceable parts or need to open the Distribution Box you can avoid potential damage to other circuits when replacing lamps.

		Faults Isolated to Single Circuit Each output circuit is individually protected meaning should you have a fault it will not cause a malfunction with other lamps. This facilitates fast fault finding by narrowing down the single circuit. This means faster repair times and less down time for the vehicle.

		Reduced Installation and Service Costs Because the unit is designed for quick and simple connectivity, costs are reduced and the installation can be done in a short time frame. Conventional junction boxes can be complicated and prone to faults when opened and serviced. When a fault occurs multiple lamps and circuits can be affected, resulting in a vehicle not being safe to operate. With the new HELLA LED Distribution Box, should a fault occur on a particular circuit, it will be isolated - meaning faster fault finding and repair, therefore the vehicle can be back up and operational in a much faster time frame. The costs of servicing the innovative LED Distribution Box can be minimal when you consider how costs can quickly mount. A call out after hours can cause labour costs which quickly accumulate. Possibly the largest cost of all is the vehicle not being operational and the roll-on effect this can have for driver hours and delivery deadlines.
		Auto-Reset Fuse Protection Should a fault occur; internal thermal fuse protection will isolate the fault to that single circuit. To reset the internal fuse simply remove power for a few seconds and the fuse will reset once cooled. After the fault is repaired and power reapplied the circuit will reset and be operational again.

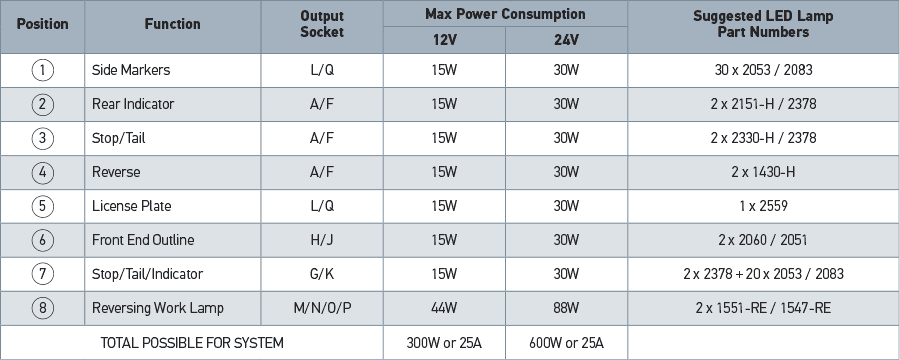

		PRODUCT SUITABILITY Designed for low voltage LED lamps, the LED Lamp Distribution Box has circuits that are individually protected to 1.3A or four to 3.8A each (@ 50°C). This diagram shows a suggested lighting configuration for a commercial trailer with a LED Lamp Distribution Box.

Rollover/tap the icons below for further details:

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.
