HELLA

DT Connector - 6 Pole Plug Kit

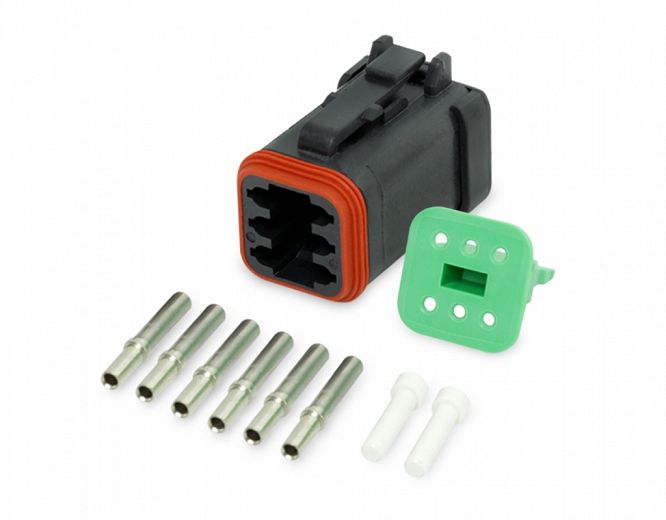

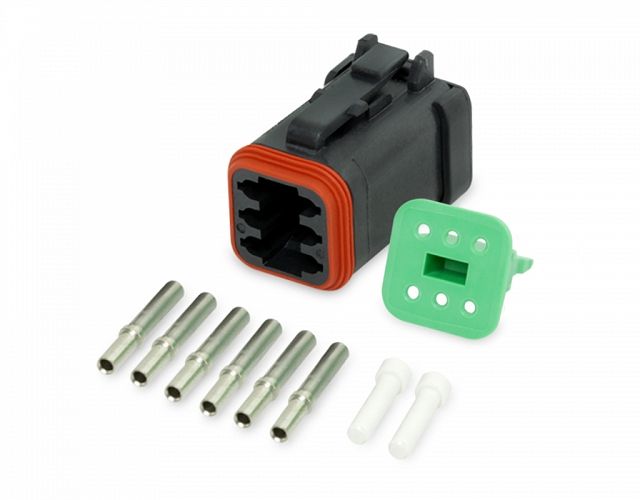

Environmentally sealed connectors rated at -55° to 125°C. Supplied with nickel plated copper alloy crimp contacts, locking wedges and large I.D. removable contacts, 1.9mm in diameter. Plug and socket kits come complete with terminals and seals. Supplied with 4 nickel plated copper alloy crimp contacts and 2 locking wedges.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

DT Connector - 6 Pole Plug Kit

PART NO: 8JA 959 736-801
Legacy PN: 4963P

Specifications

Maximum Load

13A - all contacts

Spare Parts

9.4960.01 Small I.D. female contact to suit plug
9.4960.03 Large I.D. female contact to suit plug
9.4960.05 Sealing plug

Note

Contacts are removable
Small I.D 1.6mm diameter
Large I.D 1.9mm diameter
