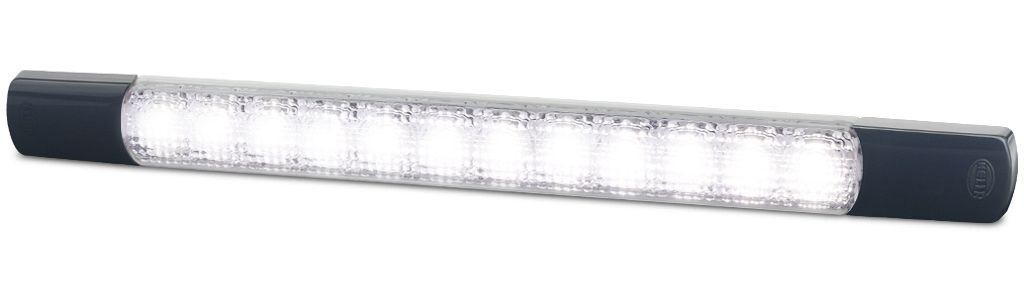

LED Interior/Exterior Awning Strip Lamp - Surface Mount - 15° Spread

With an ultra slim profile of only 11mm, a heavy duty Grilamid® lens and low power consumption of less than 3W, HELLA’s new LED Awning Lamp is ideal for interior and exterior use. It comes complete with charcoal as well as white end caps and can be accessorised with a matching 45° mounting bracket to angle the beam further.

Combining state of the art technology with sophisticated looks, this new low profile LED Awning Lamp is a lighting solution which will find many applications. The precision optic, with a 15° downwards spread pattern, is designed to cause minimum glare. True to HELLA’s Fit and Forget philosophy the LED Awning Lamp is hermetically sealed for long term reliability and offers complete protection against water and dust ingress.

Lamp and mounting bracket to be purchased separately.

• Ultra slim with a profile height of only 11mm.
• Grilamid® lens.
• Benchmark low power consumption.
• Reduced glare design to prevent eye strain.
• Fully sealed against dust and water ingress.
• Suitable for interior or exterior use.

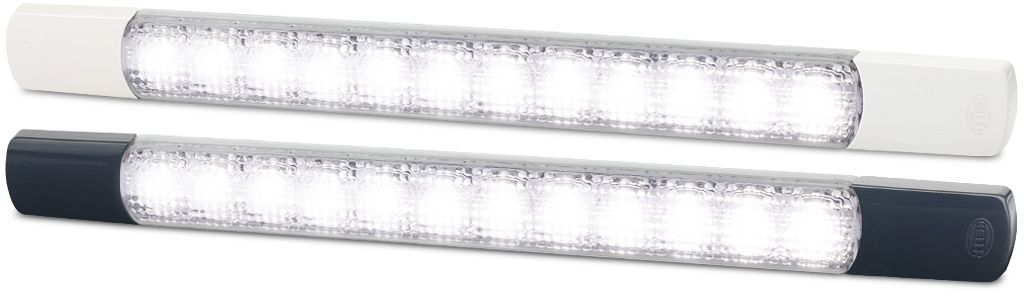

• Complete with charcoal as well as white end caps.
• Surface mount

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

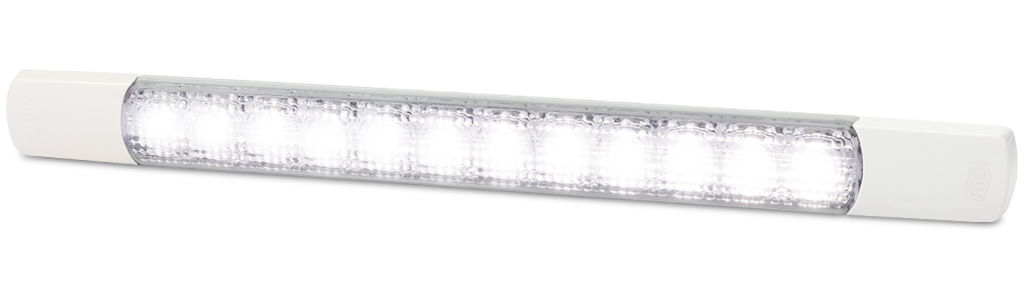

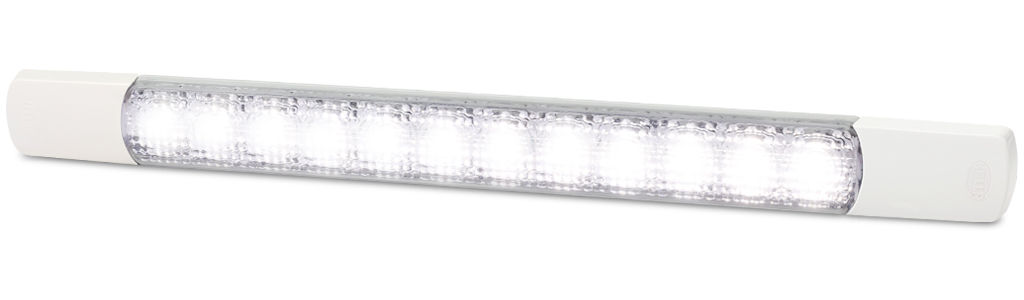

LED Interior/Exterior Surface Mount Awning Lamp 15° Spread - 12 Volt - White

LED Interior/Exterior Surface Mount Awning Lamp 15° Spread - 12 Volt - White

PART NO: 2JA 980 879-001
Legacy PN: 98087900

Add to favourites
LED Interior/Exterior Surface Mount Awning Lamp 15° Spread - 24 Volt - White

LED Interior/Exterior Surface Mount Awning Lamp 15° Spread - 24 Volt - White

PART NO: 2JA 980 879-101
Legacy PN: 98087910

Add to favourites

Specifications

Mounting

Two hole surface mount.

Power Consumption

<3W

Protection
Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of twin core cable.

Lens Material

High impact and chemical resistant Grilamid® lens

Spare Parts

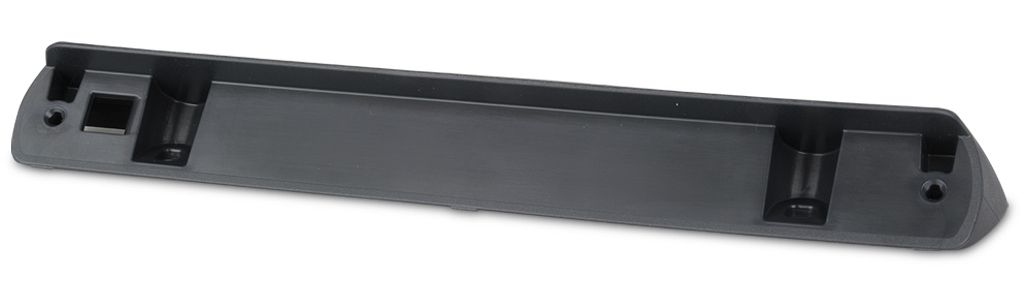

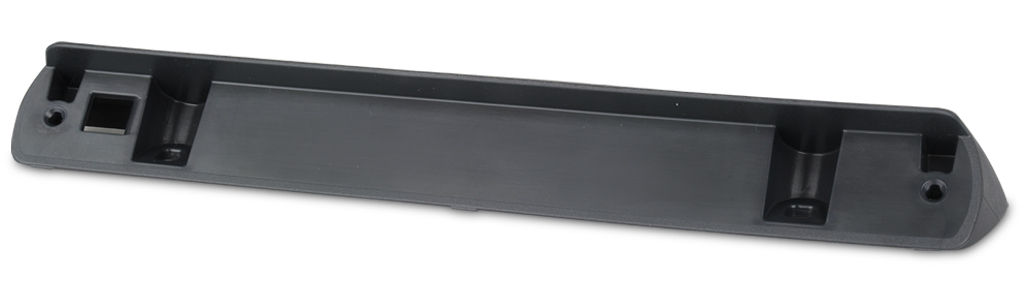

8HG 958 000-021 Mounting bracket 45° - Charcoal
8HG 958 000-011 Mounting bracket 45° - White
9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Note

Includes mounting screws, charcoal and white screw caps.

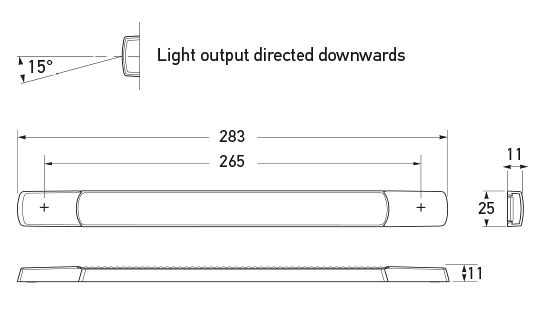

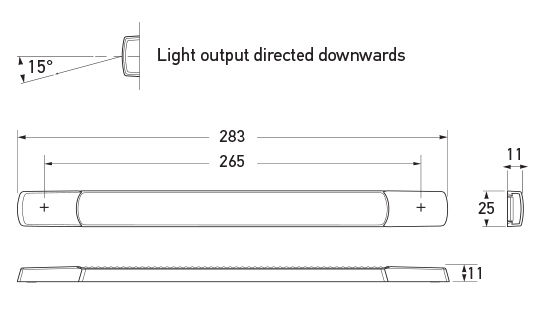

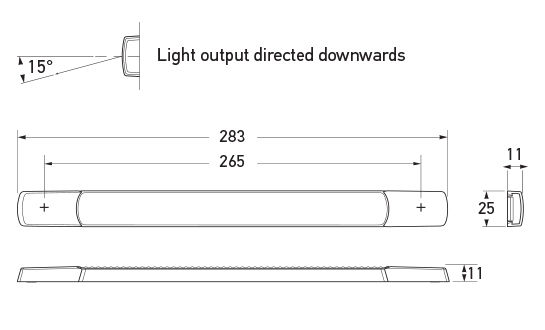

Outline

All dimensions in mm.
All dimensions in mm.

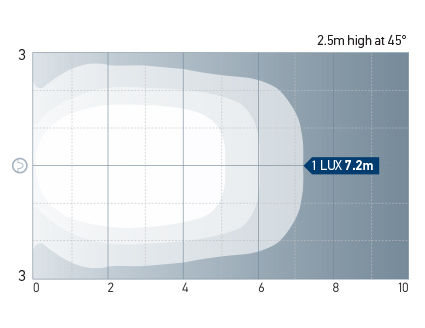

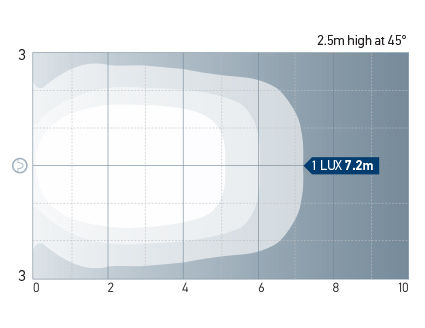

Light Output

Beam pattern/Light chart: LED Interior/Exterior Surface Mount Awning Lamp 15° Spread. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern/Light chart: LED Interior/Exterior Surface Mount Awning Lamp 15° Spread. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.

Documents

Document File Name File Size
  980879xx Instruction Sheet.pdf 1.31 MB
