HELLA

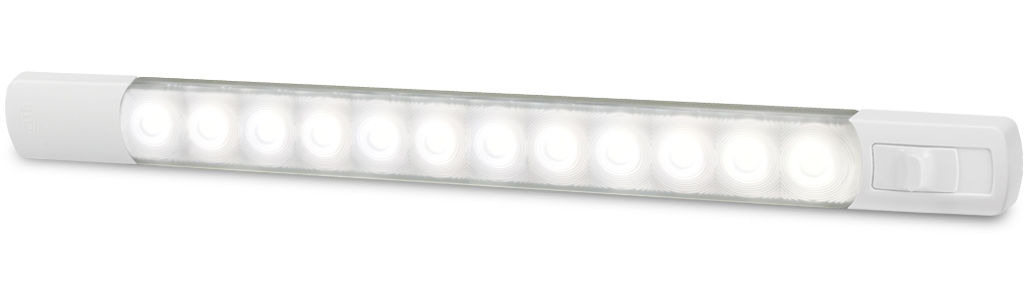

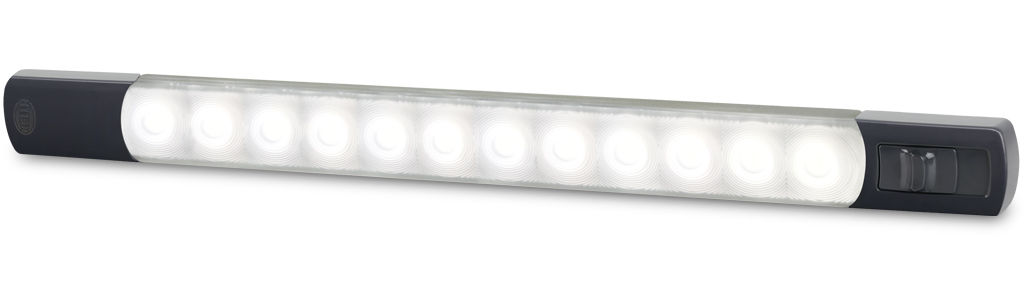

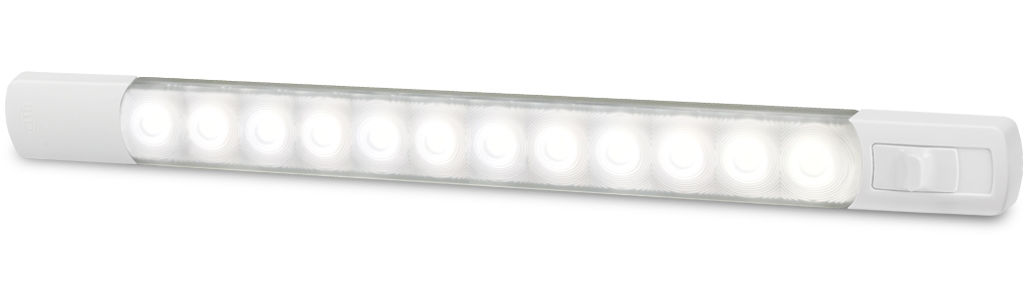

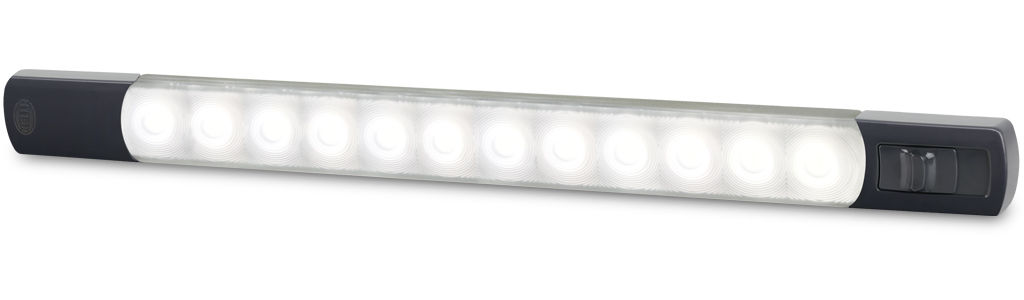

LED Interior/Exterior Strip Lamp with Switch - Surface Mount

Completely sealed, UV and corrosion resistant this easy to install lamp is ideal for interior and exterior applications. Offering exceptional light output and an ultra low power consumption of only 3W this lamp is an ideal replacement for bulky fluorescent lighting. Producing 250 lumens and offering a leading CRI (Colour Rending Index) rating this lamp will enhance the appearance of your vehicle and provide bright and accurate illumination.

The low profile design offers an effortless surface mount installation almost anywhere. Mounting screw in each end of the lamp body are covered by snap-on end caps for a clean and modern appearance.

Purpose designed for harsh environments, this surface mount strip lamp is salt water durable and thoroughly tested to withstand high levels of vibration, impact, and shock loads. The housing is precision manufactured from advanced UV resistant acrylic and is completely sealed making it ideal for interior and exterior, wet or dry applications.

• 250 lumen light output
• Low power consumption <3W
• Integrated sealed switch
• Low profile surface mount design
• High colour accuracy (CRI 85)

Features RFCommSafe™
To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

LED Interior/Exterior Strip Lamp with Switch - Surface Mount - 12 Volt - White Light

PART NO: 2JA 958 123-021
Legacy PN: 2652SW

LED Interior/Exterior Strip Lamp with Switch - Surface Mount - 24 Volt - White Light

PART NO: 2JA 958 123-421
Legacy PN: 2652SW24V

Specifications

Mounting

Surface mount.

Power Consumption

< 3W

Light Output

250 Lumen

Colour Temperature

5000K (White)

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

9.2652SW.09 1 white switch screw cap + 1 white standard screw cap
9.2652SW.10 1 charcoal switch screw cap + 1 charcoal standard screw cap
5XA 998 572-001 2 Group Light Dimmer

Note

Includes charcoal screw caps only.

Outline

All dimensions in mm.
All dimensions in mm.

Top
