HELLA

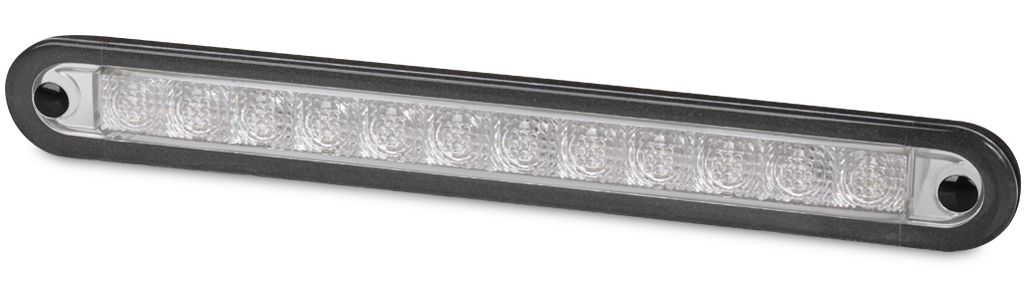

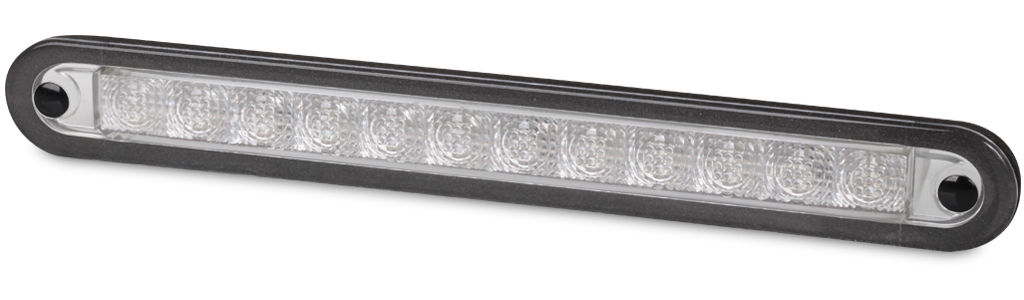

LED White Interior/Exterior Strip Lamp

White LED interior lamp with clear UV resistant acrylic lens. Ideal for steps, interior or exterior courtesy lighting and storage areas.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

LED White Interior/Exterior Strip Lamp - 12 Volt - White Light

PART NO: 2JA 959 073-011
Legacy PN: 264112V

LED White Interior/Exterior Strip Lamp - 24 Volt - White Light

PART NO: 2JA 959 073-211
Legacy PN: 264124V

Specifications

Mounting

Recess mount

Power Consumption

<2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

9GD 959 155-507 Gasket

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Illumination Chart (White Light) <br> P/Ns 2641-12V/2641-24V
Illumination Chart (White Light)
P/Ns 2641-12V/2641-24V

Documents

Document File Name File Size
  2641 2641HB Instruction Sheet.pdf 286.75 KB
