LED Courtesy Lamps - Narrow Rim Rectangular - Multivolt™

Narrow rim flush mount courtesy lamp with either white, warm white, green or blue LEDs.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

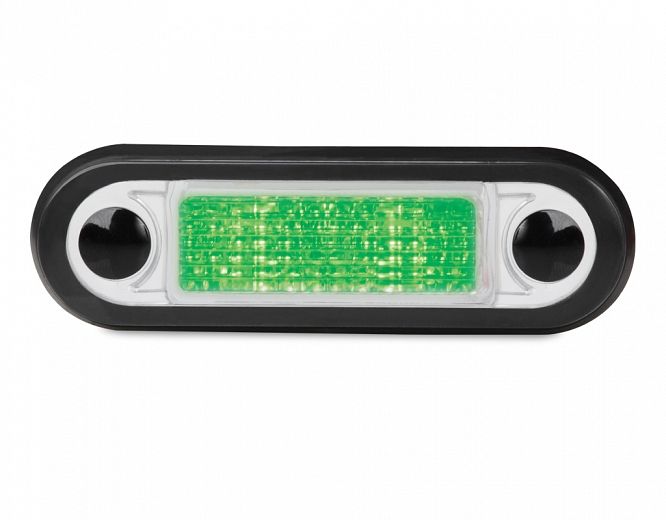

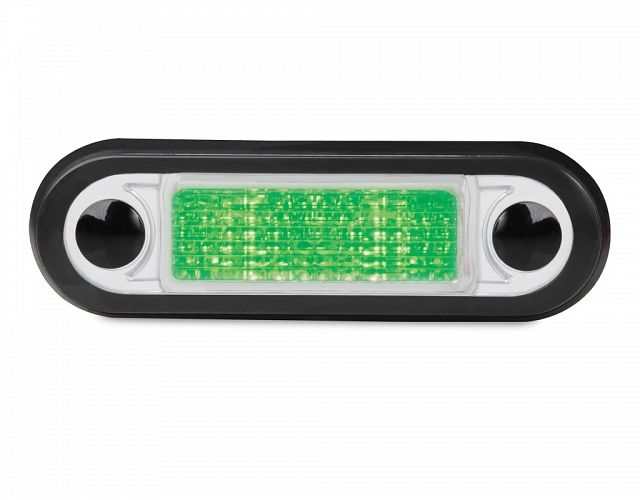

LED Narrow Rim Rectangular Courtesy Lamp - Green Light - Clear Lens - 12V/24V

PART NO: 2XT 959 510-157

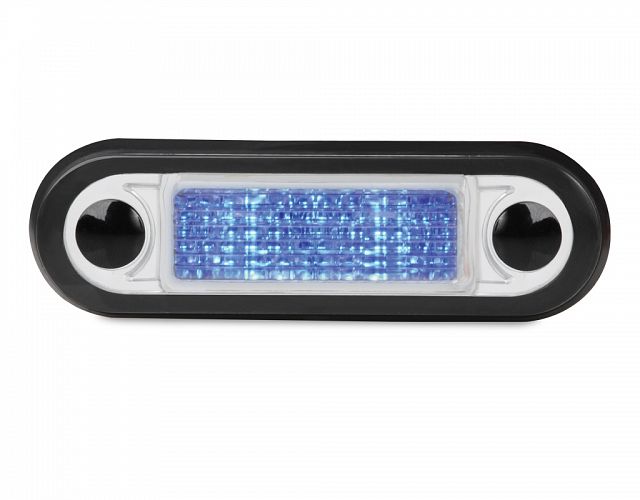

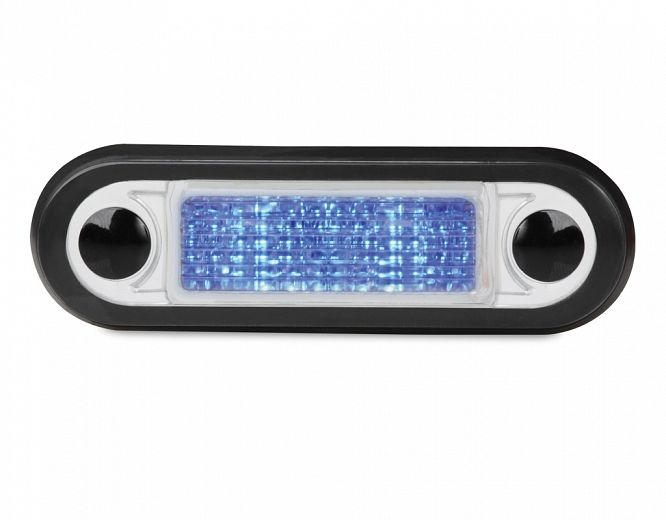

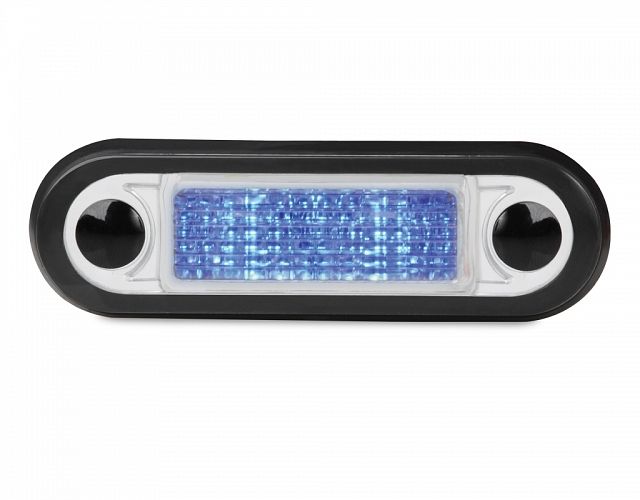

LED Narrow Rim Rectangular Courtesy Lamp - Blue Light - Clear Lens - 12V/24V

PART NO: 2XT 959 510-257

Specifications

Mounting

Two hole recess mount.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 120mm of cable.

Lens Material

PMMA

Spare Part

9GD 959 515-127 Flat Seal
9GD 959 515-207 Curved Seal

Approval Markings

E4 10R 04-2906  CE

Note

Approval markings are only applicable for Multivolt versions.

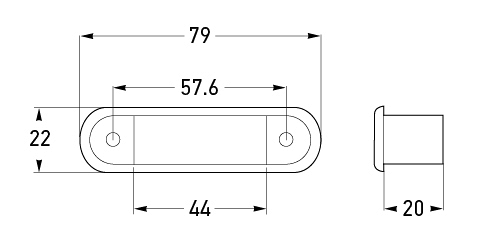

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XT 959 510-XX7 Narrow Rim Instruction Sheet.pdf 302.50 KB
