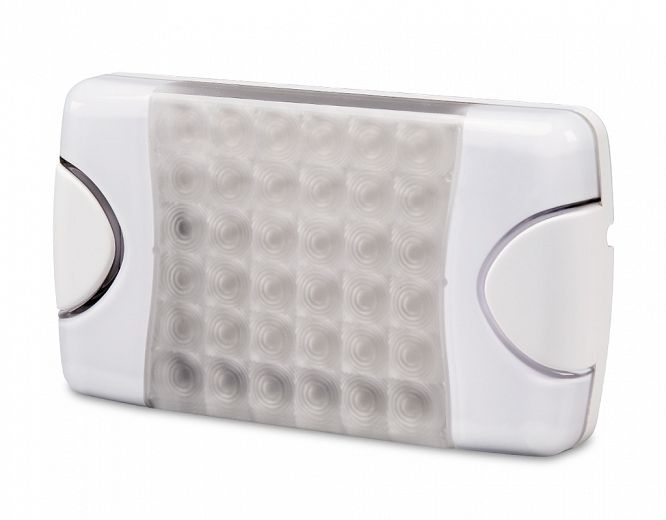

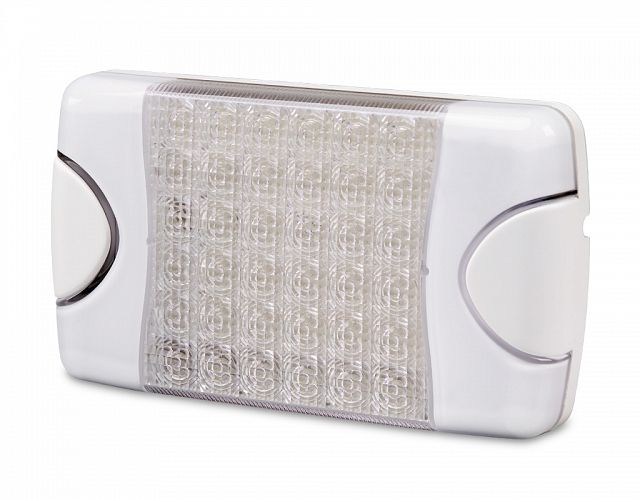

DuraLED® 36 White LED Lamp

Heavy Duty White LED interior lamp. Purposely designed for engine rooms, storage lockers, lazarettes and many heavy duty applications where reliability must not be compromised.

The lamps are shock and vibration proof and are fully sealed against dust and moisture ingress.





    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

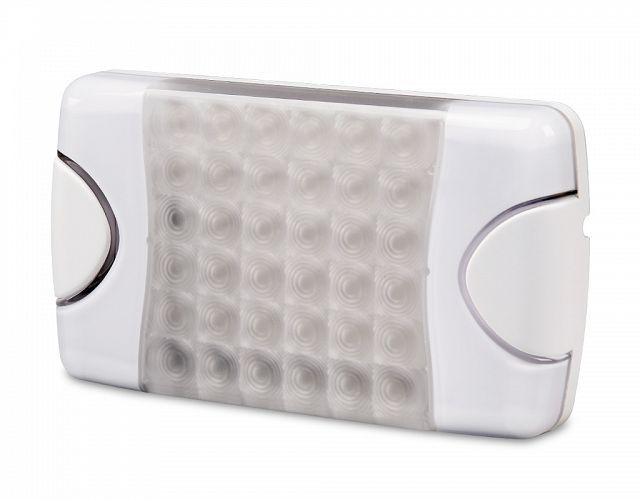

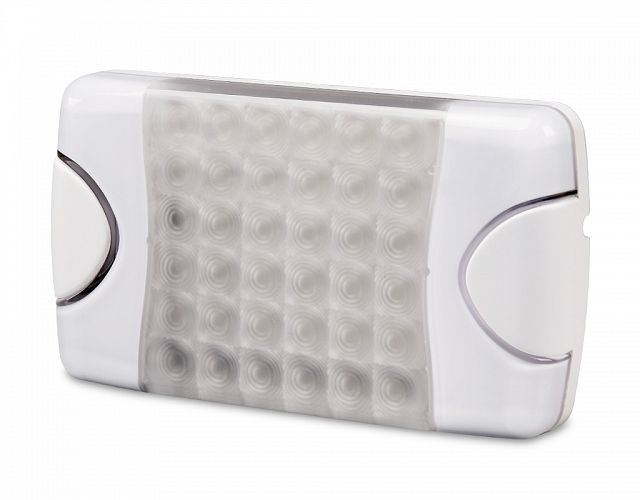

DuraLED® 36 White LED Lamp - Diffusion Lens

PART NO: 2JA 959 037-501

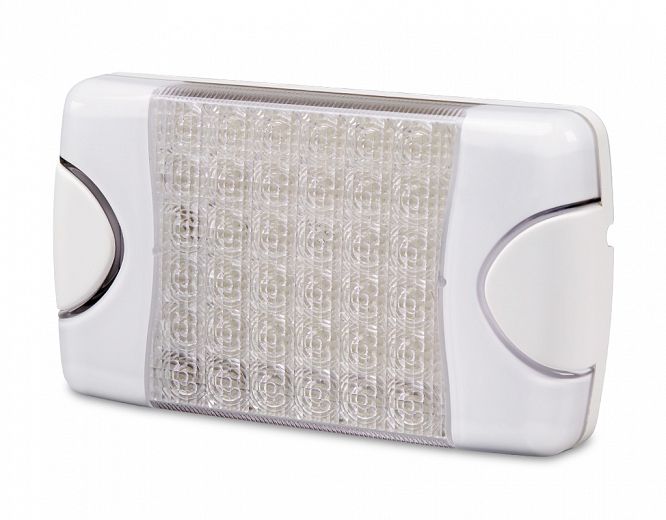

DuraLED® 36 White LED Lamp - Spread

PART NO: 2JA 959 037-511

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

<9W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of cable of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

CE CE

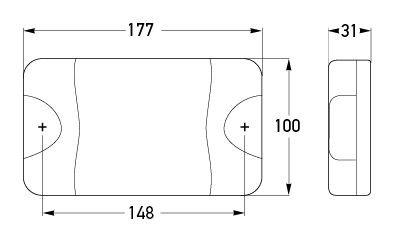

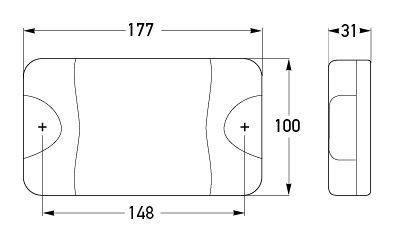

Outline

All dimensions in mm.
All dimensions in mm.

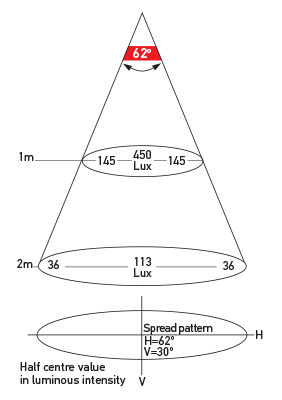

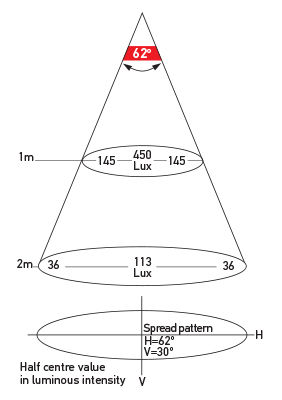

Light Output

Illumination chart: Diffused
Illumination chart: Diffused

Documents

Document File Name File Size
  2JA 959 037-5XX - Instruction Sheet.pdf 245.88 KB
