HELLA

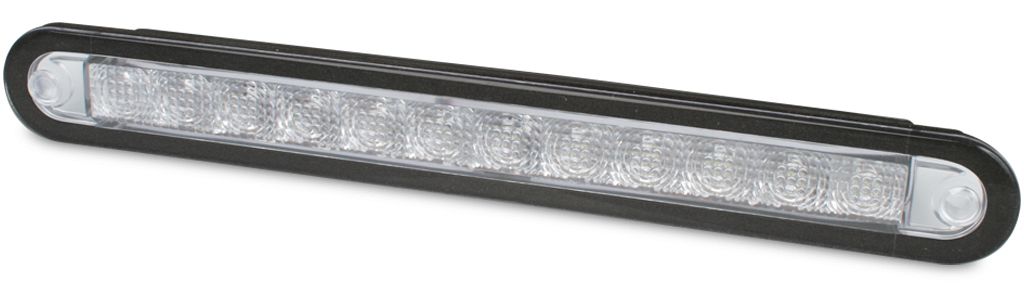

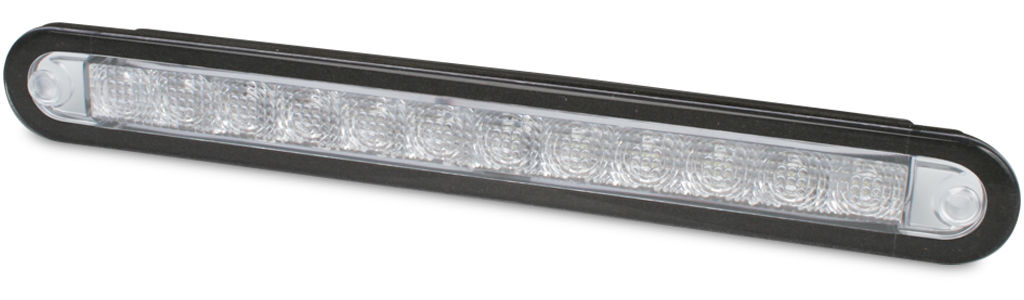

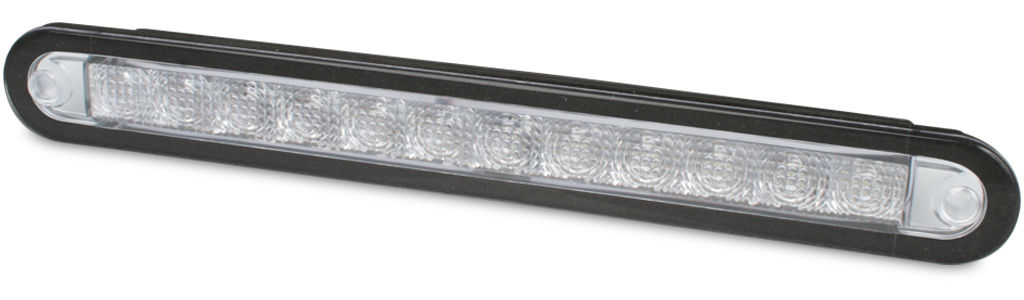

LED Interior Strip Lamp - Recess Mount

High brightness white LED lamp with clear lens. Ideal for steps, interior or exterior courtesy lighting and storage areas.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

LED Interior Strip Lamp - 12 Volt - White Light

PART NO: 2JA 959 076-501

LED Interior Strip Lamp - 12 Volt - White Light - Bulk Pack 10

PART NO: 2JA 959 076-507

LED Interior Strip Lamp - 24 Volt - White Light

PART NO: 2JA 959 076-601

LED Interior Strip Lamp - 24 Volt - White Light - Bulk Pack 10

PART NO: 2JA 959 076-607

Specifications

Mounting

Two hole recess mount.

Power Consumption

2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of cable.

Lens Material

PMMA

Spare Part

9GD 959 155-507 Seal

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2JA 959 076-X0X 2JA 959 073 X0X Instruction Sheet.pdf 286.75 KB
