DuraLED® Flush Mount Courtesy Lamp - Low Profile

Updated to feature a new all-white body design, the DuraLED® flush mount courtesy lamp series offer subtle ambient lighting to highlight specific areas in your vehicle.

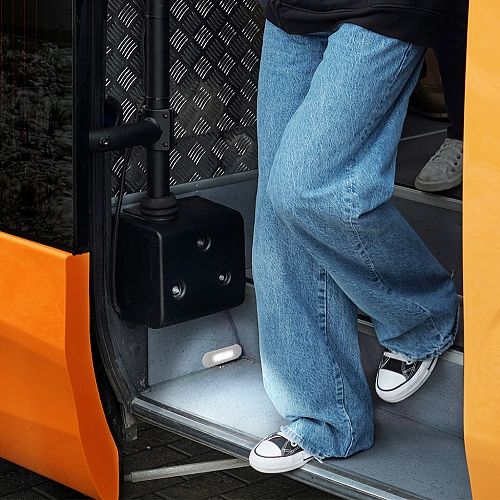

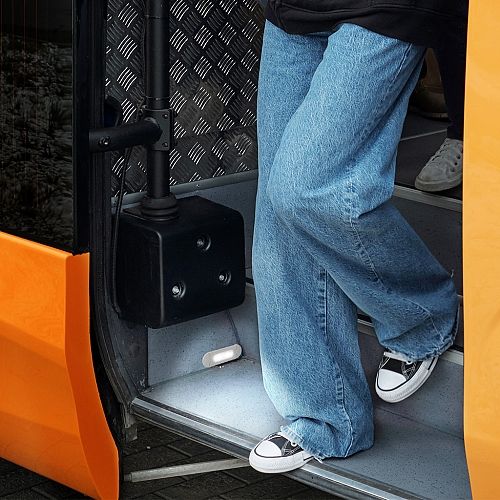

These lights are great for use during both day and night and are often installed in entrance steps and aisles, inside smaller lockers, and under eaves. Other applications might include stairs, toe kicks or storage areas.

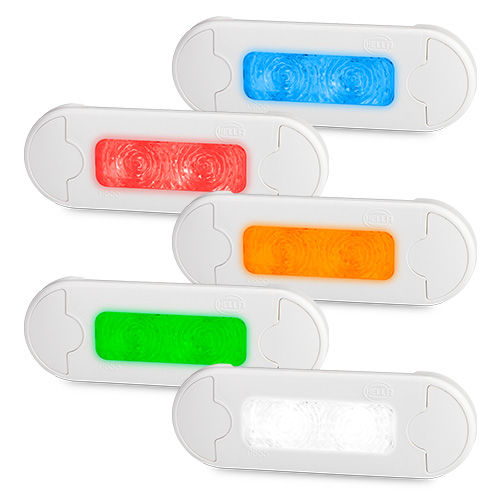

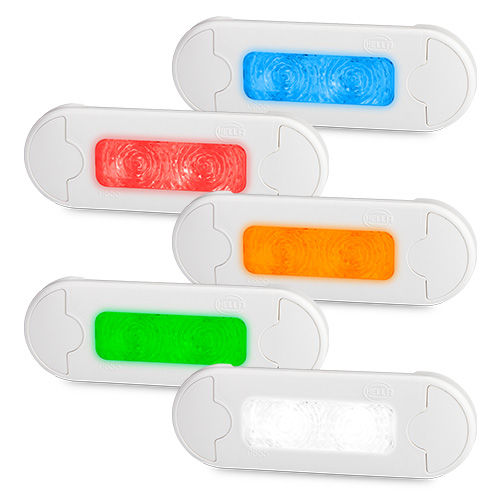

Colour options are available to match the interior lighting colour temperature of either cool or warm white, or alternatively, red or blue options are available for utility or to create more interesting looks. Amber and green models can also provide signalling functions.

Each lamp is completely sealed, highly shock, impact, and vibration resistant making them suitable for any demanding environment. Lamps can be installed on interiors or exteriors, and in wet or dry conditions.

Satin Chrome plated 316 stainless steel and black plastic trims are offered as optional accessories.

The flush mount courtesy range is designed and manufactured in New Zealand and supported by the DuraLED® lifetime warranty.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

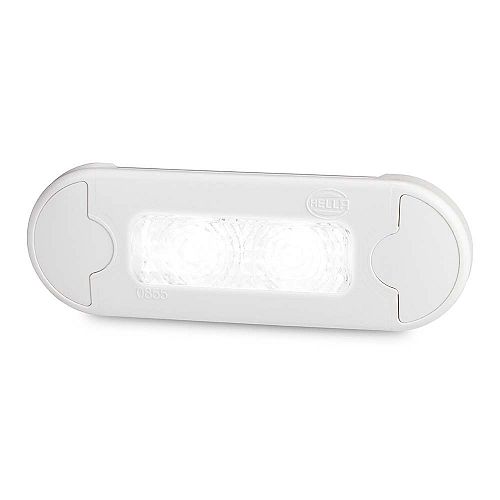

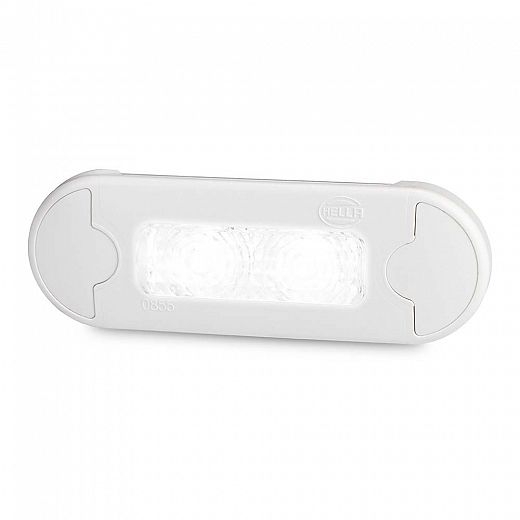

DuraLED® Flush Mount Courtesy Lamp - Low Profile - White

PART NO: 2XT 980 855-111

DuraLED® Flush Mount Courtesy Lamp - Low Profile - White (BULK)

PART NO: 2XT 980 855-117

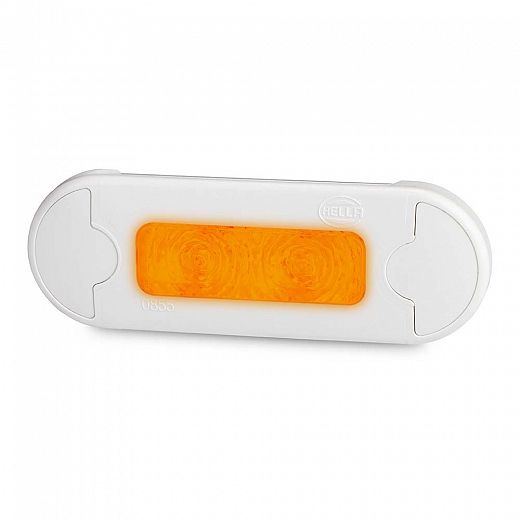

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Amber (BULK)

PART NO: 2XT 980 855-267

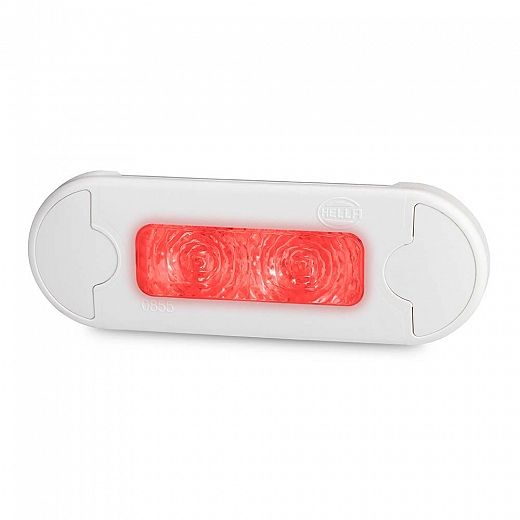

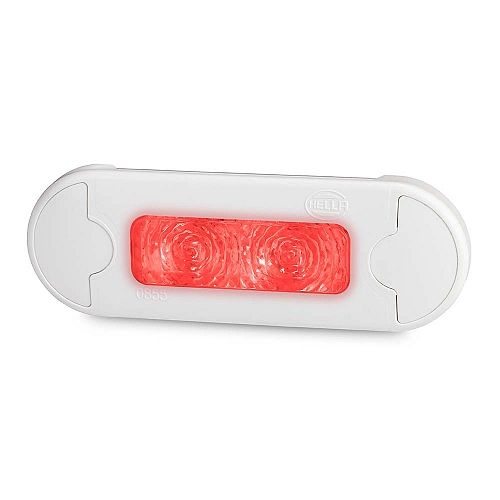

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Red (BULK)

PART NO: 2XT 980 855-347

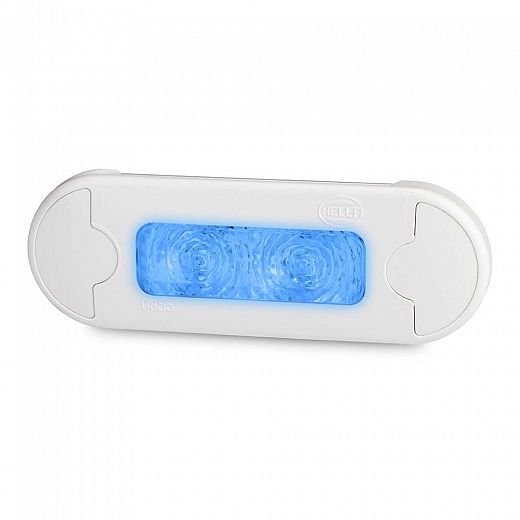

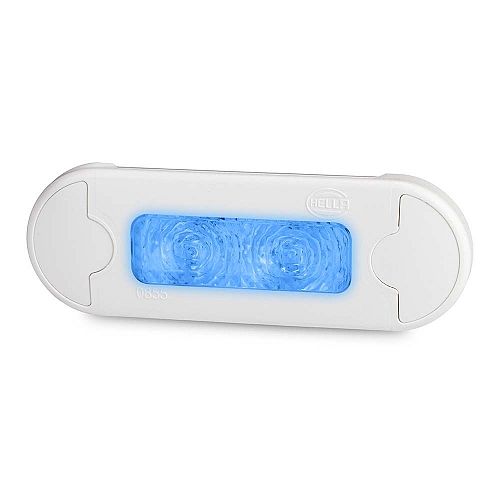

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Blue

PART NO: 2XT 980 855-401

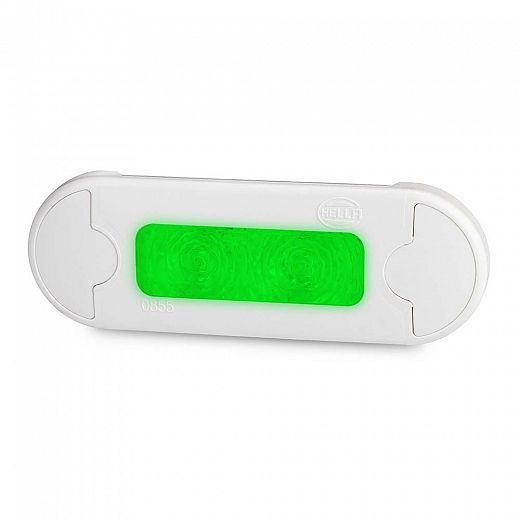

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Green (BULK)

PART NO: 2XT 980 855-517

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Two hole flush mount.

Voltage

Multivolt™ for optimum brightness in 12 and volt systems.

Power Consumption

0.5W ( <0.04A@12V / <0.02A@24V )

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.

Lens Material

Impact resistant acrylic

Accessories

9AB 959 685-001 Polished stainless steel rim
9AB 959 685-061 Satin chrome plated stainless steel rim
9HD 980 858-008 Screw caps, black
9HD 980 858-018 Screw caps, white
9GD 958 028-001 Seal curved 1x2 flush mount
9GD 980 867-507 Seal rectangular 1x2 flush mount

Compliance

CE  RCM CE

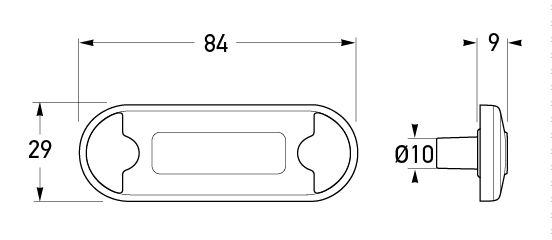

Outline

All dimensions in mm.
All dimensions in mm.

Top
